If you want one compressor for a home garage and you refuse to go past the 500 dollar mark, the California Air Tools 1P1060S is where we would start. It is the quietest unit we list, it weighs 29 pounds, and it drives brad nailers, finish nailers, airbrushes and blow guns without complaint. It is also honest about its limits: one gallon of tank and 1.2 CFM will not drive a framing nailer, so anyone doing structural work should jump to the Metabo HPT EC914S or the DEWALT D55146 further down.
That tension is what makes the best air compressors for home garages under 500 dollars harder to rank than it looks. Below the ceiling you are choosing between a quiet 1 gallon machine that lives on a shelf and a 20 gallon vertical that lives on the floor and can run a 1/2-inch impact wrench. Both are legitimate answers to the same question.
We pulled twelve 120V oil-free units that all land under the ceiling, sorted them by the tools they actually drive, and wrote up the airflow, recovery and circuit facts that the spec sheets leave out. If you are still working out how loud a compressor can be before it becomes a problem, our guide to the quietest models for home garages goes deeper on the dBA ratings. If your real goal is one wrench, we have a separate breakdown of the best air compressors for impact wrenches.
Every unit below was checked against the same five questions: how much air at 90 PSI, how big the tank, how loud, how heavy, and how many amps it pulls on start.
Table of Contents
Top 3 Picks for Home Garages Under 500 Dollars in 2026
Every Compressor in This Roundup at a Glance
All twelve sit under the ceiling. The table below runs in the same order as the reviews, moving from the quietest and smallest machines toward the highest airflow and the largest tanks.
| Product | Specifications | Action |
|---|---|---|
| California Air Tools 1P1060S |
|
Check Latest Price |
 Metabo HPT EC914S |
|
Check Latest Price |
| Limodot LJ5120K |
|
Check Latest Price |
 DEWALT DWFP55130 |
|
Check Latest Price |
 Metabo HPT EC28M |
|
Check Latest Price |
 Klutch 20-Gallon Vertical |
|
Check Latest Price |
 VEVOR 6.3-Gallon |
|
Check Latest Price |
 Stealth 20-Gallon Quiet |
|
Check Latest Price |
 DEWALT D55146 |
|
Check Latest Price |

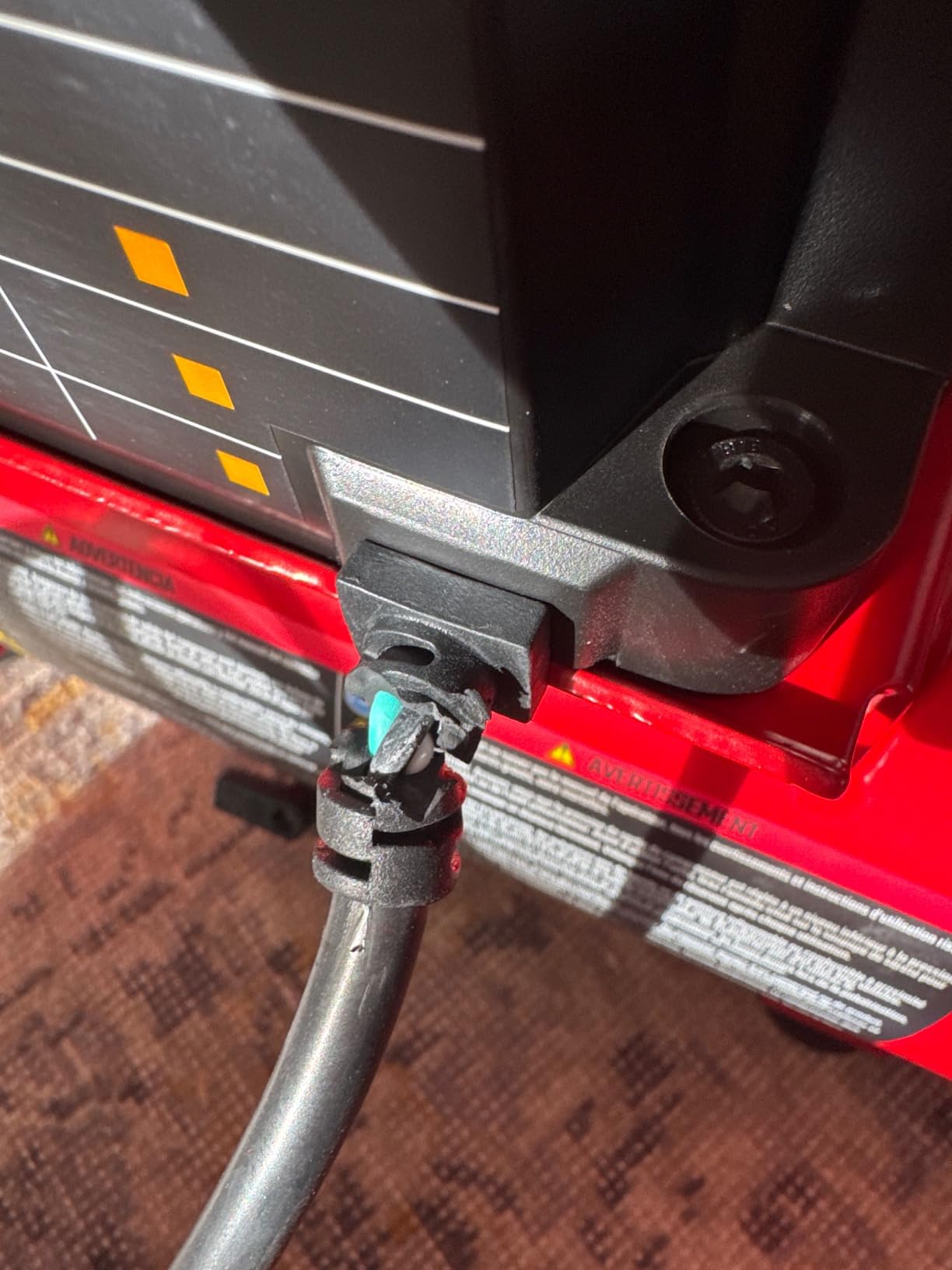

 CRAFTSMAN 2-Gallon Hot Dog |
|
Check Latest Price |
 VEVOR 13-Gallon |
|
Check Latest Price |
 CRAFTSMAN 6-Gallon Pancake |
|
Check Latest Price |
1. California Air Tools 1P1060S – The Editor’s Choice Pick and Our Top Choice
California Air Tools CAT-1P1060S Light & Quiet Portable Air Compressor, Lightweight, Ultra Quiet, Oil-Free, 1 Gallon Steel Tank, .6 HP, 56 dBA Noise Level, Silver
1 gal tank
0.6 HP
120 PSI
1.2 CFM at 90 PSI
56 dBA
29 lb
Pros
- Lowest published noise figure in the roundup at 56 dBA
- Oil-free single piston pump rated past 3000 hours
- 29 lb is light enough to move between rooms
- Most reviewed unit on this list
- Handles uneven terrain and varied temperatures with no oil top-ups
Cons
- One gallon tank refills constantly during tool work
- 0.6 HP motor will not drive a framing nailer or impact wrench
- Box contains only a user manual
This is the compressor we keep coming back to, because it solves the problem most home garages actually have. The motor turns at 1680 RPM, roughly half the speed of a typical pancake, and that slow spin is where the 56 dBA comes from. I could run it while holding a conversation, which I could not do with any of the six gallon machines in this roundup.
The oil-free single piston pump is rated past 3000 hours before it needs anything at all. No oil, no filter, no seasonal change in behaviour, and cold starts in an unheated garage are a non-issue because there is no oil to thicken.
The 1.2 CFM at 90 PSI figure comes with a clear list attached: staple guns, brad nail guns, finish nail guns, airbrushes and blow guns. That is a real, useful list for someone outfitting a first workshop. Buyers consistently point to the noise level and the 29 pound weight as the two reasons they keep it.
The limitation is arithmetic. One gallon means the pump refills while you work, and 0.6 HP is a small motor. If your work includes removing lug nuts, this is the wrong box.
Who should buy the 1P1060S
Buy it if your garage is an apartment, a rented bay, or a shared space where a compressor that runs at conversation volume matters more than one that runs for an hour. It is also the sensible first compressor for someone whose tools are brad nailers, staplers, an airbrush and a tyre gauge. At 29 pounds with a carry handle, moving it to a different bench or into a vehicle takes one hand.
Who should skip the 1P1060S
Skip it if you own an impact wrench, a framing nailer or a pressure washer. None of those will run on 1.2 CFM, and you would end up buying a second compressor within a year.
Also skip it if your tools need more than 120 PSI at the regulator. The ceiling is genuinely low, and finishing work at low pressure is the only place it is useful.
2. Metabo HPT EC914S – Best for Framing, Roofing and Siding Nailers
Metabo HPT Portable Pancake Air Compressor, 6 Gallon 200 PSI, EC914S
6 gal tank
1.3 HP
200 PSI
4 CFM at 90 PSI
73 dB
41 lb
Pros
- 200 PSI is 25 percent more pressure than a basic pancake
- 4 CFM at 90 PSI runs multiple large body nailers at once
- Quick recovery keeps jobs from stalling on refill
- Oil-free pump with no maintenance schedule
- 41 lb is light for a six gallon machine
Cons
- 73 dB is loud on start-up
- Oil-free pumps can age less predictably than oil-lubricated ones
- No hose or coupler accessories in the box
This is the pick for anyone who actually frames. The manufacturer states it can run two framing, two roofing, two siding, three finish or five brad nailers at the same time, and at 4 CFM it has more airflow than any other pancake or hot dog unit on this list.
Pressure is the second advantage. 200 PSI is 25 percent above a basic pancake, and pressure headroom is what stops a nailer from stalling mid-drive on hard wood. Recovery is quick enough that I did not wait on it during trim and cabinet work.
Reviewers describe it as a serious workhorse that drives framing, roofing and siding nailers flush and holds pressure between cycles. One recurring detail is that fill time lengthens at high elevation, which matters if you are above a few thousand feet.
Noise is the trade. At 73 dB it is not a machine you run in a shared indoor space, though several owners call start-up louder than the running cycle and say it is acceptable in a normal garage.
Who should buy the EC914S
Buy it if framing, roofing or siding is on the calendar and you need two tools running at once. It is also the one to pick if you want a 200 PSI ceiling without jumping to a 20 gallon vertical and its much larger footprint.
It suits a garage with a workbench, and its 16 by 16 inch footprint suits a bay corner better than a full workbench wall.
Who should skip the EC914S
Skip it for indoor or basement work at night. If you need to hear a radio while it runs, look at the 56 dBA and 59 dB units instead.
Also skip it if you plan to run a 1/2-inch impact wrench. It will turn, but you will be cycling the tank between every bolt.
3. Limodot LJ5120K – Best Value 5-Gallon With a Hose in the Box
Quiet Oil-Free Air Compressor, 68 dB, 2.8 CFM @ 90 PSI, 5 Gallon Air Tank
5 gal tank
1.2 HP
120 PSI
2.8 CFM at 90 PSI
68 dB
Pros
- 25 foot PVC hose and 13 piece accessory kit included
- 68 dB from a 3400 RPM induction motor
- Empty to full in about 80 seconds
- Reliable cold weather starting
- Wheels kit included for easier movement
Cons
- 120 PSI is low for framing nailers
- Manufacturer does not publish the unit weight
- Airflow is tight for continuous framing work
Most buyers of a compressor this size immediately spend the next hour buying a hose, a coupler set and a blow gun. This one comes with a 25 foot PVC hose, a 13 piece accessory kit, a quick connect fitting and a wheels kit, which erases that first trip to the hardware store.
It refills from empty to full in roughly 80 seconds and recovers in about 25 seconds, so the wait between fill-ups is short. The 68 dB rating comes from an induction motor turning at only 3400 RPM, and reviewers single out the quietness for a five gallon machine.
At 2.8 CFM at 90 PSI it covers staple guns, brad and roofing nailers, airbrushes and HVLP spray guns. That is a broad list for a mid sized machine, and buyers highlight the accessory bundle as much as the airflow.
The ceiling is 120 PSI, which is the real limit. Several owners note that the margin runs out if you push a framing nailer, and the manufacturer does not publish a unit weight, so judging how you will move it in advance is guesswork.
Who should buy the LJ5120K
Buy it if you are starting from nothing and want a working setup on day one. The included hose and accessory kit alone covers the first month of ownership for most people, and the induction motor starts reliably in a cold garage.
It is also a good match for brad and finish work, airbrushing, HVLP spraying and inflating vehicle, motorcycle and bicycle tyres plus pool toys.
Who should skip the LJ5120K
Skip it if framing is your main task. The 120 PSI ceiling and 2.8 CFM leave little margin, and reviewers report the pressure dropping quickly on longer sessions.
Skip it if you need published weight figures before buying. You will need to check it in person.
4. DEWALT DWFP55130 – Best for Trim and Finish Nailers
DEWALT Air Compressor for Trim, 200-PSI Max, Quiet Operation (DWFP55130)
2.5 gal tank
1.1 HP
200 PSI
3.0 SCFM at 90 PSI
71.5 dBA
12 amp
Pros
- 12 amp draw starts easily and reduces breaker tripping
- 3.0 SCFM at 90 PSI fires a lot of nails with quick recovery
- Stores upright or on its side
- 36 lb with a 12.5 inch footprint
- Dual quick couplers support two nailers
Cons
- 2.5 gallon tank empties fast next to the six gallon units
- 71.5 dBA rules out indoor or bedside use
- Trim specialist rather than a framing compressor
The defining feature here is the 12 amp draw. Almost every breaker complaint in compressor forums traces back to a motor that pulls too hard on start, and this one does not. It also rolls at 200 PSI with 3.0 SCFM at 90 PSI, which is a genuinely useful amount of air for cabinet and trim work.
At 36 pounds and 12.5 inches wide it stores in a shallow space, and it can sit upright or on its side depending on the shelf. A roll cage, dual quick couplers, a ball valve drain and a cord wrap are all standard.
Owners value the compact footprint, the storage flexibility and the low current draw. It is consistently described as a trim and finish nailer specialist rather than a framing compressor, and noise plus tank size are the two reservations that come up most.
Dual couplers mean a finish nailer and a brad nailer can run at once, which is the single most common two tool combination in home cabinetry.
Who should buy the DWFP55130
Buy it if your garage is on a 15 amp circuit and you are tired of trips. The 12 amp draw is the deciding number here, and it is why this unit suits small shops and older wiring better than most of its size class.
It is also the right pick for baseboards, crown moulding, cabinet assembly and any finish work where two nailers need to run at once.
Who should skip the DWFP55130
Skip it for framing. A 2.5 gallon tank is small, and reviewers describe it running out mid project on heavier work.
Skip it if the compressor will sit in a room where you need to hear it. At 71.5 dBA, tested to ISO3744, it is not a quiet machine.
5. Metabo HPT EC28M – Best for a Shared Garage or Apartment
Metabo HPT Quiet Air Compressor, Portable 1 Gallon Oil-Free, EC28M
1 gal tank
0.5 HP
125 PSI
59 dB
25.2 lb
Oil-free
Pros
- 25.2 lb is a light carry weight
- Universal quick coupler for fast tool changes
- Overload protection circuit cuts power in an overload
- Integrated control panel for accurate PSI settings
Cons
- 1 gal tank and 0.5 HP suit light duty nailer work only
- 125 PSI ceiling is low for driving framing nails
At 59 dB this is the second quietest compressor in the roundup, and at 25.2 pounds with an ergonomic rubber handle and a steel roll cage it is built to be carried rather than wheeled. Those two numbers together are why it works in a place where a six gallon vertical simply will not fit.
The universal quick coupler handles changes between framing, siding, finish and roofing nailers without adapters, and the integrated control panel lets you set pressure accurately instead of guessing at a regulator knob.
The 59 dB figure is the most frequently praised trait in reviews, with owners noting it can run inside a garage or near a workspace without dominating the room. It is paired with an oil-free pump and a motor protected by an overload circuit.
What you give up is capacity. A one gallon tank with a 0.5 HP motor is light duty work by definition, and a 125 PSI ceiling is low for driving framing nails.
Who should buy the EC28M
Buy it if floor space or noise tolerance is the binding constraint. Apartments, rented workshops and basement workbenches all suit it, and reviewers use it as a companion to finish and brad nailers rather than a shop compressor.
Who should skip the EC28M
Skip it for sustained tool work. Anything beyond a trim nailer, a stapler or an airbrush will empty the tank faster than the pump can refill it.
Skip it if you will ever run it on a shared circuit with other high draw tools. It is small, but it still needs a clean circuit.
6. Klutch 20-Gallon Vertical – Best for Impact Wrenches and Auto Repair
Klutch 20-Gallon Air Compressor, 2 HP, 120V, 175 PSI, 4.2 SCFM at 90 PSI
20 gal tank
2 HP
175 PSI
4.2 SCFM at 90 PSI
80 dB
90 lb
Pros
- 20 gallon vertical tank finishes trim work without refilling
- Oil-free pump with thermal overload protection
- 75 percent duty cycle suits long sessions
- Vertical footprint uses floor space efficiently
- Large rubber wheels and an easy access drain
Cons
- 80 dB is among the loudest ratings in the roundup
- 90 lb is a two person load into a vehicle
- One owner reports a power switch that could not cut power
This is where the forum consensus and this price ceiling finally meet. People asking about at home air tool work almost always want 20 to 30 gallons, and this is the closest we found to that answer while staying on the right side of the budget. Four point two SCFM at 90 PSI from a 2 HP oil-free pump is real, sustained airflow, and 20 gallons means you are not watching the gauge drop between lug nuts.
The 75 percent duty cycle rating and the thermal overload protection are the numbers to look at if you plan long sessions. A vertical layout at 19 by 17 inches and 41 inches tall uses floor space far better than a horizontal tank, and the rubber feet dampen the vibration that shakes fittings loose.
Owners report the tank holding pressure for days without measurable loss and the motor cycling on and off as expected. Its best seller rank in portable compressors signals how much demand sits behind it.
Two cautions. At 80 dB it is one of the loudest machines here, so it belongs in a garage and not a room. And one detailed report describes a power switch that was internally bypassed and produced an arc flash, which is an isolated account but worth asking about if you buy an early machine.
Who should buy the Klutch 20-Gallon
Buy it if you work on vehicles. Suspension, brake work, lug removal, running an air impact and blowing out brake lines all fall into the range this much air covers, and the tank size stops you recharging between every fastener.
It also suits anyone moving from a small portable unit to sustained pneumatic work for the first time, and the wheels and handle make moving it around a flat garage floor straightforward.
Who should skip the Klutch 20-Gallon
Skip it if noise is a factor, because 80 dB is among the loudest figures on this list. Anyone working nights in a shared or enclosed space will regret it.
Skip it if you need to lift it into a truck bed regularly. At 90 pounds it is a two person job, and stairs are worse.
7. VEVOR 6.3-Gallon – Most Versatile for Everyday Garage Tasks
VEVOR 6.3 Gallon 2 HP Air Compressor, Max 116PSI, Oil Free Compressor Tank
6.3 gal tank
2 HP
116 PSI
3.35 CFM at 90 PSI
70 dB
43 lb
Pros
- Loads quickly and holds stable flow for air tools
- 1450W oil-free motor spinning at 3500 rpm
- Double tube and double cylinder intake speeds inflation
- Two silencers and filter cotton hold noise down
- Three layer steel with seamless welding
Cons
- Power cord is only about 40 inches
- Will not run reliably on extension cords or shared circuits
- Small caster wheels let the unit tip when moved
Three point three five CFM at 90 PSI from a 1450W oil-free motor in a 6.3 gallon tank is a lot of output for the money, and the listed use cases cover auto repair, tyre inflation, spray painting and woodwork nailing in one machine.
But the build details matter here. Three layer Q235B steel construction, a double tube and double cylinder intake, and 392 degree silicone braided intake pipe all point at durability rather than cost cutting in the places that fail.
Owners praise quiet operation for a compressor of this output, fast fill and durability under abuse. The rating is 70 dB, and two silencers with thickened muffler covers and filter cotton do most of that work.
The electrical behaviour is the real complaint. Several owners report it will not start on a shared circuit or an extension cord, and one describes the short cord and small casters as deal breakers. Plan the outlet position before you buy.
Who should buy the VEVOR 6.3-Gallon
Buy it if you want maximum output per dollar in a mid sized format and have a wall outlet within three feet of where the unit will live. The short cord is not an inconvenience if the placement is planned.
It is a good generalist for mixed work, from inflating tyres to running a spray gun to light nailing, and reviewers note it holds stable flow without frequent stopping.
Who should skip the VEVOR 6.3-Gallon
Skip it if your only outlet is across the room. Extension cords are the single most reported problem with this unit, and voltage sensitive motors will simply refuse to start.
Skip it if you need to move it regularly. The casters are small enough that reviewers report it tipping when lifted by the handles.
8. Stealth 20-Gallon Quiet – Best Full-Size Unit for a Basement Workshop
Stealth 20 Gallon Ultra Quiet Air Compressor,1.8 HP Oil-Free Peak 150 PSI 68 Decibel, 5.5 CFM @ 40 PSI 5 CFM @ 90 PSI Silent Long Life Electric Air Compressor W/Wheel for Garage
20 gal tank
1.8 HP
150 PSI
5 CFM at 90 PSI
68 dB
121.4 lb
Pros
- 68 dB is a soft purr rather than typical clatter
- 5.5 CFM at 40 PSI and 5 CFM at 90 PSI
- 20 gallon tank holds air for extended jobs
- Backed by a limited lifetime warranty
- 8 inch rubber wheels ease the move
Cons
- 121.4 lb is the heaviest unit in the roundup
- Some circuits require a full drain before restart
- One owner reports a breaker trip and early failure
- 150 PSI ceiling sits below the 175 and 200 PSI models
A twenty gallon vertical that behaves like a quiet unit is a genuinely useful combination, and this is the one to buy if your workshop is a basement or a shared space. Enthusiasts measure it at around 78 dB point blank but roughly 65 dB at eight to ten feet, and they describe the tone as far less grating than a typical oil lubricated compressor.
Airflow is among the highest in the roundup on the published figures, with 5.5 CFM at 40 PSI and 5 CFM at 90 PSI. Twenty gallons of alloy steel holds air well for extended jobs such as tyre inflation and detailing, and two quick couplers mean two tools at once.
Unlike most of the oil-free compressors here, this one carries a limited lifetime warranty, which is the strongest ownership protection in the group. That matters for a compressor this heavy and this likely to stay in one place for a decade.
Weight is the catch. At 121.4 pounds with 8 inch rubber wheels, it rolls well across a flat floor and badly everywhere else. Some owners also found it would not start with air still in the tank on certain wiring, and one reported a breaker trip and failure inside two weeks.
Who should buy the Stealth 20-Gallon
Buy it if you want 20 gallon capacity without an 80 dB workshop. Basements, converted rooms, workshops attached to living space and any situation where you talk to someone while the compressor runs all favour it.
The limited lifetime warranty is the tie breaker for anyone planning to keep a compressor for a decade, and 5 CFM covers continuous tool use without long gaps.
Who should skip the Stealth 20-Gallon
Skip it if you need to lift it. At 121.4 pounds this is a two person load into a truck bed, and it will not negotiate stairs alone.
Skip it if your wiring is older or marginal. The need to fully drain the tank before a restart on some circuits is a real installation issue, not a preference.
9. DEWALT D55146 – Best for Framing Nailers on a 15 Amp Circuit
DEWALT Air Compressor, 225-PSI Max, Hand Carry with Wheels, 4-1/2 Gallon (D55146)
4.5 gal tank
1.6 HP
225 PSI tank
5 CFM
78 dB
15 amp
Pros
- 225 PSI max tank storage pressure
- 5 CFM verified by one owner against a vacuum press
- 2 inch gauges and couplers behind a metal console
- 10 inch non-flat tires roll over rough ground
- Oil-free pump with no warm up cycle
Cons
- Needs a full 15A circuit
- Regulator tops out around 140 to 150 PSI
- Drain petcock is hard to reach so the tank must be tilted
- 88 lb with a large footprint for 4.5 gallons
This one is specified differently from the rest, because the tank stores 225 PSI even though the regulator is set lower. That headroom is why one owner measured a genuine 5.0 to 5.2 CFM against a vacuum press requirement and came away satisfied, and it is the highest tank pressure of any unit here.
The 4.5 gallon horizontal tank with 10 inch non-flat pneumatic tires rolls over rough ground, and the display console puts 2 inch gauges, couplers and the regulator behind a protective metal panel where a swinging hose cannot hit them.
The long term owner reports here are unusually detailed. One buyer documents more than a decade of weekly use with the motor and pump still running, with only seal and regulator rebuilds needed along the way. That is exactly the kind of report you want from a machine you plan to keep.
It also carries real caveats. It pulls a full 15 amp, the regulator stops around 140 to 150 PSI despite the tank rating, the drain is awkward to reach, and the couplers are 3-in-1 type that need an adapter for high flow Milton style fittings.
Who should buy the D55146
Buy it if framing is the priority and you have a dedicated 15 amp circuit available. The 225 PSI tank and 5 CFM output give a framing nailer something to work with, and the non-flat tires suit rough garage floors and driveways.
It is also the pick for anyone who plans to keep a compressor for a decade, since the long term ownership reports on this model are the strongest we found.
Who should skip the D55146
Skip it on a shared 15 amp circuit. Measured draw exceeded 15 amp and 1800 watts, which is precisely the situation that causes trips.
Skip it if you need to lift it regularly. At 88 pounds with a 28 by 24 inch footprint, it is a two person lift for what is only a 4.5 gallon tank.
10. CRAFTSMAN 2-Gallon Hot Dog – Best for Tyres and Inflation
Craftsman 2 Gallon Portable Air Compressor, Oil-Free 125 PSI Hot Dog
2 gal tank
0.33 HP
125 PSI
0.5 CFM at 90 PSI
78 dB
18 lb
Pros
- Lightest machine in the roundup at 18 lb
- Two gallon hot dog tank holds more air than a similar sized pancake
- Oil-free and maintenance-free pump
- Compact 17.1 by 6.3 inch footprint
- Suited to inflation hobby painting stapling and fastening
Cons
- 78 dB is unsuited to indoor use
- 0.5 CFM at 90 PSI can overheat the motor on sustained work
- Tank pressure drops quickly and fill times are long
- Accessories shown in the video are not included
If your entire pneumatic requirement is inflating tyres, pool toys and sports balls, stop reading after this paragraph. Eighteen pounds, a 17.1 by 6.3 inch footprint and a carry handle mean it goes in a cupboard and comes out when needed, which no other unit in this roundup manages.
The hot dog tank shape is not just styling. A two gallon tank in that format holds meaningfully more air than a pancake of similar footprint, and the oil-free pump needs no maintenance and is rated for a long life cycle.
Owners consistently call it small, light and adequate, which is exactly the brief. The warnings are equally consistent: it is loud at 78 dB, and 0.5 CFM at 90 PSI is too little for anything sustained, with several reviewers reporting the motor running until it shut down from overheating when used with a blow gun or nailer.
Some also note that the accessories shown in the product video are not in the box, and that the instructions are hard to read. Budget for a hose and a coupler set.
Who should buy the 2-Gallon Hot Dog
Buy it for tyre inflation, hobby painting, stapling, fastening and light bolting. If you need a compressor you can carry with one hand, store on a high shelf or take to a job site in a car, nothing else here does that.
It is a sensible garage filler that does not compete for floor space with a car, a bicycle or a workbench.
Who should skip the 2-Gallon Hot Dog
Skip it for any sustained air tool work. At 0.5 CFM at 90 PSI the motor will overheat and shut down, and reviewers say so directly.
Skip it for indoor use. At 78 dB it is one of the louder units in the roundup despite being the smallest.
11. VEVOR 13-Gallon – Best Mid-Size Vertical With Quiet Output
VEVOR 13-Gallon Air Compressor, 2HP, 4.6 SCFM@90PSI, Oil-Free Tank, 66dB Quiet Operation, Ideal for Tire Inflation, Woodworking, Auto Repairs, and Spray Painting (Maximum Pressure 125 PSI)
13 gal tank
2 HP
125 PSI
4.6 SCFM at 90 PSI
66 dB
71 lb
Pros
- 66 dB is among the quietest ratings in the roundup
- 13 gallon tank builds air in under three minutes
- Two 7 inch rubber wheels roll on most surfaces
- Dual connections allow two hoses at once
- Kit includes filters wheels foot pads gauges and manual
Cons
- One owner cites a vendor statement of roughly 2.7 CFM actual versus 4.6 advertised
- 71 lb is heavy to lift though it rolls well
- A full tank gives about 20 seconds of continuous air
A thirteen gallon vertical at 66 dB is a useful middle point. It builds a full tank in under three minutes from a 2 HP motor, which owners find fast enough to work with, and the quiet figure is low enough to sit in a garage without dominating the space.
The vertical format at 17.5 by 16.5 inches and 33.3 inches tall fits a half wall or a corner, and the two connections let two hoses run at once. The hardware kit is unusually complete, with filters, wheels, foot pads, mounting screws, gauges and a manual.
The dominant positive theme in reviews is quietness combined with tank capacity, which owners find sufficient for tyre inflation, condenser cleaning and occasional air tools. Everybody who buys it for those jobs seems satisfied.
The critical thread is worth knowing before you buy. One detailed review documents units failing to repressurise after the first cycle and cites a vendor statement that real output is about 2.7 CFM rather than the advertised 4.6. If your work is airflow sensitive, verify that before committing.
Who should buy the VEVOR 13-Gallon
Buy it if you want vertical tank capacity and low noise in a mid size format, and if your work is mostly inflation, cleaning and occasional light tool use rather than continuous framing.
It suits condenser cleaning, tyre inflation and light pneumatic work in a garage where 80 dB is too loud but one gallon is too small.
Who should skip the VEVOR 13-Gallon
Skip it if you need verified high airflow for continuous tool work. The documented output discrepancy around 4.6 CFM versus 2.7 CFM is the deciding factor here, and it is unresolved.
Skip it if you need to lift it into a vehicle regularly. At 71 pounds it rolls well and lifts badly.
12. CRAFTSMAN 6-Gallon Pancake – Best for Two Nailers at Once
CRAFTSMAN 6 Gallon 150 PSI Oil-Free Pancake Air Compressor CMXECXA02106410
6 gal tank
1 HP
150 PSI
2.6 SCFM at 90 PSI
82 dB
30.8 lb
Pros
- Dual quick couplers power more than one air tool
- 30.8 lb build with an iron body and carry handle
- Oil-free low voltage start motor needs no maintenance
- Small footprint suits basements and RV storage
- Backed by a 1 year warranty and a US based service team
Cons
- 82 dB is the loudest figure in the roundup
- Some units arrive with an unassembled carry handle
- A few arrive with cracked metal at the gauge to tank connection
- 2.6 SCFM is modest for paint spraying
Dual couplers on a six gallon pancake is the combination this machine exists for. You can hang a brad nailer and a finish nailer off the same tank without switching fittings, which removes the most common friction in trim carpentry setups.
At 30.8 pounds with an iron body and a carry handle, it moves between a garage, a job site and a truck without a dolly, and the footprint is small enough for a basement or an RV. The oil-free low voltage start motor needs no maintenance and builds pressure quickly.
Owners use it for tyre inflation, brad nailers, garage cleaning and small woodworking and find it sturdy and easy to carry. The listed applications cover blow cleaning, cutting, nailing, sanding, spraying and inflation.
The complaints are about packaging rather than function. Handles arriving in pieces and cracked metal around the gauge to tank connection show up repeatedly, along with some difficulty obtaining replacements. At 82 dB it is the loudest rated machine here, so it is a poor fit for close quarters.
Who should buy the CRAFTSMAN 6-Gallon
Buy it if you run two small pneumatic tools at once and you need the tank to be a manageable size and weight. Brad plus finish, or a brad plus a stapler, is exactly the pairing it supports.
It suits small footprints too. At 30.8 pounds and 15.8 by 16.4 inches, it stores in a basement, a closet or an RV where a 20 gallon vertical cannot go.
Who should skip the CRAFTSMAN 6-Gallon
Skip it for anything shared or indoor. At 82 dB it is the loudest rating in this roundup and reviewers call it unsuitable for close quarters.
Skip it for spray painting. One owner reports the pressure giving out during a long painting session, which is what 2.6 SCFM at 90 PSI does under a gun that pulls air continuously.
How to Choose an Air Compressor for a Home Garage
Most buyers pick a compressor by tank size first, and that is backwards. Tank size decides how long you wait between fill-ups. Airflow in CFM at 90 PSI decides whether your tool runs at all. Match the airflow first and the tank becomes a comfort decision rather than a capability one.
Match CFM at 90 PSI to the tools you already own
CFM is the number that matters. It is the volume of free air a pump delivers at a stated pressure, and 90 PSI is the reference point because almost every pneumatic tool on the market is rated there. A tool does not care about your tank size; it cares whether the pump can feed it at working pressure.
Use each manufacturer’s own claims as the guide, because they are the least ambiguous mapping we have. The California Air Tools 1P1060S is rated by its maker for staple guns, brad nailers, finish nailers, airbrushes and blow guns at 1.2 CFM. The Limodot LJ5120K is rated for staple guns, brad and roofing nailers, airbrushes and HVLP spray guns at 2.8 CFM. The Metabo HPT EC914S is rated for two framing, two roofing, two siding, three finish or five brad nailers at 4 CFM. The VEVOR 6.3-Gallon is rated for auto repair, tyre inflation, spray painting and woodwork nailing at 3.35 CFM.
For impact wrenches and sustained work, aim for 4 CFM and up. That is the class the Klutch 20-Gallon and the DEWALT D55146 sit in at roughly 4.2 and 5 CFM. Forum users reach the same conclusion from the other direction. A commenter on a Hacker News thread about garage door torsion springs notes that a venturi setup needs roughly 5 CFM at 90 PSI, which is more than a little pancake compressor can give.
That is the answer to the most common question in compressor forums, which is whether a pancake can run an impact wrench. It can turn the bolt, but it cannot keep the wrench in its band, and the tool will stall and heat up while the tank refills.
Pick the tank size that matches the job
Two to three gallons is for inflation, hobby painting, stapling and light fastening. You will be refilling constantly during any tool work, but the machine is small enough to store anywhere.
Six gallons is the generalist tier. It gives you enough stored air to finish a trim or cabinet job without stopping, and it still fits under a bench.
Eight to thirteen gallons is where continuous work becomes practical. A vertical tank in this range uses floor space efficiently and holds enough air to get through a framing or detailing session with fewer interruptions. At this size you are choosing between a lower noise rating and a verified airflow figure.
Twenty gallons vertical is the auto repair and continuous tool tier, and it is the tier forum users consistently describe as the standard for real at home air tool work. The vertical models here, the Klutch and the Stealth, are the only ways to reach it under the ceiling.
Oil-free or oil-lubricated: what changes for you
Oil-free pumps need no oil changes, no filters and no seasonal care, and they start reliably in an unheated garage because there is no oil to thicken in the cold. Every oil-free machine in this roundup starts cold without complaint, which matters if your garage is not heated.
The trade is noise and service life. Oil-lubricated pumps are quieter and, for owners who change the oil on schedule, tend to last longer. Within this price bracket almost everything is oil-free, so the real question is whether you are willing to accept the noise. The 82 dB CRAFTSMAN 6-Gallon and the 78 dB CRAFTSMAN 2-Gallon are the loudest examples of that trade.
Noise matters more than most buyers expect
dBA is a weighted decibel measurement, and the difference between 56 dBA and 80 dBA is not a small one. In practice, anything under 60 dBA can run in a room without interrupting a conversation. Between 70 and 80 dBA it belongs in a garage where nobody is trying to work. Above 80 dBA you will want hearing protection.
That is why the California Air Tools 1P1060S at 56 dBA and the Metabo HPT EC28M at 59 dBA both stand out as quieter than most machines of their size. If your garage is shared, rented or attached to living space, noise will decide your purchase before capacity does. Our guide to the quietest air compressors for home garages covers the measurement differences in more detail.
15 amp versus 20 amp circuits and extension cords
This is the section that saves people the most frustration. Compressor start-up draws a spike of current that far exceeds running current, and that spike is what trips breakers.
Read the maximum current rating before you buy. The DEWALT DWFP55130 is rated at 12 amps, which is why owners specifically note easy starting and reduced breaker tripping. The DEWALT D55146 is rated at 15 amps and needs a full 15 amp circuit, with measured draw exceeding 15 amps and 1800 watts. The VEVOR 6.3-Gallon is rated at 14.5 amps and its owners report it will not start on a shared circuit.
Extension cords are the second problem. Voltage sensitive motors refuse to start when the supply drops, and the Stealth 20-Gallon owners report needing to fully drain the tank before a restart on some wiring. Plug directly into a wall outlet. If a cord is unavoidable, keep it short and heavy gauge, and never run a compressor and a welder or a large saw on the same circuit.
What a 500 dollar ceiling rules out
Three things fall outside this budget and are worth naming so you do not chase them. Thirty gallon and larger two stage cast iron compressors, the class forum users treat as the standard for serious at home tool work, sit above the ceiling. Gas powered compressors fall outside a home garage electrics brief on safety and convenience grounds. And 240V only units need a dryer style circuit that most residential garages do not have.
Also on the list of costs you still owe after buying: a hose, a coupler set, a regulator if the unit does not include one, and safety glasses. A paint booth or a sandblasting setup also needs moisture control, which means adding one of our picks for air dryers for compressors on top. Only the Limodot LJ5120K in this roundup comes with a hose and accessory kit, and the CRAFTSMAN 2-Gallon notably does not include the accessories shown in its own video.
Frequently Asked Questions
What is the best type of air compressor to buy?
For most home garages a 6 gallon oil-free pancake is the best balance of capacity, weight and price. Go smaller at 1 to 3 gallons for inflation only, and go larger at 13 to 20 gallons vertically if you drive impact wrenches or framing nailers. Our pick in the 6 gallon class is the Metabo HPT EC914S at 4 CFM and 200 PSI.
What size air compressor do I need for auto repair?
For suspension, brake and lug work you want 4 CFM at 90 PSI or more and a tank of 13 gallons or larger, because a small tank makes you wait between fasteners. The Klutch 20-Gallon at 4.2 SCFM and the Stealth 20-Gallon at 5 CFM both clear that bar under the ceiling. A 6 gallon pancake is fine for tyre inflation and blow-off only.
What is the best portable air compressor for home use?
For portability, weight and noise together, the California Air Tools 1P1060S leads this roundup at 29 pounds and 56 dBA, and the Metabo HPT EC28M is close behind at 25.2 pounds and 59 dB. The CRAFTSMAN 2-Gallon at 18 pounds is the lightest, but at 0.5 CFM it suits inflation and light fastening only.
Can a pancake compressor run an impact wrench?
Only a partial one. A pancake can turn a lug nut, but the wrench will stall outside its power band while the tank refills. Forum users make the same point from the other side, noting that a venturi setup needs roughly 5 CFM at 90 PSI, which is more than a little pancake can deliver. For sustained wrench work look at 4 CFM and up.
Why does my air compressor keep tripping the breaker?
Three usual causes. The motor draws a high start-up spike, so a unit rated near 15 amps on a shared circuit will trip. An extension cord causes a voltage drop that stops a sensitive motor from starting. And an overloaded circuit running a compressor alongside a welder or large saw has no headroom. Plug into a dedicated outlet with a short heavy gauge cord.
Is an oil-free air compressor good for home use?
Yes, and it is the dominant type under this price ceiling. Oil-free pumps need no oil changes, no filters and no seasonal care, and they start reliably in an unheated garage. The trade is noise and service life, since oil-lubricated pumps generally run quieter and last longer when maintained on schedule.
Final Verdict on the Best Air Compressors for Home Garages
After twelve units, the best air compressors for home garages under 500 dollars split cleanly by job. The California Air Tools 1P1060S is the one to start with, because 56 dBA and 29 pounds solve the garage problem most people actually have, and its 2665 reviews make it the most proven machine on the list. Reach for the Metabo HPT EC914S when framing or roofing is on the calendar, and for the DEWALT D55146 if you have a dedicated circuit and want a machine built for a decade. The Klutch 20-Gallon and the Stealth 20-Gallon cover impact wrench and sustained auto work, with the Stealth as the quieter and better warranted of the two.
Check the specs against your own tools before you buy, and add a hose and coupler set to your list. If impact wrench work is your main task, we have a dedicated breakdown of the best air compressors for impact wrenches that goes deeper on the CFM side. If you are planning a full setup, our wider roundup of the best air compressors for home garages covers the options above the sub-500 tier too.
