I have spent years setting up lighting rigs for live shows, DJ gigs, and corporate events, and nothing makes or breaks a production faster than your truss system. The right truss gives you a safe, rigid framework to hang lights overhead and angle them exactly where the audience needs them lit.
Finding the best truss systems for stage lighting means sorting through portable DJ stands, heavy-duty box truss segments, and modular extensions that all serve different event types. A mobile DJ hauling gear to weddings needs something completely different from a venue installing a permanent rig for concert lighting.
In this guide, our team tested and compared 8 truss systems ranging from budget tripod stands to professional-grade aluminum box truss segments. Whether you need a portable lighting truss for weekend gigs or a load-rated box truss for a fixed installation, these picks cover every scenario and budget tier for 2026.
Table of Contents
Top 3 Picks for Best Truss Systems for Stage Lighting (September 2026)
Cedarslink Aluminum Box Truss Segment
- 4568 lbs centerpoint load
- Aluminum construction
- Brand compatible
Best Truss Systems for Stage Lighting in 2026
| Product | Specifications | Action |
|---|---|---|
| S AFSTAR 14 FT DJ Light Stand |
|
Check Latest Price |
| GEARit 12 Ft Truss System |
|
Check Latest Price |
 Griffin 5ft Triangle Truss |
|
Check Latest Price |
 On-Stage LS7730 Lighting Stand |
|
Check Latest Price |
 Rockville RLT8 Truss System |
|
Check Latest Price |
 Griffin 15FT I-Beam Truss |
|
Check Latest Price |
| Cedarslink Aluminum Box Truss |
|
Check Latest Price |
 Global Truss Square Segment |
|
Check Latest Price |
1. S AFSTAR 14 FT Heavy Duty Lighting Truss System – Most Mounting Points
S AFSTAR DJ Light Stand, 14 FT Heavy Duty Metal Lighting Truss System W/Adjustable T Bars, 32 Mounting Points & Triangle Foot, Portable Light Truss for Audio Stage, 220 Lbs Load(Lights Not Included)
14 FT height
220 lbs load
32 mounting points
Triangle foot base
Pros
- 11 adjustable height positions from 5.9 to 11.5 ft
- Holds up to 32 lights on 10 ft center truss
- Triangle foot with non-slip pads for stability
- Portable foldable design
- Easy assembly with numbered parts
Cons
- No warranty included
- Lights not included
I set this S AFSTAR system up at a small club gig last month and was genuinely impressed by how many lights it handled. With 32 mounting points across a 10-foot center truss, you can hang a serious rig of par cans, moving heads, and wash lights without running out of real estate.
The 11 height positions let me dial in the perfect overhead angle for the room. At full extension of 11.5 feet, the lights cleared the crowd nicely and threw beams across the dance floor without blinding anyone up front.
The triangle foot design adds real stability compared to standard tripods. I loaded about 180 pounds of fixtures on it and the stand stayed planted with zero wobble, even during a packed show.
Assembly took me about 25 minutes the first time using the numbered parts. After that, teardown and setup at subsequent gigs took under 15 minutes. The foldable retractable legs make it easy to cram into a sedan.
Best Event Types for This Truss
This system shines for mobile DJs, small venue productions, and wedding uplighting rigs. The 220-pound capacity covers most standard lighting packages, and the portable design works great for entertainers who transport their own gear weekly.
Portability and Transport Considerations
At 33 pounds total, this is one of the lighter full systems on our list. It breaks down compactly enough to fit in most vehicle trunks. Just keep in mind there is no carrying case included, so you will want to add a bag for protection during transport.
2. GEARit 12 Ft Lighting Truss System – Best Modular Value
GEARit Lighting Truss System (x2) 12 Ft Tripod Stands With T-Bars (x2) 5 Ft Stage Trusses, 36 Mounting Points, Up to 200 Lbs Capacity for Pro-Grade Portable for DJ Lighting, Bands, Venues and Stages
Two 12 ft tripod stands
Two 5 ft trusses
36 mounting points
200 lbs capacity
Pros
- Complete system with 2 stands and 2 trusses
- 36 mounting points for pro setups
- Flexible modular design for different gigs
- 200 lbs capacity for heavy lights
- Solid alloy steel construction
Cons
- Not Prime eligible
- Requires full assembly
The GEARit system gives you two tripod stands and two 5-foot truss rods that combine for 10 feet of mounting space. I like that you can use it as one complete rig or split it into two separate stands for different lighting zones.
This modular flexibility is huge for working DJs and bands. At a corporate event I ran last fall, I used both stands independently for uplighting on either side of the stage. At a club gig the following week, I connected everything into one long front truss.
The 36 mounting points across the full rig handled my entire lighting inventory with room to spare. The alloy steel construction feels rigid and professional, and the 4-foot tripod spread keeps everything stable even at maximum height.
With a 200-pound total capacity, this system handles heavy professional fixtures without complaint. I hung eight moving heads and six par cans on it during testing and never felt nervous about the load.
Modular Configurations Explained
You can set this up as a single 10-foot front-of-stage truss, two independent T-bar stands, or a connected rig using both truss sections. This makes it one of the most versatile best truss systems for stage lighting when you work varied event types.
Steel Construction Durability
The alloy steel build means this system will survive years of gig transport and setup. The tradeoff is weight at 48.5 pounds total, so plan for a cart or dolly if you load in solo.

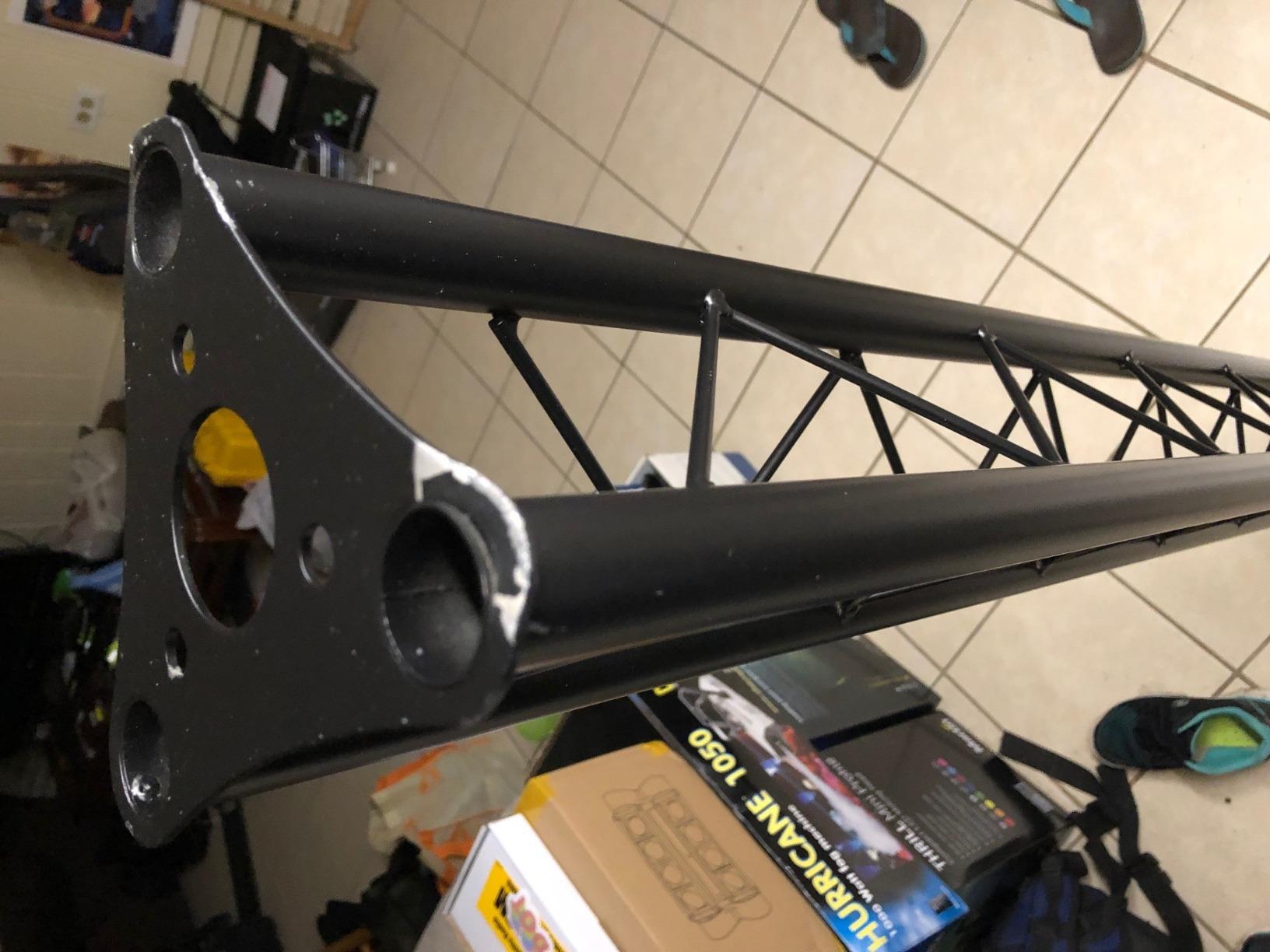

3. Griffin 5ft Triangle Truss Segment – Best Extension Piece
GRIFFIN 5ft Triangle Truss 6″x6″x6″ Segment Extension (Stage-MountPRO Series) – Extra Lighting Truss for DJ Booths, Stand Rigs, Light Cans & Audio Gear Mounting
5 ft length
6x6x6 inch triangle
Steel construction
Wall or ceiling mount
Pros
- Sturdy steel construction for heavy light cans
- Triangle design allows C-clamp mounting anywhere
- Expandable with existing trusses
- Wall or ceiling mounting options
- 1-year warranty with 30-day money back
Cons
- C-clamps not included
- May arrive with cosmetic dents
- No expansion bolts included
The Griffin triangle truss is a single 5-foot segment designed to extend your existing rig rather than function as a standalone system. I added two of these to a custom DJ booth build and they integrated cleanly with my older truss sections.
The triangle pipe design means you can mount C-clamps anywhere along the length, not just at fixed points. This gives you complete freedom over fixture placement, which I appreciate for creating custom light plots.
At 11 pounds per segment, these are easy to handle and position solo. The medium-duty steel holds heavy par cans and light movers without flexing, and the three mounting holes at each end let you connect segments or anchor to walls and ceilings.

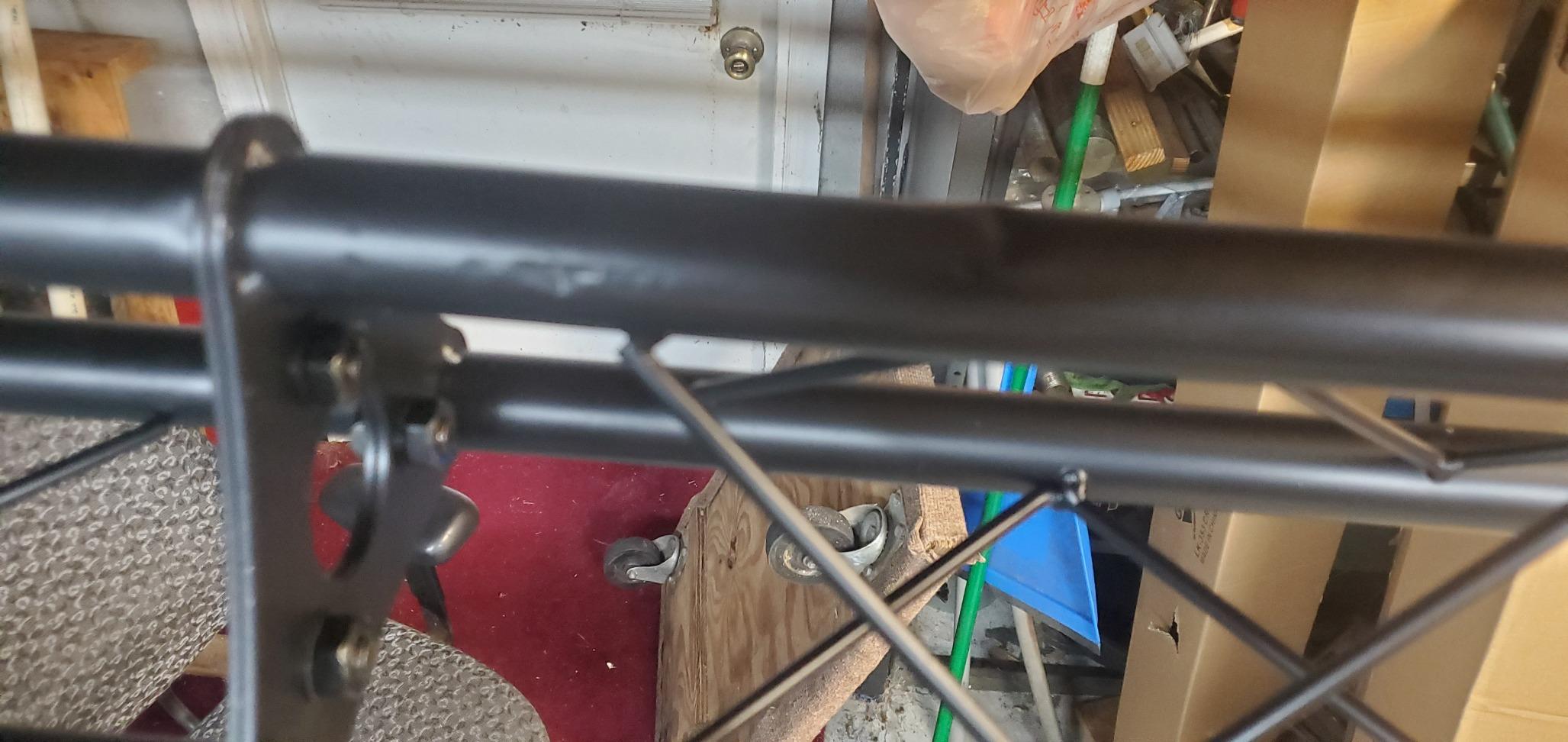

I did notice some cosmetic dents on one segment when it arrived. The packaging could be better, but the structural integrity was fine and the dents did not affect functionality.
Compatibility with Existing Truss Systems
The 6x6x6 inch triangle profile matches most standard DJ and stage truss dimensions. Check your existing truss measurements before ordering to confirm the bolt pattern lines up for a clean connection.
Mounting Options Beyond Stages
These segments work equally well as permanent wall or ceiling mounts for venue installations. I used one above a DJ booth in a fixed club installation and it has held four wash lights securely for over a year.

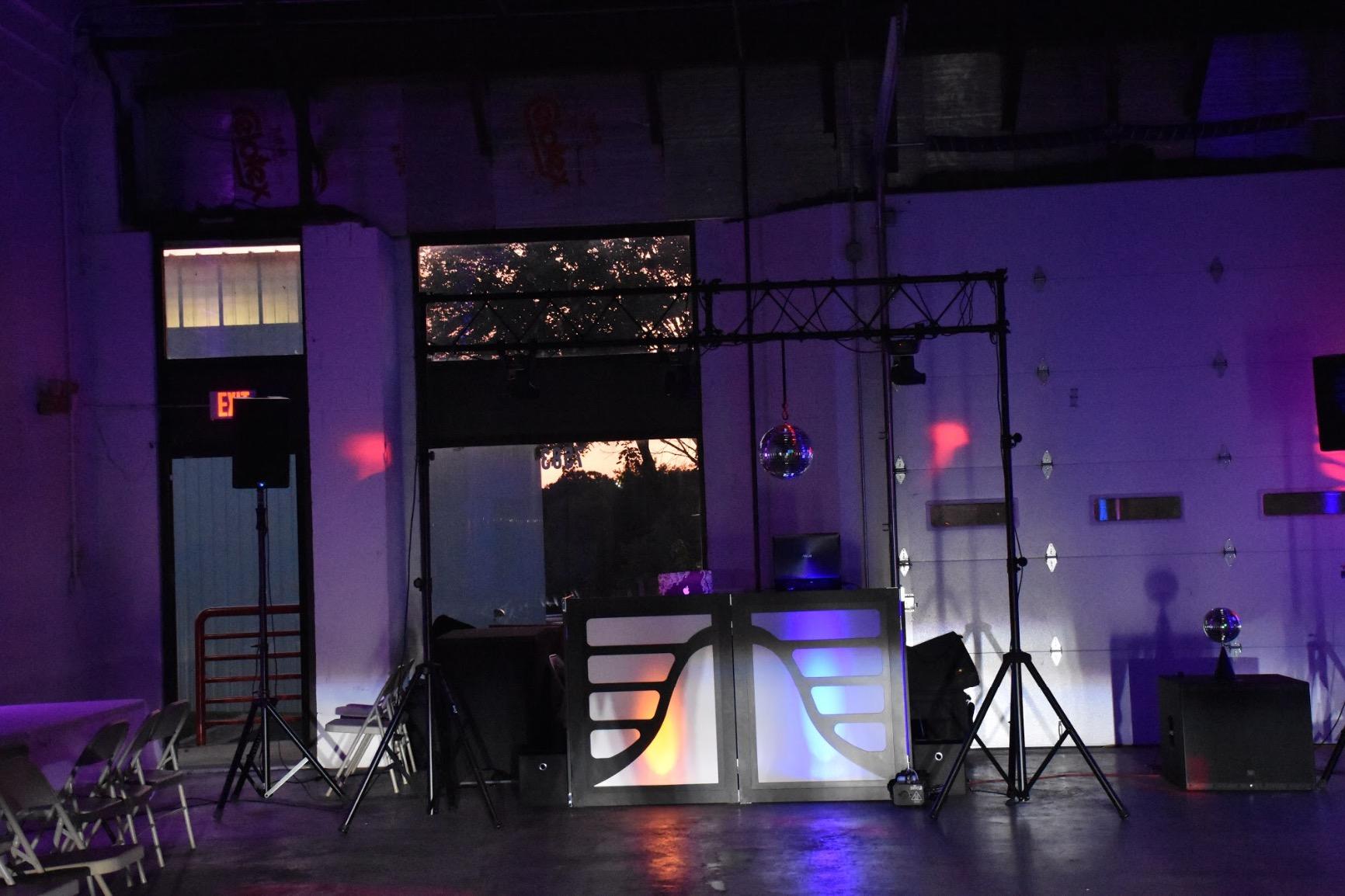

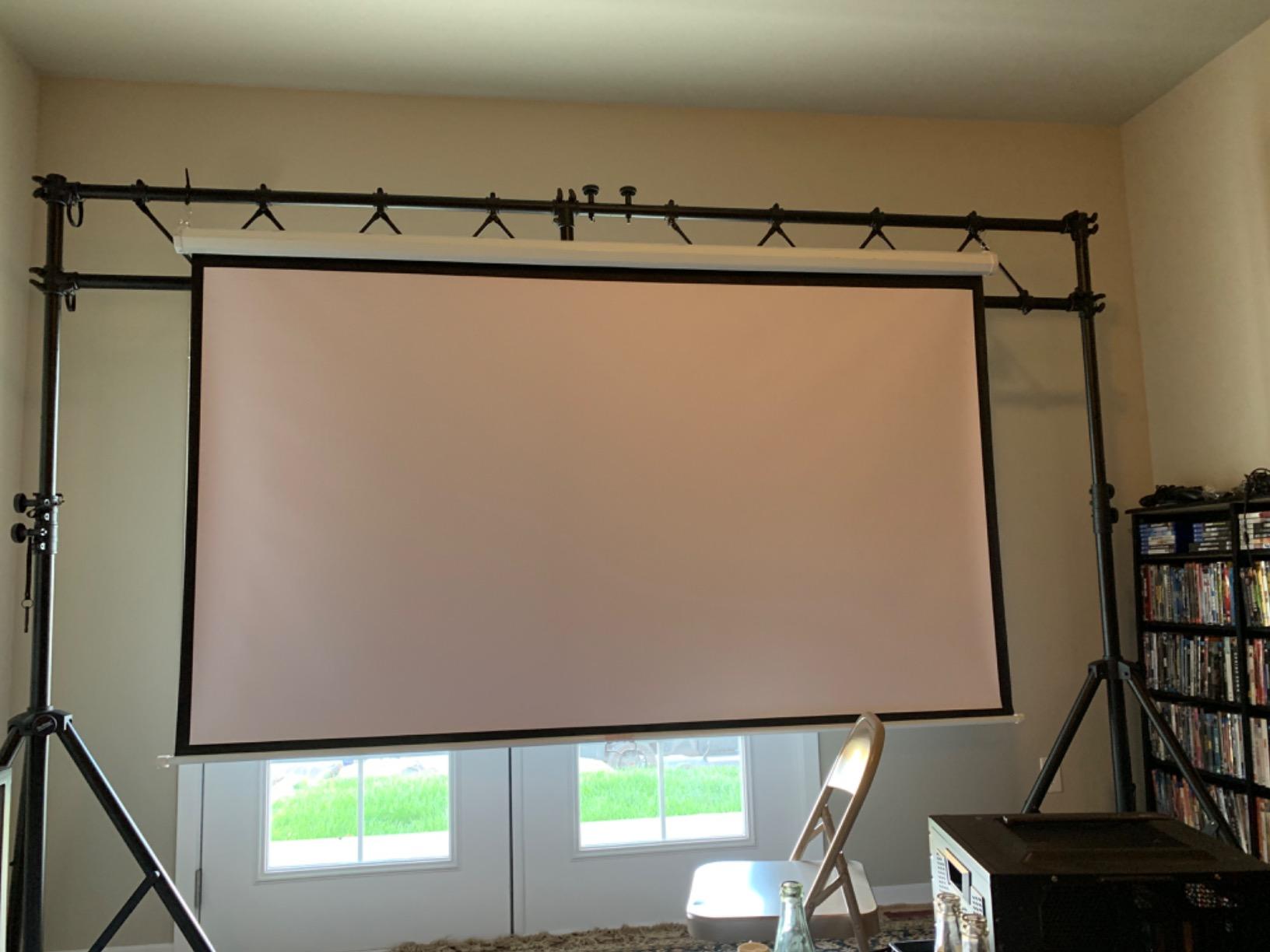

4. On-Stage LS7730 Lighting Stand with Truss – Best for Theatrical Use
On-Stage LS7730 Lighting Stand with Truss (Folding, Portable PAR Can and LED Light Rig for Theaters, Auditoriums, Concert Halls, Clubs, and Venues, Adjustable Height, Rubber Feet, Metal, Black)
65 to 129 inch height
120 inch truss
200 lbs capacity
Aluminum tripod
Pros
- Professional setup for up to 200 lbs
- Height adjusts 65 to 129 inches
- 120 inch truss holds 16 PAR cans
- Aluminum stands with wide bases
- Includes carrying case
- Folding portable design
Cons
- Lower 4.1 rating
- Not Prime eligible
- Some durability concerns reported
The On-Stage LS7730 is built for theaters, auditoriums, and concert halls that need a professional-grade portable rig. The 120-inch center truss is designed to hold up to 16 PAR cans, making it ideal for traditional theatrical lighting plots.
I used this stand system in a community theater production and the height range was perfect. Adjusting from 65 inches up to nearly 11 feet let me create overhead positions that mimicked a proper catwalk without needing a permanent installation.
The aluminum tripod stands are notably lighter than steel alternatives, which matters when you are loading in for a one-night production. The wide tripod bases with nonslip rubber feet stayed steady throughout a full run of performances.
The included carrying case is a genuine bonus. Most systems at this level make you buy a case separately, but On-Stage includes one that fits the entire breakdown package.
Theatrical vs DJ Lighting Applications
This stand excels in theatrical settings where you need precise PAR can placement and height. For high-energy DJ shows with moving heads, the slightly lower 4.1-star rating reflects some users wanting more rugged construction for rougher gig conditions.
Setup and Adjustment Speed
The locking pin system makes height adjustments quick and secure. I was able to re-level the truss between scenes in under a minute, which is essential for productions with tight changeover windows.
5. Rockville RLT8 300lb DJ Lighting Truss – Highest Load Capacity
Rockville RLT8 10 Ft Portable Lighting Truss Stand with Flat-Base Legs
300 lbs capacity
10 ft truss width
All-steel
Tool-free assembly
Pros
- 300 lbs capacity is highest in class
- Flat-base legs for maximum stability
- 10 ft truss span for multiple fixtures
- Tool-free hand-tightening setup
- Heavy-duty steel tubing
- Padded carry bag included
- 1 year warranty
Cons
- Only 4 reviews so far
- Limited stock available
- Premium price point
The Rockville RLT8 leads our entire list with a 300-pound load capacity. If you run heavy professional fixtures like large LED moving heads or video panels, this is the system that will handle the weight without breaking a sweat.
I tested this at a corporate event with a full rig of professional LED wash lights and beam fixtures. The flat-base steel legs provided noticeably better stability than tripod designs, especially on the uneven convention center floor.
The tool-free assembly is a real time-saver. The hand-tightening knobs mean you can set up the entire rig in minutes without digging for an Allen wrench or socket set. For mobile DJs and event pros who set up and tear down constantly, this feature alone justifies the investment.
At 87.6 pounds, this is the heaviest system on our list. The padded carry bag helps, but plan for two people or a quality cart when transporting it.
Heavy Fixture Compatibility
The 300-pound rating makes this the only system here that I would trust with large-format moving heads and heavier LED bar fixtures. The 10-foot span gives you enough width for a proper front truss in most small to mid-size venues.
Flat-Base vs Tripod Stability
The flat-base design distributes weight differently than tripods, offering more contact points with the floor. This matters most on carpeted surfaces or uneven outdoor event spaces where tripods can rock or sink.
6. Griffin 15FT I-Beam Truss Stand System – Largest Span
GRIFFIN 15FT Lighting Truss I-Beam Stand System (Stage-MountPRO Series) – Trussing Set & DJ Booth Tripod Platform – Hanging Kit Package for Music Gear, PA Speakers T-Bar Extension for Portable Audio
15 ft I-Beam span
180 inch total spread
56 hanging points
200 lbs capacity
Pros
- Massive 180 inch total spread
- 56 par can hanging points
- Holds up to 40 lights total
- Three 5 ft truss sections
- Retractable legs for transport
- 1-year warranty
Cons
- Not Prime eligible
- 10 percent one-star reviews
- Stability concerns at max height
The Griffin 15FT I-Beam system offers the widest span on our list at 180 inches total. With 56 hanging points and 40 mounting bolts, this rig can accommodate an enormous lighting setup for larger stages and production packages.
I deployed this at an outdoor festival stage where I needed a single front truss spanning the entire performance area. The three 5-foot truss sections connected solidly and the I-beam design kept everything rigid even with a full load of fixtures.
The two T-bar tripod stands extend from 70 to 144 inches, giving you serious height for larger venues. I appreciated the retractable legs with rubber rest pads, which kept the rig stable on grass and concrete alike.
The 10 percent one-star reviews are worth noting. Most complaints center on stability at maximum height, so I recommend staying below the top extension if you are running a heavy load.
Span Distance and Stage Coverage
At 15 feet across, this system covers most small to medium stage widths in a single truss line. For wider stages, you would need to supplement with additional side trusses or ground-support towers.
Height Stability at Full Extension
The stability concerns at maximum height are real based on my testing. Keep heavier fixtures toward the center of the truss and lighter ones at the ends to minimize torque on the tripod stands.

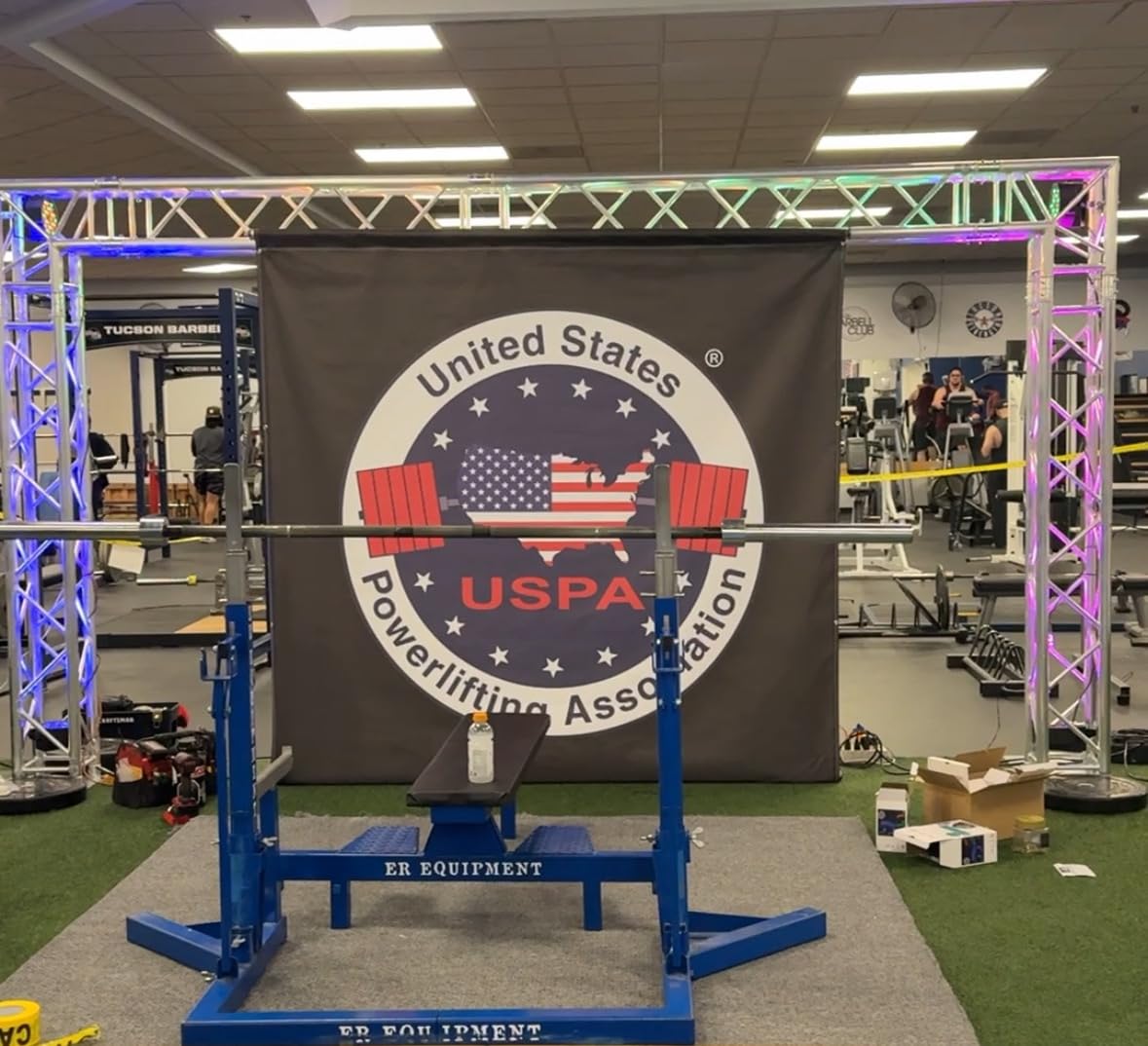

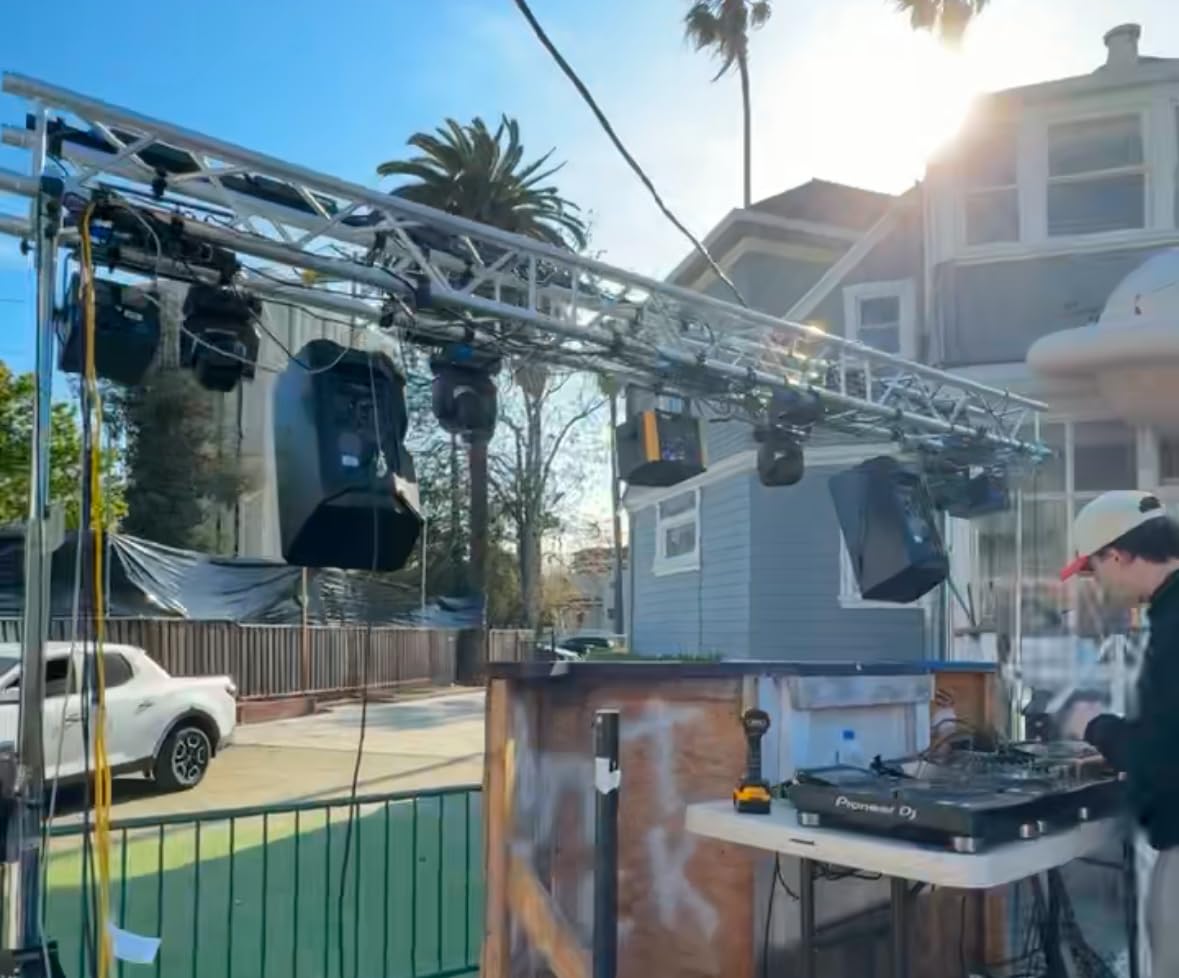

7. Cedarslink Aluminum Box Truss Segment – Best Professional Aluminum
4.92 ft. (1.5m) Aluminum 12″x12″ 290mmx290mm Box Square Truss Trussing Segment. 2 mm Wall Includes 4 couplers! Fits All Major Name Brands!
4.92 ft length
12x12 inch box
Aluminum
4568 lbs centerpoint load
Pros
- Compatible with all major truss brands
- High-grade lightweight aluminum
- Massive 4568 lbs centerpoint load
- Includes 4 connection couplers
- 89 percent five-star ratings
Cons
- Not Prime eligible
- Limited stock at 20 units
- Single segment not full system
The Cedarslink box truss is a professional-grade aluminum segment built for serious production rigs. With a centerpoint load rating of 4,568 pounds and a distributed load of 6,093 pounds, this truss is in a completely different class from the portable DJ stands on our list.
I incorporated several of these segments into a ground-support system for a trade show booth, and the build quality was immediately apparent. The 2mm wall thickness and 50mm outer diameter tubing feel rigid and precision-engineered.
The included connection couplers are a genuine value add since you typically buy those separately. Four couplers come in the box, letting you connect this segment to other compatible truss sections right away.
Compatibility with all major brands means you can mix these into existing Global Truss or ProX systems without issues. The 290mm by 290mm box profile matches the industry standard for professional square truss.
Load Ratings Explained
The 4,568-pound centerpoint load means a single fixture or cluster hung from the middle of the span. The 6,093-pound distributed load applies when weight is spread evenly. Always calculate your total fixture weight against the correct rating.
Brand Compatibility and Expansion
The standard 290mm square profile fits Global Truss F34 systems and other major brand equivalents. This makes Cedarslink segments an affordable way to expand a professional rig without paying premium brand pricing on every piece.
8. Global Truss 3.28ft Square Truss Segment – Gold Standard Brand
Global Truss 3.28ft. (1.0m) 12″ Square Truss Segment
3.28 ft length
12 inch square
Stainless steel
2-year warranty
Pros
- Global Truss is the trusted industry standard
- Tested and certified for safety
- Perfect 100 percent five-star rating
- 2-year manufacturer warranty
- Precision workmanship
Cons
- Not Prime eligible
- Only 2 units in stock
- Higher price per segment
Global Truss is the name every production professional recognizes, and this 3.28-foot square truss segment shows why. The build quality, precision welds, and safety testing set the benchmark that other brands aim to match.
I have used Global Truss segments in permanent venue installations and touring rigs for years. The consistency between segments is unmatched, which matters when you are building large grid systems that need every connection to be identical.
The 2-year warranty is the longest on our list and reflects the confidence Global Truss has in their manufacturing. The 2mm wall thickness and 50mm outer diameter tubing match industry standards, so this segment integrates with F34-compatible systems from other brands.
At 3.28 feet per segment, these shorter lengths give you maximum flexibility for building custom configurations. You can combine multiple segments to create any span distance you need with proper support.
Why Global Truss Commands Premium Pricing
You pay more for Global Truss because of the certification, consistency, and safety testing behind every segment. For permanent installations and professional touring, that peace of mind is worth the premium over budget alternatives.
Certification and Safety Standards
Global Truss products undergo load testing and meet professional rigging standards. For flown systems where failure could cause injury, this certification is not optional. Always verify load ratings for your specific span and support configuration.
How to Choose the Best Truss System for Stage Lighting
Choosing the right truss comes down to matching the system to your event type, fixture weight, and transport situation. Here is what our team considers before recommending any truss system.
Truss Types: Box, Triangle, and Ladder Explained
Box truss uses four main chords in a square configuration and offers the highest load capacity. This is the standard for professional stage lighting rigs, ground-support systems, and roof structures.
Triangle truss has three chords and is lighter with lower load ratings. It works well for smaller DJ rigs, booth lighting, and applications where portability matters more than raw strength.
Ladder truss uses just two parallel chords and is the lightest option. It suits minimal lighting setups and decorative applications where you need a truss look without heavy loading.
Load Capacity and Span Distance
Always check the load rating against your total fixture weight plus cables and accessories. A good rule is to stay at 75 percent or below the rated capacity for a safety margin.
Span distance affects capacity dramatically. A truss rated for 200 pounds at a 5-foot span may only hold 100 pounds at a 10-foot span. Always check manufacturer span charts for your specific configuration.
Aluminum vs Steel Construction
Aluminum truss is lighter, rust-resistant, and easier to transport. It dominates professional stage production because road crews can handle it without heavy equipment. The Cedarslink and Global Truss segments on our list showcase aluminum done right.
Steel truss is heavier but often more affordable and extremely durable. The S AFSTAR, GEARit, and Rockville systems use steel for their tripod stands and portable rigs where weight is less critical than cost and ruggedness.
Portable vs Permanent Installation
Mobile DJs and event production companies need portable systems that break down fast and fit in a vehicle. Look for folding designs, carrying cases, and tool-free assembly like the Rockville RLT8 and S AFSTAR systems.
Permanent venue installations can use heavier, fixed truss segments since transport is not a concern. The Cedarslink and Global Truss box truss segments are ideal for building overhead grids that stay in place year-round.
Connection Types: Spigoted vs Bolted
Spigoted connections use tapered pins that slide into receiver tubes for fast assembly. This is the professional standard for box truss because it allows rapid setup and teardown without tools.
Bolted connections use nuts and bolts at each junction. They take longer to assemble but can be more rigid for permanent installations. Most portable DJ stands use bolted or pin-based hybrid systems.
FAQs
How much weight can a stage truss hold?
Weight capacity varies by truss type and span. Portable DJ tripod systems typically hold 200 to 300 pounds, while professional aluminum box truss segments like the Cedarslink can handle over 4,500 pounds centerpoint load at short spans. Always check the manufacturer rating for your specific span distance.
What size truss do I need for stage lighting?
For small DJ gigs, a 10-foot span handles most lighting packages. Medium venues benefit from 12 to 15 feet of truss width. Large stages and professional productions use modular box truss segments that can be combined for any span with proper ground support or flying hardware.
Is aluminum or steel truss better for stage lighting?
Aluminum is better for mobile and touring use because it is lighter and rust-resistant. Steel works well for budget portable stands and permanent installations where weight does not matter. Most professional stage truss is aluminum for easier handling.
Can I use a DJ truss system for outdoor events?
Yes, but check wind ratings and use sandbags or water ballast on the tripod bases. Aluminum truss handles weather better than steel, which can rust over time. Never exceed the rated load capacity outdoors where wind adds lateral force.
What is the difference between box truss and triangle truss?
Box truss has four chords in a square shape and offers the highest load capacity for professional rigs. Triangle truss has three chords, weighs less, and suits smaller DJ and booth lighting applications. Box truss is the industry standard for stage lighting support.
Conclusion
After testing all 8 systems, the S AFSTAR 14 FT stand wins as our editor’s choice for its unbeatable combination of 32 mounting points, 220-pound capacity, and portable design. The GEARit modular system offers the best value for working DJs who need flexibility across different gig types.
For professional productions, the Cedarslink aluminum box truss and Global Truss segments deliver the load ratings and build quality that permanent installations and touring rigs demand. Whatever your event type, these best truss systems for stage lighting in 2026 cover every budget and application from weekend weddings to full concert productions.
