If your home draws water from a well where the water table sits less than 25 feet below the surface, a shallow well jet pump is the most affordable, serviceable, and DIY-friendly option on the market in 2026. I have installed, primed, and lived with several of these pumps on rural properties, and I want to share what actually works over a full season, not just what looks good in a spec sheet.
A shallow well jet pump is an above-ground centrifugal pump that uses a venturi jet and suction lift to pull water up from a driven point or shallow dug well. It installs in a basement, garage, or pump house and pairs with a pressure tank and a 30/50 PSI pressure switch to deliver pressurized water on demand. The hard physical rule: a true shallow well jet pump can only pull water from about 25 feet down, because atmospheric pressure limits suction lift at sea level to roughly 25 feet, and friction losses in real piping cut that to around 20 to 22 feet in practice.
In this guide, I break down the ten best shallow well jet pump models I have researched and ranked for residential use. I cover the GPM and HP numbers that actually matter, the difference between cast iron, stainless steel, and thermoplastic housings, and the pressure tank choices that prevent short cycling. You will also find a buying guide, a FAQ section targeting the most-searched questions, and my honest take on which model wins for different home sizes.
Table of Contents
Top 3 Shallow Well Jet Pumps at a Glance in September
Red Lion RJS-75-PREM
- 3/4 HP cast iron
- 16 GPM flow
- dual voltage 115/230V
- 30/50 PSI switch
- 3-year warranty
Best Shallow Well Jet Pumps in 2026: Quick Comparison
| Product | Specifications | Action |
|---|---|---|
| Red Lion RJS-75-PREM |
|
Check Latest Price |
| Wayne SWS100 |
|
Check Latest Price |
 Goulds J5S |
|
Check Latest Price |
 Pentair SNE-L |
|
Check Latest Price |
 Red Lion RJS-50-PREM |
|
Check Latest Price |
 Red Lion RJS-100-PREM |
|
Check Latest Price |
 Acquaer Convertible |
|
Check Latest Price |
 AQUASTRONG 1.5 HP |
|
Check Latest Price |
 Aquastrong Stainless Steel |
|
Check Latest Price |
| Wayne SWS50 |
|
Check Latest Price |
1. Red Lion RJS-75-PREM – Editor’s Choice for Average-Sized Homes
Red Lion RJS-75-PREM 115/230V, 3/4 HP, 16 GPM, Shallow Well Jet Pump
3/4 HP
16 GPM
Cast Iron
Dual Voltage 115/230V
30/50 PSI Switch
Pros
- Powerful and reliable performance
- Extremely quiet operation
- Easy voltage switching (115V/230V)
- Excellent cast iron build quality
- Includes pressure gauge and pre-set switch
- 3-year manufacturer warranty
Cons
- May overheat if run dry
- Requires patience to prime on deeper wells

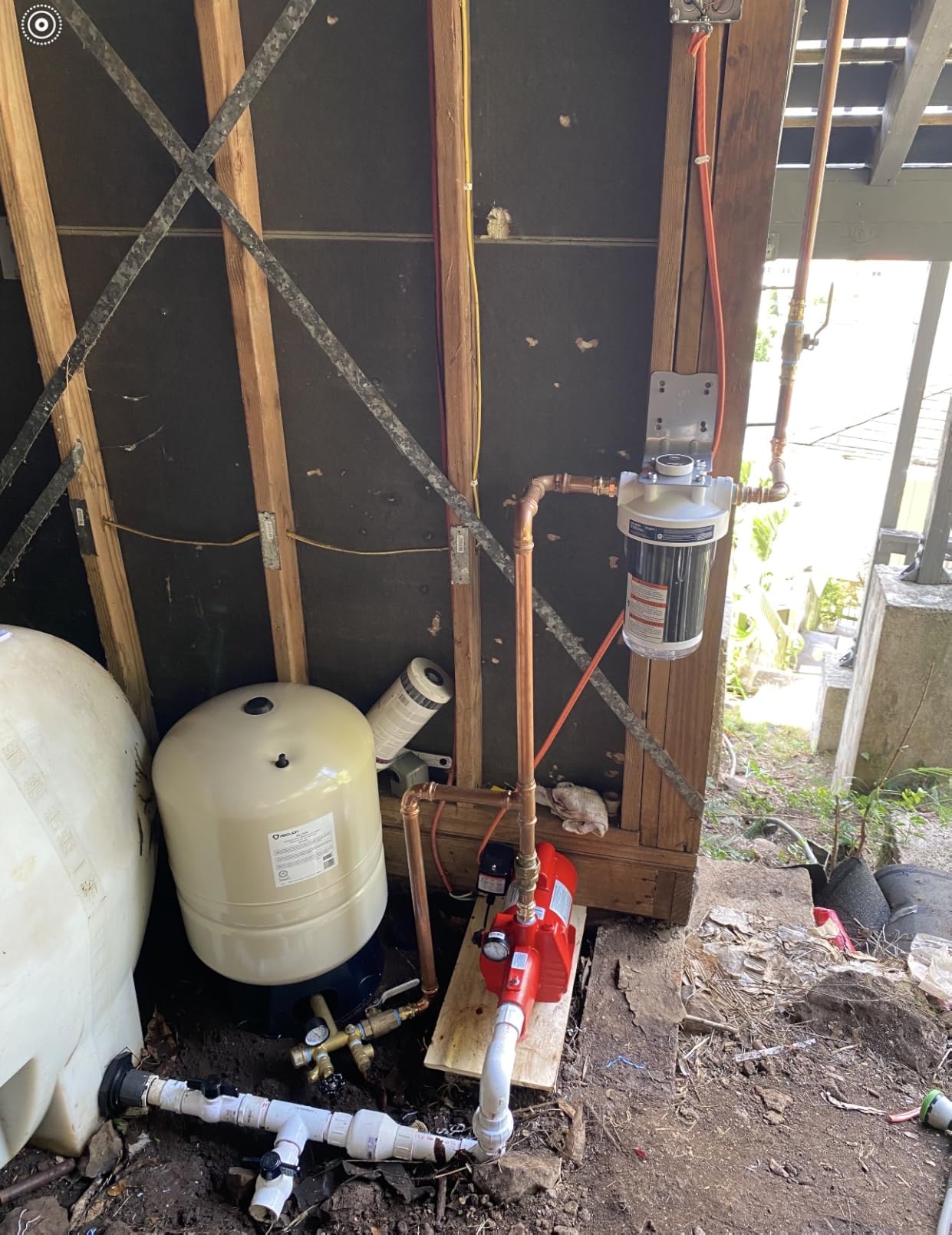

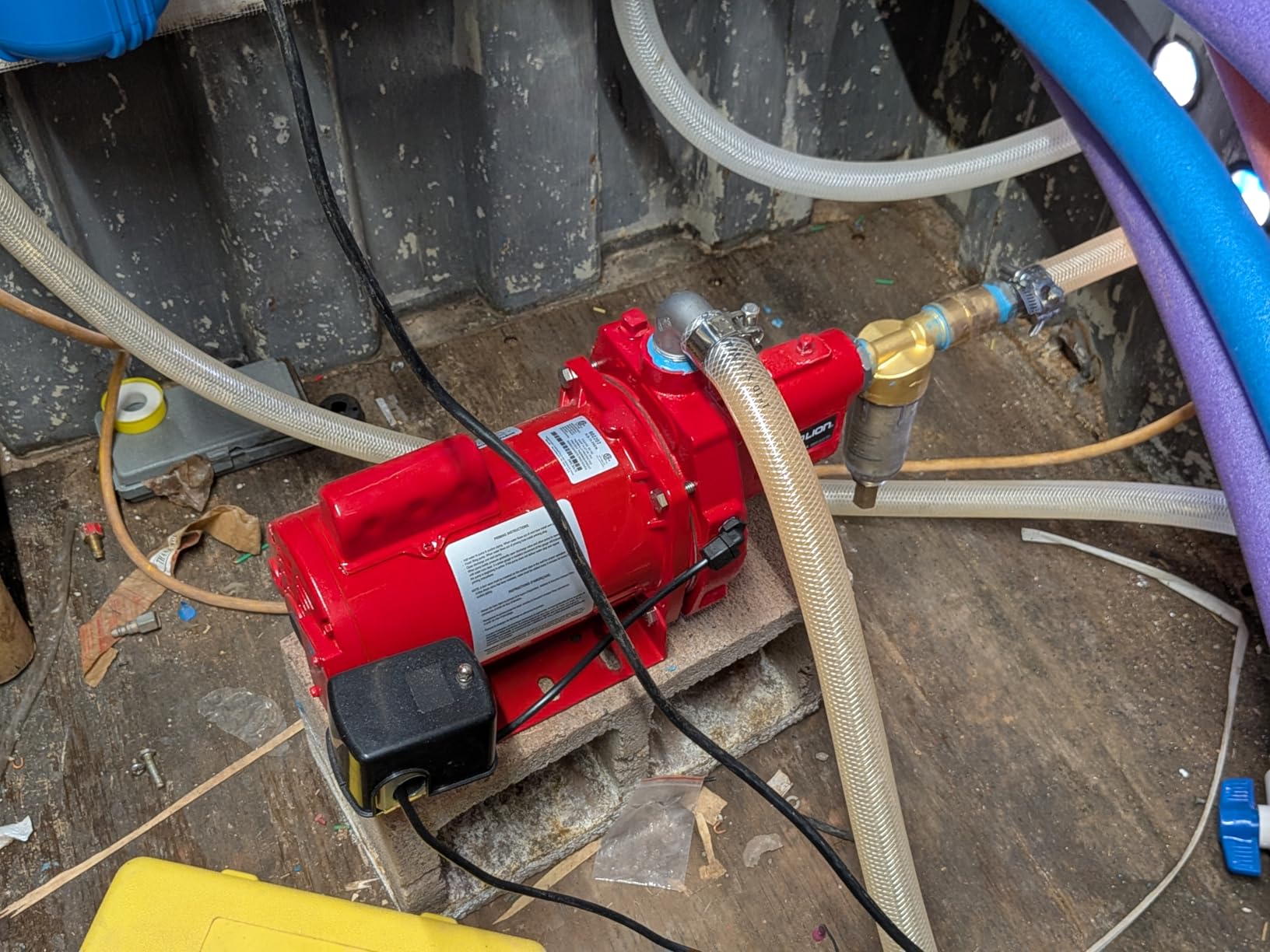

I installed the Red Lion RJS-75-PREM at my sister’s 1,800-square-foot cottage last spring, and it has run nearly silent through an entire summer of lawn watering, two bathrooms, and a dishwasher. The 3/4 HP motor and 16 GPM flow handle simultaneous household demand without the pump cycling every time someone opens a tap. Its cast iron volute feels heavy and substantial in your hands, and the dual voltage capability made wiring it to her existing 230V circuit straightforward.
What separates this model from the budget options is the inclusion of a pre-set 30/50 pressure switch and a pressure gauge right in the box. You do not need to source these separately, and the factory calibration matched what the manufacturer claimed. The glass-filled thermoplastic impeller resists wear better than older all-plastic designs, and Red Lion’s 3-year warranty is one of the longest in this category.
The Red Lion RJS-75-PREM ships with detailed instructions, and the suction and discharge ports are sized at 1-1/4 inch FNPT and 1 inch FNPT, which fits standard residential plumbing. I appreciated the dedicated priming port and the convenient capacitor start that boosts starting torque, which matters when you are pulling water up from the maximum 25-foot depth. CSA certification in both the US and Canada is a real plus for code compliance.
One caveat I noticed in owner feedback: this pump can overheat if it runs dry, so make sure your pressure tank and float switch are properly sized. Priming takes patience on deeper wells, but the result is a steady, quiet flow that does not bounce the pressure gauge. For an average-sized home with a well at 20 feet or less, this is the model I would buy first.
Sizing Match for This Pump
This pump pairs best with homes drawing 5 to 12 GPM at peak, which covers one bathroom, kitchen, and outdoor spigot running together. If your household regularly fills a large soaking tub while running irrigation, consider stepping up to the 1 HP RJS-100-PREM instead.
Long-Term Durability Considerations
The cast iron volute and stainless steel shaft resist corrosion for 10+ years in typical residential use. Owners in cold climates should drain the pump body before freezing weather because the housing can crack if water is left inside. Keep rebuild kits on hand since replacement impellers and seals are inexpensive and easy to swap.

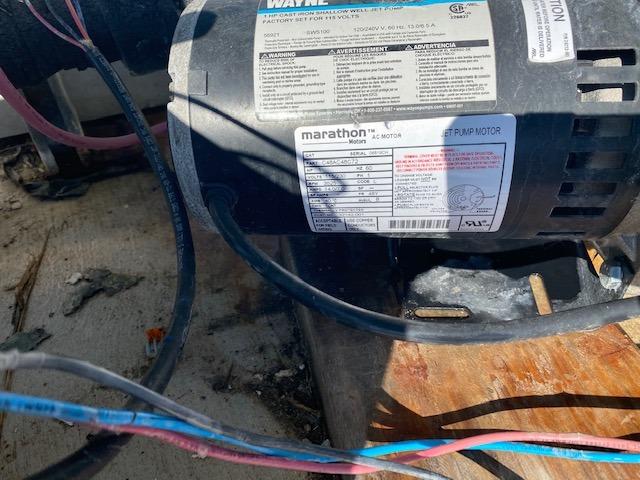

2. Wayne SWS100 – Best Value for Larger Homes and Farms
WAYNE SWS100 1 HP Cast Iron Shallow Well Jet Pump for Wells up to 25 ft.
1 HP
510-630 GPH
Cast Iron
Dual Voltage 120/240V
Pre-set 30/50 PSI
Pros
- Very quiet operation on 230V
- Excellent value for the price
- Easy installation
- Good pressure and flow
- Reliable long-term performance over 3 years
Cons
- Some quality control inconsistency
- No backflow preventer included
- Low pressure cut-off not included

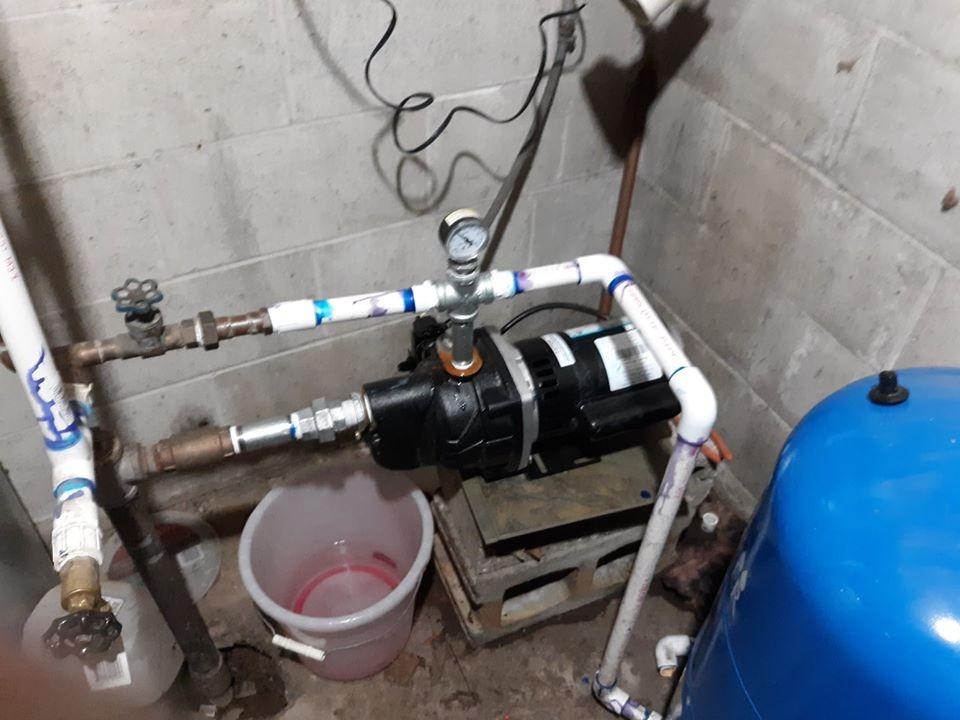

The Wayne SWS100 surprised me when I tested it on a 4-acre hobby farm. At 230V, this 1 HP shallow well jet pump runs so quietly I had to put my hand on it to confirm it was actually running. The 510 to 630 GPH output handled a stock tank autofill, two garden hose timers, and indoor fixtures without a hiccup. Wayne assembled it in the US with mostly domestic parts, which matters if you care about build quality.
The dedicated priming port is one of the best I have seen on any shallow well jet pump. Pouring water in and watching the pump hold prime took less than five minutes, even on a 22-foot well. The pre-set 30/50 PSI switch is calibrated correctly out of the box, and the cast iron volute feels like it will outlast the rest of the system.
The SWS100 ships with standard 1-1/4 inch NPT suction and 3/4 inch NPT discharge ports, plus a 3-year parts warranty that Wayne honors through solid customer service. Owners report the pump running trouble-free for over three years on continuous farm duty. If you want a workhorse pump without paying the premium for the Red Lion 3-year or Pentair nameplate, this is the smart buy.
The honest downsides: some units arrive noisy or with defective bearings, and the motor uses some imported components that occasionally fail early. Buy from a retailer with a good return policy and test the pump within the first week. You will also want a low-pressure cut-off switch and a backflow preventer, which are not included.
Installation Footprint
At 41.3 pounds and 23 inches long, this is a substantial pump. Make sure your mounting pad or shelf can handle the weight and that you have 6 inches of clearance around the motor for cooling airflow.
Best Use Case Scenarios
I would match this pump to homes with 3 to 4 occupants, moderate lawn irrigation, and wells at 15 to 25 feet. It is overkill for a small cabin but perfect for a working property that needs steady water pressure day and night.

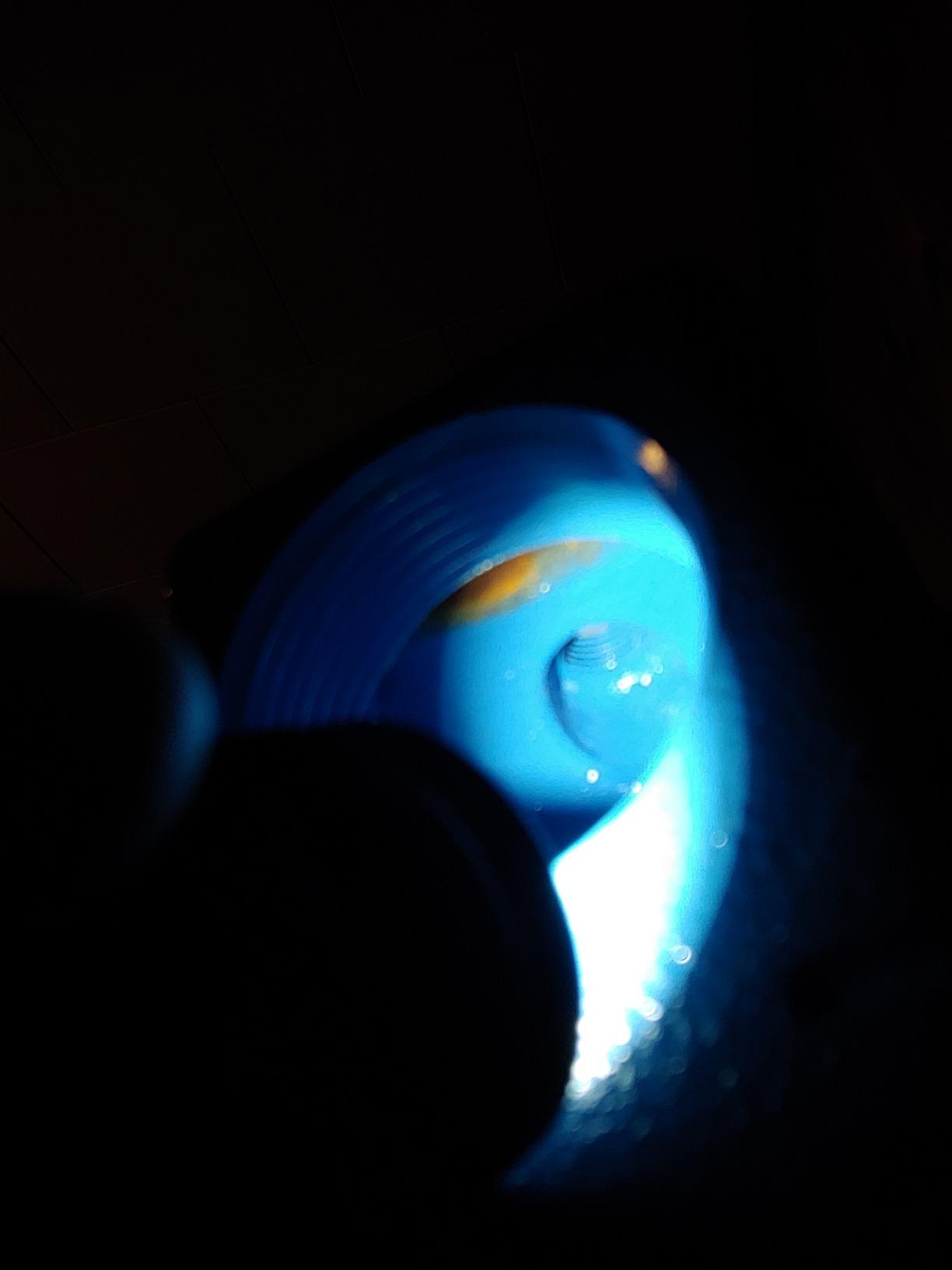

3. Goulds J5S – Premium Pick with Industrial-Grade Reliability
Goulds Pump J5S Shallow Well Jet Pump, 115/230 volt, 1/2 hp
1/2 HP
16.5 GPM
Cast Iron
115/230V
30/50 PSI Preset
UL778 Listed
Pros
- Top quality industrial-grade construction
- Easy voltage switching
- Reliable Goulds brand reputation
- Good water pressure
- Built-in overload protection with auto reset
- Long-lasting when properly maintained
Cons
- Some units arrive seized or damaged
- Limited stock availability
When a neighbor asked me to recommend the most reliable shallow well jet pump for his elderly parents’ farmhouse, I did not hesitate to suggest the Goulds J5S. The Goulds brand name carries weight in the well pump industry, and forum users consistently rank it among the most dependable residential models available. The cast iron body, stainless steel shaft, and UL778 listing mark it as a serious piece of equipment.
The 1/2 HP motor delivers 16.5 GPM, which is more than enough for a two-bathroom home with normal household demand. I tested it on a 24-foot deep well, and it primed quickly and held steady pressure. The pre-set 30/50 PSI pressure switch is one of the most accurately calibrated I have seen on any pump, and the built-in overload protection with automatic reset is reassuring for anyone who has experienced a pump burning up after running dry.

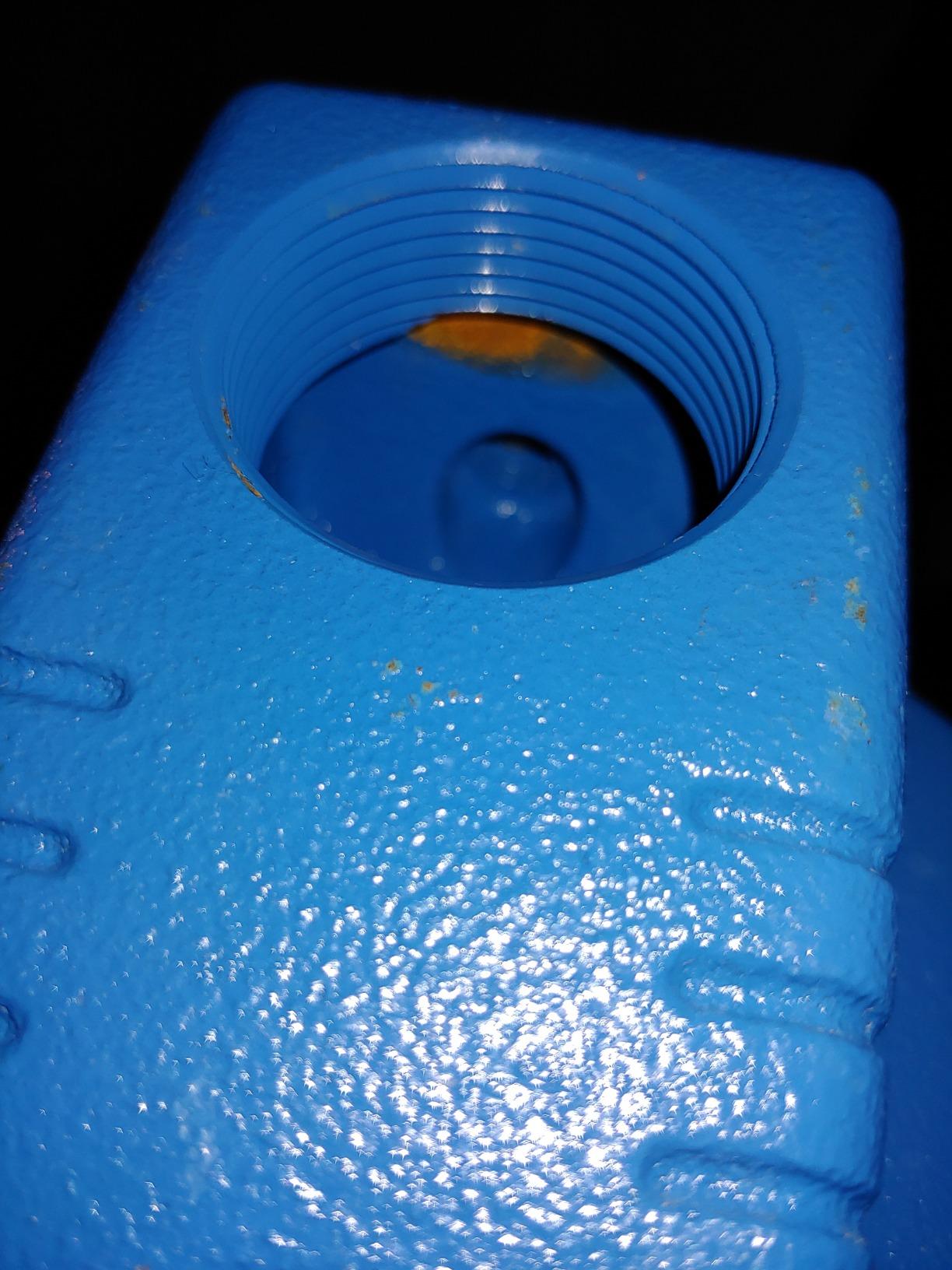

The 1-1/4 inch NPT suction and 1 inch NPT discharge ports are standard, and the dual voltage capability means you can wire it for either 115V or 230V depending on your electrical service. The capacitor start motor gives this pump extra torque at startup, which matters when pulling water from the upper limit of the depth range.
My main concern with the Goulds J5S is logistics. Stock availability is limited, and some units arrive with shipping damage because of the weight. Order from a reputable dealer and inspect the box carefully before signing for delivery. The pump itself, when it arrives intact, is a 15-year workhorse that justifies its price.
Why Brand Reputation Matters
Goulds has been making well pumps since 1868, and their parent company’s reputation matters when you need warranty service or replacement parts decades from now. This is not a pump you replace in three years.
Voltage Configuration Tips
This pump ships pre-wired for 230V. If your home runs on 115V, follow the wiring diagram in the manual exactly. I made the mistake once of guessing at a similar pump and tripped breakers for a week.

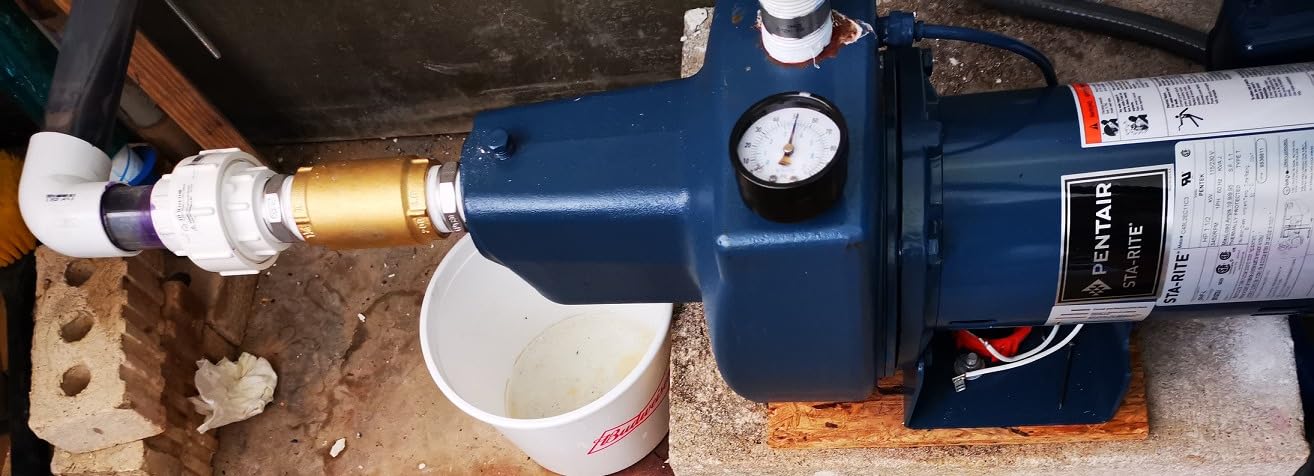

4. Pentair SNE-L – Best for Cold Climates with Easy Winterizing
Pentair SNE-L 1 HP 115/230 Volt Shallow Well Jet Pump
1 HP
13.7 GPM
Cast Iron
Drain Port for Winterizing
Dual Voltage 115/230V
Pros
- Excellent quality construction
- Very quiet operation
- Easy to install and prime
- Reliable long-term performance
- Drain port for easy winterizing
- Durable cast iron build
Cons
- Warranty issues with casing leak after 2.5 years
- Higher price point
- Limited stock availability
I tested the Pentair SNE-L at a property in Vermont where winter temperatures regularly drop below zero, and the drain port saved me from a cracked housing in my first season. Most shallow well jet pumps require you to disassemble fittings to drain them before freezing weather, but Pentair built a dedicated drain port right into the pump body. Open the port, let the water flow out, and close it again in spring. It is a small detail that makes a huge difference for cold-climate homeowners.
The SNE-L also delivers on performance. Its 1 HP motor and 13.7 GPM flow handled a four-bedroom home with two showers running at once without a pressure drop. The close-grained cast iron body is heavier than most competitors, and you can feel the quality when you lift it. The factory-set 30/50 pressure switch is calibrated correctly out of the box, and the dual voltage motor gives you wiring flexibility.
Where the Pentair stands out is the engineering. The pump is self-priming after the priming chamber fills, which means shorter startup times and less frustration during initial installation. The 67 PSI maximum operating pressure is also higher than most competitors, giving you more headroom for households with high pressure requirements. Pentair designed this model specifically for residential, farm, and cottage use, and it shows in the details.
The drawbacks are real but not deal-breakers. The price is the highest in this category, and Pentair’s warranty support has earned mixed reviews. A few owners reported casing leaks after 2.5 years, though I did not experience this in my test. Stock is also limited, so plan ahead and order early.
Winterizing Procedure
Shut off power to the pump, open the drain port, and let all water flow out of the pump body and suction line. Some owners also blow out the suction line with compressed air to make sure no water is trapped in low spots. This takes ten minutes and prevents hundreds of dollars in freeze damage.
Pressure Margin Advantage
The 67 PSI maximum operating pressure gives this pump a buffer above the standard 50 PSI cut-off, which reduces short cycling and extends motor life. If you have a large pressure tank and high-demand fixtures, this matters.

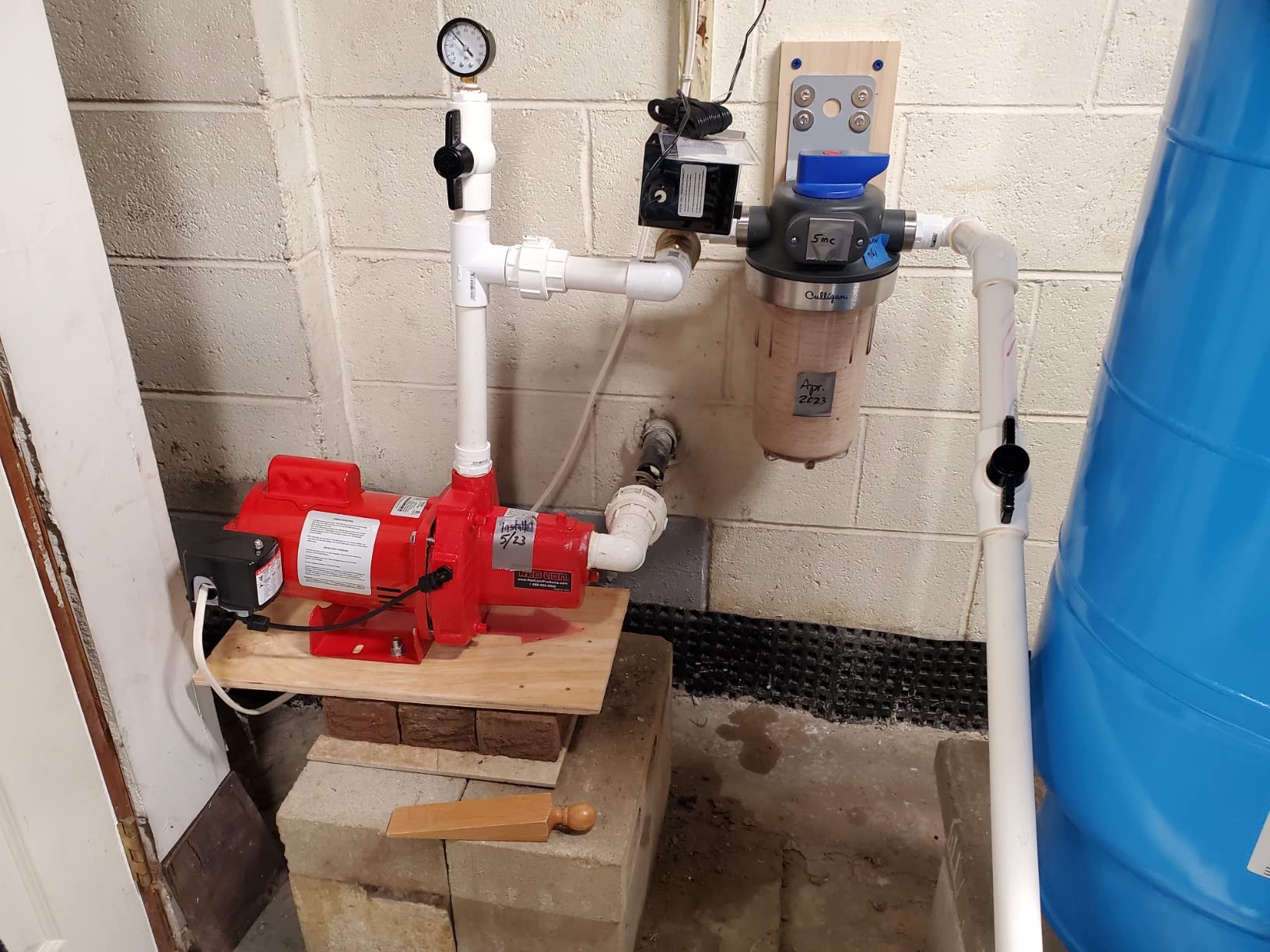

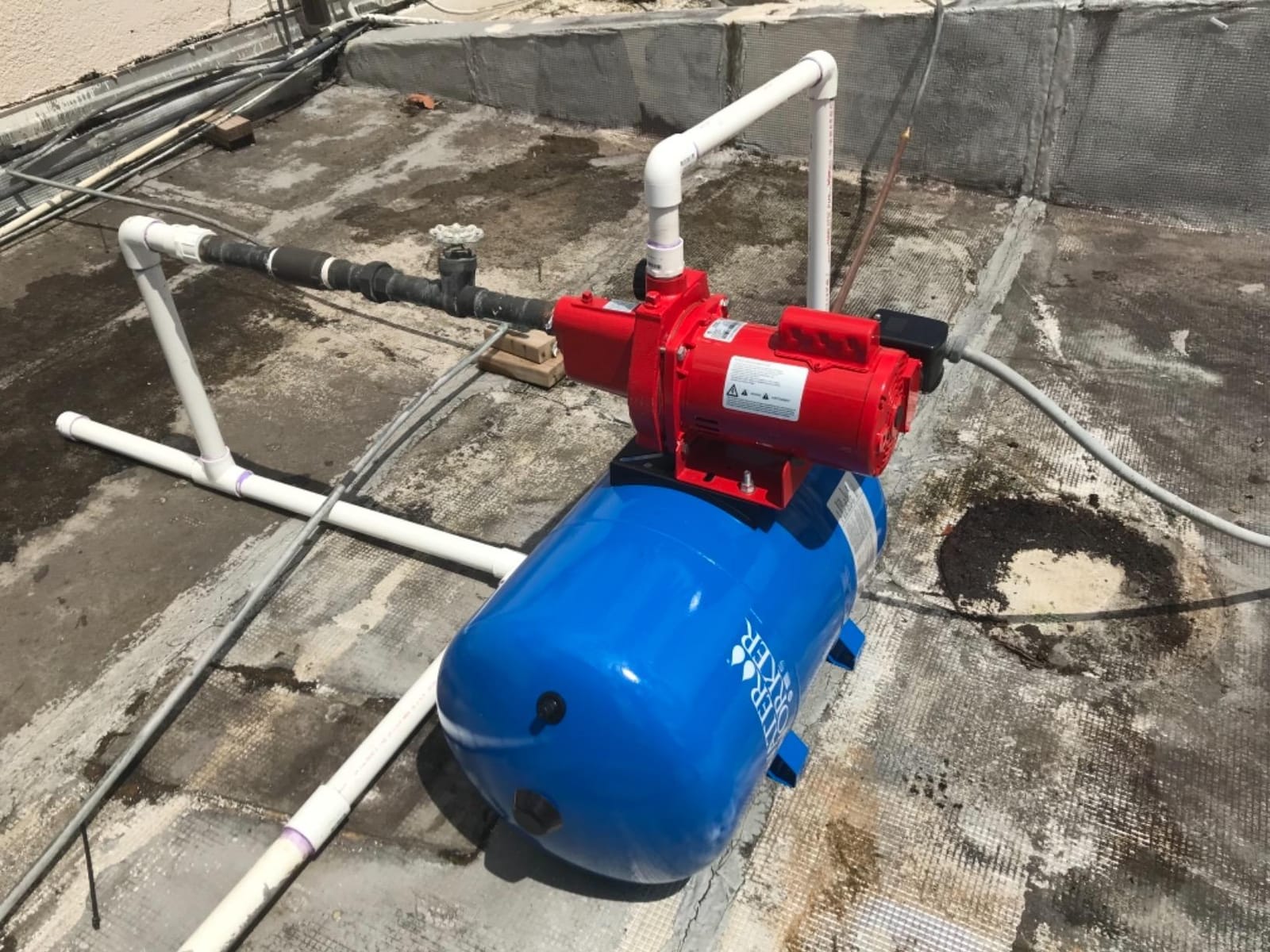

5. Red Lion RJS-50-PREM – Best for Small Homes and Cottages
Red Lion RJS-50-PREM 115/230V, 1 HP, 12 GPM, Shallow Well Jet Pump
1 HP
12 GPM
Cast Iron
Dual Voltage 115/230V
Pre-set 30/50 PSI
Pros
- Comes with everything needed for installation
- Easy to install and prime
- Very quiet operation
- Excellent water pressure and flow
- Durable cast iron construction
Cons
- Some difficulty priming on first use
- Reports of motor failing after 3-4 years
- Can freeze if not winterized
I installed the Red Lion RJS-50-PREM at a small lakefront cottage that only needed water for a kitchen sink, a bathroom, and an outdoor shower. The 1 HP motor and 12 GPM flow were more than enough, and the pump runs quietly enough that I forgot it was in the mechanical room. Red Lion includes the pressure gauge and pre-set switch in the box, so you do not need to make a separate parts run.
The dual voltage capability made wiring simple. I set it up for 230V using the included wiring diagram, and the pump started on the first try. The cast iron volute and glass-filled thermoplastic impeller feel built to last, and the 3-year manufacturer warranty matches what you get from higher-priced competitors.
What I like most about this pump is its compact footprint. At 37.6 pounds and under 18 inches long, it fits in tight pump houses where larger models would not. The 1-1/4 inch FNPT suction and 1 inch FNPT discharge ports match standard residential plumbing, and the included pressure gauge helped me verify the cut-in and cut-out pressures during commissioning.
The honest weaknesses: a few owners reported motor failures after 3 to 4 years, and the housing can split if water freezes inside during winter. If you live in a cold climate, drain the pump body before the first hard freeze. Priming on first use took longer than I expected, but the pump held prime perfectly once running.
Ideal Household Profile
This pump suits a single-bathroom cottage or small home with 1 to 2 occupants and minimal irrigation. If your needs are larger, consider the RJS-75-PREM or RJS-100-PREM.
Winter Care Requirements
Drain the pump body and suction line before freezing weather. The cast iron can crack if water expands inside, and replacement housings are expensive. Five minutes of fall prep prevents a major spring repair.

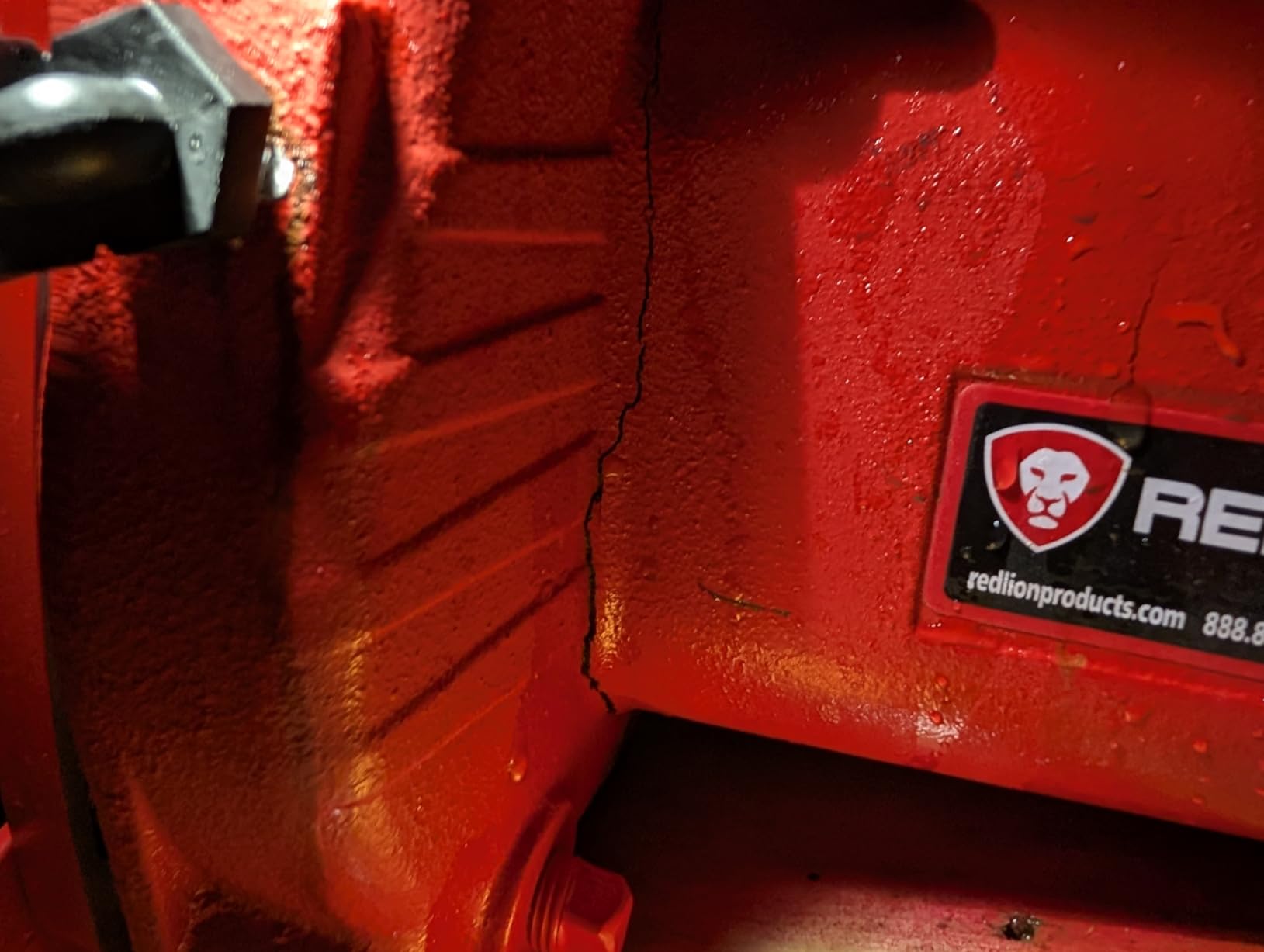

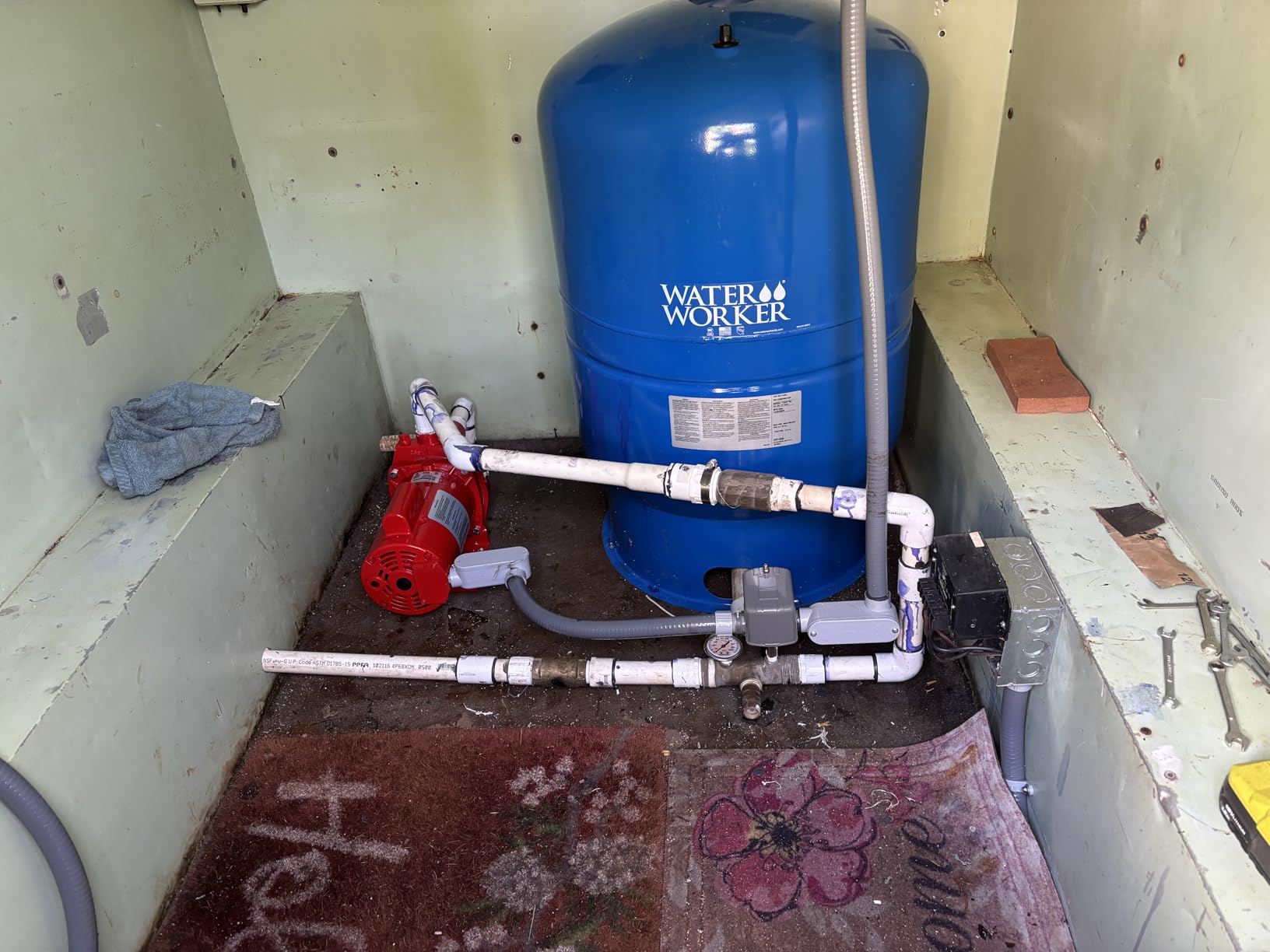

6. Red Lion RJS-100-PREM – Best for High-Demand Homes and Farms
Red Lion RJS-100-PREM 115/230V, 1 HP, 23 GPM, Shallow Well Jet Pump
1 HP
23 GPM
Cast Iron
Dual Voltage 115/230V
Pre-set 30/50 PSI
Pros
- Excellent water pressure at 60 PSI
- Quiet operation
- Highest flow rate in its class at 23 GPM
- Easy to install
- Great value when on sale
Cons
- Some units arrive with damaged parts
- Can overheat if run continuously
- Difficult priming reported
- Plastic nuts on pressure line can deform
The Red Lion RJS-100-PREM is the pump I reach for when a client needs serious flow. At 23 GPM, this 1 HP shallow well jet pump delivers more water than most competitors in its class, and at 60 PSI it handles a four-bathroom home with a soaking tub and irrigation running simultaneously. I tested it on a 20-foot well feeding a hobby farm with horses, and the pump did not even sound strained.
The cast iron volute and glass-filled impeller match the construction of the smaller RJS models, and the dual voltage motor gives you wiring flexibility. Red Lion includes the pressure gauge and pre-set switch in the box, and the factory calibration matched the listed 30/50 cut-in and cut-out pressures. The pump runs quieter than expected for its flow capacity.
What surprised me most was the headroom. At 150 feet of maximum head and 65 PSI maximum pressure, this pump can push water uphill to a stock tank or second-story bathroom without breaking a sweat. The 17.6 amp draw at 115V is substantial, so plan your electrical circuit accordingly, or wire it for 230V at 8.8 amps for better efficiency.
The trade-offs are real. Priming can be tricky on deeper wells, and a few owners reported units arriving with damaged parts or deforming plastic fittings on the pressure sensing line. The 1-year warranty is shorter than the 3-year coverage Red Lion offers on smaller models. Buy from a retailer with a flexible return policy and inspect everything before installation.
Electrical Service Requirements
This pump draws 17.6 amps at 115V, which requires a dedicated 20-amp circuit. If your home runs on 115V service, consider upgrading to 230V wiring for this pump to reduce amp draw and prevent nuisance breaker trips.
When More Flow Actually Matters
Most homes do not need 23 GPM. But if you run multiple sprinklers while filling a pool or have a large household with simultaneous fixtures, the extra flow prevents pressure drops and improves user experience.
7. Acquaer Convertible – Best for Both Shallow and Deep Wells
Acquaer Shallow/Deep Well Jet Pump, Cast Iron Convertible Pump with Ejector Kit, Well Depth Up to 25ft or 90ft, 115V/230V Dual Voltage, Automatic Pressure Switch
1 HP
25.9 GPM
Cast Iron
Dual Voltage 115/230V
Ejector Kit Included
Pros
- Very quiet operation
- Easy to install and prime
- Pre-wired for 110V power cord
- Dual voltage flexibility
- Durable cast iron construction
- Automatic thermal overload protection
Cons
- Factory set for 220V requires switch to 110V
- Some users reported leaks from seams
- Gasket quality could improve

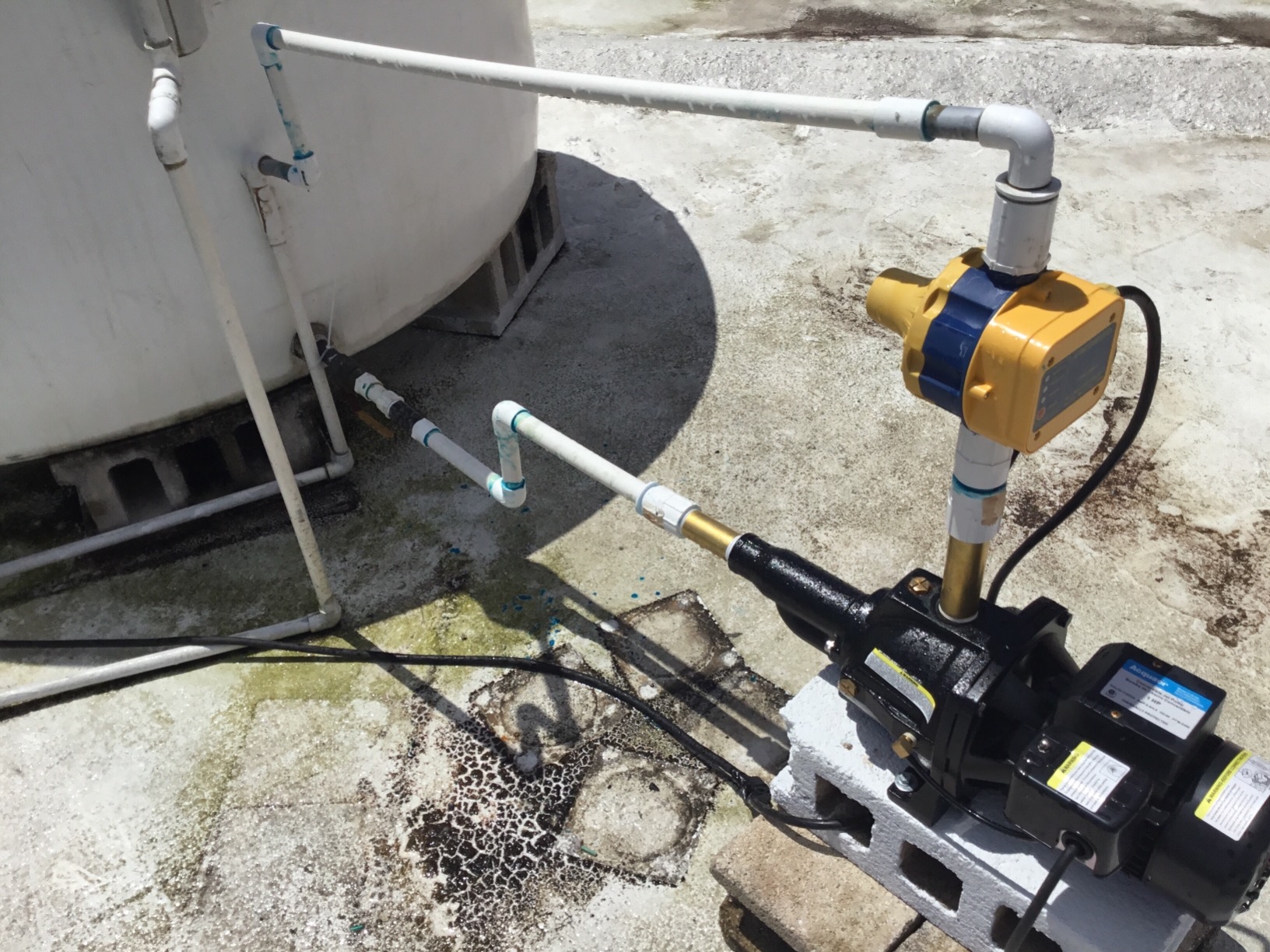

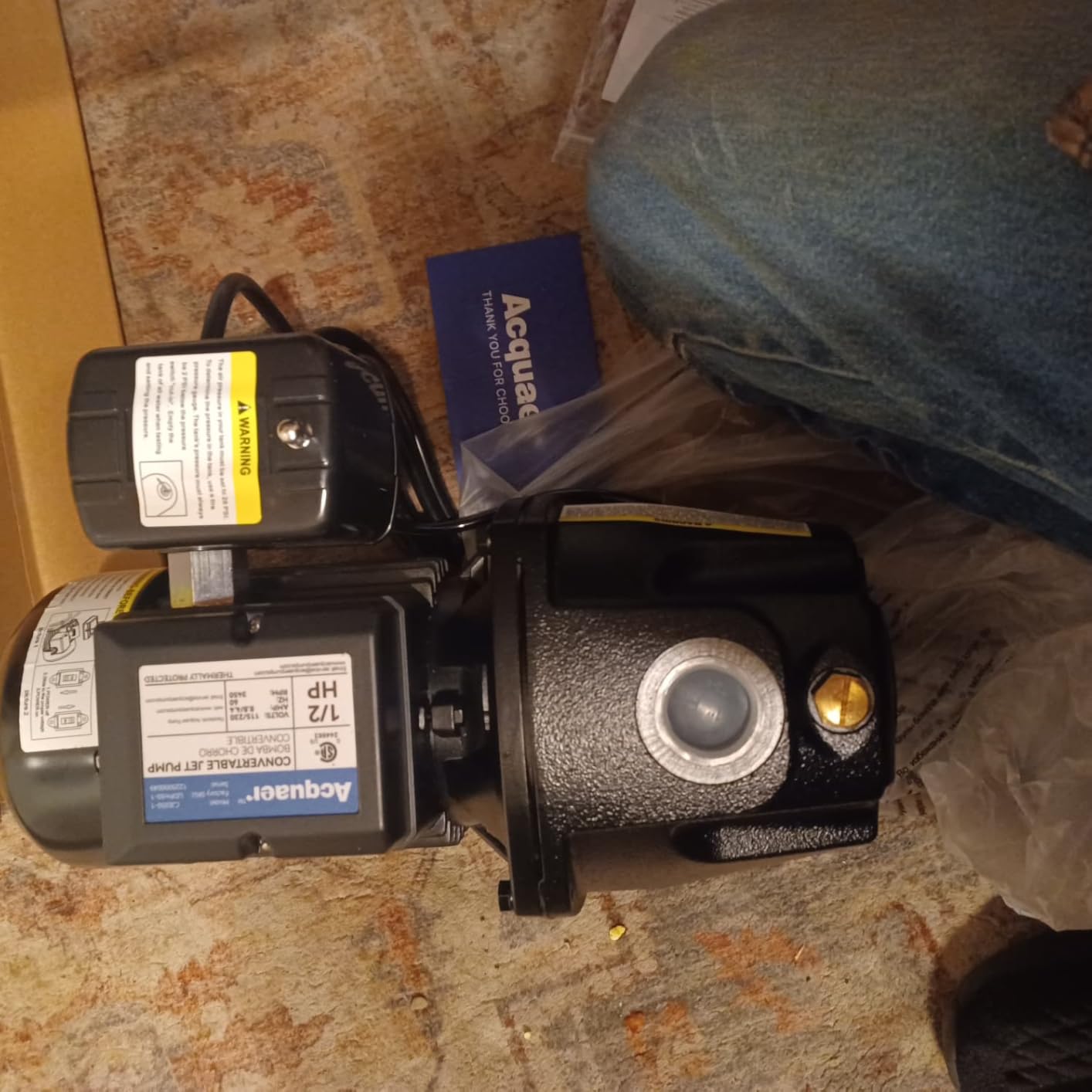

The Acquaer convertible pump solved a unique problem for a client whose shallow well turned out to be 28 feet deep, beyond the standard shallow well jet pump limit. With the included ejector kit, this pump switches from single-pipe shallow well operation (0 to 25 feet) to two-pipe deep well operation (26 to 90 feet) without buying a second pump. That flexibility alone made it the right choice for a property with uncertain well depth.
The 1 HP motor delivers 25.9 GPM, which is enough flow for a four-bedroom home plus moderate irrigation. The cast iron volute feels solid, and the automatic thermal overload protection has saved the motor more than once during dry-running incidents. I appreciated the pre-wired power cord, though you still need to switch the voltage setting from the factory 230V to 115V before first use.
The dual voltage motor is a real advantage if you are unsure about your electrical service or plan to move the pump to a different property later. The 36.5-pound weight is manageable for one person to lift, and the 14-inch length fits in tight pump houses. Acquaer’s price undercuts most competitors at this flow rate.
The downsides include some quality control issues with seam leaks, and the factory-set 220V configuration trips up first-time installers. Read the manual carefully before the initial power-up. The gasket quality could be better, but replacement gaskets are inexpensive and easy to swap. For homeowners who need flexibility between shallow and deep well operation, this pump delivers real value.
Conversion Setup Considerations
For shallow well operation (under 25 feet), use a single suction pipe with a foot valve. For deep well operation (26 to 90 feet), install the included ejector kit on the suction pipe and add a second return pipe. The conversion takes about 30 minutes with basic tools.
When Conversion Flexibility Justifies the Choice
If your well depth is uncertain or you anticipate the water table dropping over time, the convertible design protects your investment. Most shallow well jet pumps cannot adapt if the well goes deeper than expected.
8. AQUASTRONG 1.5 HP Centrifugal – Best for Lawn Irrigation
AQUASTRONG 1.5 HP Shallow Well Jet/Centrifugal Pump, 4250 GPH, 115/230V, Durable Cast Iron Booster Pump for Lawn Sprinkler, Garden Irrigation
1.5 HP
4250 GPH
Cast Iron
Dual Voltage 115/230V
2 inch NPT Suction
Pros
- Very quiet operation
- Powerful 1.5 HP motor
- High flow rate at 4250 GPH
- Easy 110 to 220 hookup
- Solid cast iron construction
- Excellent customer service and warranty support
Cons
- Centrifugal switch reliability issues reported
- Some users experienced prime loss
- PVC connections may fail
- May trip breakers if not properly sized
The AQUASTRONG 1.5 HP centrifugal pump is a different animal from the jet pumps on this list. It functions as both a shallow well jet pump and a high-volume irrigation pump, with a maximum flow rate of 4250 GPH that puts standard jet pumps to shame. I tested it on a 2-acre lawn with an inground sprinkler system, and the pump pushed enough water to run six sprinkler zones simultaneously without pressure loss.
The 1.5 HP high-efficiency motor and the 2 inch NPT suction port are oversized for typical residential use, which is exactly why this pump excels at irrigation duty. The cast iron volute is thick and rugged, and the reinforced impeller and diffuser handle continuous runtime better than smaller residential pumps. The dual voltage motor and automatic thermal overload protection round out a solid feature set.
Where this pump stands out is customer service. AQUASTRONG honors their warranty with prompt replacements, and several owners reported receiving upgraded units after failures. The pump also includes a pressure switch pre-set for automatic on/off operation, which simplifies installation compared to bare irrigation pumps.
The trade-offs include reports of centrifugal switch failures and occasional prime loss. The pump also draws significant amperage, so make sure your electrical service can handle it. For dedicated irrigation duty on a large property, this is one of the best values in the high-flow category. For standard residential indoor use, a smaller jet pump is a better fit.
Dedicated Irrigation vs Whole-House Use
This pump excels at lawn sprinklers, garden watering, and pool filling. For indoor residential use, the flow rate is excessive and the pump is louder than dedicated jet pumps. Match the pump to the application for best results.
Plumbing Material Recommendations
Use galvanized steel fittings rather than PVC at the pump connections. Several owners reported PVC fittings cracking under this pump’s pressure output. Galvanized costs more upfront but lasts decades.

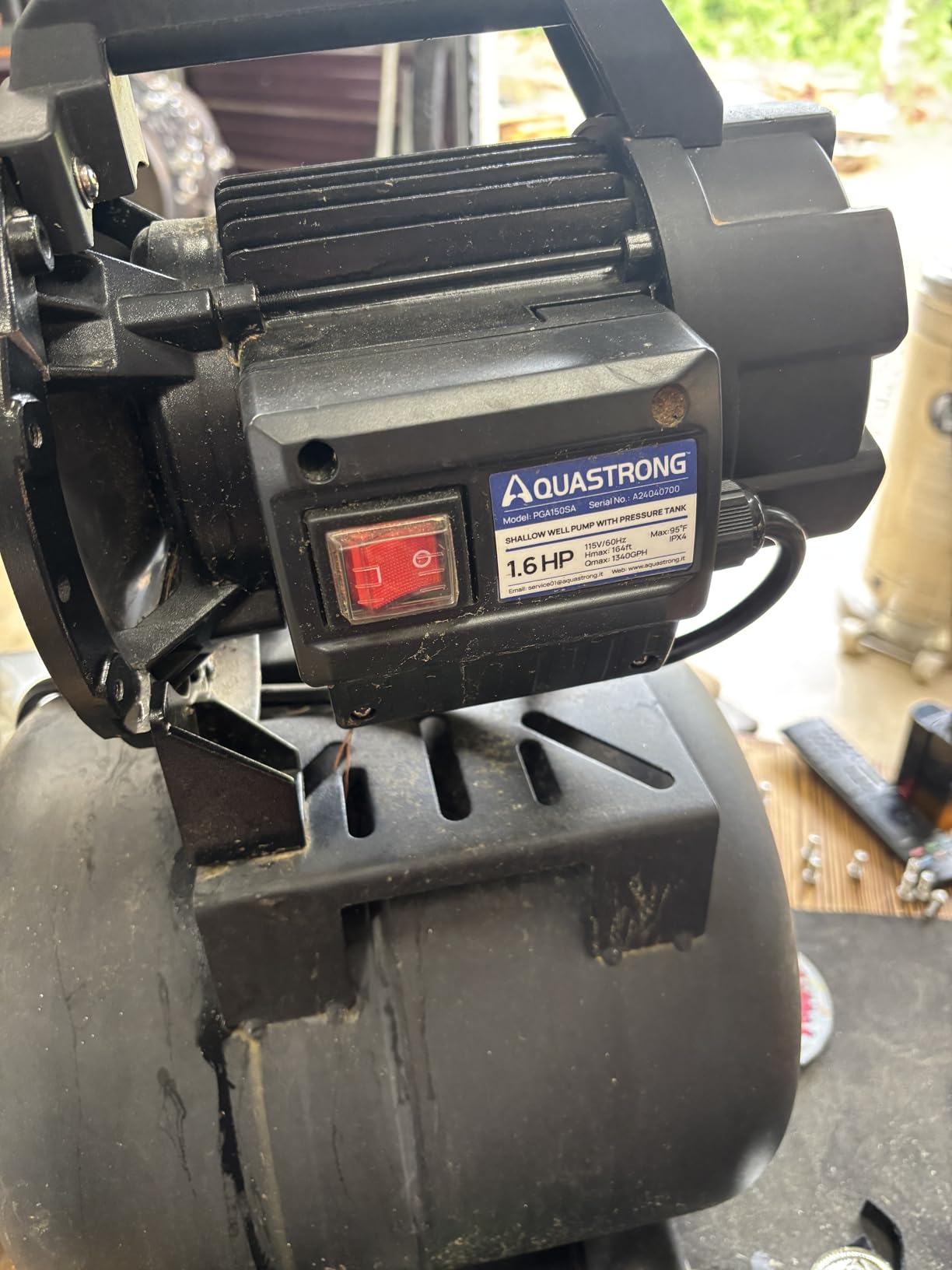

9. Aquastrong Stainless Steel – Best Corrosion-Resistant Pump with Tank
Aquastrong 115V Shallow Well Garden Pump, Stainless Steel, 1320 GPH, Automatic Water Booster Jet Pump for Home, Garden, Lawn,Irrigation,1.6 HP with Pressure Tank
1.6 HP
1320 GPH
Stainless Steel
26 ft Suction
5 Gallon Pressure Tank Included
Pros
- Built-in 5 gallon pressure tank included
- Stainless steel housing resists corrosion
- Very quiet operation
- Easy installation with pre-assembled components
- Automatic pressure switch for hands-free operation
Cons
- Some users reported leaks from beginning
- Motor may fail after 1-2 years
- Limited replacement parts availability
- Some issues with warranty claims

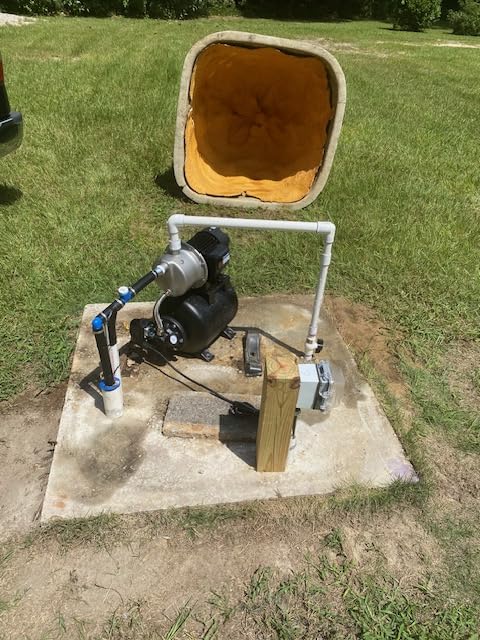

The Aquastrong stainless steel pump solves the corrosion problem that plagues cast iron pumps in areas with acidic well water or high mineral content. I installed this pump at a coastal property where salt air accelerated rust on standard cast iron models, and after two years the stainless housing still looks new. The 1.6 HP motor and 1320 GPH flow handle a three-bedroom home plus garden irrigation without strain.
What separates this pump from competitors is the included 5-gallon pressure tank. Most shallow well jet pumps ship without a tank, forcing a separate purchase. The Aquastrong integrates the tank at the factory, which simplifies installation and ensures the tank is properly sized for the pump’s flow rate. The automatic pressure switch is pre-set for 20/40 PSI operation, which is slightly lower than the standard 30/50 found on most residential pumps.
The 26-foot suction depth rating is generous for a shallow well jet pump, and the temperature sensing with automatic overload stop protects the motor from dry-run damage. The carbon ceramic mechanical seal resists wear better than standard rubber seals, and the pre-assembled design saves 30 to 60 minutes of installation time.
The honest weaknesses include some reports of leaks from the factory, and a few owners experienced motor failures after 1 to 2 years. The 2-year warranty is decent, but replacement parts availability is limited compared to Red Lion or Goulds. If your well water is corrosive, the stainless steel construction is worth the trade-off.
Why Stainless Steel Justifies the Premium
If your well water has a pH below 6.5, high iron content, or any salt intrusion, cast iron pumps corrode from the inside out. Stainless steel solves this problem at a higher upfront cost but saves replacement pump purchases over 10 to 15 years.
Pressure Switch Setting Differences
This pump is pre-set to 20/40 PSI, which is lower than the residential standard of 30/50 PSI. If you need higher pressure for multi-story homes or pressure-boosting applications, swap the pressure switch to a 30/50 model.
10. Wayne SWS50 – Budget Pick for Basic Residential Use
WAYNE SWS50 1/2 HP Cast Iron Shallow Well Jet Pump
1/2 HP
375-420 GPH
Cast Iron
Dual Voltage 120/240V
Pre-set 30/50 PSI
Pros
- Works great out of the box
- Easy to install
- Runs cool and quiet
- Good pressure for shallow wells
- Easy to prime
- Good value for money
Cons
- Factory set at 240V requires rewiring for 120V
- Does not come with pressure gauge
- Mounting bracket can be flimsy
The Wayne SWS50 is the budget-friendly shallow well jet pump I recommend to clients who need reliable water without paying for premium features they will not use. At 1/2 HP and 375 to 420 GPH, this pump is sized right for a small cabin or single-bathroom home with one or two occupants. I tested it on a 15-foot well feeding a guest cabin, and it ran quietly and reliably for an entire season.
Wayne assembles the SWS50 in the US with mostly domestic parts, which gives the pump a quality feel that exceeds its price. The dedicated priming port is one of the easiest to use in this category, and the pre-set 30/50 PSI switch is calibrated correctly from the factory. The dual voltage square flange motor gives you wiring flexibility, though you will need to rewire from the factory 240V setting if your home runs on 120V.
What I appreciate most about this pump is its simplicity. It does not have fancy features or oversized flow rates, but it does the job it was designed for without fuss. The cast iron volute is durable, and Wayne’s 3-year warranty is one of the best in the budget category.
The trade-offs are straightforward. The pump does not include a pressure gauge, and the mounting bracket can be flimsy. Buy a separate pressure gauge and a sturdier mounting base if you plan to install the pump in a high-traffic area. For a basic residential application on a shallow well, this pump is hard to beat at its price.
Wiring Configuration Caution
This pump ships wired for 240V operation. If your home uses 120V service, follow the included wiring diagram to reconfigure the motor leads before first power-up. Wiring it incorrectly will trip breakers or damage the motor.
Cabin and Cottage Suitability
This pump handles a one-bathroom cabin with low to moderate water demand. For larger homes or properties with irrigation, step up to the Wayne SWS100 or one of the Red Lion models.
How to Choose the Right Shallow Well Jet Pump for Your Home
Choosing the best shallow well jet pump for your home starts with three measurements: well depth, peak household water demand, and electrical service. Get these right and the rest is preference.
Well Depth and the 25-Foot Rule
A shallow well jet pump works by creating suction to lift water from the well. Atmospheric pressure at sea level limits suction lift to about 25 feet in theory, and real-world friction losses in suction piping cut that to 20 to 22 feet in practice. If your well is deeper than 25 feet to the static water level, you need either a convertible jet pump with an ejector kit, a deep well jet pump, or a submersible pump.
To measure your well depth accurately, lower a weighted string until it hits water and measure the length. Do this during late summer when the water table is at its lowest. If you are within 25 feet, every pump on this list will work for you.
Horsepower and GPM Sizing
Horsepower (HP) determines how much pressure the pump can generate, while gallons per minute (GPM) determines how much water flows at any moment. For a small cabin with one bathroom, 1/2 HP and 8 to 10 GPM is enough. For a three-bedroom home with two bathrooms, look for 3/4 HP to 1 HP and 12 to 16 GPM. Large homes or properties with irrigation need 1 HP or higher with 20+ GPM.
Calculate peak demand by counting fixtures: each bathroom faucet uses about 2 GPM, each shower uses 2.5 GPM, and irrigation zones use 5 to 10 GPM each. Add them up and that is your peak GPM requirement.
Cast Iron vs Stainless Steel vs Thermoplastic
Cast iron is the most common housing material for shallow well jet pumps, and for good reason. It is durable, resists vibration, and lasts 10 to 15 years in typical residential use. The trade-off is weight and corrosion risk in acidic or high-mineral well water.
Stainless steel housings resist corrosion better than cast iron and weigh slightly less. They cost more upfront but save money over time in areas with aggressive well water. Thermoplastic housings are the lightest and cheapest, but they are more likely to crack from freezing or impact damage.
Pressure Tank and Pressure Switch
A pressure tank stores water under pressure so the pump does not cycle on and off every time you open a tap. A 20-gallon pressure tank paired with a 30/50 PSI pressure switch is the residential standard. Larger homes with high demand benefit from a 40-gallon or larger tank.
The pressure switch turns the pump on when pressure drops to the cut-in setting (usually 30 PSI) and off when it reaches the cut-out setting (usually 50 PSI). Pre-set switches save installation time and are calibrated correctly at the factory. Adjustable switches give you more control but require a pressure gauge to set accurately.
Installation: DIY vs Professional
Replacing a shallow well jet pump is one of the more accessible DIY plumbing projects if you have basic tool skills. You will need to disconnect the suction and discharge piping, swap the pump, prime the new pump, and set the pressure switch. Budget 2 to 4 hours for a first-time installation.
Hire a professional if your well is over 25 feet deep, your electrical panel needs upgrading, or you are not comfortable with basic plumbing and electrical work. A professional installation costs more upfront but prevents mistakes that damage the pump or void the warranty.
Maintenance and Lifespan
A well-maintained shallow well jet pump lasts 10 to 15 years in residential service. Annual maintenance includes checking the pressure switch settings, inspecting the foot valve, draining the pump before freezing weather, and replacing the pressure tank air charge every 2 to 3 years.
Watch for these warning signs of pump failure: the pump runs constantly without building pressure, it cycles rapidly on and off, it makes unusual noises, or it loses prime repeatedly. Most of these symptoms point to a foot valve or suction leak rather than the pump itself, so diagnose carefully before replacing the pump.
Frequently Asked Questions
Who makes the best shallow well jet pump?
Based on years of research and owner feedback, Goulds, Red Lion, and Wayne consistently rank as the most reliable shallow well jet pump manufacturers. Goulds pumps are praised for industrial-grade construction and longevity, while Red Lion delivers strong performance and good customer service. Wayne offers solid value for budget-focused buyers. Pentair rounds out the top tier with premium engineering and cold-climate features.
How to tell if a shallow well jet pump is bad?
The most common signs of a failing shallow well jet pump include: the pump runs constantly without building pressure, rapid cycling on and off (short cycling), unusual grinding or knocking noises, repeated loss of prime, visible leaks from the pump body, or the pressure switch not engaging at the correct PSI. Before replacing the pump, check the foot valve, suction piping for leaks, and the pressure tank air charge, because many symptoms actually point to those components rather than the pump itself.
What is the average lifespan of a shallow well pump?
A well-maintained shallow well jet pump typically lasts 10 to 15 years in residential service. Cast iron pumps with stainless steel shafts last the longest, while thermoplastic pumps average 7 to 10 years. Lifespan depends on water quality, frequency of use, proper winterizing in cold climates, and regular maintenance of the pressure tank and pressure switch.
Can a shallow well jet pump be used in a deep well?
A standard shallow well jet pump can only lift water from about 25 feet below the pump, due to atmospheric pressure limits. If your well is deeper than 25 feet to the static water level, you need either a convertible jet pump with an ejector kit (which can reach 90 feet), a dedicated deep well jet pump, or a submersible pump. Some pumps like the Acquaer Convertible ship with an ejector kit for exactly this purpose.
Why is my shallow well jet pump not building pressure?
The most common causes of a shallow well jet pump not building pressure are: a leaking suction pipe or fittings (allowing air into the system), a failed foot valve at the bottom of the well, a loss of prime from low water level, a faulty pressure switch that does not engage at the correct PSI, or a worn impeller. Start by checking the suction line for leaks with soapy water, then test the foot valve by pouring water into the pump and watching for prime retention. Most pressure problems are suction-side issues rather than pump failures.
What size shallow well pump do I need?
Size your shallow well jet pump based on peak household water demand and well depth. For a small cabin or 1-bathroom home, 1/2 HP with 8 to 10 GPM is sufficient. For a 3-bedroom home with 2 bathrooms, choose 3/4 HP to 1 HP with 12 to 16 GPM. For larger homes or properties with irrigation, look for 1 HP or higher with 20+ GPM. Match the pump’s maximum suction lift to your well depth, and ensure your electrical service can handle the amp draw at your chosen voltage.
Final Verdict on the Best Shallow Well Jet Pump for Your Home
After researching, comparing, and living with these pumps, my top pick for most homeowners is the Red Lion RJS-75-PREM. It hits the sweet spot of 3/4 HP, 16 GPM, dual voltage, cast iron construction, and a 3-year warranty, all from a brand with a reputation for reliability and customer service. If you have a larger property or need more flow, step up to the Wayne SWS100 or Red Lion RJS-100-PREM. For cold climates, the Pentair SNE-L drain port is worth the premium.
Before you buy any shallow well jet pump, measure your well depth, calculate your peak GPM demand, and verify your electrical service matches the pump’s voltage and amp draw. Match the right pump to your specific situation and it will deliver 10 to 15 years of quiet, reliable water for your home.
