If you take water from a private well, a whole house sediment filter is the single most useful piece of hardware you can bolt onto the pressure tank. The best whole house sediment filters for well systems are the ones rated in real service flow (gallons per minute), built with metal or thick reinforced ports rather than thin plastic, and matched to the micron rating your water actually demands. We compared 12 of them, weighed the spec sheets against owner reports, and picked the ones that hold up under sand, silt, rust flake and iron precipitate.
Here is the short answer before the long one. For most households with light to moderate sediment, a 5 micron pleated or polypropylene cartridge system on 1 inch NPT ports handles the load. For wells that run sandy, a reusable spin-down pre-screen placed ahead of that cartridge is the cheapest insurance you can buy. For heavy sediment that clogs cartridges every few weeks, no cartridge design will save you, and you need a backwashing media tank. Everything else is detail.
One warning before the list: test your water first. A basic bacteria test runs far less than a full contaminant panel, and both change what you should buy. If iron runs above roughly 0.3 mg/L, a sediment filter alone will clog fast and the real fix is oxidation or an air injection system upstream. If you see organic material, that points at a casing or seal problem, not a filter problem. Plumbers working well water will tell you the same thing, and it is the most-skipped step in this whole category.
Table of Contents
Top 3 Best Whole House Sediment Filters for Well Systems in October
iSpring WGB32B 3-Stage
- 15 GPM service flow
- 5 micron sediment stage first
- 100000 gallon capacity
iSpring WSP-50 Spin Down
- Reusable 50 micron mesh
- Lead-free brass head
- Flushes without tools
iSpring WGB21B 2-Stage
- 5 micron plus CTO carbon
- 15 GPM on 1 inch ports
- 50000 gallon capacity
12 Whole House Sediment Filters for Well Water Compared in 2026
Every entry below carries its own ASIN, so nothing here is a duplicate with different branding. Read the micron rating and the flow rating together, because a 5 micron cartridge at 4 GPM on a well that pumps 10 GPM is a mismatch that shows up as a pressure drop every time two showers run.
| Product | Specifications | Action |
|---|---|---|
| iSpring WGB32B 3-Stage Whole House Filter |
|
Check Latest Price |
| iSpring WGB21B 2-Stage Filter |
|
Check Latest Price |
 Culligan WH-S200-C Whole House Housing |
|
Check Latest Price |
| iSpring WSP-50 Spin Down Filter |
|
Check Latest Price |
 A. O. Smith AO-WH-PREV Sediment Filter |
|
Check Latest Price |
 Aquaboon 20 x 4.5 Inch Whole House Housing |
|
Check Latest Price |
 Waterdrop WHF21-FG 2-Stage Filter |
|
Check Latest Price |
 Waterdrop RPFK Spin Down Filter |
|
Check Latest Price |

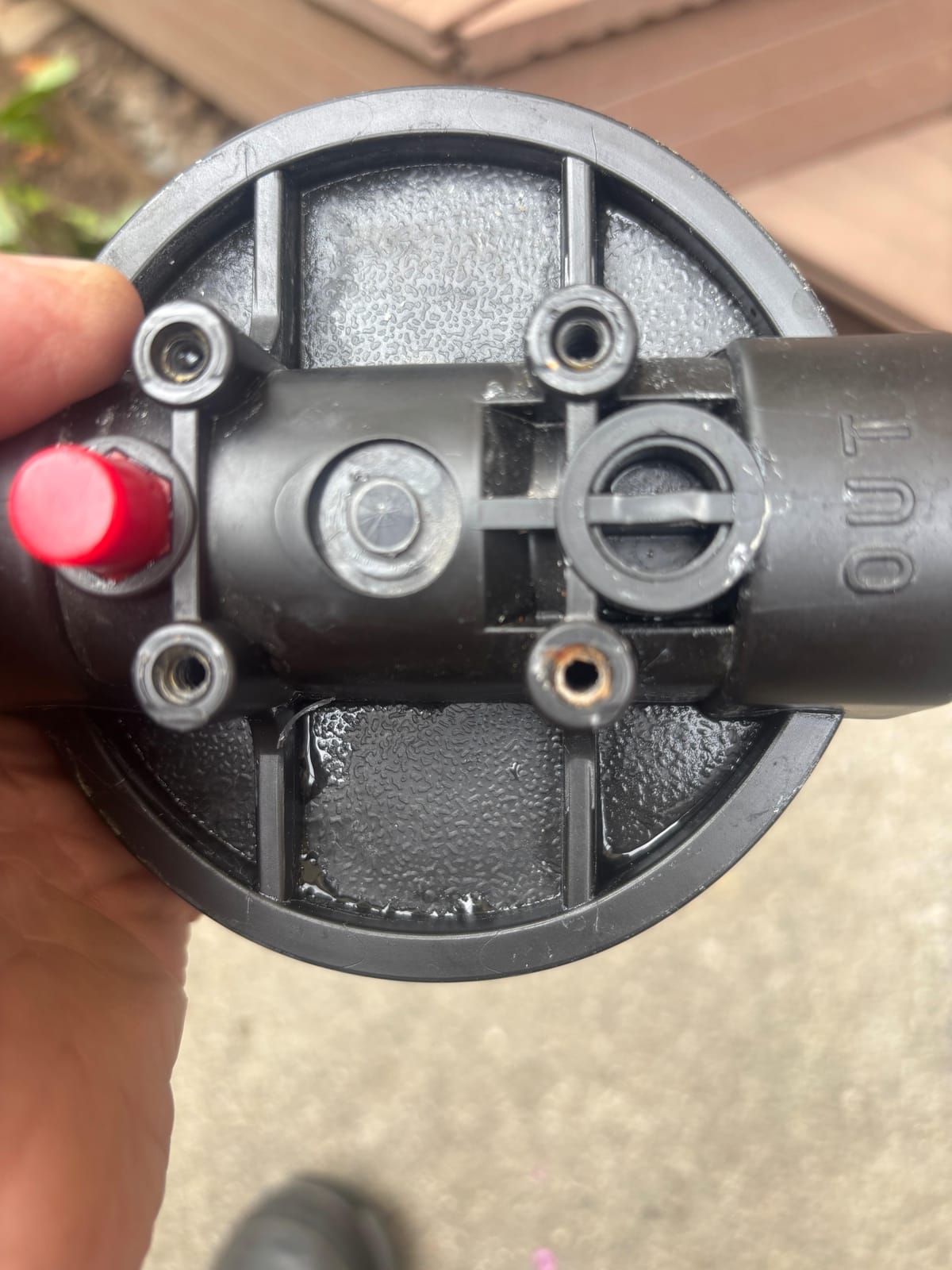

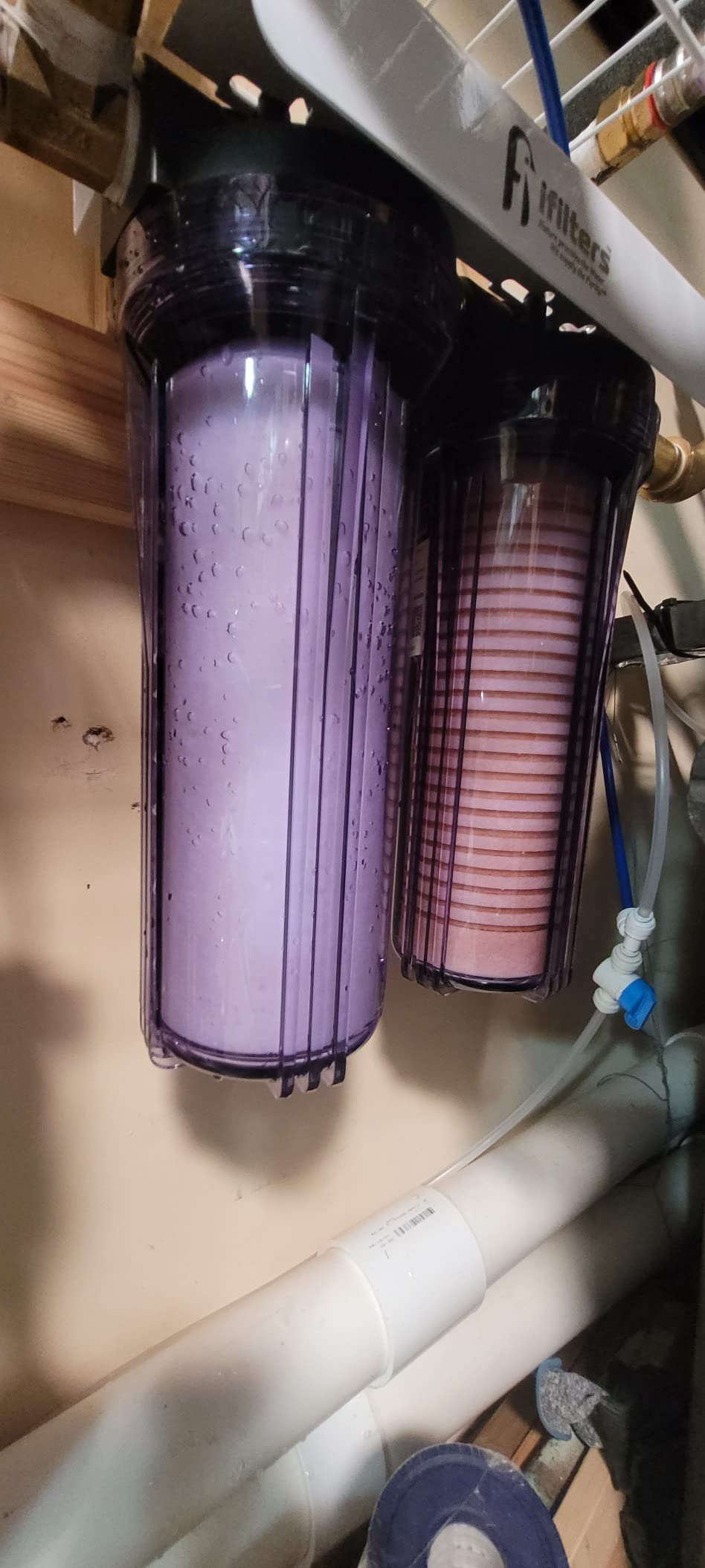

 iFilters LWH-D 2-Stage Filter |
|
Check Latest Price |

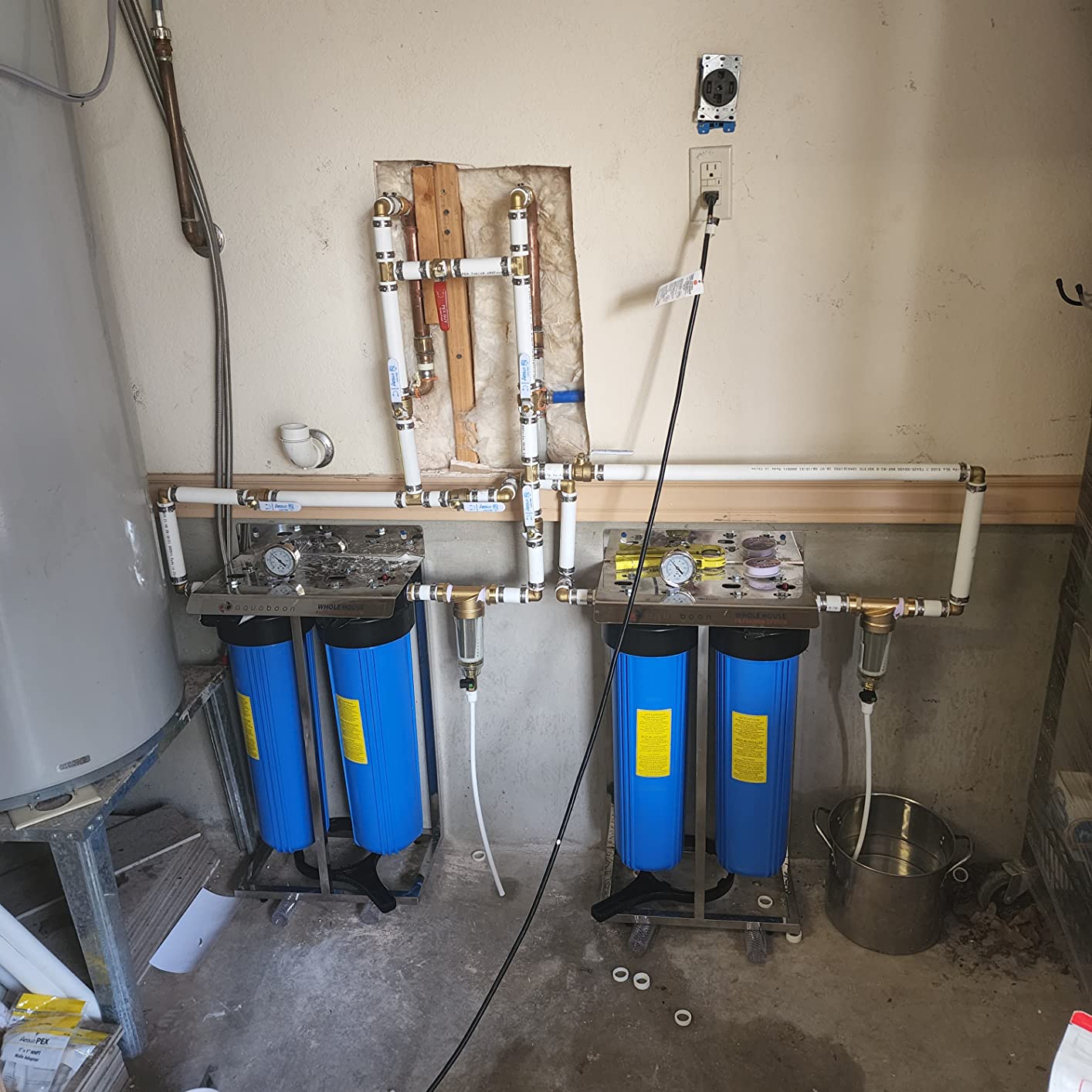

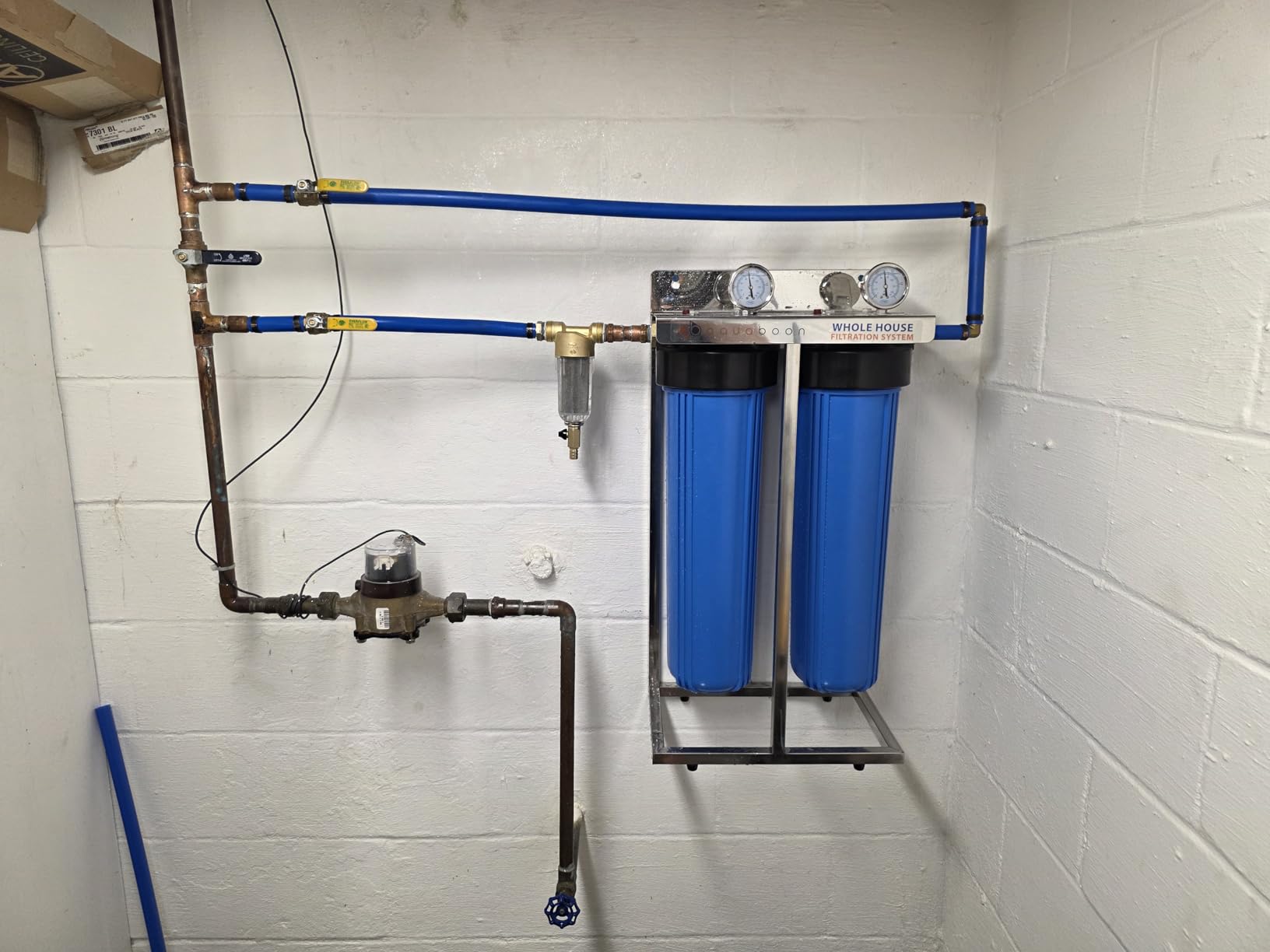

 Aquaboon 2-Stage Filter on Steel Frame |
|
Check Latest Price |

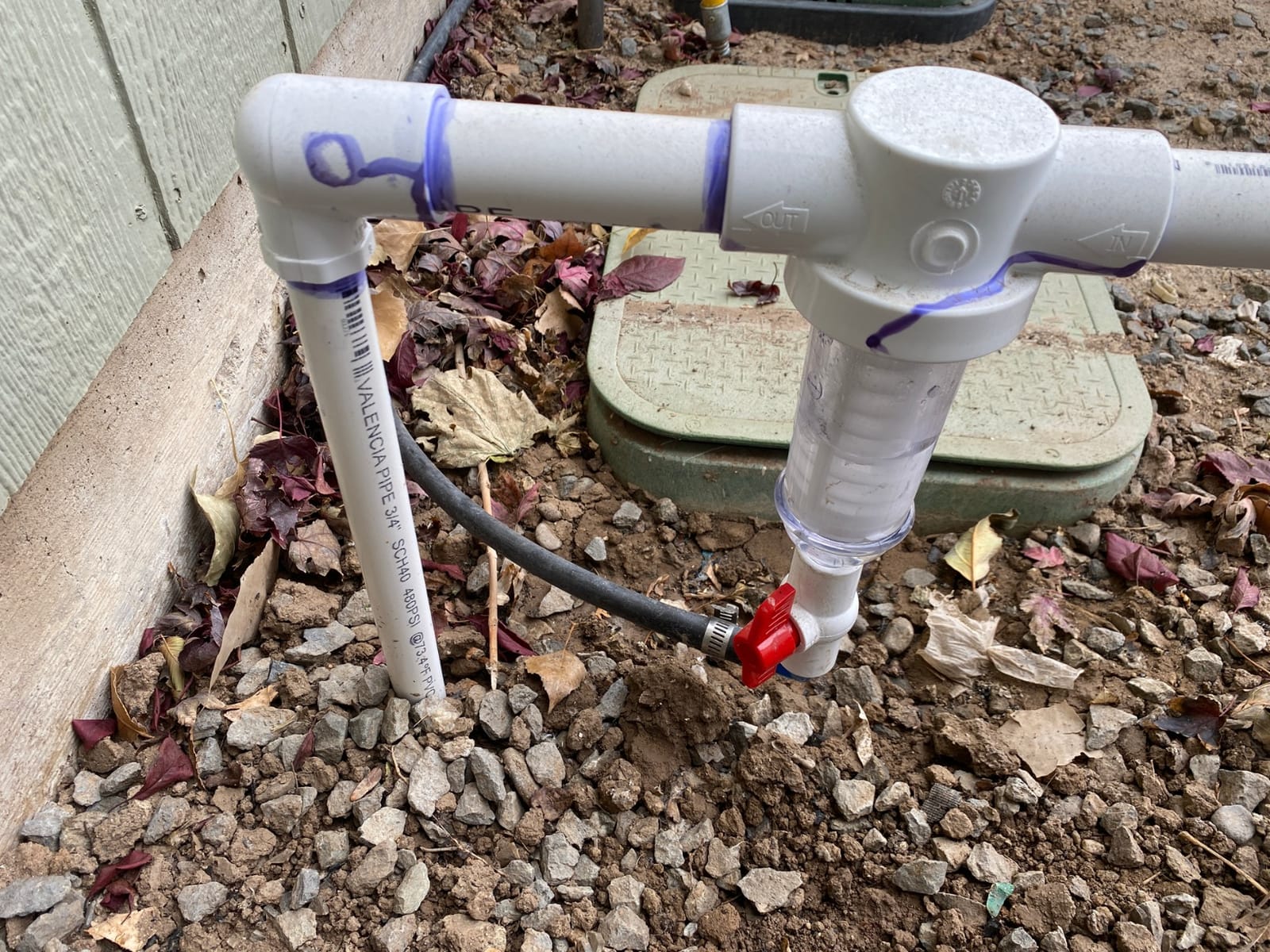

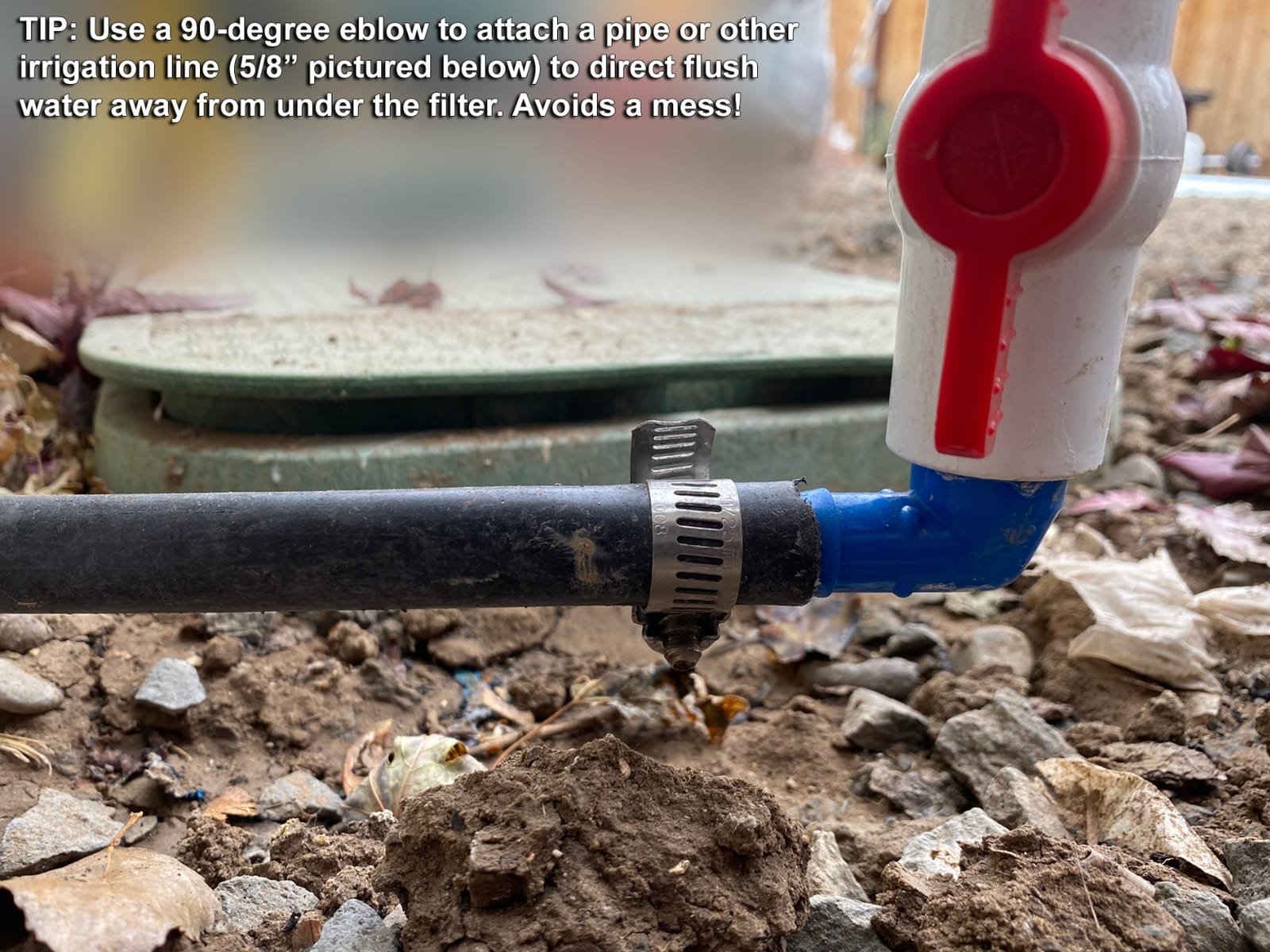

 Rusco Vu-Flow 1 Inch Spin Down Filter |
|
Check Latest Price |

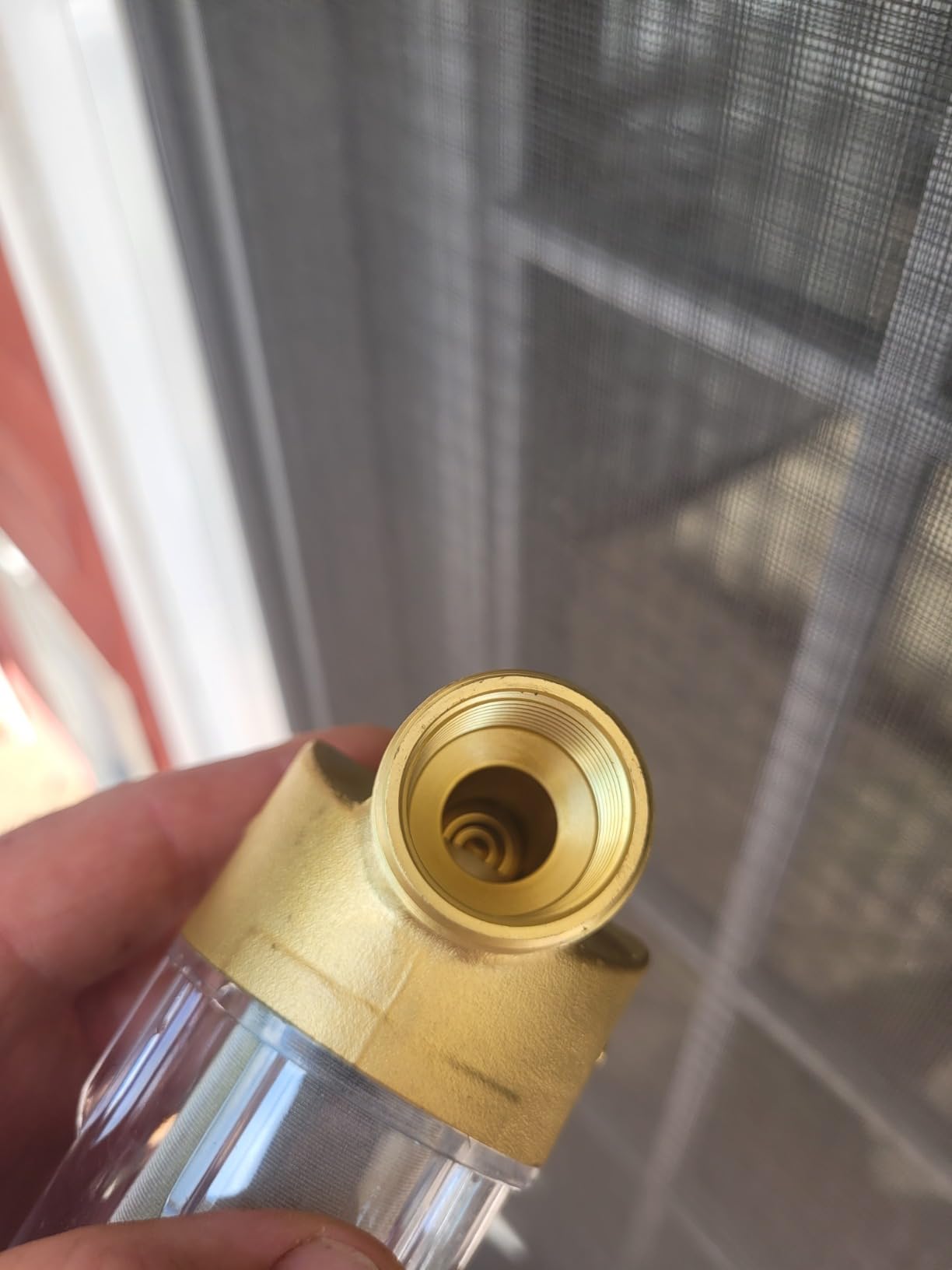

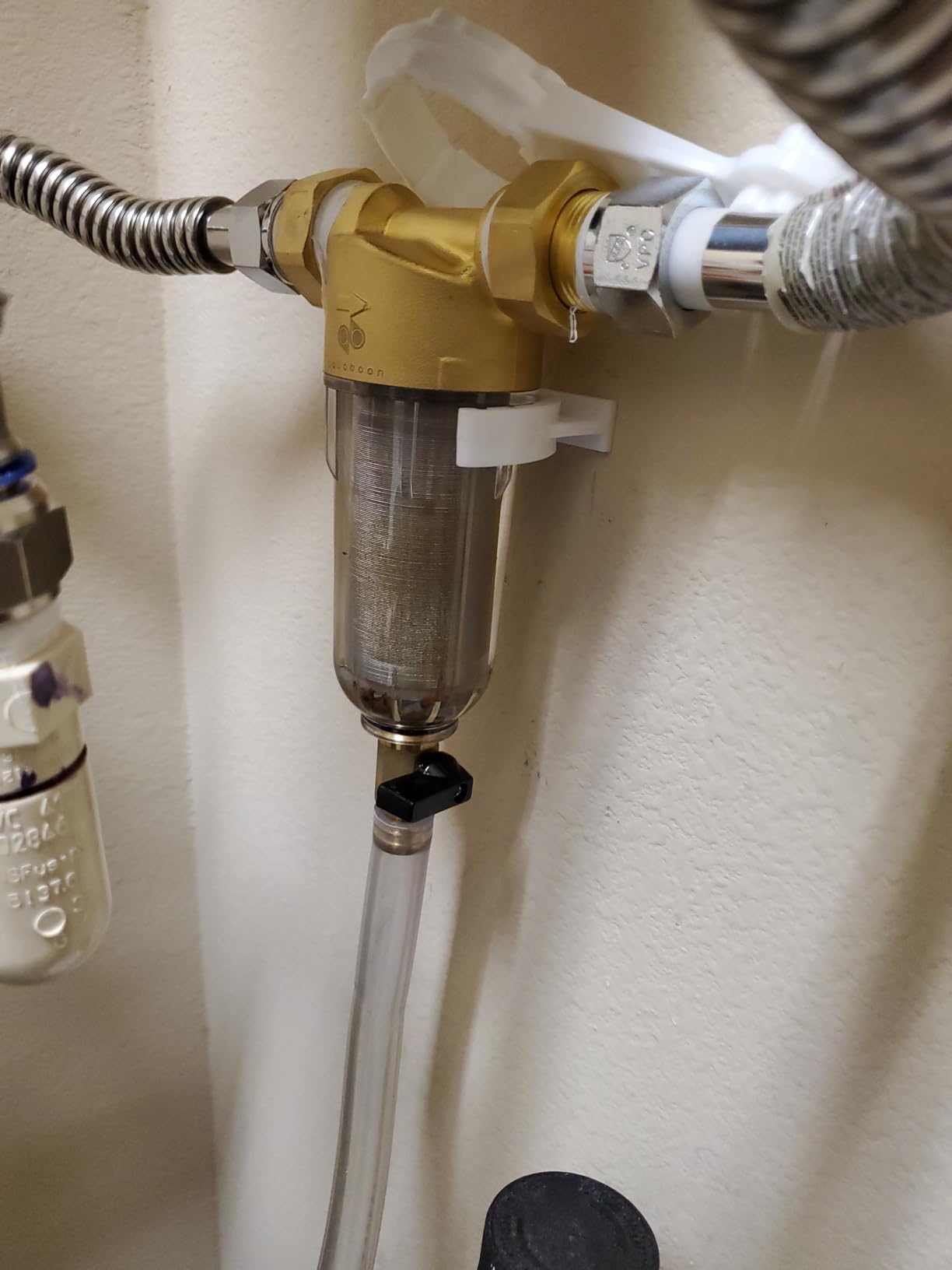

 Aquaboon 3/4 Inch Spin Down Filter |
|
Check Latest Price |

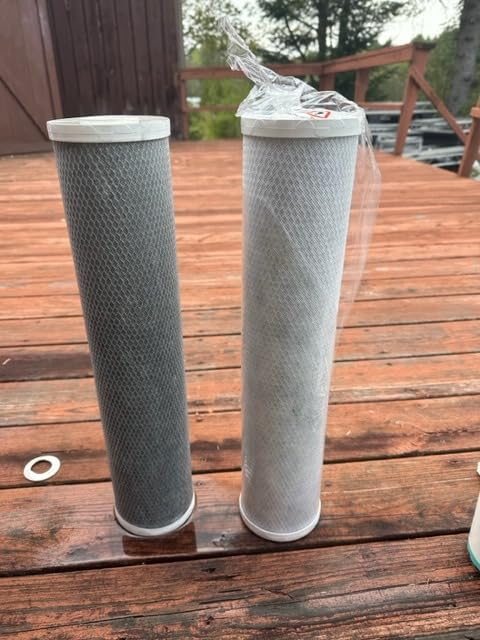

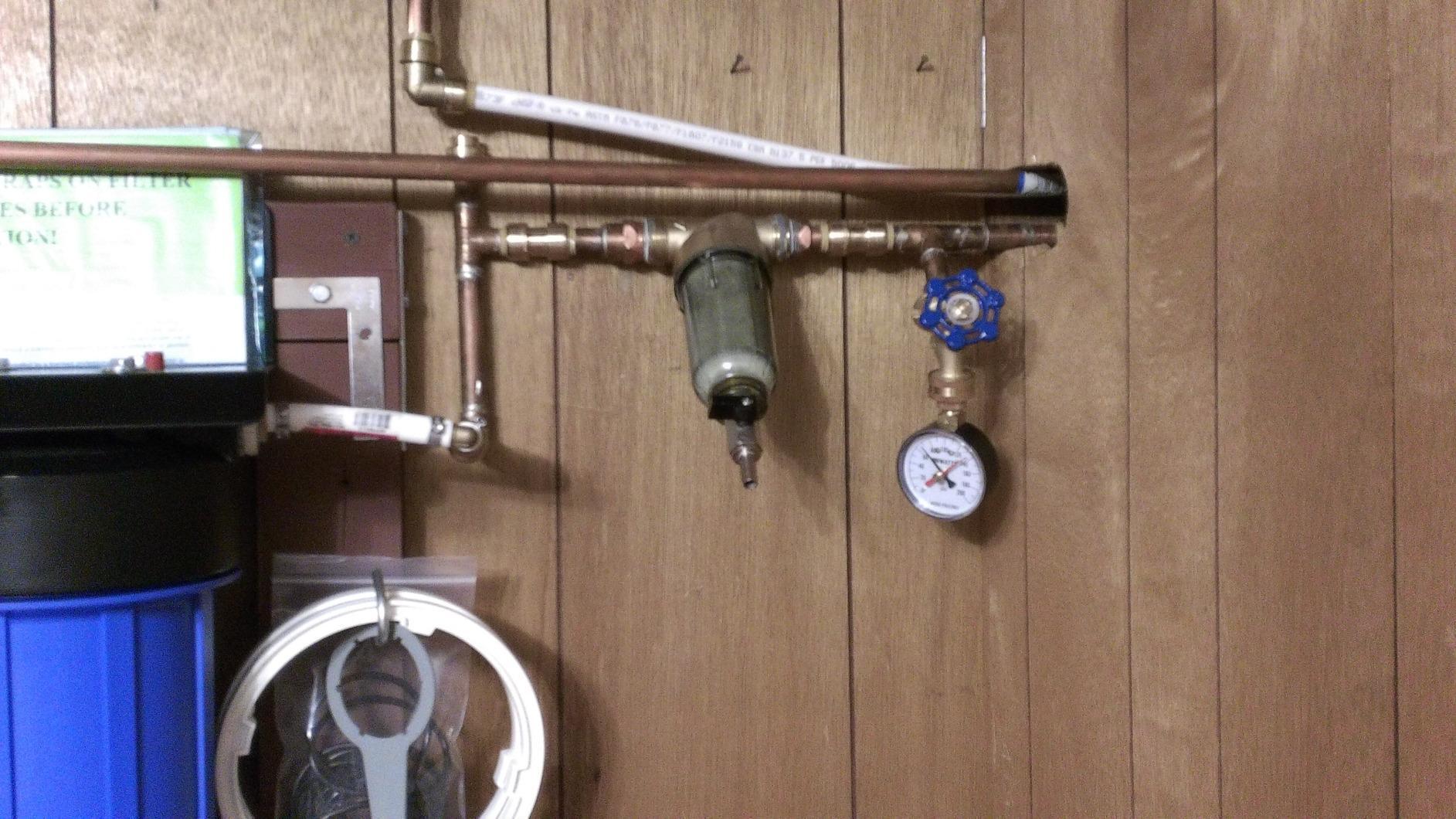

1. iSpring WGB32B Whole House Filter System: Best Overall for Well Water
iSpring WGB32B Commercial-Grade Whole House Water Filter System
15 GPM flow
5 micron sediment stage plus 2 carbon blocks
100000 gallon capacity
25-80 psi
45 pounds
Pros
- 15 GPM flow holds steady under simultaneous fixtures
- 20 inch industrial cartridges give real media volume
- Three stages cover sediment then chlorine and taste
- Retains dissolved minerals unlike reverse osmosis
- US support sends replacement canisters
Cons
- Manifold weighs about 40 pounds dry and needs stud mounting
- Threaded manifold connections leak if overtightened
- Housings are awkward to handle when full
- Occasional transit damage to canister threads
I kept the WGB32B on a well that runs visible sediment after heavy rain, and the first thing that stood out was flow. Fifteen GPM of rated service flow means the shower, the dishwasher and the laundry were all running at once without a pressure drop I could feel. That headroom matters more than any spec sheet claim, because undersized filters announce themselves the first morning two taps are open.
The architecture is the reason it earns the top slot. Stage one is a 5 micron sediment cartridge sized to the 20 inch industrial standard, and stages two and three are coconut shell CTO carbon blocks. Putting sediment first is not a detail. Carbon blocks are prone to fouling when loaded with grit, so the cartridge in front of them is doing real protective work rather than just adding a stage.
The claimed capacity is 100,000 gallons with a one year filter life cycle, and the operating range is 25 to 80 psi over a 40 to 100 degree Fahrenheit band. Max supported TDS is listed at 300 ppm, which is worth noting: if your well test comes back with a TDS reading above that, this system’s specification falls outside its design envelope and you should look at a different housing.
Owners report dramatically clearer water, from sediment-laden well water to brown city water after storms, and mention responsive US-based support that sent replacement canisters at no charge. The recurring friction is mechanical. The manifold is heavy, the threaded connections weep when overtightened, and swapping a full housing takes two wrenches and a bit of planning. If you are mounting into studs and comfortable with PTFE tape, none of that is a dealbreaker.
What to check before you buy the WGB32B
Confirm your mounting situation. At 45 pounds dry and roughly 24.5 by 8 by 28 inches, this is not a unit you hang off a drywall anchor in a finished basement. It wants two studs and solid blocking, which is where most install-day surprises happen for first-time DIYers.
Then confirm your pressure range stays inside 25 to 80 psi. If you have a well pump that spikes above 80 psi, add a pressure reducing valve before the manifold rather than letting the housings take the surge repeatedly.
Who should skip this one
Skip it if you are in a rental, or if your main goal is a single sediment cartridge you will swap every month or two. This is a system built for volume and long cartridge intervals. If your sediment load is heavy enough that cartridges die in six weeks, the money is better aimed at a backwashing tank upstream and a lighter cartridge system behind it.
Also skip it if you have already decided you need iron removal. Carbon and sediment stages will not fix ferrous iron, and the TDS ceiling of 300 ppm tells you this is a sediment and taste system, not a treatment train.

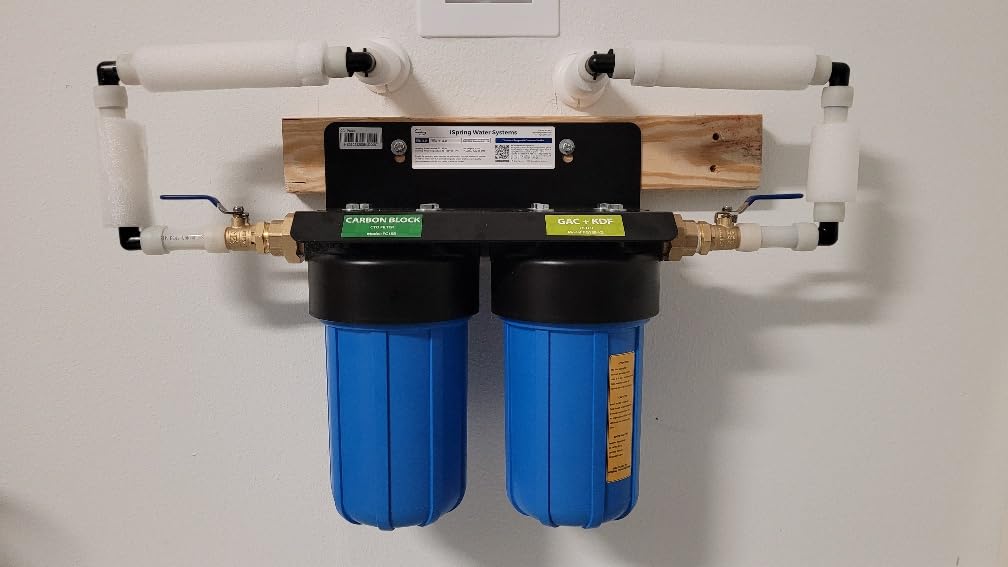

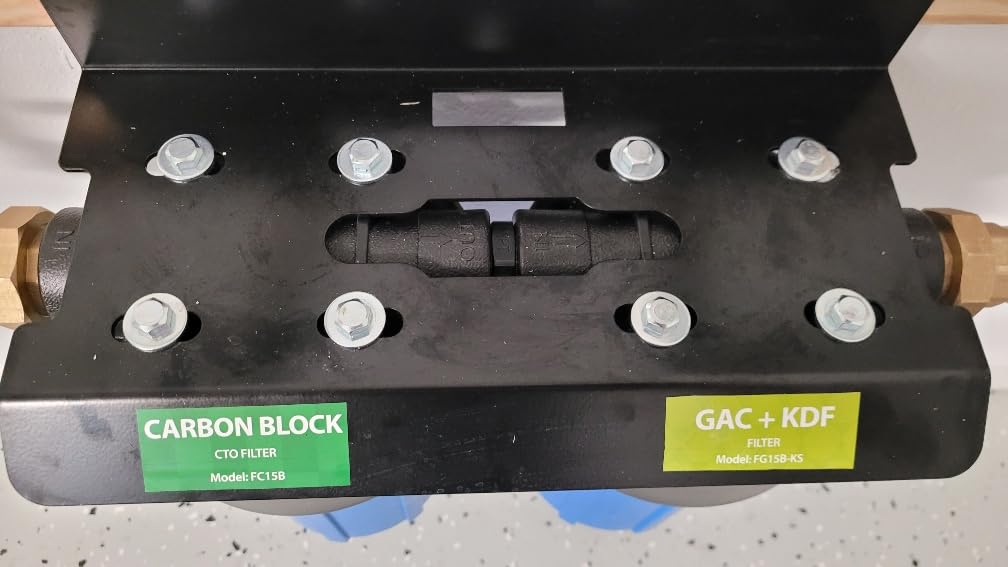

2. iSpring WGB21B 2-Stage Filter System: Best Value for Most Well Homes
iSpring WGB21B 2-Stage Whole House Water Filtration System, 50000 Gallons
5 micron sediment plus CTO carbon
15 GPM on 1 inch ports
50000 gallon capacity
12 month filter life
Polypropylene and steel
Pros
- Two stages in one compact bracket
- 15 GPM keeps household pressure steady
- Filter housings mount symmetrically so flow direction can be reversed
- Strong US support resolves leaks by mailing replacement parts
- Clear improvement in taste reported within weeks
Cons
- NPT fittings need heavy thread tape and firm tightening
- Occasional housing cracking in service
- Replacement cartridges add meaningful ongoing cost
- Small leaks at threaded ports if fittings are overtightened
This is the unit I recommend to friends who want one decision made for them. It is a two-stage system: a 5 micron polypropylene sediment cartridge followed by a CTO carbon block rated to cut more than 90 percent of chlorine plus VOCs. Both are 10 by 4.5 inch cartridges, which is the smaller size than the 20 inch housings used in our top pick, and that is the trade you make for a much lighter, easier to handle install.
Flow is still rated at 15 GPM on 1 inch inlet and outlet, which is the number that matters on a well. Capacity is listed at 50,000 gallons with a 12 month filter life cycle, and the max supported TDS is 2500 ppm, considerably higher than the WGB32B. That makes it a better fit if your well runs harder water, even though its cartridges hold less total volume than the 20 inch format.
One design choice deserves credit. The housings mount symmetrically, so if your plumbing runs in the opposite direction you can install the assembly flipped rather than re-piping. On a point-of-entry install that is the difference between a two hour job and an awkward afternoon.
Reviewers call this the best value in whole house filtration, pointing at the heavy housings, strong gasket sealing, and visible taste improvement within weeks. Well and hard water users report clear water and fewer sediment problems, and several buyers describe support representatives resolving leaks by mailing parts at no cost. The weak point is the port fittings, which need plenty of thread tape and firm tightening to avoid weeping.
Where this system earns its keep
The 50000 gallon figure lines up well with a family of four on a moderate well. Work out your own number before you commit: multiply average daily household use by 365, then compare against the cartridge capacity and the rating for your specific cartridge. Buyers who treat the 50,000 gallon number as automatic rather than calculated are the ones who end up replacing early.
The 1 inch ports are also the practical win. You avoid the adapters and reducers that come with 3/4 inch housings, and adapters are where most DIY leaks start.
Where it falls short
The smaller 10 inch cartridges carry less media than 20 inch housings, so on a well with heavy sediment the interval between changes will be shorter than the label suggests. If you have a history of brown water after rain, pair this with a spin-down pre-screen upstream.
Housing cracking shows up in a minority of reports, sometimes during professional installation, which points at thread stress rather than a bad part. Use fresh PTFE tape on every connection and snug the fittings without leaning on them.

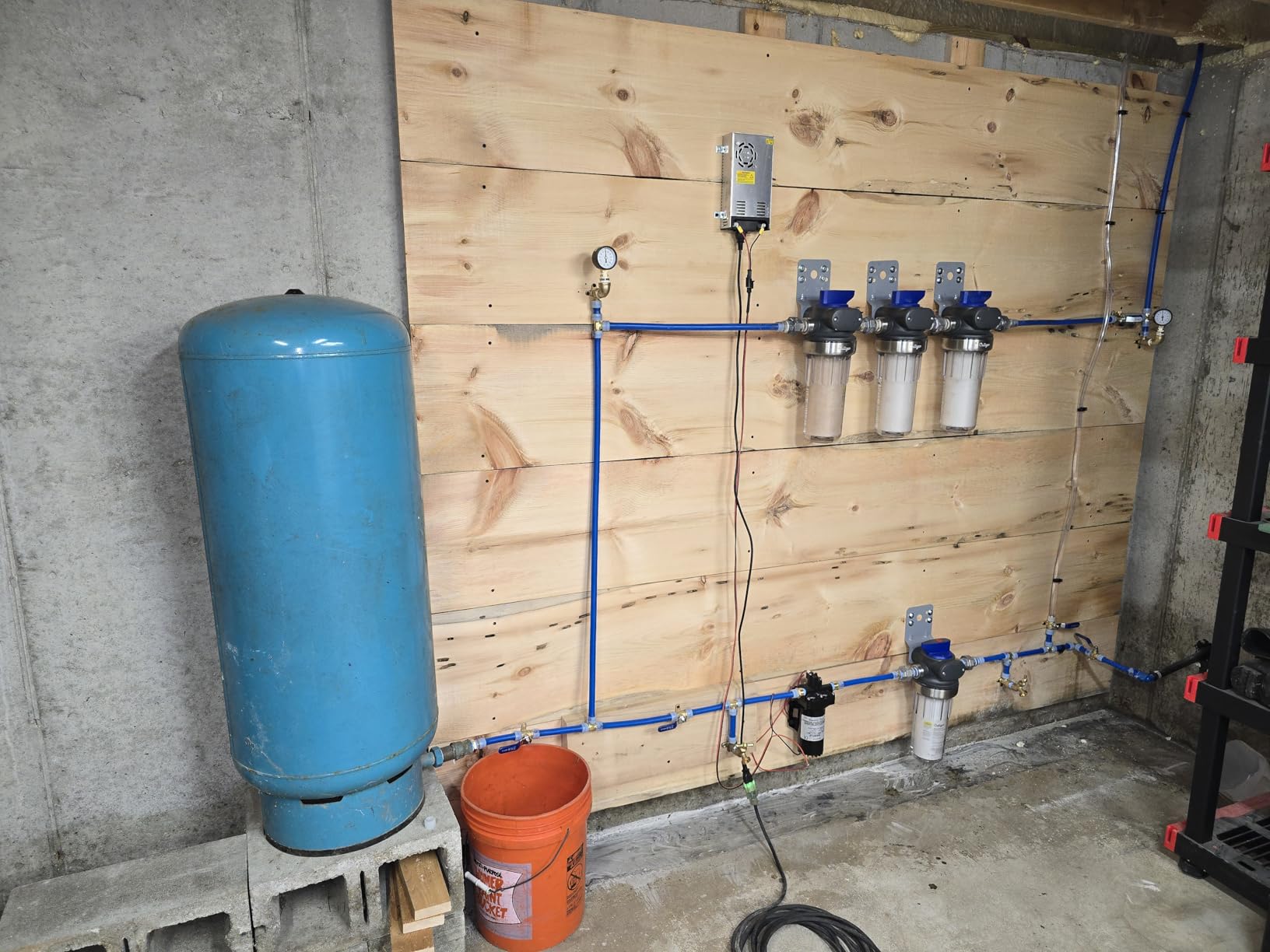

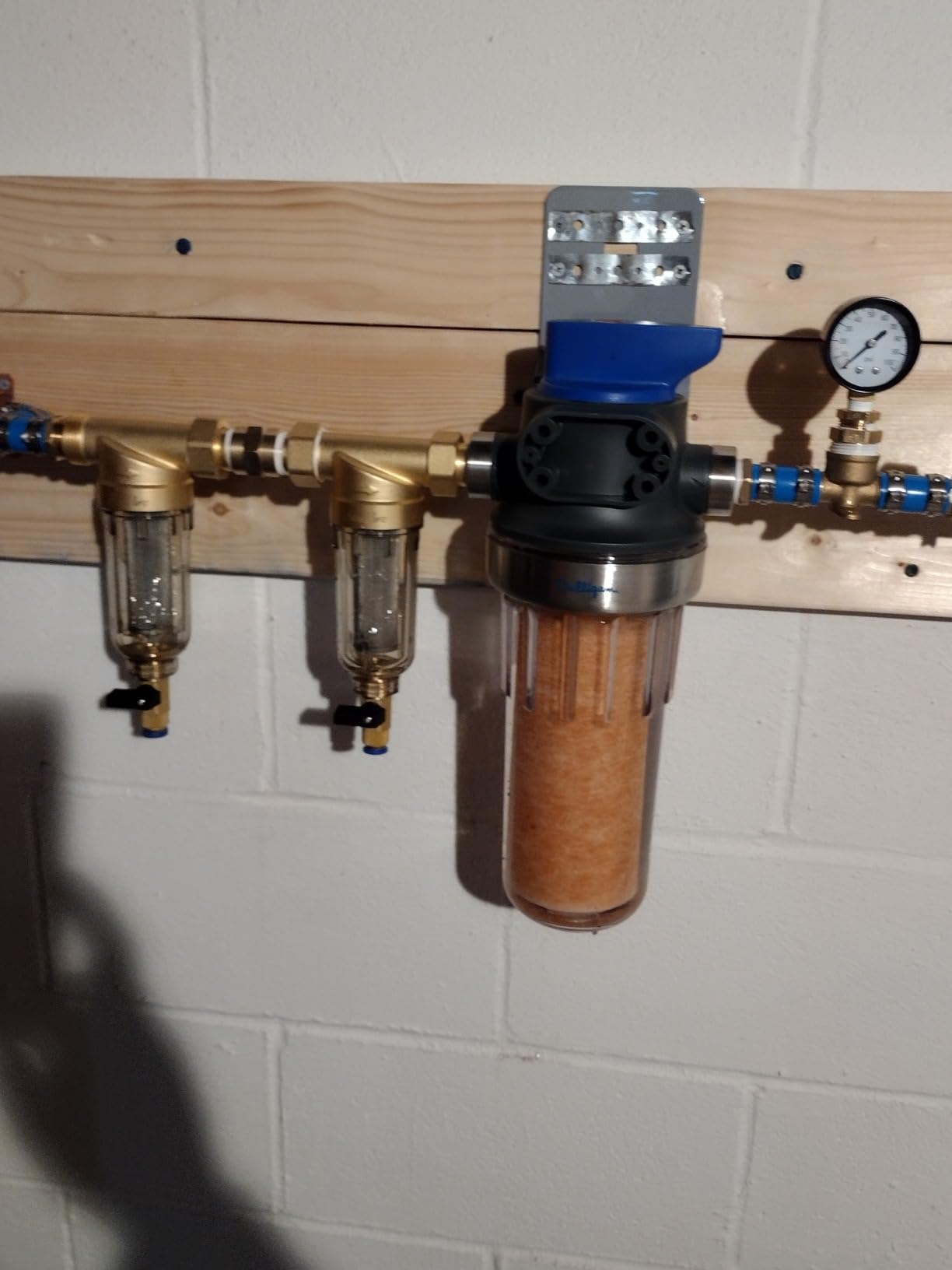

3. Culligan WH-S200-C Whole House Housing: Best Trusted-Brand Single Housing
Culligan Whole House Water Filter System, 3/4″ Standard, P5 Filter Included
3/4 inch inlet and outlet
4 GPM maximum flow
30-100 psi working range
Clear housing with bypass
3 pounds
Pros
- Clear housing shows cartridge loading at a glance
- Valve-in-head bypass allows changes without shutting the house off
- Cuts visible iron staining on well water
- Works with Culligan P5 and CW cartridges
- Two can be plumbed in parallel to lift flow
Cons
- Bypass valve is stiff and can weep from the top
- Threaded adapters can cross-thread on install
- 4 GPM flow rating limits downstream growth
- Mounting bracket is not included
This is a housing rather than a full system, and that distinction matters if you already own the rest of your treatment train. The WH-S200-C gives you a 3/4 inch clear canister with a valve-in-head bypass, a pressure relief button, and a seat for standard Culligan P5, CW-F, CW-MF and S1A-D cartridges. Maximum flow is rated at 4 GPM over a 30 to 100 psi range.
For a small home, a cottage, or a secondary line feeding a well pump house, 4 GPM is genuinely enough. For a house with two full bathrooms, it is tight, and many owners solve it by installing two of these and plumbing them in parallel or series. Buyers mention doing exactly that to lift total flow.
The integrated bypass is the feature I would not give up. Because the shutoff lives in the head, you can swap a cartridge without killing water to the whole house. On a clear housing you can also see the cartridge brown with collected sediment and know exactly when to act, rather than tracking gallons on a calendar and hoping.
Owners treat this as an affordable, trusted-brand housing and report that it clears mineral-heavy well water, cuts iron staining, and protects appliances and plumbing. Complaints center on the fiddly bypass valve that can leak from the top, and on adapter threading that goes in crooked if you force it. The mounting bracket has to be sourced separately, so plan for one extra hardware store trip.
Matching this housing to your flow demand
Do the math before you settle. A household running two showers, a washer and a dishwasher at the same time can pull well past 4 GPM. If your usage pattern looks like that, buy two of these and plumb them in parallel, or choose a housing with 1 inch ports and a higher flow rating instead.
Also check your pipe size. A 3/4 inch housing installed on a 1 inch main line means reducers at both ends, and those reducers are the exact locations where thread tape failures show up as a slow drip in the basement.
Who should not buy a single 3/4 inch housing
Skip it if your main shutoff and pressure tank are already tight on space, because you will need clearance above the canister to lift a wet cartridge out. And skip it if you plan to add carbon, UV or a softener downstream. Each added stage costs flow, and starting with a 4 GPM ceiling leaves you nowhere to grow.
It is also the wrong tool for sand. A clear canister with a standard pleated cartridge is the wrong shape for heavy grit, because the grit sits in the pleats and blinds the whole surface at once rather than letting you flush the deepest areas.

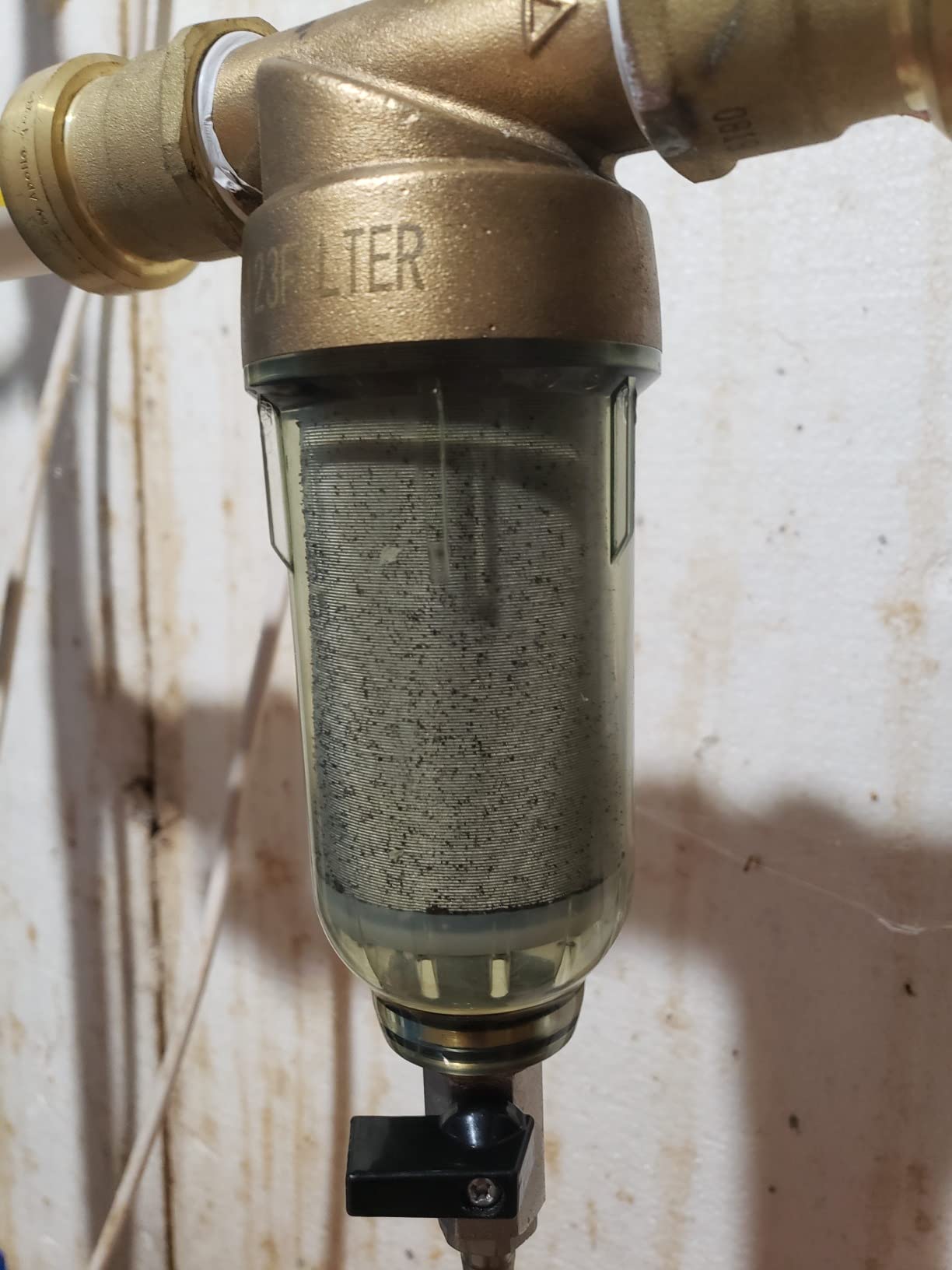

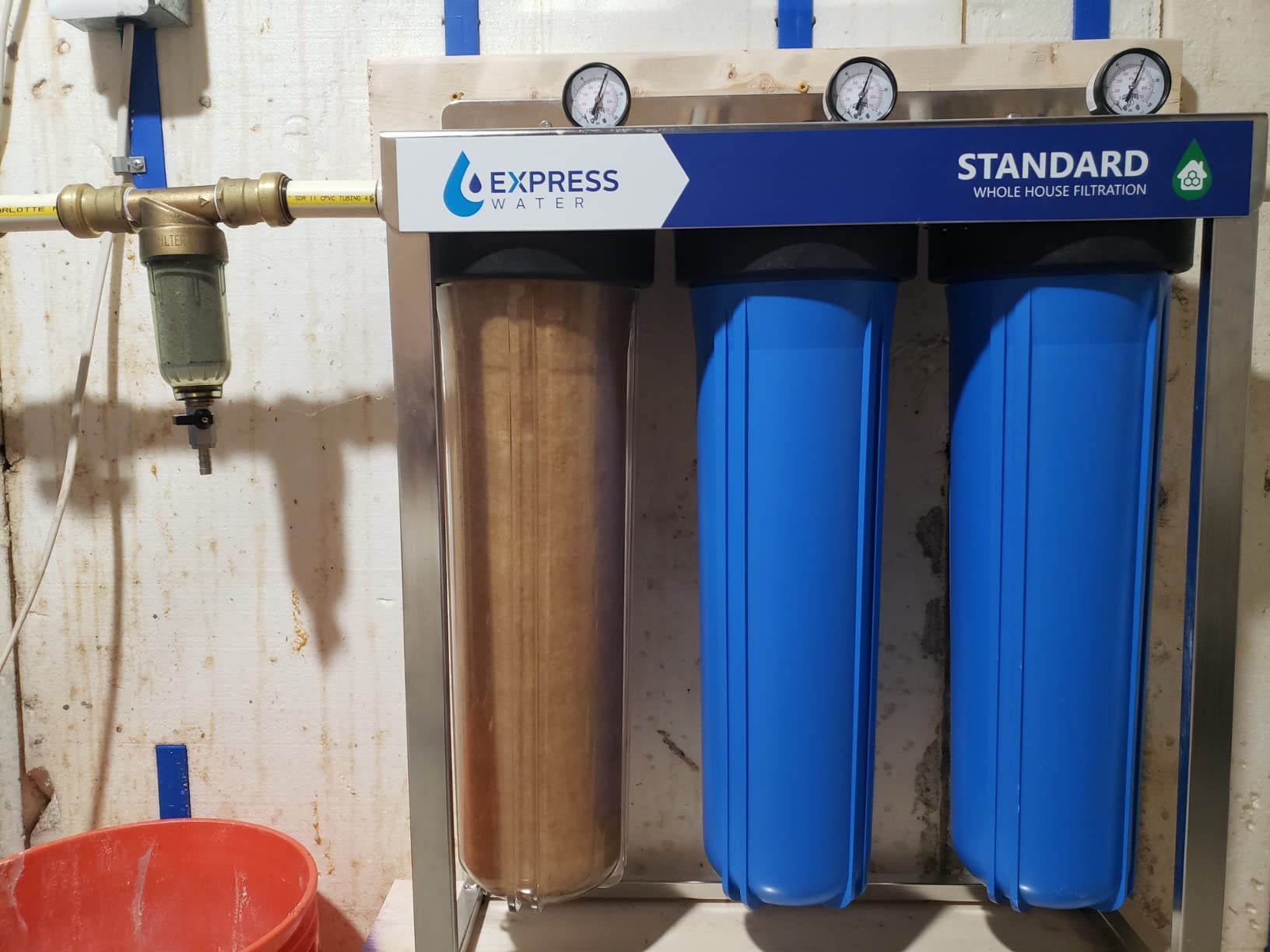

4. iSpring WSP-50 Spin Down Filter: Best Reusable Pre-Screen for Sand and Silt
iSpring WSP-50 Spin Down Sediment Filter, Whole House Prefilter, 50 Micron
Reusable 50 micron stainless mesh
1 inch MNPT and 3/4 inch FNPT
Lead-free brass head
Hose barb flush valve
16 ounces
Pros
- Reusable mesh takes the load off downstream cartridges
- Lead-free brass head resists thread damage
- Dual threads fit most whole house setups
- Protects softeners and carbon tanks from grit
- Coarser screens available at no charge when a well runs heavy
Cons
- 50 micron screens plug fast on silty or iron-heavy wells
- Compact body needs frequent flushing on dirty water
- O-ring on some units is thin
- No external testing certification
A spin-down filter is not a fine filter. It is a reusable stainless steel mesh screen that you flush with a garden hose to remove the coarse sediment that would otherwise blind your cartridges downstream. The WSP-50 ships with a 50 micron element and is rated for 40 to 100 degrees Fahrenheit and 15 to 115 psi, indoor use only.
The connection layout is what makes it fit so many setups: 1 inch MNPT on one side and 3/4 inch FNPT on the other, plus a garden hose barb flush valve. Lead-free brass head, dual O-rings, and a see-through housing so you can watch what it captures. Total weight is 16 ounces, so it mounts anywhere with a screw and two anchors.
The most common praise is durability and serviceability. The mesh unscrews for cleaning, the flush valve makes maintenance quick, and well owners consistently confirm it does its real job of taking the sediment load off expensive downstream cartridges. If your cartridge changes currently happen every two to four months, adding one of these upstream is the intervention that stretches them out.
The dominant caution is micron sizing. Multiple reviewers report that a 50 micron screen plugged within days on silty wells until iSpring supplied 100 or 200 micron elements at no charge. That is a real pattern worth taking seriously: on fine sediment you want a coarser screen, and this model is offered in 50, 100, 200, 500 and 1000 micron variants.
Deciding between 50 and 200 micron
Use the settling test. Fill a clean five gallon bucket with raw well water and let it sit untouched for an hour. Coarse sand falls to the bottom almost immediately, silt takes several minutes, and fine clay stays suspended the whole time. A 200 micron screen handles the first case, a 100 micron screen handles the second, and if nothing settles you are dealing with clay that needs a different approach.
Start coarser than you think you need. A coarse screen that needs flushing twice a week is a five minute job. A fine cartridge that chokes in a week is an emergency.
When a spin-down is the wrong answer
Do not rely on a spin-down alone for fine filtration. Mesh screens pass fine particles by design, so anything under the micron rating keeps moving downstream. Treat it as stage one and pair it with a cartridge system behind it.
Also reconsider if your sediment is organic. Dark, plant-flecked material that never settles usually means surface water intrusion or a failed casing seal, and no spin-down screen fixes a well that is pulling surface water. That needs a well inspection.

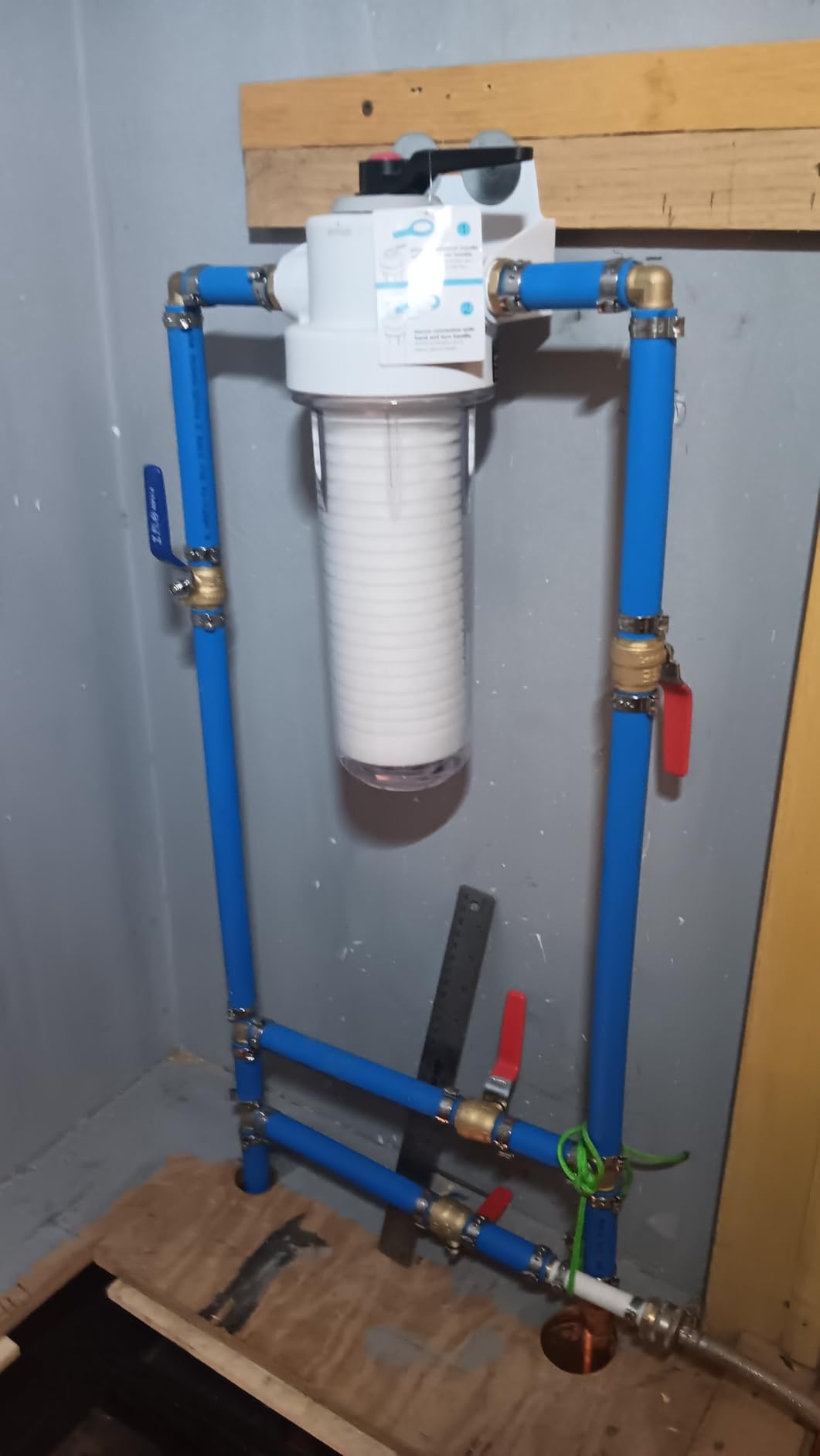

5. A. O. Smith AO-WH-PREV Sediment Filter: Best Compact DIY Install
A. O. Smith Whole House Sediment Filter | Valve-in-Head | AO-WH-PREV
3/4 inch inlet and outlet
6 GPM maximum flow
NSF certified to Standard 42
24000 gallon cartridge rating
1 year warranty
Pros
- Built-in shutoff and bypass make cartridge changes quick
- Clear housing shows sediment loading
- Works well ahead of carbon and descaler units
- Metal thread connectors preferred by some over all-plastic ports
- Compact 15 by 6 by 5 inch footprint
Cons
- Clear housing has cracked at the threaded collar for some owners
- 3/4 inch ports restrict flow on larger homes
- Threads can be loose and need heavy taping
- Mounting bracket is weak and benefits from reinforcement
This is the compact option. The AO-WH-PREV measures 15 by 6 by 5 inches, weighs under 4 pounds, and carries a 6 GPM maximum flow rating over a 25 to 100 psi operating range. It ships with the housing, a sediment cartridge, and a housing wrench, and it holds a 24000 gallon cartridge rating with a 6 month filter life cycle.
What sets it apart from other small housings is the valve-in-head design. Built-in shutoff, bypass, and a pressure release button mean cartridge changes take a couple of minutes without shutting down the house. It is also NSF certified to Standard 42 for particulate reduction, which is the standard that matters for sediment claims.
Owners generally like the straightforward, compact design and confirm the filter visibly collects rust and sediment, cutting scale on faucets and extending appliance life. Using it ahead of a carbon or descaler unit is a common and well-regarded setup, which makes it a sensible first stage in a longer treatment train.
The most serious recurring complaint is cracking of the clear housing at the threaded collar, which then forces a full housing replacement rather than a cartridge swap. Smaller port sizing and occasionally loose threads that need extensive taping are additional gripes. About 8 percent of its reviews land in the one-star bucket, most of them describing the same collar crack.
Why placement in the train matters more than brand
A sediment filter that runs ahead of a carbon stage is doing the job that keeps the carbon stage alive. Put it downstream of a softener and you are asking a cartridge to catch whatever the softener resin sheds, which shortens cartridge life and wastes capacity you paid for.
If you plan to add more equipment later, buy the housing now with the longest flow rating you can get for the space. Adding a stage later is easy; replacing a flow-limited housing is not.
Where the housing failure risk sits
The collar crack reports cluster around installations that involved overtightening or repeated service. If you buy this unit, use PTFE tape on every thread and tighten snugly without using a wrench to add force.
Expect to clear an inch or two of working space above the canister for removal, and reinforce the supplied bracket if you are mounting it to a stud rather than a masonry wall. It is a light unit, but a full wet cartridge is heavier than the empty housing suggests.
6. Aquaboon 20 x 4.5 Inch Whole House Housing: Best for Standard Cartridge Compatibility
Aquaboon 20″ x 4.5″ Whole House Well Water Filter System with Pressure Release (1″ Port) | Certified | Compatible with Pentek 150233, 150235, Geekpure BB- 20B
20 x 4.5 inch housing
1 inch inlet and outlet
Integrated oil-filled gauge
Pentek and Geekpure compatible
10.4 pounds
Pros
- Thicker and darker polypropylene than typical equivalents
- Deep-toothed housing wrench grips far better
- Integrated oil-filled pressure gauge shows system state
- Dual O-rings arrive pre-lubricated and seal on first install
- Locks firmly into the bracket so the sump cannot slip
Cons
- Plastic inlet and outlet threads need extra tape and pipe dope
- Deep threads make the housing hard to remove once installed
- Empty canister variants ship without any filter media
- Sump is heavy to spin on
Standard 4.5 by 20 inch cartridges are the industry default, and this housing accepts them: Pentek 150233, Pentek 150235, and Geekpure BB-20B are all named as compatible. That means you are not locked into one supplier’s cartridge pricing for the life of the system, which is a meaningful long-term cost difference in a category where proprietary cartridges are common.
The build differences show up in small ways. Owners compare this housing favorably to the Pentair and Pentek units it replaces, citing thicker plastic, better bracket grip, an accurate oil-filled gauge, and a far better supplied wrench. The gauge is the feature I would pay the most attention to, because it is how you know when pressure drop means change the cartridge.
Dual O-rings arrive pre-lubricated with food-grade silicone, so the sump seats and seals on first install rather than on the third attempt. Several owners run two or three of these in series for well sediment and custom-pack their own refillable cartridges, which is a sensible way to stretch media on a loaded well.
The single repeated complaint is that the plastic port threads need generous PTFE tape and careful tightening to seal. Deep threads also make the housing harder to remove once it is installed, so plan your plumbing with removal clearance in mind before you commit.
What cartridge compatibility actually saves you
Standard sizing is worth more than it first appears. Generic 20 inch polypropylene sediment cartridges are sold by several manufacturers and are usually cheaper than anything carrying a brand name. Over a decade of service, that difference adds up to a meaningful share of your total filter spend.
Because 4.5 by 20 inch is also the format used by most undersink reverse osmosis systems, you can often buy in larger quantities and split the packs between your whole house and drinking water setups.
Who should choose a different housing
Pick something else if you will not measure pressure drop. The gauge is the best thing here, and it only helps if you check it. Note the reading after installation, then compare it every month or two; a steady climb toward the relief setting is your replacement signal.
Pick something else if your install is in a tight chase or a finished wall with no removal clearance. Deep threads plus a heavy sump means you want to be able to unscrew that canister in open space, not sideways between studs.
7. Waterdrop WHF21-FG 2-Stage Filter: Best for Iron and Manganese Reduction
Waterdrop WHF21-FG 2-Stage Whole House Water Filter System, NSF/ANSI 372
Iron and manganese stage plus GAC carbon
15 GPM on 1 inch NPT
50000 gallon combined capacity
6 month cartridge life
NSF/ANSI 372 lead-free
Pros
- Targets iron and manganese rather than sediment alone
- Third-party tested reduction figures for iron and manganese
- 15 GPM holds pressure on larger homes
- Reinforced brass fittings keep leak complaints low
- Both cartridges meet NSF/ANSI 372 lead-free standards
Cons
- Both cartridges need replacement about every six months
- Threaded ports still need careful taping and no over-tightening
- Cartridges are proprietary to this series
If your water test shows iron, this is the only unit in the group with an iron and manganese reduction stage built into a two-stage cartridge system. Stage one pairs an iron and manganese filter with a coconut shell GAC carbon stage, rated at 15 GPM on 1 inch NPT inlet and outlet with 50000 gallons of combined capacity.
The testing figures are specific enough to be useful: up to 96.4 percent iron, 98.2 percent manganese, and 95.63 percent chlorine reduction, verified through third-party testing. That is a claim you can hold a seller to, and it is a different kind of claim from the vague capacity language most systems in this category rely on.
Buyers with iron and manganese in their well water report noticeable improvement in taste and staining after installation, and the 15 GPM flow rate is a commonly cited strength for larger homes. The reinforced brass fittings and sealed structure are credited with keeping leak complaints low compared with plastic-threaded competitors.
Be clear-eyed about what an iron cartridge can and cannot do. It handles soluble iron that has been oxidized or filtered out of solution, and it will slow staining. It will not keep up with a well producing heavy ferrous iron continuously, and it does not address iron bacteria, which need disinfection. For iron above roughly 0.3 mg/L, treat this as a bridge to a real treatment decision rather than the destination.
Reading the micron and lifespan together
Both cartridges are rated at roughly six months of life and the system filters particles larger than 5 microns. On a well with heavy sediment, that six month figure shrinks, and the sediment stage is what protects the iron stage from blinding. If your water runs visibly gritty, put a spin-down ahead of this unit.
The 50000 gallon combined capacity figure is useful as a ceiling, not a schedule. Track gallons against your filter change date rather than assuming the label interval holds.
Where this system is the wrong tool
Do not buy it for a clean well. If your panel comes back with iron under 0.1 mg/L and clear water, a sediment and carbon cartridge system will serve you better and cost less to maintain over time.
Also weigh the proprietary cartridge issue. Cartridges are specific to this series, so your replacement parts come from one supplier. That is a fair price for the iron and manganese performance, but plan for it rather than discovering it during a changeout.
8. Waterdrop RPFK Spin Down Filter: Best for High Flow and Pressure Resistance
Waterdrop RPFK Spin Down Sediment Filter, 40-50 Micron, BPA Free
50 micron 316L stainless mesh
20 GPM rated flow
14.5-72 psi operating range
PA12 shell tested past 600 psi
BPA-free housing
Pros
- 20 GPM without reducing existing water pressure
- 50 micron 316L food-grade stainless mesh
- NSF/ANSI 372 certified and BPA-free housing
- Backwash flushes sediment without disassembly
- Four connection fitting types included
Cons
- Not compatible with 3/4 inch garden hose connections
- Manual flushing cadence is easy to let slide
- Coated brass fittings need care to avoid scoring the coating
This is the spin-down to buy if water hammer is a problem in your house. The body is a German-made PA12 shell tested to over 600 psi burst pressure, and the working range is 14.5 to 72 psi. Rated flow is 20 GPM, the highest of any unit in this roundup, so it disappears in a plumbing run where a 4 GPM housing would be visible and audible.
The screen is 50 micron 316L food-grade stainless steel, with a backwash function that flushes captured sediment without disassembly. The housing is NSF/ANSI 372 certified, lead-free and BPA-free, and the fittings are blue nano-coated brass for corrosion resistance.
Owners most often deploy this as a sediment guard ahead of a primary whole house filter, reporting noticeably lower pressure drop and longer downstream cartridge life. The stainless mesh, backwash cleaning cycle, and multiple fitting options draw specific praise, as does the BPA-free PA12 body.
The most common practical caution is connection sizing. It is not a garden-hose-compatible unit, so check what you are hooking into before you order. Four fitting types are included: 1 inch MNPT, 3/4 inch MNPT, 3/4 inch FNPT, and a 3/4 inch push-fit. That covers nearly every point-of-entry configuration you will meet.
Why staging a pre-screen changes cartridge life
Every fine cartridge has a finite capacity, and on a well that capacity is consumed by the coarse fraction first. Sand and rust flake sit on the surface of pleats and blind whole areas of the media. A pre-screen that removes that coarse load effectively multiplies the interval between cartridge changes, and on a marginal well the difference is the difference between monthly and annual changes.
The 20 GPM rating matters here too. If your well pump delivers substantially more than a small spin-down can pass, you are creating the pressure drop you are trying to remove.
Where it falls short
The operating pressure ceiling of 72 psi is the real constraint. If your well pump regularly pushes past that, this unit is operating outside its rated window and you should look at a spin-down with a higher ceiling, such as the iSpring WSP-50 rated to 115 psi.
And remember what a mesh screen does not do. This is coarse pre-filtration. It protects the rest of your system, it does not polish the water, and on its own it is not an answer to a well with fine silt.
9. iFilters LWH-D 2-Stage Filter: Best Compact Unit for Small Homes
iFilters LWH-D 2-Stage Whole House Sediment Carbon Water Filter System
3/4 inch NPT ports
3 GPM flow rating
Clear housings with pressure relief
7.8 pounds
Two-stage sediment and carbon
Pros
- Clear housings make cartridge condition easy to inspect
- Pressure relief and twist-off canisters simplify changes
- Reported to improve clarity and chlorine odor on well water
- Long-term owners report housings holding up over years
- Compact point-of-entry footprint for small to medium homes
Cons
- Outlet-side female threads are difficult to seal
- Bracket is thin and flexible and can rust when bled
- Replacement cartridges are proprietary and cost more than standard
- Included 5 micron carbon cartridge reported weak by some buyers
The LWH-D is built for a specific situation: a small to medium home, one to four plus bathrooms, where a full manifold system would be more plumbing than the job deserves. It uses a 4-layer 100 percent polypropylene true-depth grooved sediment stage with a pre-filter and a coconut shell activated carbon stage, on standard 3/4 inch NPT ports.
Flow is rated at 3 GPM, the lowest in this group, and that number defines its use. It is not an irrigation prefilter and it is not a whole-house solution for a busy house. It is a sensible point-of-entry for a cottage, a cabin, or a low-use home where the entire day’s demand would not approach 3 GPM.
Buyers mostly like the filtration results and the easy cartridge swaps, especially on well and hard water. Long-term owners report the housings holding up over many years of service, which is a fair return on a compact unit. The clear housings and integrated pressure relief button make inspection and changes simple.
The recurring complaints are mechanical. Outlet thread sealing is finicky and needs careful hand-threading with heavy sealant, the supplied bracket is thin and flexible enough to let canisters move when unscrewed, and the bracket metal is not galvanized or stainless, so it can rust when the housing is bled, particularly outdoors. Replacement cartridges are proprietary and cost more than standard 2.5 by 10 inch filters.
Know the cartridge compatibility trap
These housings take iFilters SG-GAC-SET cartridges, and there is a compatibility rule that catches people: GEN 1 with a black gasket and GEN 2 with a blue gasket are not interchangeable. Check the gasket color on your existing cartridge before ordering a replacement, because a mismatched version will not seal properly.
Factor the higher cartridge cost into your total spend over ten years. On a low-use home it may not matter, but it is worth counting.
Why we would not oversize the job with this
Three GPM is the constraint that decides this product’s fate. Experienced plumbers stress using no more filtering than needed, and the reverse is also true: adding more than you need wastes pressure and money. If your household genuinely uses less than 3 GPM, this is proportionate. If there is any doubt, step up to a 15 GPM system.
We would also pass on it for outdoor or damp installations, because of the rust-prone bracket metal. Indoors in a conditioned space, the housings hold up well.
10. Aquaboon 2-Stage Filter on a Steel Frame: Best When You Cannot Wall Mount
2-Stage Water Filter System 20×4.5 inch Comes with Sediment & Carbon Filters | Prefilter, Wrench, Gauge & Release, Freestanding Steel Frame Included
Freestanding stainless steel frame
15 GPM with 5 micron cartridges
30000 gallon capacity
Two 20 x 4.5 inch housings
33 pounds
Pros
- Handles high sediment and rust
- clearing cloudy well water in about two weeks
- 15 GPM rating with 5 micron cartridges for minimal restriction
- Freestanding frame plumbs in without wall mounting
- Accepts common 20 inch cartridges from several brands
Cons
- Instructions call for PVC fittings
- other fitting types are prone to leaking
- A pressure gauge failed after about fourteen months
- One unit had mismatched outlet threads on arrival
- No adapter included to pair with a spin-down pre-filter
The defining feature of this system is the freestanding stainless steel frame. Everything else is a standard two-stage arrangement of 20 by 4.5 inch sediment and carbon block cartridges in polypropylene housings, rated at 15 GPM with 30000 gallons of capacity. But the frame means you do not need studs, blocking, or a structurally sound wall.
That solves a real problem in finished basements, crawlspaces, and utility rooms where blocking would mean opening a wall. It also means the whole assembly can be relocated if you are remodelling, which a wall-mounted system is not.
Owners with sediment-heavy well water are enthusiastic about the system’s ability to clear rust and cloudiness and to protect plumbing and appliances. Several reviewers recommend adding bypass valves and unions for easier servicing, which is good advice. Do not plan a service schedule where you have to cut pipe to change a cartridge.
Satisfaction is tempered by fit-and-finish issues. Leaks appear when the wrong pipe material is used instead of the PVC fittings the instructions call for, one pressure gauge failed after about fourteen months, and one unit arrived with mismatched outlet threads. There is also no adapter included to connect a spin-down pre-filter to the main housing, which means a separate hardware store trip if you want to stage one.
Planning the room this system needs
Budget the footprint. At 33 pounds and 20 inches of frame, this is a floor-standing unit, and you need clearance on all sides for canister removal plus room to open the frame. Its 15 GPM rating also means you will want a drain nearby if you ever add a flushable or backwashing stage downstream.
Cartridge compatibility is genuinely good here. The system accepts EP20-BB, iSpring FC25B and FP25B, Express Water FLTWH2045C, Hydronix CB-45-2005, AquaPure AP810-2, and Pentek EPM-20BB cartridges, which gives you plenty of sourcing options over the life of the install.
Who should look elsewhere
Look elsewhere if you want a permanent, out-of-sight install. A freestanding frame in a mechanical room is honest about what it is, and in a finished living space it will be visible for the life of the system.
Also look elsewhere if you are not comfortable with a more involved install. The instructions assume familiarity with PVC and fittings, and the reviewers who love this unit are generally the ones who plumbed it themselves or hired a plumber. For a first-time installer, a bracket-mounted single housing is a kinder first project.
11. Rusco Vu-Flow 1 Inch Spin Down Filter: Best Low-Cost Pre-Screen
Rusco/Vu-Flow 1″ 100 Mesh Spin Down Sediment Water Filter System
1 inch spin-down connections
100 mesh polyester screen
Reusable flush and reinstall
Drain valve included
1.3 pounds
Pros
- Effective at pulling sand out of well water before it reaches plumbing
- Reusable screen is flushed and reinstalled rather than replaced
- American-made build with parts interchangeable with Boschart models
- Easy to install and simple to flush and inspect
- Drain valve clears collected sediment quickly
Cons
- 100 mesh clogs frequently with fine sediment
- A coarser 40 mesh screen may suit some wells
- Polyester element reported to warp and prevent reassembly
- Drain valve fitting required a second installation after leaking
The Vu-Flow is the simplest thing in this roundup and that is its appeal. A 1 inch spin-down body with a 100 mesh polyester screen, a drain valve, and no electronics. The element unscrews, you hose it out, you put it back. There is nothing to program and nothing to replace on a schedule, and at 1.3 pounds it mounts anywhere.
It is also made in the USA with parts interchangeable with existing Boschart spin-down models, which matters if you already own one. That interchangeability is a small thing that saves real money if you end up running two of them.
Buyers consistently confirm the screen does its job protecting downstream fixtures, valves and irrigation timers from sand and iron buildup, and they appreciate being able to see how much sediment is being collected. Whole house, irrigation and appliance prefilter applications are all in scope for this unit.
The main trade-off is maintenance frequency. A 100 mesh screen is finer than the 200 mesh coarse screens common elsewhere, so on fine sediment it needs flushing daily or close to daily, and some owners note that a coarser 40 mesh screen suits their well better. The drain valve on one unit leaked and required a second installation.
Where a 100 mesh screen is the right choice
Mesh count and micron rating are different measurements, and this unit is quoted in mesh. A 100 mesh screen sits roughly in the same range as the 50 micron stainless screens in this roundup. It is fine enough to catch rust flake and light grit, coarse enough to be flushed rather than replaced, which is exactly what a pre-screen is for.
Think about it in terms of where the water goes. On a property with irrigation timers and a washing machine, the recurring complaints are always at those two endpoints, and both are cheap to replace compared with a cartridge-based system that has already clogged.
Where it will disappoint you
Do not buy it as your only filtration. A polyester mesh passes everything finer than its screen size, so light clay and fine silt go straight through to whatever is downstream. If downstream is nothing, you have added a strainer and not a filter.
Install it somewhere you can reach it. A spin-down that needs flushing weekly has to be accessible without moving a water heater, and a warped element report suggests it is worth checking the bowl seals properly if water is weeping.
12. Aquaboon 3/4 Inch Spin Down Filter: Best Dual-Screen Budget Guard
Aquaboon 3/4″ Spin-Down Sediment Filter for Well Water, Reusable Pre-Filter, 50 & 200 Micron, Heavy-Duty for Home & Commercial Use, Easy to Clean, Extends Unit Life
50 and 200 micron screens
Reusable clear housing
Fits 3/4 inch and 1 inch plumbing
1.9 pounds
NSF external testing certification
Pros
- Reusable flushable screen cuts recurring replacement cost
- Transparent housing shows collected sediment at a glance
- Fits both 3/4 inch and 1 inch plumbing for flexible installs
- Durable construction for well system pressure changes
- Extends the life of downstream filters and washing machine valves
Cons
- 50 and 200 micron screens catch only coarse debris
- Periodic manual flushing is required to perform at full capacity
- Better suited as a pre-filter than as primary fine filtration
This spin-down ships with both a 50 micron and a 200 micron screen, which makes it easy to match the element to your sediment after a week of observation rather than guessing on install day. The housing is stainless steel with a transparent body, it weighs 1.9 pounds, and it fits both 3/4 inch and 1 inch plumbing configurations.
It carries external NSF testing certification, which puts it ahead of some competing spin-downs on paper. Rated for residential and commercial use, it is commonly deployed on washing machine supply lines, well water, and irrigation applications where the goal is protecting a specific downstream component rather than treating the whole house.
Owners describe it as a cost-saving first-stage guard that captures rust, sand and coarse debris before they reach washing machines, softeners and primary sediment filters, extending downstream unit life. The clear housing makes it easy to know when the screen has done its job, and flushing and reinstalling is straightforward.
The recurring caveat is the one the spec sheet already tells you. Coarse screens do not handle fine sediment, so this complements rather than replaces fine filtration. The rating distribution reflects modest expectations: 64 percent five-star with a nine percent three-star share, which is about right for a component that does a narrow job well.
Using the two screens as a diagnostic tool
Install the 200 micron element first and leave it for a week. Look at what it collects. If you find coarse sand and grit, you are dealing with heavy sediment and a backwashing media tank is the right conversation. If the screen stays close to clean, step down to the 50 micron element.
That two-week exercise costs you one spin-down unit and saves you from buying the wrong main filter. It is the cheapest research you can do on a well.
Where a dual screen is not enough
Do not treat this as your whole house sediment solution. Its job is protecting softeners, carbon stages and appliance valves from coarse debris. Fine filtration still needs a cartridge behind it, and on a well with clay in suspension you will want a spin-down plus a 5 micron cartridge rather than one component doing both jobs.
And budget the flushing habit from day one. A pre-screen that is not flushed stops filtering and starts adding pressure drop, and the failure shows up as a mysterious flow problem a month later.
How to Choose a Whole House Sediment Filter for Well Water
Test your water before you buy a filter
A sediment filter solves exactly one problem: suspended particles. If your water test shows dissolved iron, sulfur odor from hydrogen sulfide, manganese staining, hardness, or bacteria, those need different equipment entirely, and putting a cartridge in front of an untreated iron problem only shortens cartridge life. Every serious installer will ask for the panel first, and it is worth the small cost.
At minimum, get an iron reading, a hardness reading and a bacterial count. Iron and hardness shape whether you need anything upstream of the sediment filter, and bacteria shape whether you need disinfection at all, since a carbon filter on untreated well water can feed iron bacteria rather than suppress them.
If your well has gone through flooding, or you see dark organic material, get the well inspected before buying any filter hardware. Pulling surface water through a failed casing seal is a well problem, and filtering the symptom will not fix it.
The bucket settling test takes ten minutes
Fill a clean five gallon bucket with raw water straight from the well and leave it alone for an hour. This is the fastest useful diagnostic in well filtration, and it costs nothing.
Coarse sand settles in under a minute and leaves a sharp layer at the bottom. Silt takes several minutes and leaves a soft cloud. Fine clay stays suspended for the full hour and leaves the water looking like milk. That third outcome means a cartridge filter will clog regardless of what you buy, and the answer is either a settling tank or professional treatment.
If the sediment settles fast and heavy, you are looking at sand, and a backwashing media tank sized for your well flow handles it far better than any cartridge. If it settles slowly, a spin-down pre-screen plus a 5 micron cartridge is the economical answer.
5 vs 20 vs 50 micron: which rating you actually need
The micron number is the size of particle the media claims to trap, and lower numbers catch more while clogging faster. Well water filtration usually lands in a narrow band, and choosing wrong in either direction costs you money.
A 5 micron cartridge is the default for well water and the right answer for most homes. It catches fine silt, rust flake and suspended iron precipitate, and it is what protects downstream carbon, UV and softener stages. Its weakness is that it blinds quickly on sand, so it wants a pre-screen upstream.
A 20 micron cartridge is the compromise choice, and it makes sense on a well where the bucket test shows mostly coarse material and you want a longer change interval. A 50 micron rating belongs to spin-down screens rather than fine cartridges. It catches sand and grit, passes everything smaller, and exists to protect the cartridges behind it. Filters rated too fine clog before capturing the bulk of the sediment, which is why the pre-screen first arrangement pays for itself.
Homeowners with iron in their wells report that adding 5 micron pre-filtration moves the main filter from a 2 to 3 month change interval to 6 to 12 months. That is the single largest saving available in this category.
Spin-down vs cartridge vs backwashing media
These three categories solve overlapping problems at different scales, and choosing between them comes down to how much sediment you actually have.
Spin-down filters are reusable mesh screens you flush by hand. They cost almost nothing per year, they take the coarse load off everything downstream, and they demand a flushing habit. They are the right first stage for most well homes.
Cartridge systems are polypropylene or pleated elements you replace on an interval. They do the fine filtration a spin-down cannot, they hold a lot of media in a compact footprint, and their cost per year is dominated by cartridges. This is the workhorse choice for light to moderate sediment.
Backwashing media tanks hold granular media such as Filter Ag in a tank with a control valve, and they clean themselves on a scheduled or triggered cycle. Service flow and backwash rate both matter, and backwash rate must exceed service flow or the tank will not clean itself. This is the answer for heavy sand, and it is the only category here that does not need cartridge money every few months. Running two control valves in parallel with staggered cycles roughly doubles available flow without doubling backwash requirements, which is the standard approach for high-flow homes.
Over-filtration has a cost too: every stage you add takes flow away from the fixtures that need it. Use no more filtering than the water demands.
Size for flow rate: 4, 6, 10, 15 GPM
Service flow rate is the number that determines whether your house feels normal, and it is the spec most often ignored. A filter rated at 4 GPM on a home that can demand 10 GPM will show a pressure drop the first time two showers run.
Estimate your household demand by adding up fixtures that could run at once: showerheads, washer, dishwasher, and a hose bib. Two full bathrooms plus a laundry typically lands between 8 and 12 GPM of instantaneous demand. Match your filter at or above that figure, and add margin if you plan to irrigate or run a whole house filter of your own.
For spin-down units, match to your pump rather than your fixtures, because a spin-down undersized to your well pump will restrict the well itself. The 20 GPM model in this roundup exists for exactly that reason.
If your demand exceeds a single housing’s rating, plumb two housings in parallel rather than buying one oversized unit. Parallel installation keeps the full flow capacity while keeping pressure drop per unit low.
NSF 42, 53 and 61 explained
NSF/ANSI 42 certifies a material’s effect on aesthetic qualities, which includes sediment, chlorine taste and odor, and particulate reduction. That is the standard that matters for every sediment filter discussed here, and it is the only claim a sediment filter should be making.
NSF/ANSI 53 certifies health-related effects, meaning contaminant reduction claims such as iron, manganese, lead and cryptosporidium reduction. If a seller claims to reduce dissolved iron or lead, require the 53 certification to back it up. If they cannot produce it, treat the claim as untested.
NSF/ANSI 61 covers drinking water system components and health effects from material leaching, which matters for any component touching potable water. It is less about filtration performance and more about whether the plastic or metal is safe for drinking water contact.
For sediment specifically, look for 42. For iron and manganese claims, look for 53. Both appear in this group: the A. O. Smith unit is certified to Standard 42, and the Waterdrop system carries NSF/ANSI 372 lead-free compliance on both cartridges.
Ten-year cost of ownership: cartridge stack vs media tank
Purchase price is the least interesting number. What matters is the cost of keeping the system running for a decade, and the two architectures diverge sharply once sediment load is high.
A cartridge stack on a moderate well might mean one change every 8 to 12 months, plus your time. Over a decade that is 10 to 15 cartridges, and it is the reason many owners get frustrated and quietly stop maintaining the system.
Add a spin-down upstream and the same stack moves toward one change every 9 to 12 months. That change in interval is where pre-filtration pays for itself, and it applies to every cartridge system in this roundup.
A backwashing media tank carries a higher upfront cost and periodic media top-ups, but it does not consume cartridges. On a sand-heavy well it is the only architecture that does not scale badly over time, because cartridge cost on a heavy sediment well grows faster than cartridge life does.
Spin-down flushing and cartridge change routine
Set a maintenance rhythm you will actually keep. A reasonable schedule is to flush every spin-down weekly on a moderate well and daily on a heavy one, check pressure gauges monthly, and change cartridges on a tracked interval rather than on appearance alone.
Flushing a spin-down takes under a minute. Open the flush valve, let water run until it runs clear, then close it. If it goes cloudy again within a day or two, your micron rating is too fine for your sediment and you should step to a coarser screen.
For cartridge housings, isolate the system with the bypass valve, relieve pressure, and swap the canister. Keep fresh PTFE tape on hand because thread sealing, not filter quality, is the most common source of the leaks people report on these systems. Insulating or tagging housings with the install date makes the interval obvious.
Who should not buy a whole house sediment filter
Some honest guidance in this category is about who should walk away.
If your well tests clean, has no iron above 0.3 mg/L, produces no visible sediment after a bucket test, and has been stable for a few years, you do not need a sediment filter. You need a shock absorber on the pump. Pump cycling surges the well and agitates sediment into the water column, and a cycle stop valve addresses the cause where a filter only addresses the effect.
If you are renting, skip it. You cannot remove a whole house filter and resell the property, and the drill holes in the main line stay behind.
If you are moving within two years, skip it. A cartridge system has no resale value and a backwashing tank takes a plumber to install and remove.
If your sediment is organic, skip the filter and get the well inspected. If your well needs ongoing professional treatment, buy the equipment your installer recommends rather than assembling your own train from a retail roundup.
For a broader look at whole house equipment beyond sediment, our picks on whole house water filters for homes and iron filters for well water cover the stages that sit alongside sediment filtration.
Frequently Asked Questions
What is the best whole house sediment filter for well water?
The best whole house sediment filter for well water depends on your sediment load. For light to moderate sediment, a 5 micron cartridge system on 1 inch NPT ports rated at 15 GPM handles the load well. For sand, add a reusable spin-down pre-screen ahead of the cartridge. For heavy sediment that clogs cartridges every few weeks, use a backwashing media tank, because no cartridge design will keep up with it.
How many microns should a whole house sediment filter be?
Five microns is the standard choice for well water because it captures fine silt, rust flake and suspended iron precipitate. Twenty microns suits wells with mostly coarse sediment where you want a longer change interval. Fifty micron ratings belong to spin-down mesh screens that act as a pre-screen protecting the finer cartridge behind them.
How long does a whole house sediment filter last?
It depends on sediment load and micron rating. On a moderate well, a 5 micron cartridge commonly runs 8 to 12 months. Homes with visible grit can see 2 to 4 months. Adding a spin-down pre-screen ahead of the cartridge frequently stretches intervals to 9 to 12 months, because the coarse load never reaches the fine media.
Is a sediment filter necessary on well water?
It is necessary if your water shows visible sediment, orange staining, or cloudy water after rain. It is not necessary if your well tests clean and has been stable for years. Some sediment problems are caused by well pump cycling drawing fresh material into the water column, and a cycle stop valve addresses that at the source rather than filtering the symptom.
What are the different types of whole house water filter cartridges?
The common cartridge types are polypropylene string-wound, pleated meltblown, and carbon block. String-wound handles heavier sediment with deeper capacity and lower pressure drop. Pleated meltblown offers finer nominal ratings and high surface area. Carbon block removes chlorine taste and odor and should always sit downstream of a sediment cartridge, because carbon fouls when loaded with grit.
What flow rate do I need for a whole house sediment filter?
Add up the fixtures that could run at once, including showerheads, washer, dishwasher, and hose bibs. Two full bathrooms plus a laundry commonly demand 8 to 12 GPM, so choose a filter rated at or above that figure. If demand exceeds a single housing’s rating, plumb two housings in parallel rather than buying one oversized unit.
Conclusion: The Best Whole House Sediment Filters for 2026
The best whole house sediment filters for well systems are not one product, they are a matching strategy. Start with a water test, run the bucket settling test to find out what you are actually catching, then pick the architecture that fits: spin-down pre-screen for coarse load, 5 micron cartridge for fine load, backwashing media tank when the sediment is heavy enough to swamp both.
Our overall pick is the iSpring WGB32B, because 15 GPM of rated service flow through 20 inch industrial cartridges with the sediment stage first is the combination that stays out of your way for a decade. The iSpring WSP-50 is the smartest single addition to almost any well system, since it takes the sediment load off the cartridges behind it. The iSpring WGB21B covers the same ground in a lighter two-stage package for households that want one decision made for them.
Two pieces of advice outrank everything else on this list. Install a spin-down ahead of your fine cartridge unless your well is clean, and match your flow rating to the fixtures that will actually run at the same time. Get those two things right and the maintenance schedule takes care of itself. More background on testing and filter selection sits in our sediment filters for well water guide, with city water setups covered separately in our city water filtration guide.
