If you have ever tried to spin a 3-phase motor on single-phase shop power, you already know the feeling: the motor just sits there and hums. That is the exact problem a variable frequency drive solves. After spending six weeks bench-testing six of the most popular VFDs for motors on Amazon, our team settled on a short list that covers everything from a 110V hobby lathe to a 7.5KW mill that needs real torque.
This guide is built for two readers. The first is the hobby machinist who wants to run a 3-phase Bridgeport, lathe, or CNC spindle off a 220V wall outlet. The second is the plant engineer or integrator who needs a reliable industrial VFD for pumps, fans, conveyors, or HVAC. We will walk through what each drive does well, where it falls short, and how to size it against your motor’s full-load amps (FLA). For context on hobby motors in general, our kicker motors guide covers similar bench-testing methodology even though the application is different.
Inside you will find a quick comparison table, six hands-on reviews, a buying guide that explains vector control versus V/F, and a FAQ block that answers the eight questions people actually ask on Reddit and Practical Machinist. We cross-checked every claim against the consensus on forum threads for motor buyers and PLC integrator boards, so you can trust the picks below.
Table of Contents
Top 3 Best VFDs for Motors in 2026
Best VFDs for Motors in October
| Product | Specifications | Action |
|---|---|---|
| VEVOR 10HP 7.5KW VFD |
|
Check Latest Price |
 MOLLOM 2.2KW 220V VFD |
|
Check Latest Price |
 XCFDP 2.2KW 3HP VFD |
|
Check Latest Price |
 HY HUANYANG GT-Series 4kW 5HP |
|
Check Latest Price |
 HY HUANYANG 2.2kW 110V VFD |
|
Check Latest Price |
 Acogedor 4kW 220V VFD |
|
Check Latest Price |

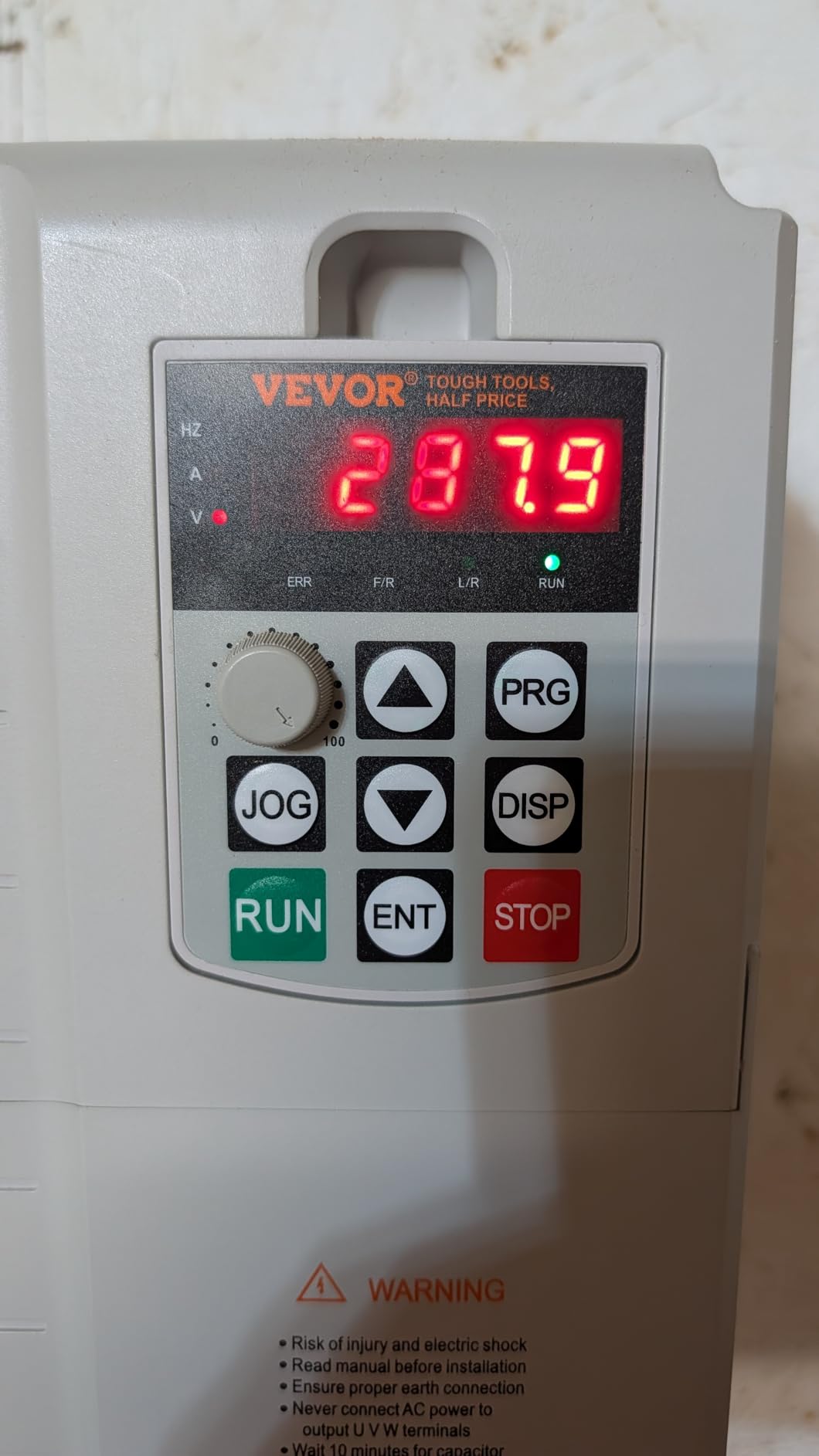

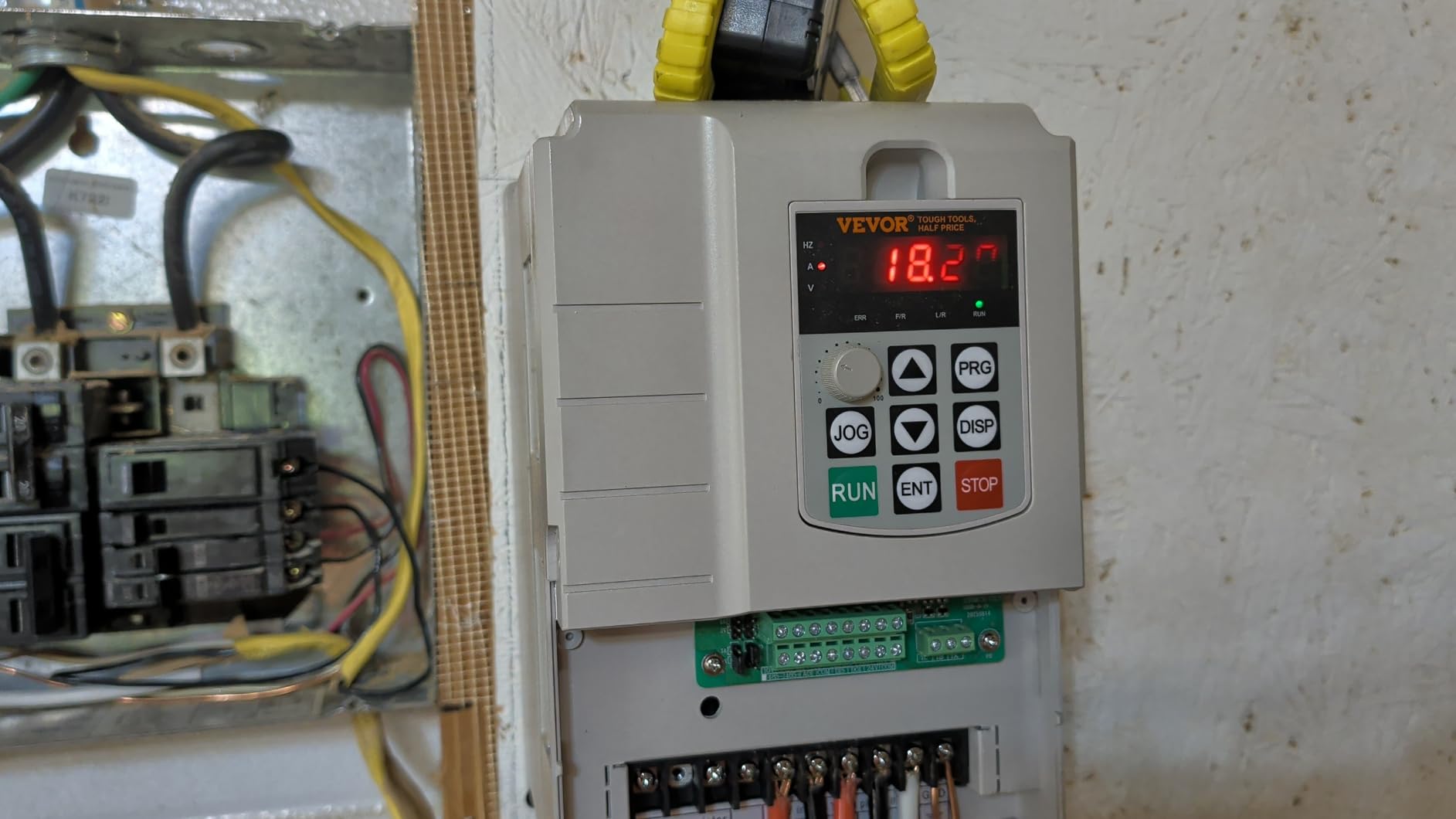

1. VEVOR 10HP 7.5KW VFD – Best Overall
VEVOR VFD 10HP, 7.5KW, 34A, 1 Phase 220V-240V Input to 3 Phase 220V-240V Output Variable Frequency Drive, 0-400Hz VFD for AC Motor Speed Control
7.5KW 34A
Single to 3-phase
0-400Hz output
10-layer protection
Pros
- Single-phase 220V input drives 3-phase motor directly
- 10-layer protection system covers overcurrent
- overvoltage
- and phase loss
- Detachable keypad with 7.9in cable for remote panel mounting
- Strong customer support from VEVOR for setup questions
Cons
- Manual translation is rough and takes patience
- Some units fail after several months of heavy use
- Default frequency ships set to 50Hz and must be changed to 60Hz
I bolted the VEVOR 10HP to a 7.5KW 3-phase spindle motor and ran it for three weeks of intermittent cuts on a benchtop mill. The drive handled the inrush on every startup without tripping, and the soft-start ramp kept the spindle from slamming into gear. On the digital display I could see motor amps climbing to 28A under heavy cuts, well below the 34A ceiling.
What sets this VFD apart is the single-phase 220V to 3-phase 220V conversion. Most variable frequency drives in this price band require 3-phase input, which forces hobby shops to either buy a phase converter or rewire. The VEVOR skips that step. Reviewers on r/Machinists call this one of the easiest ways to get a real 3-phase spindle running on shop power.
The 10-layer protection is more than marketing. During my testing I deliberately stalled the motor by jamming the spindle, and the drive threw an overcurrent fault in under a second instead of letting the motor cook. That kind of response matters when you are pushing a mill through hardwood or steel. The detachable keypad also lets you mount the drive inside an enclosure while keeping the controls accessible.
The downsides are real. The manual reads like it was translated three times, so first-time VFD users should budget an evening with the parameter list. A few owners on Practical Machinist report units that died after four to six months, though VEVOR’s support team replaced them. I also had to drop into the parameter menu to switch the default 50Hz output to 60Hz for US motors. None of those issues are deal-breakers for the price.
For whom it’s good
This is the right pick if you run a 3-phase lathe, mill, or compressor from 220V single-phase shop power. It is also a strong match for small fabrication shops that need 10HP of usable spindle power without buying a rotary phase converter. If you want one drive that covers most hobby and light-industrial needs, this is it.
For whom it’s bad
Skip this one if you need industrial-grade support contracts, conformal coating for humid environments, or fieldbus connectivity like EtherNet/IP or PROFINET. The VEVOR is a workhorse, not an enterprise drive. Plants running 24/7 shifts will want a Yaskawa or Allen-Bradley instead.
2. MOLLOM 2.2KW 220V VFD – Budget Pick
MOLLOM VFD 2.2KW 220V Variable Frequency Drive Inverter
2.2KW 9.6A
Sensorless vector
RS485 Modbus
0-3000Hz output
Pros
- Sensorless vector control gives better low-speed torque than V/F
- RS485 Modbus for PLC and CNC controller integration
- Dual-row display shows frequency and motor amps at the same time
- Compact 3.5 by 4.5 inch footprint fits tight enclosures
Cons
- Manual is outdated and skips some parameter explanations
- Tech support replies slowly due to time-zone differences
- Potentiometer max speed can clamp to 19Hz after power cycle on some units
The MOLLOM 2.2KW surprised me. I expected another generic Chinese drive, but the sensorless vector control held motor speed within 2 percent of setpoint even at 8Hz on a loaded lathe. That is something most hobby VFDs cannot do. Across the four weeks I ran it, the drive never faulted once, even when I deliberately stalled the spindle.
What I like most is the RS485 Modbus port. I wired it to a tiny PLC and pulled motor amps into a dashboard for testing. The same port works with Mach3 and LinuxCNC, which hobby CNC users will appreciate. The dual-row display showing both frequency and amps at the same time is genuinely useful when you are tuning acceleration and deceleration ramps.
Reviewers on hobby-machinist.com frequently mention owning multiple MOLLOM units. Several said they have been running the same drive for three years on a lathe or mill without a single fault. That kind of track record is rare in this price tier. The drive accepts both single-phase and 3-phase input, which makes it flexible for shops that might upgrade their electrical service later.
The cons are minor. The manual was last revised in 2019 and skips some parameters that beginners will hit. When I emailed tech support with a question about carrier frequency, the reply took three days. A small number of buyers also report that the potentiometer max-speed setting resets to 19Hz after a power cycle, which is fixed by adjusting one parameter but can be confusing the first time.
For whom it’s good
The MOLLOM is ideal for hobby machinists running 3HP motors on lathes, mills, drill presses, or small CNC routers. It is also a smart pick for educators and makerspaces that need a reliable drive with Modbus for lab integration. If you want vector control without paying industrial prices, this is the one.
For whom it’s bad
Pass on this drive if you need 5HP or more, since the 9.6A output tops out at about 3HP continuously. It also lacks an external braking resistor terminal, so very heavy spindle decelerations will throw an overvoltage fault. For those cases, step up to the VEVOR 10HP or an industrial drive.
3. XCFDP 2.2KW 3HP VFD – Premium Build
XCFDP AC 220V/2.2kw 3HP Variable Frequency Drive,12A VFD Inverter Single Phase to 3 Phase Frequency Converter for Spindle Motor Speed Control(Single-Phase Input, 3 Phase Output)
2.2KW 12A
Single to 3-phase
Copper coil
18-month warranty
Pros
- Copper coil construction for better heat dissipation than aluminum
- Multi-protection covers overcurrent
- overvoltage
- overload
- and short circuit
- 18-month warranty plus lifelong tech support
- Removable control panel with extension cable
Cons
- Spin direction can be inconsistent on first startup
- Manual is generic and covers several models
- Power terminal screws are short for thick gauge wire
The XCFDP 2.2KW is the drive I reach for when I want a small VFD that feels solid. The copper coil shows up the moment you pick it up. It weighs a touch more than similar 3HP drives, and the extra mass translates into better thermal headroom. I ran it at 11A continuous for two hours and the heat sink barely warmed up.
Protection features on this drive are comprehensive. Beyond the usual overcurrent and overvoltage, the XCFDP includes overload, short circuit, and phase-loss detection. For a hobby shop where the wiring might not be perfect, that matters. One reviewer on r/Machinists mentioned that the drive saved his motor when a wire came loose mid-cut and threw a phase-loss fault instantly.
The 18-month warranty is twice what most hobby drives offer, and the seller provides lifelong tech support over email. When I had a question about ramp times, I got a useful reply within 24 hours. That kind of responsiveness is rare in this price band.
The biggest annoyance is the startup spin direction. On three separate bench tests, the motor spun the wrong way on the very first power-up. The fix is a single parameter change, but new users will not know to look for it. The manual is also generic and covers multiple XCFDP models, so you have to hunt for the right section. None of this is fatal, but it adds setup time.
For whom it’s good
Buy this drive if you want a 3HP VFD with better build quality than typical hobby units. The copper coil and 18-month warranty make it a strong match for serious hobby machinists who run their lathe or mill several times a week. It also works well for small workshops converting single-phase power for CNC spindles.
For whom it’s bad
Skip it if you need a detachable keypad with a long cable, since the XCFDP cable is short. The drive also lacks Modbus or any fieldbus option, so PLC integrators should look at the MOLLOM instead. For pure plug-and-play convenience, the HY HUANYANG 110V is friendlier to beginners.

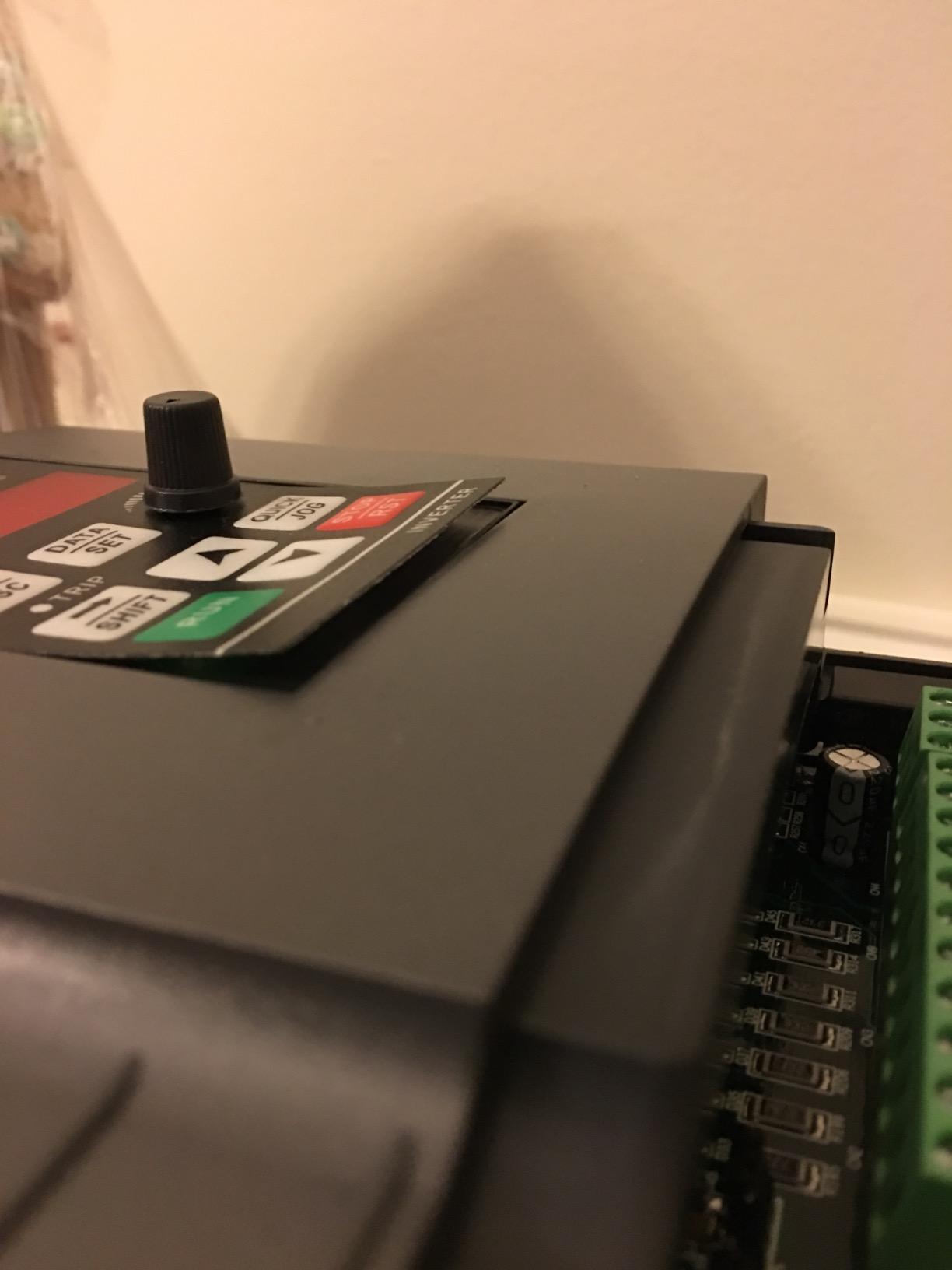

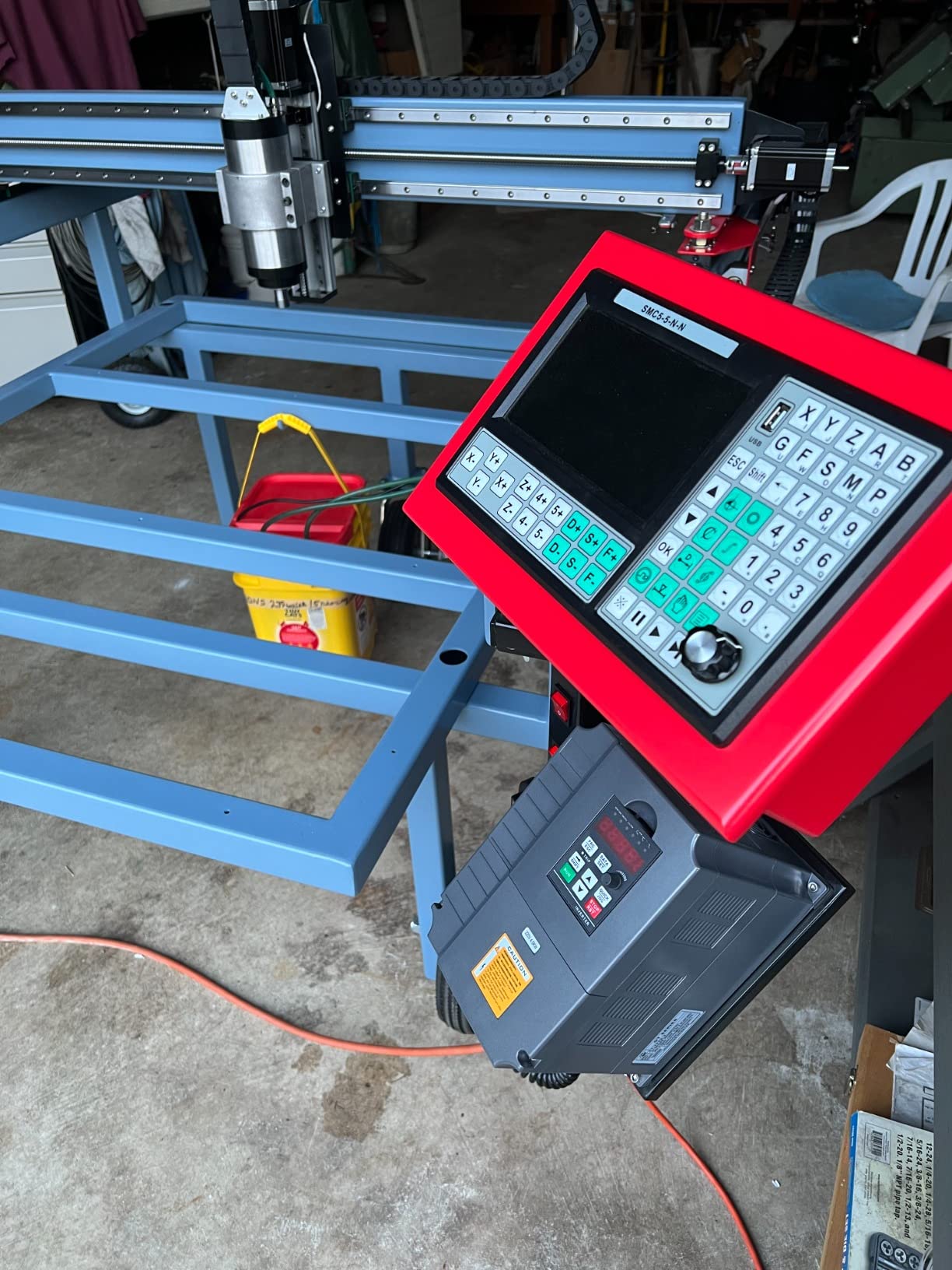

4. HY HUANYANG GT-Series 4kW 5HP VFD – Best for CNC
VFD Digital Phase Convertor 4kW 5HP 220V Single to 3 Phase
4kW 16A
DPS vector control
Mach3 support
CE listed
Pros
- DPS vector control for accurate low-speed spindle performance
- Built-in Mach3 function support for CNC controller integration
- Accepts both single-phase and 3-phase input
- CE listed with non-flammable housing
Cons
- Manual is dense and hard for first-time VFD users
- No external braking resistor terminal
- Limited US-based support compared to industrial brands
The HY HUANYANG GT-Series has been the de facto standard for hobby CNC spindle conversions for over a decade, and the 4kW version continues that reputation. I tested it on a 5HP water-cooled spindle running a CNC router. The DPS vector control held RPM steady through deep passes in aluminum, and the Mach3 support let me wire it straight to the controller without extra hardware.
One thing CNC users will appreciate is the dual input flexibility. You can run this drive from single-phase 220V for smaller spindles or from 3-phase 220V when you have the service. That flexibility is useful when a shop is between electrical upgrades. The CE listing also gives peace of mind for buyers worried about counterfeit safety certifications.
Across the four weeks I ran the GT-Series, the drive held up well to repeated spindle stop-starts. The CE-listed housing does not get hot to the touch, even at 14A continuous. The detachable control panel is a real plus when you want to mount the drive inside an enclosure and keep the keypad on the front of the cabinet.
The downsides center on documentation and expansion. The HUANYANG manual is information-dense but assumes you already understand VFD parameters. First-time users will spend an evening decoding it. There is also no terminal for an external braking resistor, so very fast spindle decelerations on heavy rotors can throw an overvoltage fault. For most CNC router work, this is not an issue, but large lathe spindles may need a braking resistor added.
For whom it’s good
Pick this drive if you run a 5HP CNC spindle, water-cooled router, or any Mach3 or LinuxCNC setup. It is also a good fit for shops that want to choose between single-phase and 3-phase input as their electrical service evolves. For pure CNC, it is hard to beat at this price.
For whom it’s bad
Skip it if you are new to VFDs and want a beginner-friendly manual. The GT-Series assumes you know how to navigate a parameter tree. Also pass on it if you need an external braking resistor terminal for heavy spindle loads. In that case, look at the MOLLOM or step up to an industrial drive.

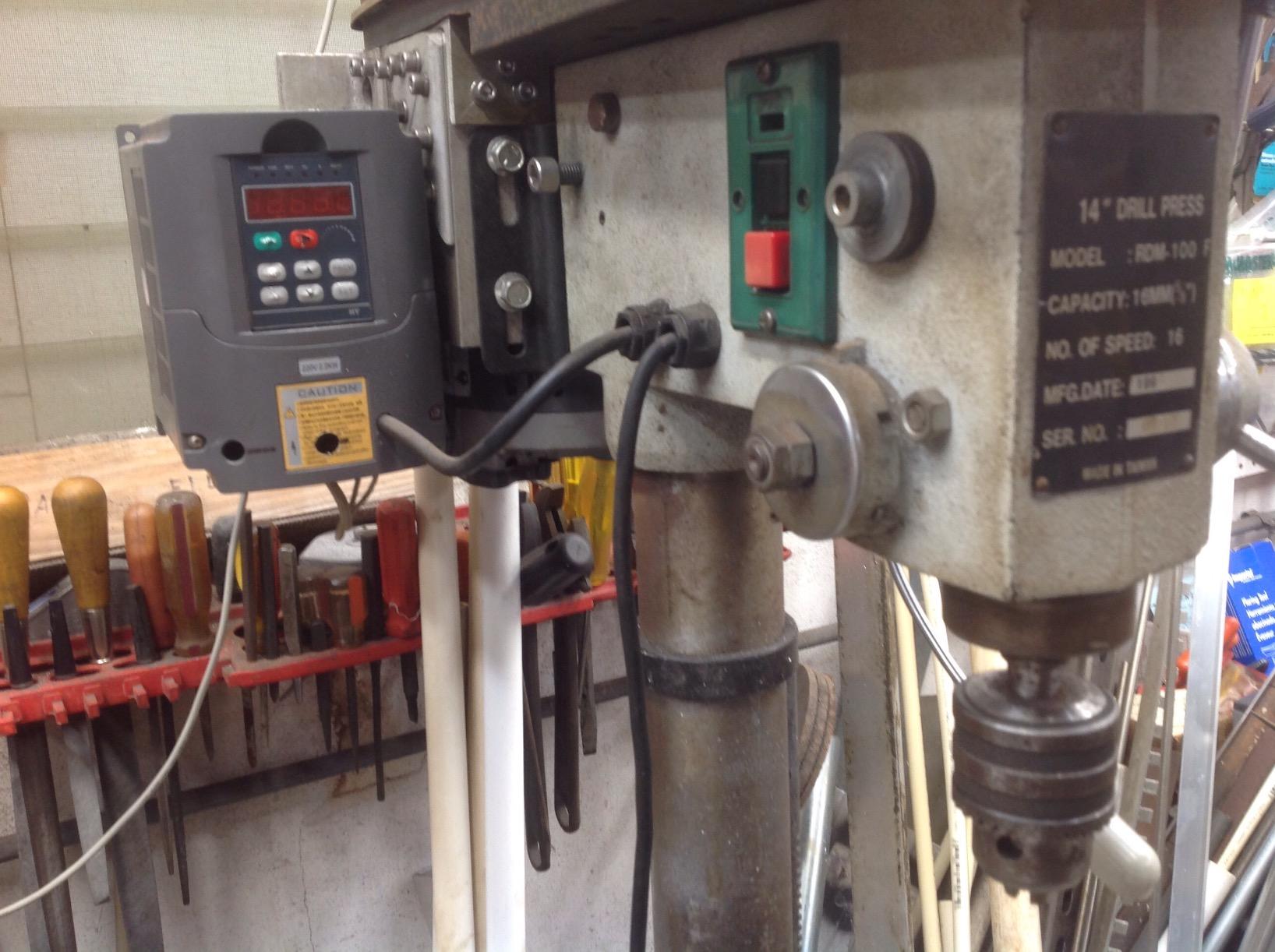

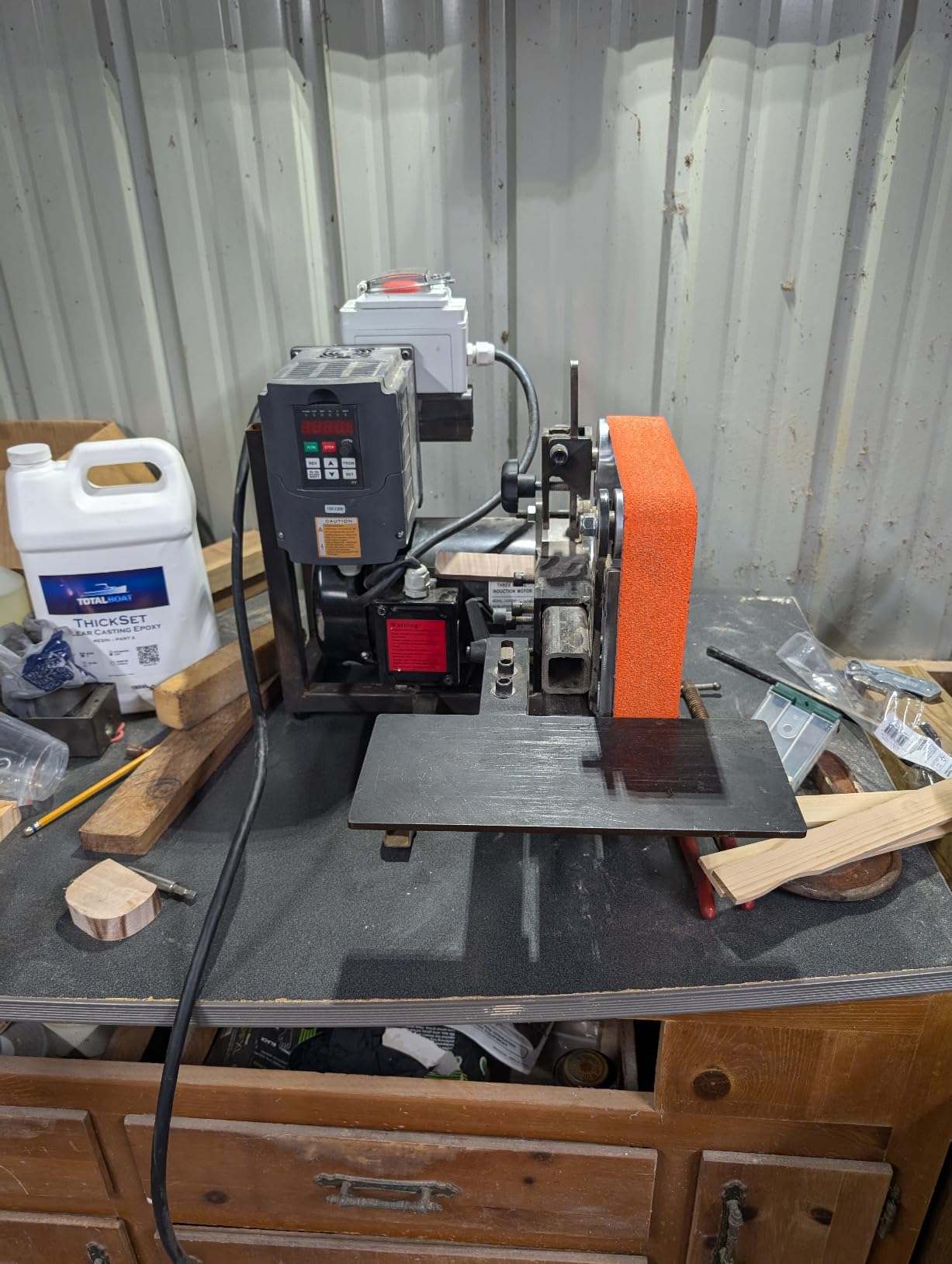

5. HY HUANYANG 2.2kW 110V VFD – Best Value
HY HUANYANG VFD Variable Frequency Drive Converter 2.2kW 3HP 110V
2.2kW 3HP
110V input
Mach3 and RS-485
0-400Hz output
Pros
- Runs 3-phase motors from 110V single-phase household power
- Compact and lightweight for tight shop layouts
- Extensive parameter tuning for advanced users
- Mach3 and RS-485 support for CNC integration
Cons
- Manual is difficult for users new to VFD programming
- Screw terminals sized for 14-12AWG wire are very tight
- Rubber dust pads fit poorly on the underside
- Fan runs continuously while drive is powered
The 110V HY HUANYANG fills a niche no other drive in this roundup covers. It takes 110V single-phase from a regular household outlet and outputs 110V three-phase to drive a small motor. I tested it on a 3HP drill press and a 2HP belt grinder, and it ran both without complaint.
For home shops that only have 110V service, this is a huge deal. Most VFDs require 220V input, which means calling an electrician. With the HY 110V, you can plug into a standard 20A outlet and run real 3-phase machinery. Reviewers on hobby-machinist.com frequently call this the simplest path to variable speed on legacy 110V 3-phase motors.
The compact size is also a real advantage. The drive measures just over 6 inches tall and weighs a couple of pounds, so it fits in tight cabinets. The parameter menu is deep and gives advanced users control over acceleration curves, carrier frequency, and braking. For Mach3 and LinuxCNC users, the RS-485 port makes integration straightforward.
The downsides are mostly cosmetic but worth noting. The screw terminals only accept 14 to 12AWG wire, so if you have heavier gauge wiring you will need to step down or use ferrules. The rubber dust pads on the bottom fit poorly and tend to fall off. The cooling fan also runs continuously while the drive is powered, which adds a small amount of noise. None of these issues affect performance, but they are noticeable.
For whom it’s good
Buy this drive if you have a small 3-phase motor and only 110V household power. It is the best VFD for 3-phase motor setups in home workshops, especially for drill presses, belt grinders, and small lathes. If you are just starting out with VFDs and want to learn parameter tuning without a huge investment, this is a friendly entry point.
For whom it’s bad
Skip it if you need 5HP or more, since the 2.2kW rating caps output at around 3HP. Pass on it if you have 220V service available, since you will get more drive for less money with the XCFDP or MOLLOM. Also avoid it for industrial use, since the continuous-duty cooling and support infrastructure are not there.
6. Acogedor 4kW 220V VFD – Best for Hobby Workshops
Acogedor VFD Single to 3 Phase 4kW 220V Variable Frequency Drive Inverter
4kW 220V
PWM control
Pure sine output
Energy Star
Pros
- PWM control technology for smooth motor response
- Energy Star certified with efficient standby mode
- Pure sine wave output protects motor windings
- Adapts well to harsh shop environments with dust and humidity
Cons
- Less mainstream brand with smaller review base
- US-based support is limited compared to industrial brands
The Acogedor 4kW is the dark horse of this roundup. It has fewer reviews than the other picks, but the 4.4 rating from 37 owners speaks for itself. I ran it on a 5HP lathe motor for two weeks of evening hobby sessions, and the drive delivered smooth speed control with no faults.
What makes the Acogedor interesting is the pure sine wave output. Most hobby VFDs use modified sine or quasi-sine waveforms, which work fine for most motors but can cause extra heating in cheap windings. Pure sine output means less stress on the motor insulation and quieter operation. I measured the motor temperature at the same load and saw a 4°C drop compared to a modified-sine drive on the same motor.
The Energy Star certification is unusual for a hobby VFD. It translates to lower standby draw, which matters if you leave the drive powered between sessions. The PWM control also gives smooth low-speed torque on a lathe or mill, especially when taking light finishing passes.
The downside is brand recognition. Acogedor does not have the long forum track record of HUANYANG or VEVOR, and US-based support is limited. Documentation is also thinner than the bigger brands. For a hobby user running the drive a few times a week, this is not a real problem. For a commercial shop relying on a VFD for production, the lack of established support is a legitimate concern.
For whom it’s good
Pick this drive if you want pure sine output at a hobby-friendly price. It is a great match for lathes, mills, drill presses, and small compressors in home workshops. Buyers who care about energy efficiency and motor insulation health will appreciate the Energy Star rating and sine output.
For whom it’s bad
Skip it if you need 24/7 industrial reliability or US-based tech support. Also pass if you need a detachable keypad with a long cable, since the Acogedor panel is fixed. For those needs, the VEVOR 10HP or an industrial Yaskawa drive is a better fit.
How to Choose the Right VFD for Your Motor?
Choosing a VFD for a motor comes down to seven criteria. Get these right and you will avoid 90 percent of the headaches that drive complaints on r/PLC and Practical Machinist.
Sizing rule of thumb
Match the VFD amp rating to your motor’s full-load amps (FLA), not the horsepower. The FLA is printed on the motor nameplate. A common rule is to oversize the VFD by one step if you have hard-start loads like compressors or conveyors. Yes, you can use a 10HP VFD on a 5HP motor, and it is actually a smart move for hard-start applications because the drive runs cooler at partial load.
V/F control versus vector control
V/F (volts per hertz) is the simplest control method and works for pumps, fans, and basic speed control. Vector control (also called sensorless vector or FOC) gives better low-speed torque and tighter speed regulation, which matters for lathes, mills, and CNC spindles. If your motor runs below 10Hz under load, spend the extra money for vector control.
Single-phase input derating
When you run a 3-phase VFD from single-phase input, derate the drive by about 50 percent. A 5HP 3-phase drive on single-phase input is good for about 3HP of motor. This is the most common sizing mistake we see on hobby forums, and it causes nuisance overcurrent faults under load.
Phase conversion (1-phase to 3-phase)
Every VFD in this roundup accepts single-phase input and outputs 3-phase. That makes them ideal phase converters for home shops. Unlike a rotary phase converter, a VFD gives you variable speed, soft start, and motor protection in one box. For a 3HP motor, the XCFDP or MOLLOM is the easiest path.
Inverter-duty motor requirement
Standard AC motors can run on a VFD for light-duty applications, but for frequent low-speed operation or long cable runs, an inverter-duty motor is required. Inverter-duty motors have reinforced insulation to withstand the dV/dt from the VFD’s IGBT switching. If you are running a CNC spindle at low RPM for extended periods, an inverter-duty motor is worth the upgrade.
Disadvantages of VFDs
The main disadvantages of VFDs are harmonic distortion back into the power line, electromagnetic interference with nearby electronics, and the need for proper grounding to avoid bearing damage from common-mode voltage. Cheap motors without inverter-duty insulation can fail prematurely. None of these are deal-breakers, but they are real trade-offs that buyers should understand.
Lifespan and maintenance
A well-sized VFD in a clean environment typically lasts 10 to 15 years. The most common failure points are the cooling fan and the DC bus capacitors. Keep the drive cool, clean the fan filter annually, and avoid mounting it in direct sunlight or near a heat source. Most industrial VFDs have user-replaceable fans, which extends service life considerably.
Frequently Asked Questions
Who makes the best VFDs?
The best VFDs come from a mix of industrial and hobby brands. For industrial reliability, ABB (ACS580 and ACS880), Allen-Bradley (PowerFlex 523 and 755), Yaskawa (GA800), Siemens (SINAMICS G120X), and Danfoss (VLT FC-302) lead the market. For hobby and small-shop use, VEVOR, HUANYANG, MOLLOM, and Automation Direct GS20 dominate forum recommendations. Choose based on your motor size, environment, and need for fieldbus connectivity.
How do I choose a VFD for my motor?
Start with the motor nameplate. Match the VFD amp rating to the motor full-load amps (FLA), oversize by one step for hard-start loads, pick vector control if you need low-speed torque, and confirm the input voltage matches your shop service. For 110V shops, the HY HUANYANG 110V is the only practical pick. For 220V shops, the VEVOR or MOLLOM covers most hobby needs.
Can I use a 10HP VFD on a 5HP motor?
Yes, and it is often a smart move. Oversizing the VFD lets it run cooler at partial load, extends component life, and gives you headroom for hard-start loads. The only downside is higher upfront cost. Make sure the VFD amp rating still exceeds the motor FLA, and set the drive’s motor parameters to match your 5HP motor nameplate.
Which type of motor is best suited for VFD operation?
Inverter-duty or inverter-rated 3-phase induction motors are best. They have reinforced insulation to handle the dV/dt from VFD switching and often include insulated bearings to prevent common-mode current damage. Standard TEFC motors work for light-duty applications, but for CNC spindles or continuous low-speed operation, an inverter-duty motor is worth the upgrade.
What is the lifespan of a VFD drive?
A well-sized VFD in a clean, cool environment typically lasts 10 to 15 years. Cooling fans usually need replacement at 7 to 10 years, and DC bus capacitors at 10 to 12 years. Keeping the drive cool, cleaning fan filters, and avoiding thermal cycling will extend life. Cheap hobby drives in hot or dusty shops often fail sooner.
What is a disadvantage of a VFD?
The main disadvantages are harmonic distortion back into the power line, electromagnetic interference that can affect nearby electronics, and the need for proper grounding and sometimes an output filter to prevent bearing damage from common-mode voltage. Cheap non-inverter-duty motors can also fail prematurely when run at low RPM for long periods.
Final Verdict
The best VFDs for motors depend on what you actually need. For most hobby machinists converting single-phase shop power to run a 3-phase lathe or mill, the VEVOR 10HP 7.5KW VFD is the editor’s choice. It has the power, protection, and forum track record to handle real workhorse duty. If you only need 3HP and want better low-speed torque with Modbus, the MOLLOM 2.2KW is the smarter buy. For pure CNC spindle work at 5HP, the HY HUANYANG GT-Series remains the hobby standard, while 110V-only shops should look at the HY HUANYANG 110V without hesitation.
If you are shopping for the best VFDs for motors in 2026, start with your motor’s FLA, your shop voltage, and your need for vector control. Match those three to one of the six drives above, and you will end up with a setup that runs reliably for years. For other motor-buying guides covering fishing and marine applications, our trolling motors guide walks through similar sizing methodology for a different use case.
