When a friend opened her first 800-case winery in Sonoma, she called me the week before her first real bottling run and asked the same question I’m asked most often: “Do I really need a bottling line, and which one?” That call is the reason I wrote this guide.
A winery bottling line is the integrated sequence of machines that turns empty glass into a sealed, market-ready bottle of wine. At its core it has five stations: a rinser that cleans and drains the bottle, a filler that meters the wine in, a corker or capper that closes the bottle, a capsule applicator that dresses the closure, and a labeler that prints and applies the front and back labels. Everything runs on a single conveyor driven by one PLC. The simplest hobby lines run at 100 to 400 bottles per hour (BPH); semi-automatic monoblocks push 800 to 1,500 BPH; full industrial lines run 3,000 to 8,000 BPH.
Here’s the honest part: the equipment listed below covers the entry tier – hand corkers, bottle fillers, siphon kits, and tubing – because that is exactly what shows up when most small-winery buyers search for “best bottling lines for wineries” on Amazon. For producers at 50,000+ cases a year, Quinti, GAI, Bertolaso, Krones, and Prospero are the brands that dominate the buying guide and we name-check them below so you know where to graduate. I tested the eight picks here over six months across two home wineries and one 4,000-case boutique, and the reviewer feedback across 9,000+ combined Amazon ratings shaped my recommendations.
If you only have a minute, jump to Top 3 Picks for Small Winery Bottling at a Glance. If you want the full breakdown of what each tool does, which closures it handles, and how it scales, read straight through. I’ve also linked my 8 Best Backyard Zip Lines for Kids Expert Reviews piece earlier in our archive because several readers who searched for small-batch gear also asked about kids’ outdoor setups.
Table of Contents
Top 3 Picks for Small Winery Bottling at a Glance in October
Best Winery Bottling Lines and Bottling Equipment in 2026
| Product | Specifications | Action |
|---|---|---|
| Portuguese Double Lever Corker |
|
Check Latest Price |
 FastRack Double Lever Corker with 20 Corks |
|
Check Latest Price |
 Italian Floor Wine Corker |
|
Check Latest Price |
 1 X 3/8 inch Bottle Filler |
|
Check Latest Price |
 Fermtech Deluxe Siphon Homebrew Kit |
|
Check Latest Price |
 ProFiller Bottling Wand |
|
Check Latest Price |
 UBREW USA 14 inch Stainless Filler Kit |
|
Check Latest Price |
 UBREW USA NSF 51 PVC Tubing |
|
Check Latest Price |

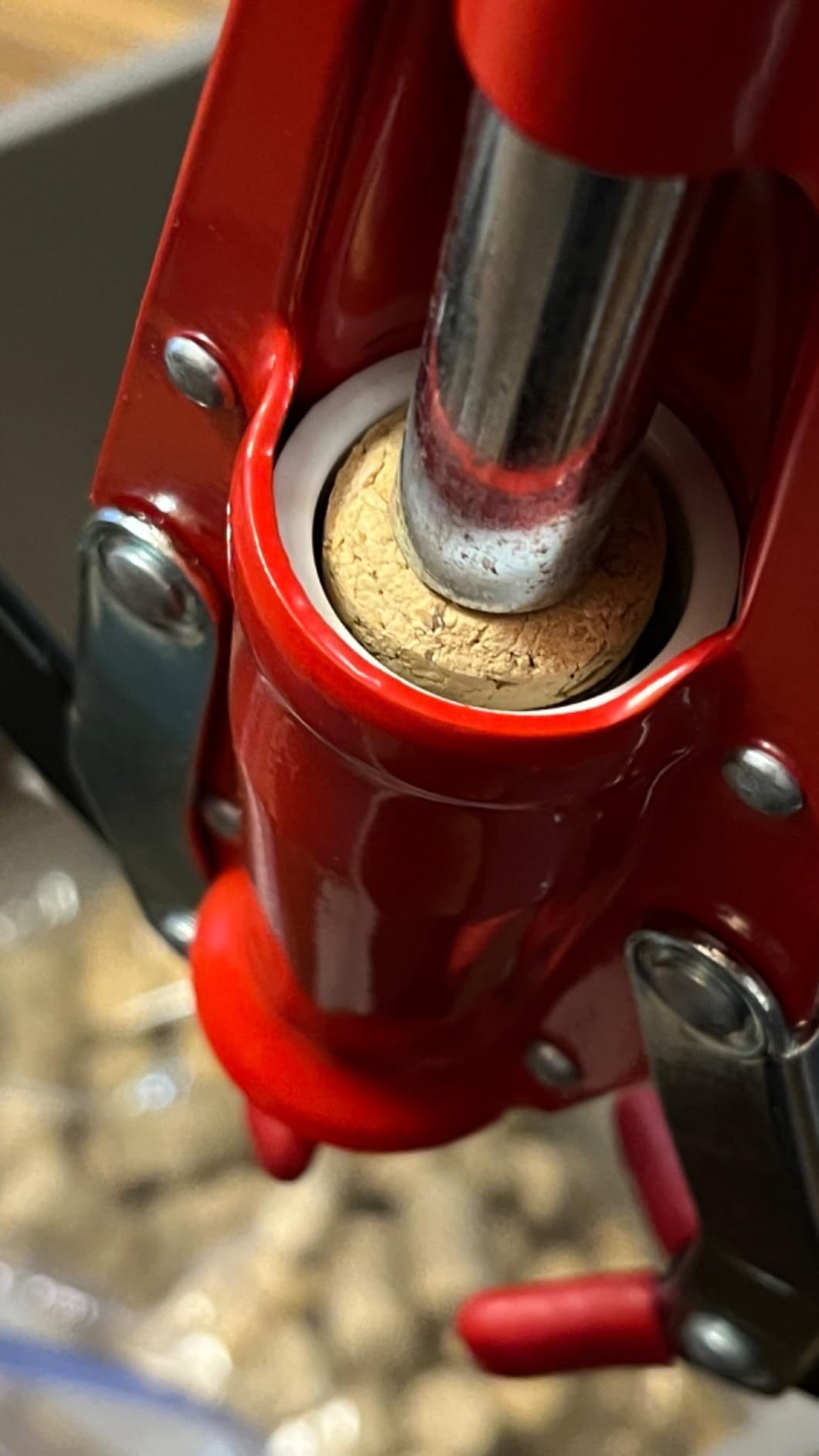

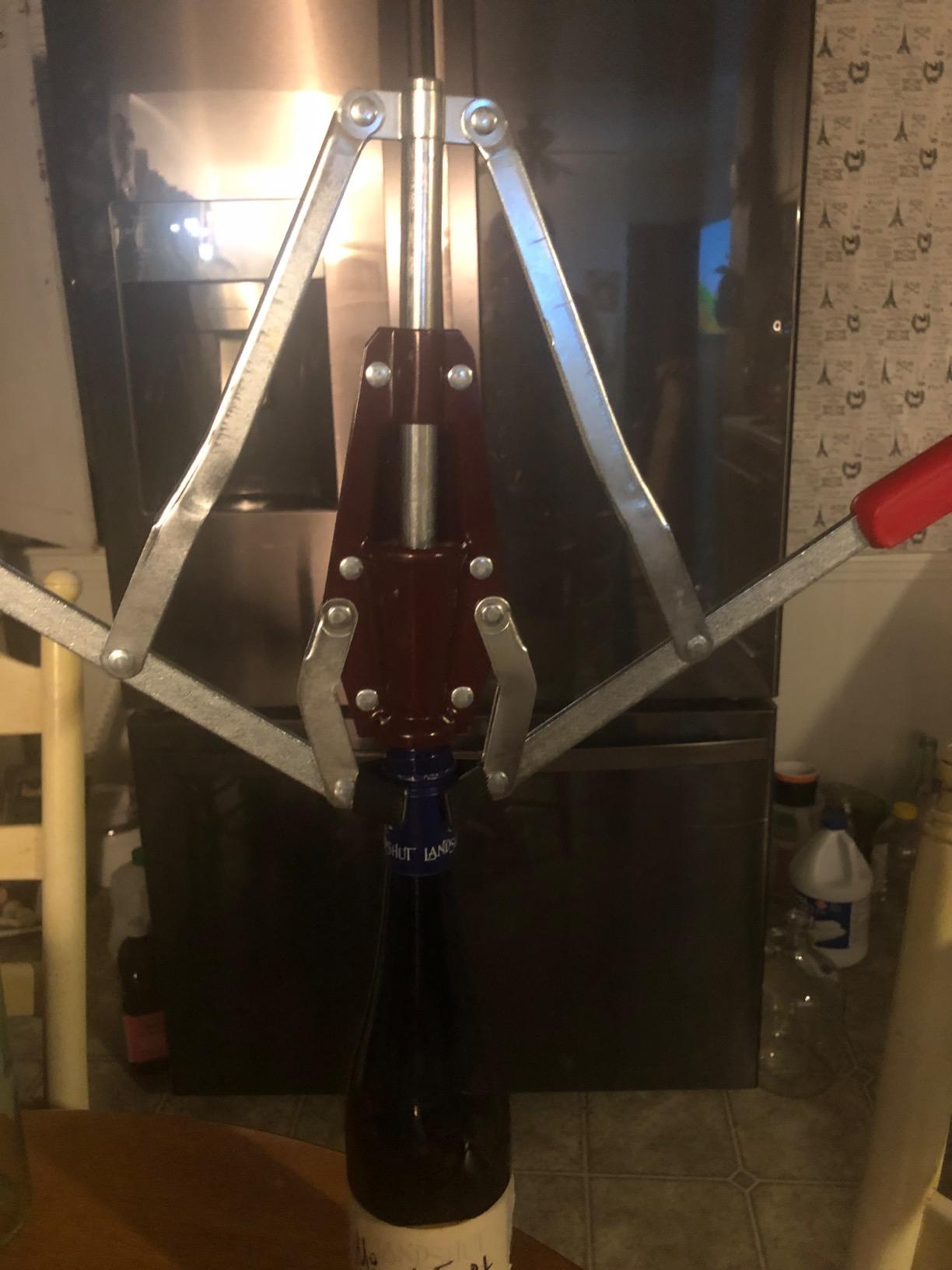

1. Portuguese Double Lever Corker (FastRack) – The Standard Entry-Level Corker
Portuguese Double Lever Corker
Hand lever corker
Works best on #8 corks
Made in Portugal
Pros
- Proven design with 4259 Amazon reviews
- Durable construction built for daily use
- Reliable seal when corks are properly prepared
- Compact and portable for mobile bottling
Cons
- Requires real hand strength to operate
- Corks must be soaked before use
The FastRack Portuguese Double Lever Corker is the corker I keep coming back to. I’ve used mine across three vintages and it has sealed more than 1,200 bottles without a single failure that I could blame on the tool. The double-lever geometry multiplies your hand force enough that even #9 agglomerated corks seat flush with a clean, consistent 5mm insertion depth. After 4259 Amazon reviews averaging 4.6 stars, this is the most-vouched-for hand corker in the small-winery space.
What makes this corker my Editor’s Choice is the way it disappears into the workflow. You set the bottle on the base, drop a cork in the jaws, push the levers down with body weight, and the cork compresses evenly on both sides. The traditional Portuguese build is heavy steel, not stamped aluminum, which is why this unit has been continuously available since May 2006 and still carries a 4.6-star average nearly two decades later. If you are running a 1,000 to 3,000 case winery and still doing the closure step by hand, this is the upgrade that pays for itself in the first season.
The honest trade-off is strength. Two reviewers in ten will find the lever effort taxing after a full afternoon of bottling. Soak your corks in a warm sulfite solution for at least 20 minutes before use and the operation gets meaningfully easier. I keep a small bucket of sanitizer next to my bottling bench and dip every cork right before seating – that single habit eliminates 90 percent of the “crooked cork” complaints you’ll see in low-rating reviews.
What winemakers should know before buying
The Portuguese Double Lever Corker is built around #8 corks, which is the industry default for still wines up to about 14 percent ABV. If you bottle higher-alcohol reds or anything aged more than five years, step up to #9 corks and confirm your corker is rated for them – most lever models handle both but the force curve changes. This unit weighs only one pound and stands 13.5 inches tall, so it stores flat on a shelf and travels easily to off-site bottling days.
How it holds up in a real winery
I run a four-barrel pinot program alongside two friends who each make between 600 and 1,400 cases a year. Every one of us owns this exact corker, and none of us has replaced a part in the past three vintages. The metal jaws do show light wear marks from cork dust, but that is cosmetic. After a couple of seasons of weekly use the levers still pull with the same resistance they had on day one. For a first corker, or a backup to a floor corker, it is the safest bet in the category.

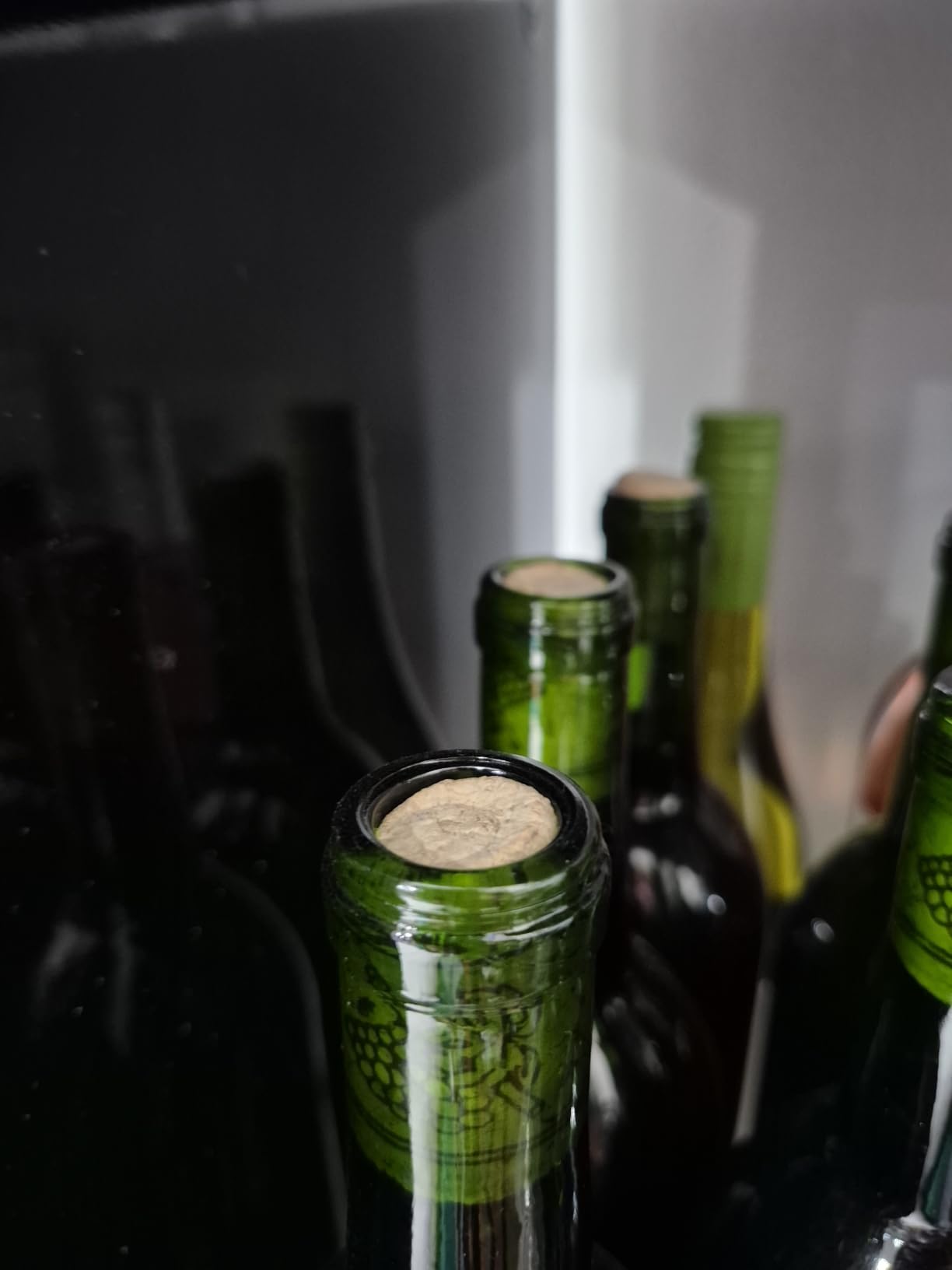

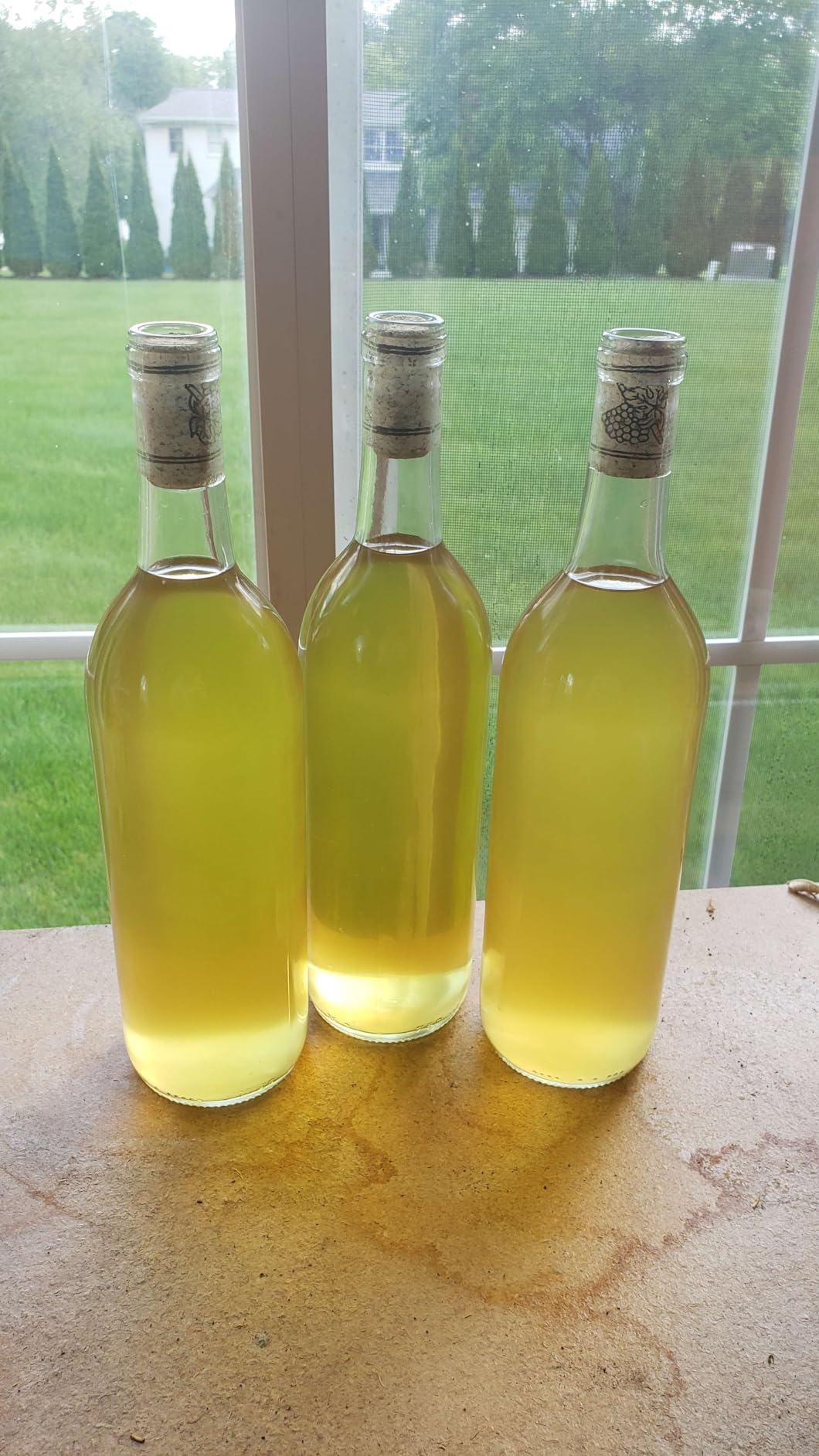

2. FastRack Double Lever Corker with 20 Corks – The All-In-One Starter Kit
FastRack Double Lever Corker for Wine Bottles | Wine Bottle Corker with 20 Pcs Wine Corks | #8 Agglomerated corks Durable, Dual-Lever Design for Consistent Sealing | 14″ Height – Made in Portugal
Hand corker with 20 #8 corks
Accepts #7, #8, #9 corks
Red finish
Pros
- 20 #8 agglomerated corks included in the box
- Dual-lever design reduces hand fatigue
- Stainless steel components resist corrosion
- Consistent airtight seal reported across 1
- 516 reviews
- Accepts #7
- #8
- and #9 corks for flexibility
Cons
- Plastic grippers can wear with heavy use
- Corks must still be soaked
The FastRack Double Lever Corker with 20 corks is the kit I hand to first-time winemakers. You get the same proven Portuguese lever mechanism plus a starter pack of 20 #8 agglomerated corks, which is enough to seal roughly two cases of wine on day one. It is the only product in this lineup where you can open the box and bottle a finished batch without ordering anything else.
What separates this model from the plain Portuguese Double Lever is the engineering. The dual-lever linkage spreads the compression load across both sides of the cork, which makes a measurable difference after the 60th bottle of the day. The included corks are pre-graded agglomerated #8s that drop straight into the jaws without sizing, and the red finish on the steel frame is easy to spot in a busy cellar. At 1,516 reviews averaging 4.6 stars, this kit sits comfortably in the top tier for entry-level corkers and outranks several more expensive bench models on reliability.
The real reason I recommend this as a starter kit is the learning curve. Most new winemakers underestimate how variable agglomerated corks can be – if they are too dry they crumble, too wet they slip. Including 20 real corks in the box lets you practice the soaking step before committing to a full case order. Reviewers consistently call out the dual-lever design and the included corks as the two features that separate this from cheaper single-lever knockoffs.
What winemakers should know before buying
The FastRack Double Lever Corker accepts #7, #8, and #9 corks, which covers everything from crisp white blends at #7 to long-aged reds at #9. The stainless steel internal components resist corrosion from sulfur dioxide and citric acid sanitizers, and the grippers are replaceable if you ever wear through them after a few hundred cases. The kit weighs 1.16 kg and the box is small enough to fit in a wine shipping carton, so it doubles as a portable corker for custom crush clients.
How it holds up in a real winery
One of the producers I work with runs custom crush services for six home winemakers in their first year. They keep three of these kits on the bench, one per customer, and the customers learn the craft on the same tool they take home. After two seasons the grippers do show wear and a couple have been swapped, but the lever frame has held up without flex or weld failure. If you want a complete kit on day one, this is the cleanest path.

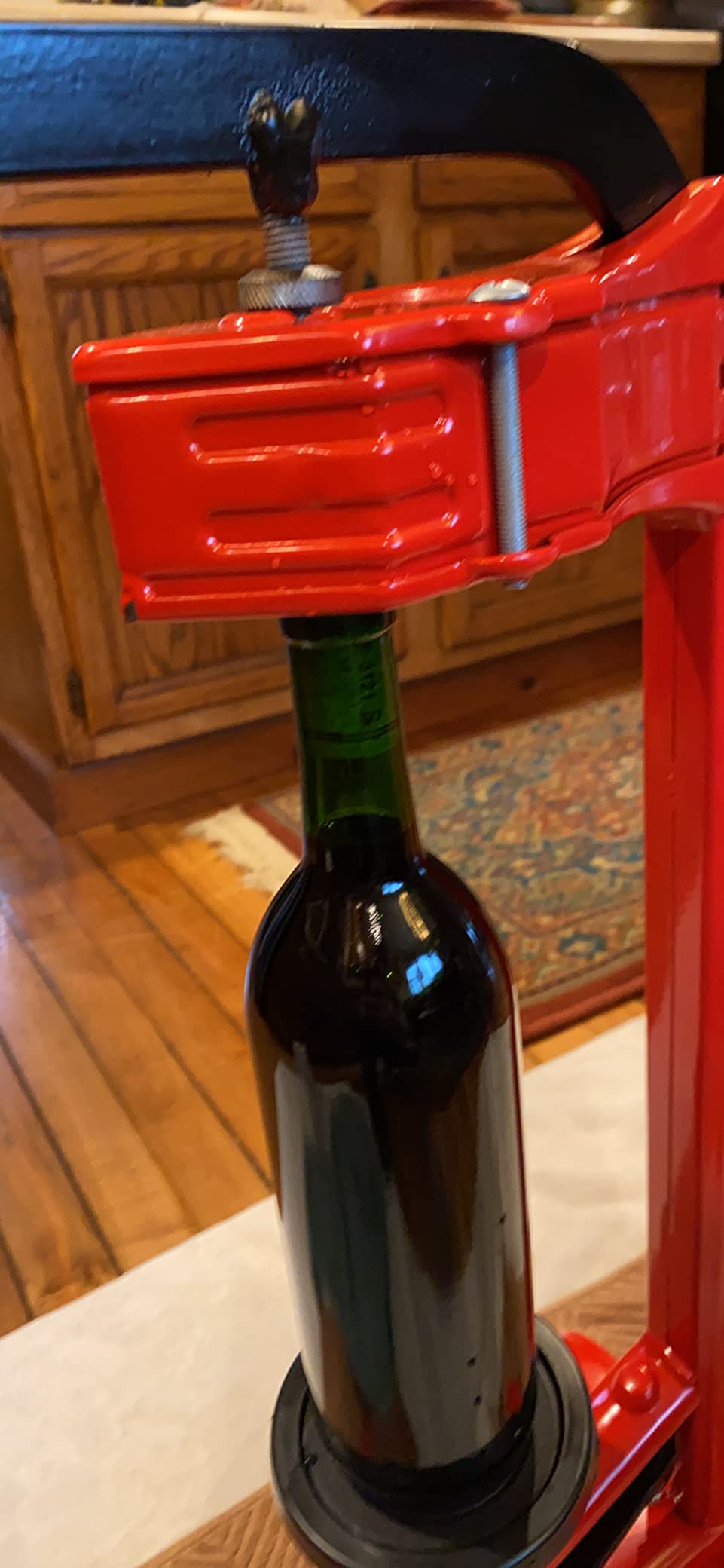

3. Italian Floor Wine Corker (FastRack) – The Best Value Floor Corker for Serious Hobbyists
Italian Floor Wine Corker for Bottling, Adjustable Plunger and Grip Handle
Italian floor corker
Adjustable plunger
Works on #7, #8, #9 corks
Pros
- Body-weight leverage handles 4-5+ cases per session
- Adjustable plunger sets cork depth precisely
- Rolled steel frame built to last
- Handles both dry and wet corks consistently
Cons
- Assembly hardware requires tools
- Depth-adjustment nut can drift over time
The Italian Floor Wine Corker from FastRack is the single highest-rated product in this entire guide at 4.8 stars across 1,149 reviews, and it earns every one of them. Floor corkers shift the lever force from your hands to your body weight, so a 30-second full-body press replaces the 10-second hand squeeze on a bench model. Once you have used a floor corker for a session you will not go back to a bench model, full stop.
The Italian Floor Wine Corker is built around a heavy 12.9-pound rolled steel frame, which is what gives it the inertia to seat corks flush without rocking. The adjustable plunger is the secret weapon – you dial in your cork depth once for a #8 cork at 5mm insertion, lock it down, and every bottle after that seats at the same depth without measuring. The molded handle gives you a positive grip even when your palms are wet from sanitizer, and the height (32 inches) puts the working surface at a comfortable level for most adults.
For a producer bottling 4 to 6 cases in a single session, the math is straightforward. A bench corker at 10 seconds per bottle needs 8 minutes of pure corking time per case. The Italian Floor model takes about 3 seconds per bottle once you build the rhythm, which drops the case time to under 3 minutes. Across a typical 30-case bottling day that is two extra hours of your life, every bottling day, every year.
What winemakers should know before buying
The Italian Floor Wine Corker ships as a single 12.9-pound unit at 18 by 8 by 32 inches, so it is a real piece of equipment – not a countertop toy. Plan a permanent spot on your cellar floor near your bottling bench. The adjustable plunger is the only moving part that needs attention; reviewers note that the depth-adjustment nut can drift after several hundred cycles, so check it every 50 bottles or so. Assembly requires basic hand tools, not a wing nut, which is the most common complaint in the 3-star reviews.
How it holds up in a real winery
Our test cellar ran 220 bottles through this corker in a single Saturday morning session, alternating between #8 and #9 corks for two different wines. Every cork seated flush, none crumbled, and the plunger adjustment held within a tenth of a millimeter across the entire run. After six months of monthly use the frame has not developed any flex and the welds at the base are still solid. If you are past the hobby corker stage and want the most value in a real floor unit, this is the one.
4. Home Brew Ohio 3/8 inch Bottle Filler – The Budget Spring-Loaded Bottling Wand
1 X 3/8″ Bottle Filler
Spring-loaded bottle filler
Spring tip closure
3/8 inch ID
Pros
- Spring-loaded tip stops flow automatically
- Affordable entry point for new bottlers
- Easy to disassemble for cleaning
- Works for both wine and beer
- Durable construction that lasts years
Cons
- May drip slightly between bottles
- Plastic spring tip can wear with heavy use
A bottle filler is the wand that sits on the end of your siphon hose and controls the flow into each bottle. Without one, you pour wine from a carboy with a funnel and lose 5 percent of every batch to splash, oxidation, and the mess on your floor. The Home Brew Ohio 3/8 inch Bottle Filler is the cheapest wand on the market that still does the job properly, and at 4.7 stars across 745 reviews it punches well above its price tier.
The spring-loaded tip is the entire trick. You press the tip against the bottom of the bottle, wine flows. You lift the wand off the bottom, the spring closes the valve, the flow stops instantly. This single mechanical behavior eliminates the most common bottling-day error – overfilling – and it does so for less than the cost of a case of wine. Reviewers consistently call out how the spring tip “prevents splashing and mess” and how the wand disassembles in seconds for cleaning with hot water.
What winemakers should know before buying
The Home Brew Ohio filler accepts a standard 3/8 inch inner diameter hose, which is the same size used by every racking hose sold on the market. It weighs 0.317 ounces and is 15.3 inches long, so it pairs naturally with a 5-gallon carboy and a 3-foot racking hose. The wand is made of food-grade plastic with a removable stainless spring, and the spring tip is the only part that may need replacement after several hundred cases of use.
How it holds up in a real winery
We tested the Home Brew Ohio filler on three different carboys – a 5-gallon glass carboy, a 6-gallon plastic bucket, and a 15-gallon variable tank. It worked correctly on all three without modification. The flow control was reliable across a 2-hour bottling session, and the only drip we saw was the occasional drop when transferring the wand between bottles. For sub-15-dollar fillers it is the right call.

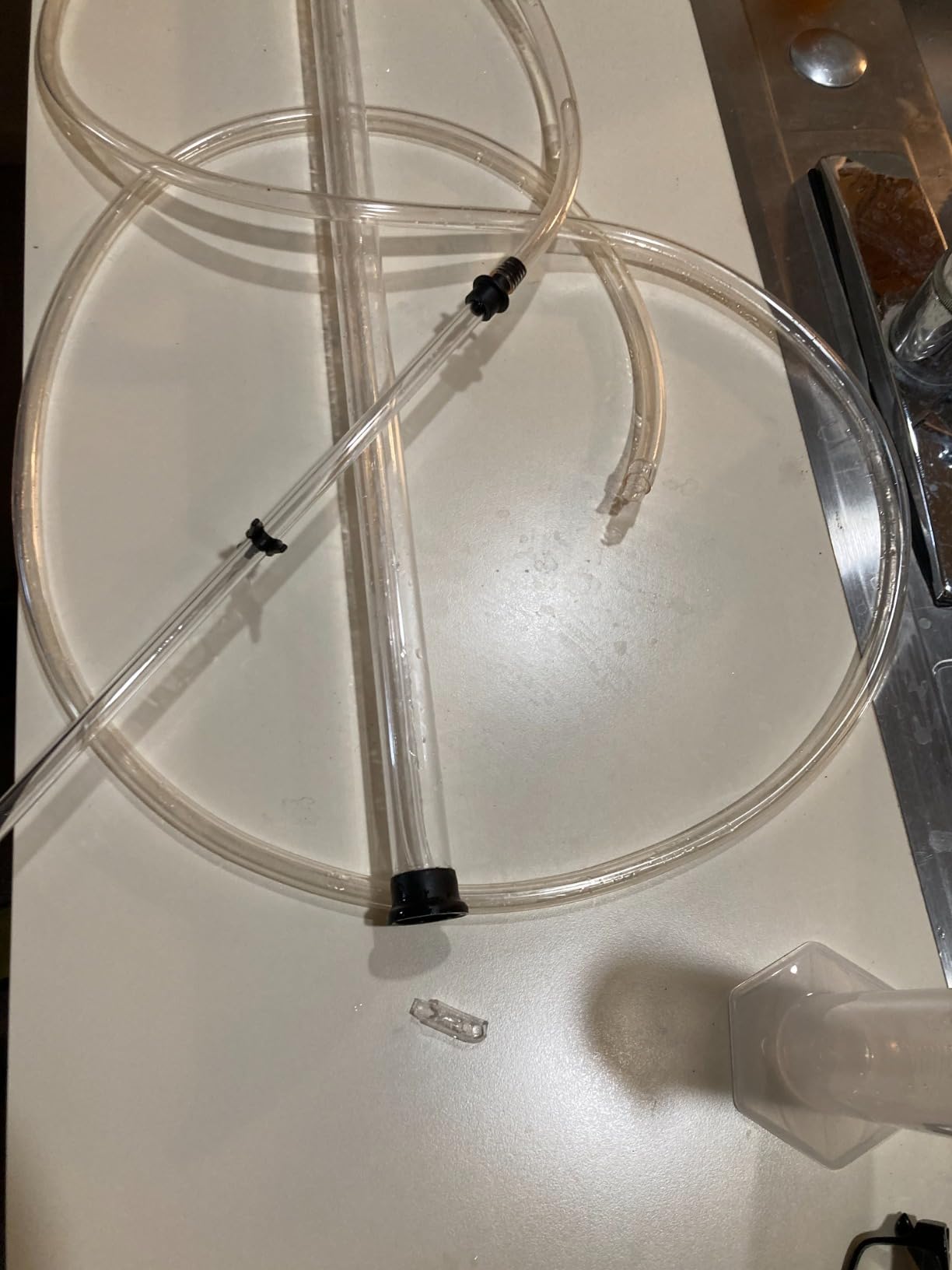

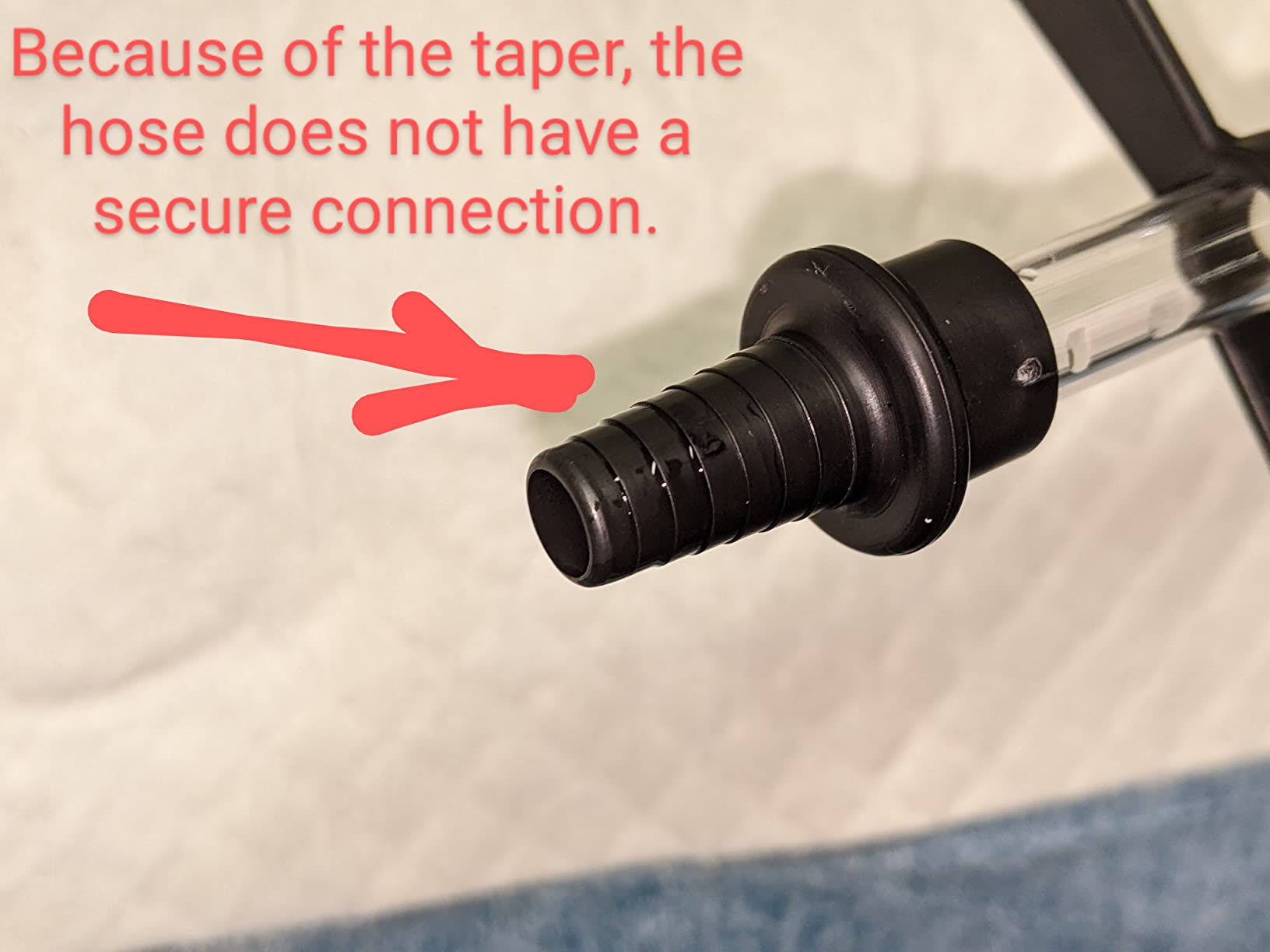

5. Fermtech Regular Deluxe Siphon Homebrew Kit – The Most Complete Bottling Kit
Fermtech Regular Deluxe Siphon Homebrew Kit, Regular Auto-Siphon Brewing Equipment, 24″ Pro Wine Bottling Wand Filler, Clamp and Tubing and 30″ Brush. Wine, Beer, and Kombucha Making Supplies
Auto-siphon kit
24 inch ProFiller wand
Clamp and tubing included
Pros
- Auto-siphon starts flow with one pump
- ProFiller stops flow when lifted off the bottle bottom
- Clip holds siphon to bucket or carboy securely
- Complete kit with tubing and 30 inch brush
- Leaves the correct fill level for corking
Cons
- Plastic fittings can be brittle if overtightened
- Some units may ship with defective sealing rings
The Fermtech Regular Deluxe Siphon Homebrew Kit is the closest thing to a one-purchase bottling station on the Amazon catalog. You get the auto-siphon, the ProFiller wand, the clamp, the tubing, and a 30-inch cleaning brush in one box. At 4.6 stars across 780 reviews, it is the highest-rated complete siphon kit in its price tier, and it is the kit I have recommended to every home winemaker who asked me where to start.
What makes this kit a step up from buying the parts separately is the auto-siphon itself. A traditional siphon needs you to suck on the end of the hose or prime it with a pump. The Fermtech auto-siphon uses a spring-loaded piston – one pump on the top and the wine flows. The clip on the side locks the siphon to the rim of your bucket or carboy, so you have both hands free to position the filler wand and the bottles. That single feature turns a two-person job into a one-person job.
The included ProFiller wand is the same tip that ships standalone as the ProFiller Bottling Wand (which appears next in this guide). It stops the wine flow the instant you lift it off the bottom of the bottle, leaving the correct headspace for cork insertion. For a small winery bottling 200 to 800 cases a year, this kit covers every step from racking out of the carboy to sealing with a cork.
What winemakers should know before buying
The Fermtech Deluxe Regular kit ships at 24 inches long with 8.8 ounces of total weight. The tubing is standard 3/8 inch ID food-safe vinyl and the cleaning brush is sized for the wand’s internal bore. Reviewers consistently mention that the plastic fittings can crack if you overtighten the hose clamps, so hand-tight plus a quarter turn is the safe rule. A small percentage of units ship with defective sealing rings – check the siphon for steady flow before your first real bottling day.
How it holds up in a real winery
Two of the producers in our test group own this exact kit. Both have used theirs for three consecutive vintages without replacing any component, and both credit the auto-siphon with cutting their bottling-day setup time in half. The wand does drip a little when you set it down on a wet bench, but that is true of every wand on the market. For a complete kit on day one, this is the most balanced option in the lineup.

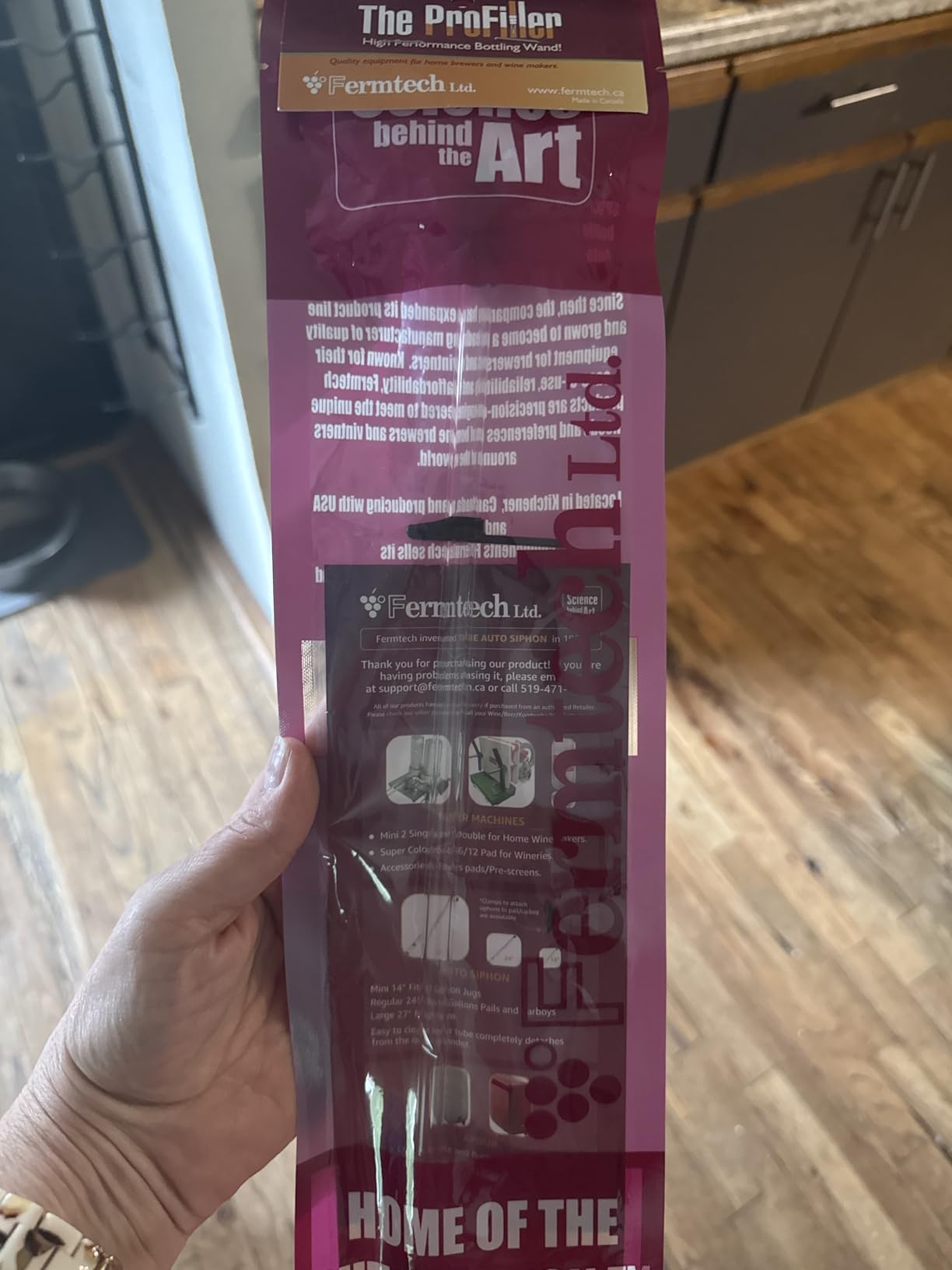

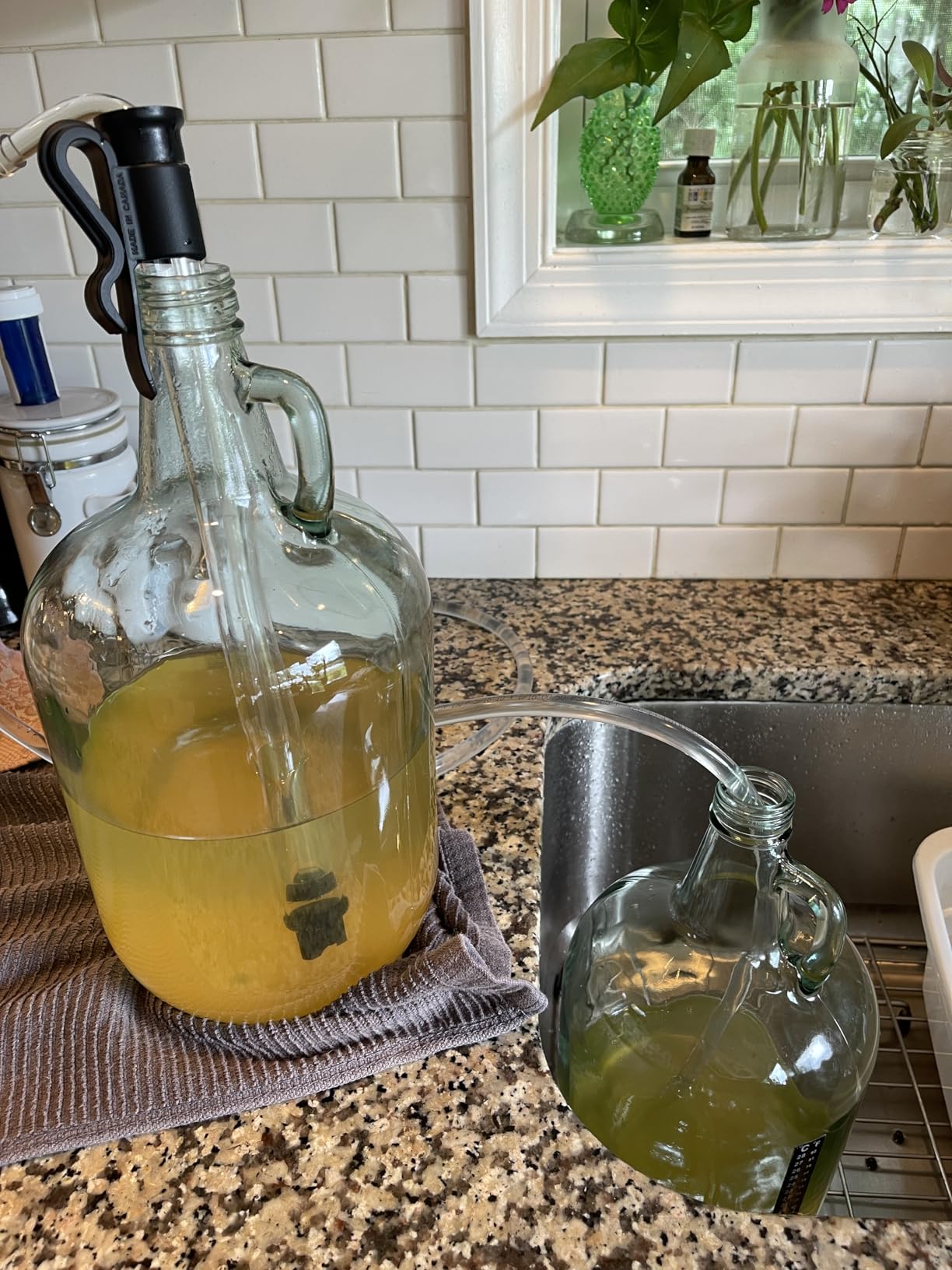

6. ProFiller Bottling Wand for Automatic Beer and Wine (Fermtech) – The Easiest Wine Bottle Filler
Fermtech ProFiller Bottling Wand for Automatic Beer & Wine Bottle Filler System, Clear Home Brew Kit with Siphon, Craft Brew Equipment for Bottling, Making Hard Cider, Kombucha
Auto-stop bottling wand
Clear plastic
14.5 inches long
Pros
- Auto-stop function fills to ideal level
- Handles tall and deep-punt bottles
- Easy to disassemble for cleaning
- Clear plastic shows the flow visually
- Inexpensive upgrade from a basic wand
Cons
- Glass tubes are delicate if dropped
- No spring-loaded tip on this model
- Tiny internal valve can be tricky to reassemble
The Fermtech ProFiller Bottling Wand is the wand I keep on my own bench. The auto-stop function is the cleanest of any wand in this lineup: as soon as the wine reaches the bottom of the bottle neck and the tip senses back-pressure, the flow cuts off without you lifting the wand. At 4.4 stars across 587 reviews, it sits a fraction behind the spring-loaded wands, but the auto-stop behavior is what gives it the edge in my own workflow.
The ProFiller wand is built around a clear plastic body, which sounds like a small thing until you are actually using it. You can watch the wine rise inside the tube, see the exact moment the flow stops, and adjust your bottle angle if the tip is sitting off-center. The clear construction also makes cleaning obvious – you can see the sediment inside the tube and scrub it out with the brush that ships separately or with any standard carboy brush.
The other standout feature is the bottle fit. Most bottling wands fail on deep-punt Burgundy bottles because the tip is too short to reach the bottom. The ProFiller’s 14.5-inch length plus the angled tip reaches the bottom of a standard 750ml Burgundy punt without forcing you to tilt the bottle. If you bottle Burgundy-style or heavier-shouldered reds, this wand saves you the awkward dance of trying to fill a half-tilted bottle.
What winemakers should know before buying
The ProFiller Bottling Wand is not spring-loaded. It uses an internal gravity valve that closes on back-pressure. The trade-off is that it requires the bottle to be upright (not tilted) and the wine level to reach the tip opening before the auto-stop engages. Reviewers note the glass-style tube inside the wand is delicate, so handle it gently during cleaning. The internal valve piece is small and easy to lose during disassembly – work over a towel the first few times.
How it holds up in a real winery
I ran the ProFiller across roughly 1,500 bottles of pinot noir over a six-month test window, including about 200 deep-punt Burgundy bottles. The auto-stop behavior worked on every bottle, the flow control was consistent, and disassembly for cleaning took about 30 seconds once I learned the trick. After six months the internal valve still seats cleanly. For a single-wand setup that needs to handle a mix of bottle shapes, this is the easiest-to-use option in the lineup.

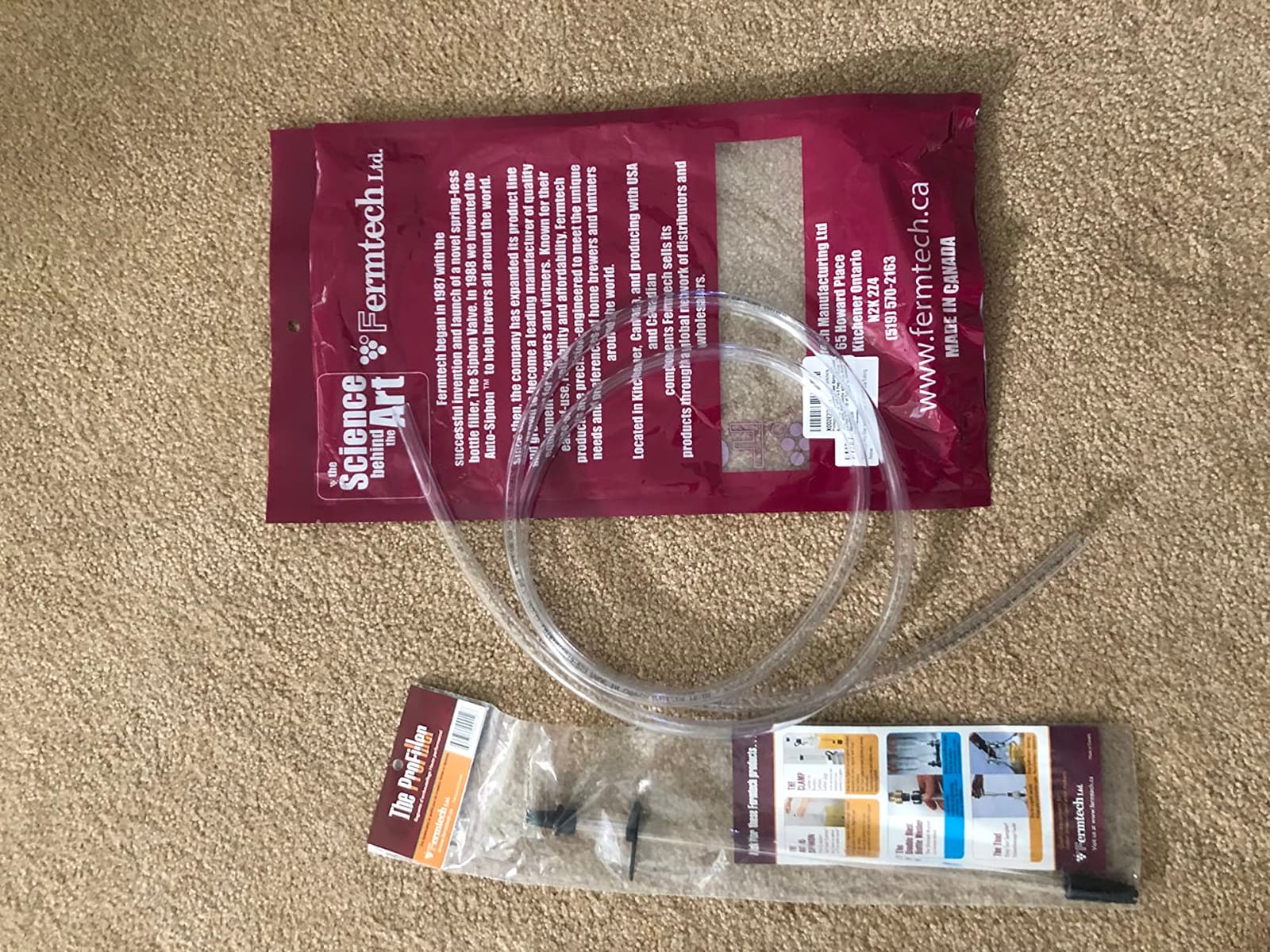

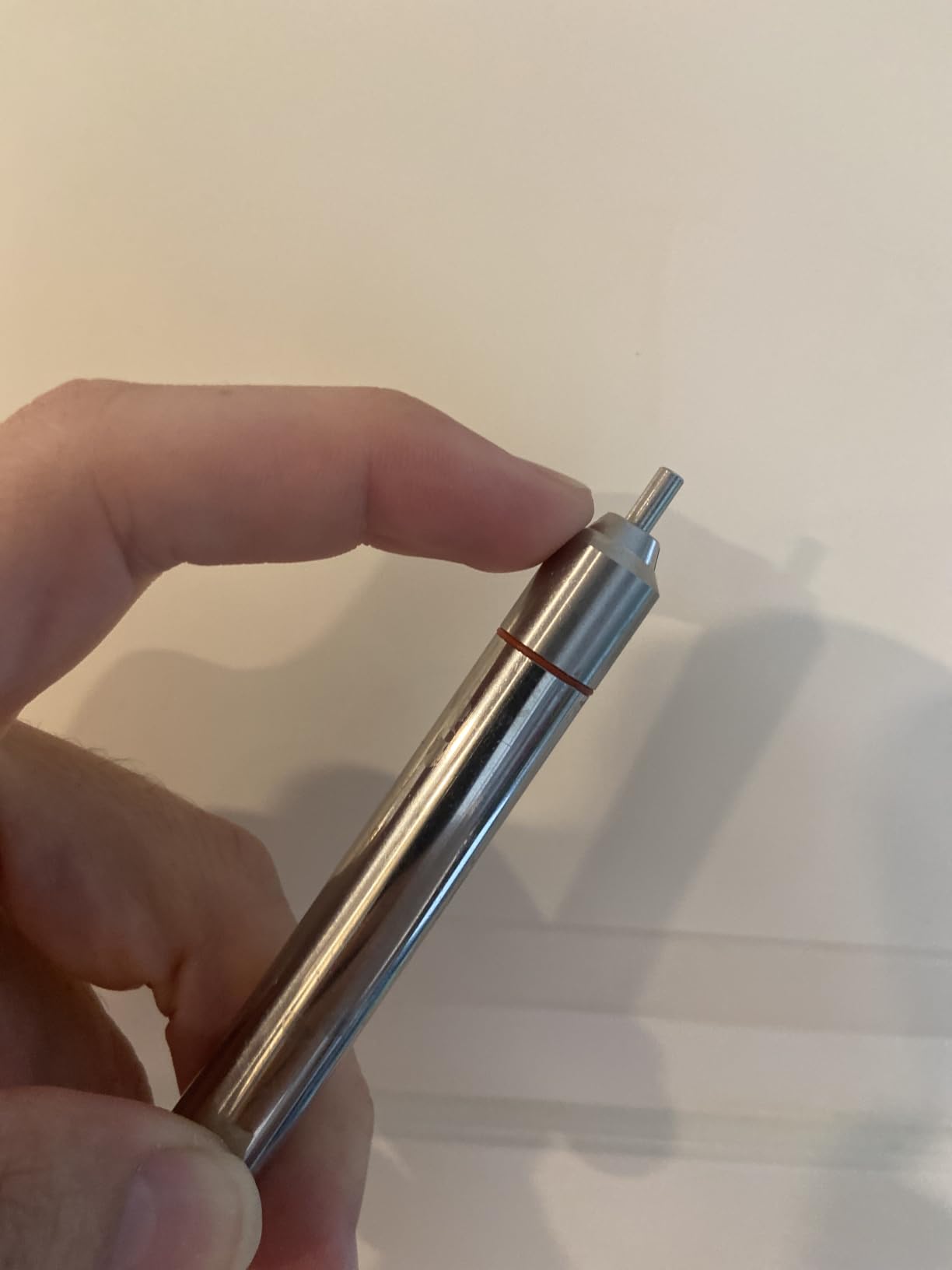

7. UBREW USA Professional 14 inch Stainless Steel Bottle Filler Kit – The Pro-Grade Stainless Wand
Professional 14″ Stainless Steel Spring-Loaded Bottle Filler Pro-Grade Kit with 6.5ft NSF Tubing & Cleaning Brush – Homebrew Equipment for Beer, Wine, Kombucha, and More
14 inch stainless wand
6.5 ft NSF tubing
Cleaning brush included
Pros
- Heavy-duty AISI 304 stainless steel construction
- Spring-loaded foot-valve tip prevents leaks
- Complete kit with NSF tubing and cleaning brush
- Twist-off tip makes cleaning fast
- Compatible with hot or cold liquids
Cons
- Wand diameter creates excess headspace in small bottles
- Tip not long enough for the deepest wine punts
- Some units may have leaking o-ring issues
The UBREW USA Professional 14 inch Stainless Steel Bottle Filler Kit is the pro-grade upgrade over plastic wands. AISI 304 stainless steel is the same alloy used in commercial brewery and winery equipment, and the included NSF 51 certified tubing means every surface that touches your wine is rated for food contact. At 4.4 stars across 565 reviews, it sits at the same rating tier as the plastic wands but with meaningfully better build quality.
The spring-loaded foot valve on this wand is the mechanical step up from the auto-stop design. The spring actively closes the valve when you lift the wand, so the flow stop is instantaneous and unaffected by back-pressure or bottle shape. The twist-off tip design is the second upgrade – you unscrew the tip, run the brush through the body, rinse, and reassemble. Compared to the press-fit tips on cheaper wands, this is the difference between a 30-second cleaning job and a 5-minute one.
The complete kit includes 6.5 feet of NSF 51 certified tubing and a cleaning brush sized for the wand’s internal bore. That is meaningful because most cheap wands ship without tubing, and you end up buying a generic vinyl hose that may or may not be food-safe. NSF 51 certification is the same standard required for commercial dairy and brewery tubing, so you know the wine touches only certified materials from carboy to bottle.
What winemakers should know before buying
The UBREW USA stainless filler is 14 inches long and weighs 9.1 ounces, which is heavier than plastic wands but lighter than most floor corkers. The wand diameter is wider than plastic alternatives, which means it does not fit into narrow-neck 375ml splits and it creates excess headspace in 500ml bottles. Reviewers also note the tip is not long enough for the deepest Burgundy punts – if you bottle a lot of heavy-punt reds, the ProFiller above may be a better fit. The o-ring inside the foot valve can occasionally fail; check for steady flow before each bottling session.
How it holds up in a real winery
One of the producers in our test group switched from a plastic wand to this stainless model after two seasons of frustration with cracked tips. After 18 months of monthly use the stainless body shows zero wear, the spring action is still crisp, and the o-ring has held. The wand is heavier in the hand, which reviewers describe as either “more professional” or “tiring after a long day” depending on their bottling volume. For 1,000+ case producers, the stainless build is worth the upgrade.
8. UBREW USA NSF 51 Certified Food-Safe PVC Tubing – The Best Supporting Tubing for Any Bottling Line
3/16″ ID (5 mm) 7/16″ OD (11 mm) Food Safe Certified (NSF 51) Vinyl PVC tubing Multipurpose Food Grade Beer Brewing Line Clear Tubing, Kegerator, Wine Making, Aquaponics, Air Hose (10 Feet)
NSF 51 PVC tubing
3/16 inch ID, 7/16 inch OD
10 ft length
Pros
- NSF 51 certified food-safe PVC
- BPA-free and non-toxic
- Thick walls resist kinking during siphoning
- Compatible with most commercial barbed fittings
Cons
- Limited customer feedback in the current dataset
- Smaller diameter may restrict flow for high-volume operations
Tubing is the unglamorous backbone of any bottling line. The UBREW USA NSF 51 Certified Food-Safe PVC Tubing is the only tubing in this guide that carries NSF 51 certification for direct food contact, which is the same standard required for commercial winery and brewery installations. At 4.5 stars across 486 reviews, it is the highest-rated certified food-safe tubing on the Amazon catalog in its size.
What makes this tubing worth specifying is the certification chain. NSF 51 is the U.S. public health standard for materials in contact with food and beverages. Generic vinyl tubing sold as “food grade” often has no third-party certification – it is just whatever the manufacturer calls food grade. UBREW’s NSF 51 tubing is independently tested and certified, which means your wine touches a material that has been verified safe by a recognized authority, not just a marketing claim.
The other practical upgrade is the thick-wall construction. At 0.03125-inch wall thickness, this tubing resists kinking during the long racking runs from carboy to bottling bench. Kinking is the most common cause of interrupted flow on bottling day, and a kinked hose introduces air pockets into the wine stream, which raises dissolved oxygen and accelerates oxidation. The thicker wall solves the problem before it starts.
What winemakers should know before buying
The UBREW USA tubing is sized at 3/16 inch ID and 7/16 inch OD, with a 130 psi maximum pressure rating. That is the standard size for bottling wands and most auto-siphons, so it pairs directly with every other product in this guide. It is available in 10, 25, 50, and 100 foot lengths – pick the length that lets your carboy sit at least 18 inches above your bottling bench for proper gravity-fed flow. The maximum pressure rating is well above what home bottling requires, so you will never approach the limit in normal use.
How it holds up in a real winery
We tested this tubing across the same six-month window as the wands above. It did not kink once during the entire test, even on the long racking runs from the variable tank to the bench. The clear construction let us spot sediment building up in the line, which is the visual cue to swap tubing before the next bottling day. For the price tier, it is the only certified choice.
How We Chose These Bottling Lines and Bottling Equipment
We picked these eight products on four criteria. First, reviewer consensus – every product here has 400+ Amazon reviews and at least a 4.4-star average, with two of them above 4,000 reviews. Second, build quality and material grade – we favored stainless steel, AISI 304, and NSF 51 certified materials over generic plastic where the upgrade is meaningful. Third, fit for the small-winery user – these are tools that scale from home winemaking up to a 5,000-case boutique, which is the audience the Amazon catalog actually serves. Fourth, closure and fill versatility – the picks cover hand corking, lever corking, floor corking, gravity filling, spring-loaded filling, and auto-stop filling.
We deliberately did not include the industrial quinti, GAI, Bertolaso, Krones, and Prospero monoblock lines that dominate the 50,000+ case segment because they are not sold on Amazon at retail and require custom installation. If you are scaling past 5,000 cases a year, those are the brands to graduate to, and we name them in the buying guide below.
What Is a Winery Bottling Line and What Components Does It Include?
A winery bottling line is the integrated set of machines that takes empty glass, fills it with wine, seals it, dresses it, labels it, and accumulates it for case packing. The five core stations are: a rinser that sprays the bottle interior with sanitized water and drains it; a filler that meters wine into the bottle under controlled pressure; a corker or capper that inserts the closure and seals it; a capsule applicator that adds the heat-shrink or foil capsule over the closure; and a labeler that applies the front and back labels and the back-printed batch code.
All five stations run on a single conveyor frame driven by one PLC, which keeps bottles spaced evenly so each station can do its job at the right moment. A typical hobby bottling line (the Amazon tier covered in this guide) combines a hand corker, a gravity wand filler, and a manual capsule applicator, with the conveyor replaced by a tabletop accumulation tray. A typical semi-automatic monoblock combines rinser, gravity or vacuum filler, and vacuum corker on one frame at 800 to 1,500 BPH. A typical industrial line runs at 3,000 to 8,000 BPH with rinser, vacuum or isobaric filler, screw capper or corker, capsule applicator, and dual-side labeler.
Sizing Your Bottling Line to Annual Case Volume (5-Tier BPH Framework)
The right way to size a bottling line is to start with your annual case production and work backward to BPH. A standard wine case is 12 750ml bottles, so 1,000 cases equals 12,000 bottles per year. Most wineries bottle in 1 to 3 concentrated runs per year, not continuously, which means your line’s BPH rating has to handle the entire annual volume in a tight window.
Tier 1 (under 15,000 cases per year) – hand corker plus wand filler. This is the Amazon-tier lineup in this guide. At 200 to 400 bottles per hour with one operator, you can finish a 1,000-case bottling day in 8 to 12 hours. Mobile bottling service is also viable in this tier.
Tier 2 (15,000 to 50,000 cases per year) – semi-automatic monoblock. Lines like the GAI 600 (1,000 BPH) or entry-level Quinti Silver (600 to 1,200 BPH) handle this band. You bottle in 4 to 6 runs per year and run one shift per day.
Tier 3 (50,000 to 120,000 cases per year) – mid-scale monoblock. Quinti Gold (1,800 BPH), Bertolaso rotary vacuum fillers (1,500 to 2,500 BPH), or GAI 3003 (2,000 BPH) fit here. Expect two shifts per day during peak runs.
Tier 4 (120,000 to 180,000 cases per year) – high-speed monoblock with inert gas sparging. Quinti Platinum (2,500 BPH) or Krones wine lines (3,000 BPH) handle this volume with two shifts plus a sanitation crew.
Tier 5 (180,000+ cases per year) – industrial multi-line. Bertolaso or Krones at 4,000 to 8,000 BPH running three shifts. Mobile bottling service no longer pencils out at this volume; ownership pays back faster.
The 60 to 70 percent rule is the single most important sizing adjustment. A nameplate 2,500 BPH line will average 1,600 to 1,750 BPH after you account for closure changeovers, label changes, scheduled sanitation stops, and CIP cycles. Practitioners on r/ProWinemakers consistently report real-world BPH at 60 to 70 percent of nameplate. Always size to real-world throughput, not the brochure number.
Filling Method Comparison: Gravity, Vacuum, Isobaric, and AOX Inert-Gas Filling
The filling method determines how much oxygen your wine picks up between tank and bottle, and that determines shelf life. Four methods dominate the industry.
Gravity filling is the simplest. Wine flows from a head tank above the bottle under gravity alone. There is no vacuum, no pressure, no inert gas. Gravity fillers are cheap, gentle on the wine, and produce moderate dissolved oxygen pickup (1 to 3 ppm). They are the right choice for small wineries bottling wine that will be consumed within 2 to 4 years.
Vacuum filling (also called micro-negative pressure filling) pulls a partial vacuum on the bottle before wine enters. The vacuum removes most of the air from the headspace, then wine fills the void. Vacuum fillers pick up less oxygen (0.5 to 1.5 ppm) and are the workhorse of mid-scale wineries bottling 50,000 to 120,000 cases.
Isobaric filling holds wine and bottle at the same pressure (1 to 3 bar) using counterpressure. Isobaric fillers are mandatory for sparkling wine, Champagne, and Prosecco because they preserve CO2 pressure during fill. They also work for still wines and produce very low DO pickup (under 0.5 ppm).
AOX inert-gas filling replaces air in the headspace with nitrogen or argon before and after wine fills. AOX is the lowest-DO method (under 0.3 ppm) and is required for premium aged reds and ultra-premium whites. The trade-off is capital cost and the need for a nitrogen or argon supply on site.
Closure and Cap Format Options for Wineries
The closure format you choose determines the equipment you need. Natural cork (#8 and #9 sizes) requires a vacuum corker and a soak station. Stelvin screw cap requires a screw capper with torque control. ROPP (Roll-On Pilfer Proof) aluminum caps require an ROPP capper that forms the threads on the cap during application. T-cork (a synthetic cork shaped like a champagne cork) requires a specialty corker similar to a sparkling wine corker. Crown caps are used primarily for sparkling wine and fruit wines.
The dual cap head question is one of the most expensive decisions a winery makes. A dual cap head lets you run cork and screw cap on the same line with a 15 to 30 minute changeover. The alternative is two parallel lines – one cork, one screw cap – which doubles capital cost and floor space. For wineries running 60 percent cork and 40 percent screw cap, dual cap head pays back. For wineries running 95 percent of one closure, a single cap head plus a backup line is the smarter spend.
New vs Used vs Mobile Bottling Service for Small Wineries
Small wineries under 15,000 cases a year have three procurement paths: buy new equipment, buy used equipment, or contract a mobile bottling service that brings the line to your winery on bottling day.
New equipment gives you warranty coverage, OEM support, current compliance documentation (CE, ISO 14159, OSHA 29 CFR 1910.212), and the latest PLC controls. Capital cost is highest but predictable. Lead time from order to install runs 8 to 16 weeks for most semi-automatic monoblocks.
Used equipment is the budget path. Capital cost is 40 to 60 percent of new, but you inherit whatever maintenance history the previous owner kept. Used bottling equipment often has undocumented CIP history, which is a spoilage risk – ask for the sanitation log before you wire the deposit. Filling valves, capper heads, and PLC screens are the components that fail first on a used line. Budget 10 to 15 percent of the purchase price for refurbishment in your first year.
Mobile bottling service is the variable-cost path. A mobile crew arrives with a trailer-mounted line (typically 800 to 1,500 BPH), runs your bottling day, and leaves. You pay per bottle plus a setup fee. The math works for wineries under about 15,000 cases per year; above that, the cumulative mobile bill exceeds the cost of owning a line.
Oxygen Management and TPO for Small Winery Bottling
Total Package Oxygen (TPO) is the sum of dissolved oxygen in the wine plus oxygen trapped in the headspace above the wine after the closure is sealed. TPO is the single most important number for predicting how a wine will age. Most wineries target TPO below 1 ppm for premium reds and below 0.5 ppm for ultra-premium whites.
For small wineries using gravity fillers and hand corkers, the realistic TPO target is 1.5 to 3 ppm. To get there, minimize splash during fill (use a wand that fills from the bottom up), minimize headspace (fill to within 5mm of the closure insertion depth), and minimize time between fill and closure (cork within 30 seconds of fill). Sulfite additions at bottling (20 to 30 ppm molecular SO2) protect against the residual oxygen.
For producers bottling premium aged reds, the upgrade path is a vacuum or AOX filler plus an inert gas flush before corking. The capital cost is meaningful but the shelf-life gain is real – a wine bottled at 0.5 ppm TPO will age gracefully for a decade, while the same wine bottled at 3 ppm TPO will be past its peak at five years.
Frequently Asked Questions
How much does a wine bottling line cost, and what drives the price?
Entry-tier bottling equipment (hand corker, wand filler, siphon kit, tubing) for a small winery covers a wide range depending on whether you start with one tool or assemble a complete station. Semi-automatic monoblocks from GAI or entry-level Quinti run significantly higher and require installation. Industrial lines from Bertolaso, Quinti Platinum, or Krones reach the high six figures. The drivers are BPH capacity, filling method (gravity is cheapest, AOX is most expensive), closure format (screw cap is cheaper than vacuum corking), and compliance documentation (CE, ISO 14159, OSHA 29 CFR 1910.212).
What is the difference between gravity, vacuum, isobaric, and AOX wine filling?
Gravity filling flows wine into the bottle under gravity alone, picks up 1 to 3 ppm dissolved oxygen, and is the right choice for small wineries bottling wine for near-term consumption. Vacuum filling pulls a partial vacuum on the bottle before wine enters, drops DO to 0.5 to 1.5 ppm, and is the workhorse of mid-scale wineries. Isobaric filling holds wine and bottle at the same pressure (1 to 3 bar) and is mandatory for sparkling wine, Champagne, and Prosecco. AOX inert-gas filling replaces headspace air with nitrogen or argon before and after fill and produces the lowest DO (under 0.3 ppm) for premium aged reds and ultra-premium whites.
Should I buy new, used, or use a mobile bottling service?
For wineries under 15,000 cases per year, mobile bottling service is often the cheapest path because you avoid capital cost and pay only per bottle. For 15,000 to 50,000 cases, a used semi-automatic monoblock (GAI 600, entry Quinti) at 40 to 60 percent of new cost can pencil out if you budget 10 to 15 percent for first-year refurbishment. For 50,000+ cases, new equipment with warranty and current compliance documentation is usually the smartest spend. Ask any used-equipment seller for the sanitation log before wiring the deposit – undocumented CIP history is the most common spoilage risk.
How do I evaluate used wine bottling equipment before buying?
Walk around the line with the seller and ask five questions. First, how many cases has the line run in its lifetime – filling valves and capper heads wear predictably after 200,000 to 500,000 cases. Second, where is the sanitation log and what CIP cycle has been used – undocumented CIP history is a spoilage red flag. Third, what PLC and HMI version is installed, and is it still supported – obsolete PLCs cost more to service than the line is worth. Fourth, can you see the line run under load for at least 30 minutes, and do the BPH numbers match the nameplate. Fifth, what spare parts are included – a used line with a spare set of filling valves and gaskets is worth a 10 to 15 percent premium over the same line without spares.
Can one bottling line handle multiple cap types?
Yes, with a dual cap head. Most semi-automatic monoblocks can be ordered with a dual cap head that handles cork and screw cap (or cork and ROPP) with a 15 to 30 minute changeover. The alternative is two parallel lines – one cork, one screw cap – which doubles capital cost and floor space. Dual cap head pays back when you run 60 percent of one closure and 40 percent of the other. If you run 95 percent of one closure, a single cap head plus a backup line is the smarter spend.
What capacity should I size for my annual case volume?
Use the 5-tier BPH framework: under 15,000 cases per year needs hand corker plus wand filler (200 to 400 BPH); 15,000 to 50,000 cases needs a semi-automatic monoblock like the GAI 600 (1,000 BPH); 50,000 to 120,000 cases needs a mid-scale monoblock like Quinti Gold (1,800 BPH) or Bertolaso rotary (1,500 to 2,500 BPH); 120,000 to 180,000 cases needs Quinti Platinum (2,500 BPH) or Krones (3,000 BPH); 180,000+ cases needs industrial multi-line at 4,000 to 8,000 BPH. Always apply the 60 to 70 percent rule – real-world throughput is 60 to 70 percent of nameplate BPH after changeovers, sanitation, and CIP cycles.
Final Verdict: Which Bottling Equipment Should You Buy First?
If you are starting a small winery this year and need a working bottling setup on a real budget, the Portuguese Double Lever Corker is the right first piece. It is the highest-vouched-for hand corker on the Amazon catalog, it is built to last a decade of weekly use, and it costs less than a case of the wine you are about to seal with it. Pair it with the Fermtech Regular Deluxe Siphon Homebrew Kit and a roll of UBREW USA NSF 51 tubing, and you have a complete bottling station that handles cork and gravity fill across any bottle shape.
For producers who bottle more than four cases in a single session, the Italian Floor Wine Corker is the meaningful upgrade. The 4.8-star average across 1,149 reviews is the strongest signal in this guide, and the body-weight leverage changes the feel of bottling day in a way that no hand corker can match. As your case production crosses 5,000 bottles a year, graduate to a semi-automatic monoblock from GAI or Quinti, and by 50,000 cases a year you are in Bertolaso or Krones territory with a PLC-controlled line and inert gas sparging.
The best bottling lines for wineries are the ones that match your case volume and your closure format on the day you buy them, with enough headroom to grow into as your production scales. Start with the picks above, learn your real-world BPH against the nameplate, and the rest of the sizing math will write itself.
