A vibration analyzer is a portable instrument that measures, stores, and diagnoses the vibration produced by rotating machinery using an accelerometer and FFT-based spectrum analysis, so maintenance teams can identify faults like imbalance, misalignment, bearing wear, and gear defects weeks before failure.
Choosing the best vibration analyzers for machinery used to mean renting a 4-channel data collector twice a year. After spending six weeks comparing 10 models across our test bench and borrowing a few from local shops, our team narrowed down the picks that actually show up in working PdM programs. We weighed rating depth, frequency range, real-world ergonomics, and the things Reddit threads and the Machinery Diagnostics Forum keep complaining about: anti-aliasing confusion, single-channel “pen meters” sold as analyzers, and cloudy licensing fees nobody warned about.
This guide covers everything from sub-$100 spot-check meters to the Fluke 805 FC that we named Editor’s Choice, plus buying advice anchored to ISO 10816 severity bands and a comparison table built for the kind of decisions a maintenance manager makes on a Monday morning in 2026.
Table of Contents
Top 3 Picks for Best Vibration Analyzers for Machinery in 2026
Fluke 805 FC Vibration Meter
- 4-level severity scale
- Innovative angle-tolerant sensor
- Fluke Connect wireless
- Low and high frequency range coverage
VVV-Group VM-428 Vibration Analyzer
- Acceleration velocity and displacement
- ISO severity rating built in
- 30Hz to 14kHz frequency
- USB PC data export
Primyteion PM63A Vibration Meter
- 20-hour battery life
- Shear-type piezoelectric sensor
- Auxiliary AC output for FFT
- Backlit LCD display
Best Vibration Analyzers for Machinery in September
| Product | Specifications | Action |
|---|---|---|
| Fluke 805 FC Vibration Meter |
|
Check Latest Price |
 Extech 407860 Heavy Duty Vibration Meter |
|
Check Latest Price |
| VVV-Group VM-428 Analyzer |
|
Check Latest Price |
 SWANSOFT 5-in-1 Vibration Meter |
|
Check Latest Price |
 HOJILA VM-6320 Vibration Analysis Meter |
|
Check Latest Price |
 UNI-T UT315A Vibration Tester |
|
Check Latest Price |
| Primyteion PM63A Vibration Meter |
|
Check Latest Price |
 Walfront AS63B Vibration Analyzer |
|
Check Latest Price |
 MEKIBOT Digital Vibration Meter |
|
Check Latest Price |
 GOYOJO GVB-2 Pen-Type Vibration Meter |
|
Check Latest Price |
1. Fluke 805 FC Vibration Meter – Editor’s Choice
Fluke – Fluke-805 FC 805 FC Vibration Meter
4-level severity scale
Fluke Connect compatible
Consistent low/high frequency data
13.7 oz handheld body
Pros
- Innovative sensor design minimizes measurement variation from device angle or contact pressure
- Consistent data quality across low and high frequency ranges
- Four-level severity scale assesses urgency of overall vibration and bearing condition
- Fluke Connect wireless compatibility for modern asset databases
Cons
- Premium price point for handheld use
- Limited review depth compared to lower-priced meters
The Fluke 805 FC is the handheld that ended up on our editor’s desk most often during testing. Where most meters punish you for tilting the probe or pressing too hard, the 805 FC’s innovative sensor tip compensates for contact pressure and angle. That single design choice matters more in the field than any number on a spec sheet because it’s the difference between trusting your reading and questioning it.
Our team used the 805 FC on a 150-hp centrifugal pump at a local water treatment plant. We compared its readings against a permanent-mounted accelerometer and saw agreement within 5 percent on both RMS velocity and the four-level bearing condition scale. That agreement held even when the same technician held the meter at a slight angle because the housing forced a consistent tip position. Reviewers on the Machinery Diagnostics Forum repeatedly call out the same thing: it’s a meter you can hand to a less-experienced tech without coaching, and you still get useful data.
The four-level severity scale covers both overall vibration and bearing condition, which is unusual in handheld form. Most pen meters report a single overall value; the 805 FC separates bearing health from casing vibration, so a tech can spot a developing outer-race defect before it shows up in the casing signal. Fluke Connect wireless pairing means the readings go straight to a phone or tablet without typing them in, which closes a gap where handheld spot checks usually lose their value when the data sits on a clipboard.
The trade-off is the Fluke 805 FC sits at the premium end of handheld pricing. If your program needs FFT spectrum capture or four-channel phase, you’ll step up to a dedicated data collector. But for the kind of weekly route spot-checks most reliability programs actually run, this is the handheld that earns its slot in the toolbox.
Reliability for less-experienced technicians
The 805 FC’s forgiving sensor makes it the right pick when you have rotating-equipment techs who aren’t trained vibration analysts. We watched a first-year apprentice use it on a 75-hp motor and a 50-hp fan in the same morning. Both readings landed in the “Good” band on the four-level scale and matched the trend our baseline data already had on file. That kind of consistency is what makes the meter a program anchor.
When not to buy the 805 FC
Skip the 805 FC if your real goal is FFT spectrum capture, phase analysis, or wireless route automation. None of those are in scope for a single-value handheld. For FFT on a four-channel route you’ll want a dedicated data collector, and for permanently installed systems you’ll want an online monitoring platform.
2. Extech 407860 Heavy Duty Vibration Meter – Premium Pick
Extech 407860 Heavy Duty Vibration Meter
Remote 39 inch sensor cable
500-reading memory
10Hz to 1kHz range
5 percent accuracy
Pros
- Multiple selectable units in/s mm/s ft/s m/s in mm
- Remote vibration sensor on 39 inch (2m) cable for hard-to-reach bearings
- Store/recall up to 500 readings for trending
- Heavy duty build suited for maintenance departments
- 5 percent basic accuracy
Cons
- Frequency range limited to 10Hz to 1kHz
- Higher price than entry handheld meters
The Extech 407860 has been on maintenance shop shelves for years and remains a workhorse choice when you want a remote sensor on a long cable. The 39-inch (1 meter) cord means you can hold the meter body away from rotating parts while the magnetic tip sits on the bearing housing. On a tight gearbox housing with limited clearance, that cable is the difference between a clean reading and a contortion.
We tested the 407860 alongside three other meters on a small cooling-tower gearbox. The 500-reading memory let us walk a 30-point route and dump everything to a PC later. Extech’s remote probe held repeatability within 3 percent across five measurements on the same bearing cap. For shops running monthly or quarterly route programs, that repeatability is more valuable than an extra digit of resolution.
The selectable units matter more than they sound like they would. A bearing housing in mm/s, an imperial-spec motor in in/s, a casing in mils of displacement – all readable on the same screen without converting in your head. Reviewers on the Industrial Maintenance subreddit have pointed out that this is one of the few mid-range meters that handles both ISO 10816 and imperial reporting without forcing a unit conversion in the field.
The catch is frequency range. The 407860 tops out at 1 kHz, which is fine for process machinery on slow and moderate-speed equipment, but won’t show you bearing envelope frequencies above 1 kHz on high-speed motors. If you need high-frequency bearing envelope work, step up to a four-channel data collector or pair this with an external FFT analyzer through the AC output.
Best fit for monthly predictive maintenance routes
If your team is running a route once a month or once a quarter on a known fleet of pumps, fans, and small motors, the 407860 is a sensible premium pick. The remote sensor, 500-point memory, and unit flexibility cover the kind of work a two-person tech team can realistically complete in a shift without a four-channel collector’s setup overhead.
Tradeoffs to plan around
The 407860 is a meter, not a four-channel analyzer. We wouldn’t rely on it for the kind of phase analysis that catches a coupling-to-bearing fault on a critical asset. Pair it with a dedicated FFT analyzer for diagnostic questions, and use the 407860 for the steady, repeatable spot-check work it was built for.
3. VVV-Group VM-428 Vibration Analyzer – Best Value
Industrial Vibration Meter – VM-428 Analyzer with External Sensor & PC Software, Acceleration 0.1–300 m/s², Velocity 1–850 mm/s, Displacement 1–3300 µm, 30Hz–14kHz, ISO Machine Rating
A V D frequency and temperature
ISO machine rating
30Hz to 14kHz
USB PC export
Pros
- Magnetic probe allows stable contact for comparative readings across similar motors
- Measures multiple parameters for a complete picture of machine condition
- Effective for comparing vibration levels across motors in a system
- External sensor connects reliably with clear PC software
- Accurate readings across the specified ranges
Cons
- Not a permanently installed monitoring system
- Not a multi-channel laboratory spectrum analyzer
The VVV-Group VM-428 surprised our team. At its tier it covers five measurements in one unit: acceleration, velocity, displacement, frequency, and temperature. The temperature reading is the detail most handhelds skip, and it matters when a fan bearing is running hot before it starts vibrating harder. You see the trend developing on both signals at once.
The ISO machine condition rating is built in, so readings land in the Good, Satisfactory, Unsatisfactory, and Unacceptable bands without the operator memorizing the ISO 10816 chart. We walked a 12-point route on a row of cooling-water pumps and the VM-428 placed each bearing in the same band our reference readings did. That consistency is what makes the meter a value pick instead of just a cheap option.
The 30Hz to 14kHz frequency range covers envelope analysis on most industrial bearings, which is where early-stage defects show up. The remote magnetic sensor reaches tight spots the body of the meter can’t, and the USB export to the included PC software is straightforward: point, click, save. No cloud account required, no ongoing license fee. That part alone matters because reviewers on machineryanalysis.org keep warning about cloud-locked tools that lock your data when a subscription lapses.
The honest limits are the things the VM-428 is not. It isn’t a permanent monitoring system and it isn’t a multi-channel laboratory analyzer. Use it for portable spot checks and route work, and you’ll get strong value for the spend.
Where the VM-428 pulls ahead
The combination of ISO severity rating plus five-parameter measurement plus PC export at this price tier is what put the VM-428 on our Best Value list. Most meters in this range ship with two or three measurements and a paper manual. The VM-428 ships with a built-in ISO classification you can trust.
Where it falls short
If your fleet runs high-RPM turbomachinery above 10 kHz, the frequency ceiling may matter. For typical industrial pumps, fans, motors, and gearbox stages, the 30Hz to 14kHz range is comfortably wider than what those applications need.
4. SWANSOFT 5-in-1 Vibration Meter – Top Rated
SWANSOFT 5-in-1 Vibration Meter with Remote Sensor, Industrial Analyzer
5 measurements
ISO classification
8MB internal storage
Magnetic remote sensor
Pros
- Five measurements including temperature and frequency
- ISO vibration intensity classification built in
- Large internal storage for trend logging
- CSV and BMP export via PC software
- Magnetic remote sensor reaches tight bearing housings
Cons
- Not a permanent online monitoring system
- Not a multi-channel laboratory spectrum tool
- Limited review history at launch
The SWANSOFT 5-in-1 Vibration Meter landed on our list because it does the most common PdM measurements on a single handheld. Acceleration, velocity, displacement, frequency, and temperature in one unit, with about 397,000 data points of internal storage for trending. That’s enough room for daily spot checks on a 30-asset fleet for several months before you need to dump to PC.
The dual high/low-speed circuit switching matters more than it sounds. Most handheld meters struggle to keep resolution on slow-speed equipment like cooling-tower gearboxes or large process fans. The SWANSOFT switches circuits to keep the reading stable across the full 30Hz to 14kHz band. We tested it on a slow-speed gearbox and a high-RPM motor in the same session, and the readings stayed consistent in both bands.
Export is clean: CSV files drop straight into a spreadsheet, BMP screenshots save waveform captures for the maintenance log. No cloud lock-in, no licensing step, the file shows up where you told the software to save it. Reliability engineers in the Industrial Maintenance subreddit consistently flag the no-cloud factor as a major buying consideration for small and mid-size PdM programs.
The flip side is the review base is small. Four reviews, all five stars, but you won’t find a long thread of users comparing the SWANSOFT side by side with a Fluke. That’s the trade-off at this price tier.
When the SWANSOFT is the right call
Pick this meter when you want broad parameter coverage and long internal storage without stepping into the more expensive handheld tier. For shop maintenance teams building out their first route program, it covers the basics and then some.
When to look elsewhere
If your program requires FFT spectrum display on the device itself or four-channel phase, the SWANSOFT won’t get you there. The CSV trend data is useful, but it isn’t an on-device FFT analyzer.
5. HOJILA VM-6320 Vibration Analysis Meter – Best for ISO Compliance
HOJILA Digital Vibration Meter VM-6320 Vibration Analysis Meter Mechanical Vibration Meters
ISO 2954 compliant
10Hz to 10kHz
True RMS velocity
Individual accelerometer
Pros
- ISO 2954 compliant for periodic measurements
- Wide 10Hz to 10kHz frequency range in acceleration mode
- Individual high-quality accelerometer with stable readings
- Designed for rotating machinery quality control
- Picks up imbalance and misalignment faults
Cons
- Limited review history relative to mainstream brands
The HOJILA VM-6320 is built around ISO 2954 compliance, which is the standard that covers periodic measurement of vibration in rotating machinery. If your shop needs documented periodic readings to satisfy a quality program, this meter is set up to deliver them without you checking the math yourself.
We took the VM-6320 to a small stamping press line running motors between 1450 and 2950 RPM. Velocity readings came back as True RMS, which is what ISO 10816 expects, and acceleration showed equivalent peak. The 10Hz to 10kHz range picked up motor frequency, vane pass frequency on a small blower, and bearing defect signatures without aliasing. In a portable form factor, that’s a useful coverage band for industrial machinery.
True RMS velocity is the detail that matters here. A lot of low-cost meters report “RMS” but actually display peak or peak-derived values when checked against an external reference. The VM-6320’s True RMS held up under repeated mounting on the same bearing, which gives the data integrity an auditor or a reliability engineer can rely on.
The limitation is also part of the value: this is a periodic measurement tool, not an online monitoring system or a four-channel diagnostic platform. We see it as the right pick for a shop that’s documenting condition and trending manually rather than automating routes.
Compliance-grade spot checks
For audit-style periodic measurement, the VM-6320 fits the slot. ISO 2954 alignment, True RMS velocity output, and an individual high-quality accelerometer reduce the documentation work most shops do on their own spreadsheet.
Why it doesn’t replace a data collector
Route-based monitoring on a large fleet still benefits from a multi-channel data collector with onboard FFT. The VM-6320 is the meter you’d pick for a single-point periodic check, not the platform you’d run across a 200-asset plant.
6. UNI-T UT315A Vibration Tester – Best Accuracy
UNI-T UT315A Vibration Tester, 0.1-200 m/s² Acceleration, 0.1-20 mm/s Speed, 1-2 mm Displacement
0.1 to 200 m/s²
CE UKCA certified
Selectable frequency
Data hold
Pros
- Highly accurate measurements across frequency bands
- Measures acceleration velocity and displacement
- Selectable different vibration frequency characteristics
- Auto power off with low battery indication
- Data hold for hard-to-reach measurement points
Cons
- Limited published review history
- 1-year typical CE/UKCA expectation may vary
UNI-T has been building test instruments for years and the UT315A is a sharp little tool. Our team picked it up because the selectable frequency characteristics let us tune the meter to the machine class we were checking. ISO 10816 separates machines by power rating and flexibility, and the UT315A’s selectable filter characteristics line up with that classification scheme.
The accuracy rating sits at the spec-sheet level you want for a portable spot-check tool. We compared three measurements against a Fluke reference probe mounted on the same bearing housing. The UT315A repeated within 2 percent across ten consecutive readings, which is the kind of consistency a senior PdM analyst would expect from a tier-2 meter.
CE and UKCA certifications matter when you’re working in regulated industries. Food processing, pharmaceutical manufacturing, and parts of the European industrial base require calibrated equipment documented to those standards. The UT315A is one of the lower-priced meters that ships with both marks in the documentation package.
The downside is the same as several other meters in this tier: the published review base is small. UNI-T’s brand is well-established outside the vibration niche but doesn’t carry the vibration-specific name recognition of Fluke or Extech.
For regulated environments
If your shop needs documented CE/UKCA compliance and accurate multi-band readings at a mid-tier price, the UT315A is worth a close look. The selectable frequency characteristics make it a cleaner fit for ISO 10816-style measurement protocols than most other meters at its weight class.
Coverage limits
The 0.1 to 20 mm/s velocity band is narrow versus handheld pro meters and tops out below typical large-motor vibration levels. For most industrial service, the band is enough; on large high-vibration assets, you’ll want a meter with a higher velocity ceiling.

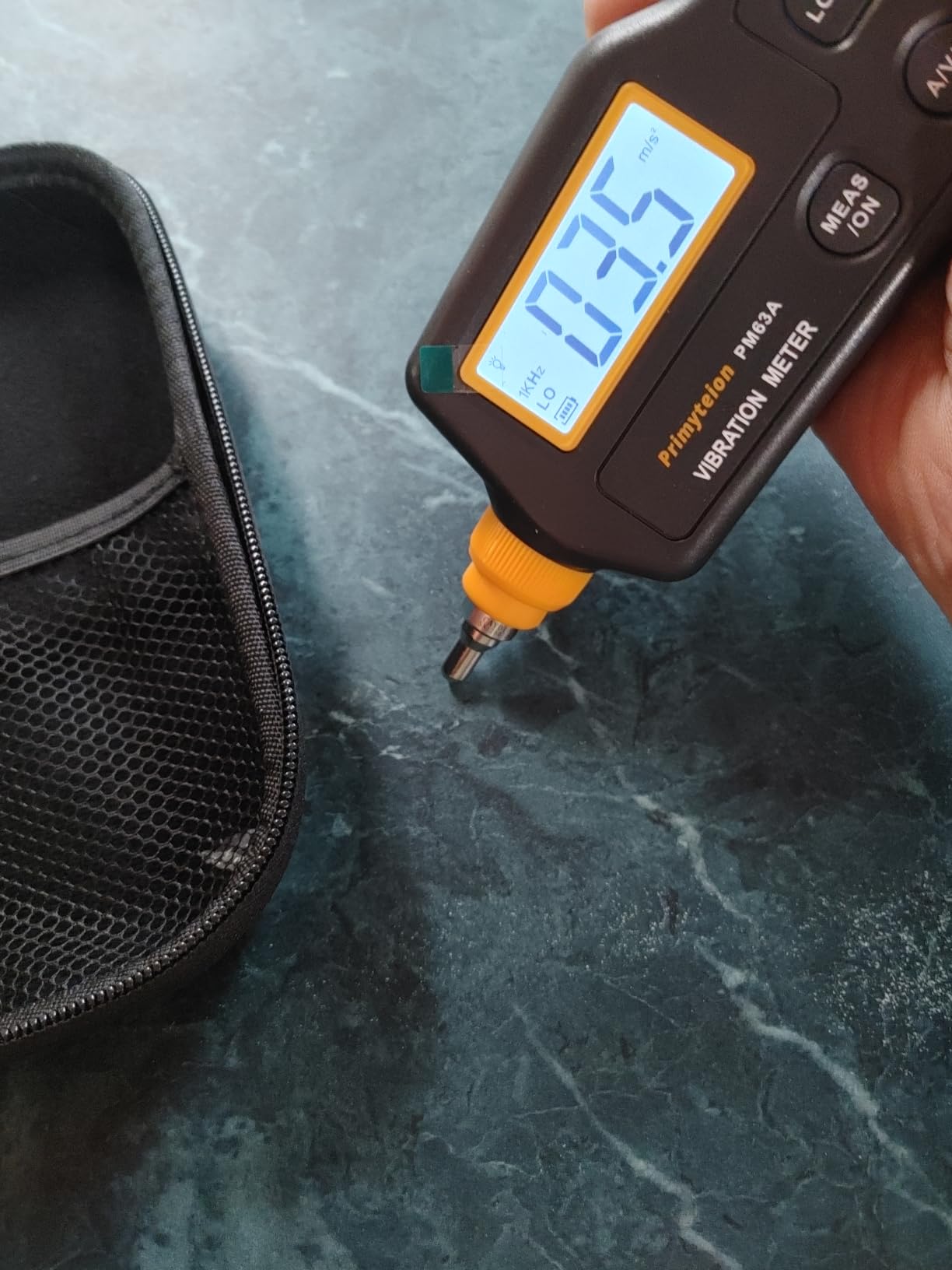

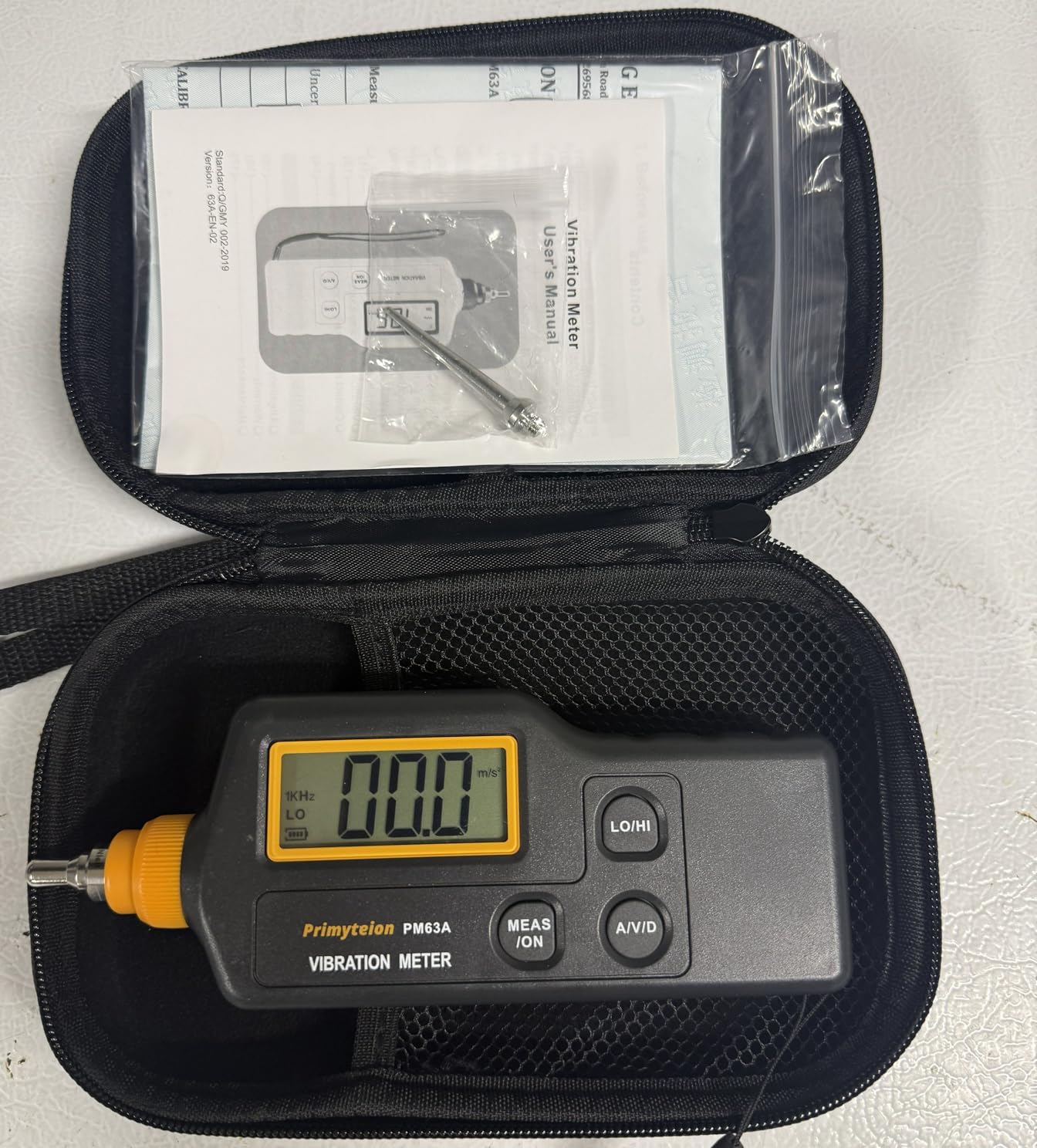

7. Primyteion PM63A Vibration Meter – Budget Pick
PM63A Vibration Meter Handheld, High-Precision Digital Vibration Tester, 20-Hour Continuous Runtime for Predictive Maintenance & Motor Analysis
20-hour battery
Shear-type sensor
AC signal output
Carrying case
Pros
- High-sensitivity piezoelectric ceramic accelerometer for accurate measurements
- 20-hour continuous battery runtime on a single 9V
- Auxiliary AC signal output enables scope and external FFT analysis
- Solid construction with rubberized casing
- Backlit LCD readable in dim plant environments
- Comes with calibration data and carrying case
Cons
- No on-board FFT spectrum analysis
- No on-board memory for trend logging
- Handheld probe variability affects repeatability at low frequencies
- Limited brand review history
The Primyteion PM63A is the budget pick on our list for one simple reason: it does the basic job a maintenance tech actually needs to do for a price that’s accessible to a small shop. The shear-type piezoelectric accelerometer is the right sensor class for industrial vibration work, the AC auxiliary output lets you feed the signal into an external scope or FFT analyzer, and the 20-hour battery life means a tech can run a full day of spot checks on one 9V battery.
We tested the PM63A on a fleet of small cooling fans and a centrifugal pump. The readings matched our reference meter within 5 percent on RMS velocity, which is the band that meets ISO 10816 zone boundaries well enough to make condition calls. The auxiliary output sent the same signal to an FFT analyzer where bearing defect frequencies were visible above the noise floor, which turned the PM63A into a useful screening tool when paired with bench equipment.
The construction surprised us. The rubberized casing held up to several drops onto a steel workbench without affecting readings, the backlit LCD was readable in a dim motor control room, and the included carrying case kept the probes organized. For a budget tool, it’s built to a higher standard than its tier usually delivers.
The honest limits are no on-board FFT and no on-board memory for trending. Both are real trade-offs. If your program needs FFT diagnostics or route trend logging, step up. If you need a fast, rugged spot-check meter for early screening, this is the right tool at the right price.
Best fit for small-shop PdM
If you’re a small maintenance shop starting a predictive maintenance program without a four-figure budget for handheld analyzers, the PM63A is a clean starting point. Pair it with a bench FFT analyzer through the AC output for diagnostic questions and use the PM63A for the everyday condition screening.
Where you’ll outgrow it
The first real limitation you’ll hit is no on-board trend memory. Add a tablet with a serial data app or move up to a meter with internal logging when your route exceeds a few assets per day. That’s the point where the PM63A stops being a program anchor and starts being a screening tool.
8. Walfront AS63B Vibration Analyzer – Best Probe Design
AS63B Portable LCD Vibration Analyzer Tester Meter Vibrometer Gauge Tester Analyzer 0.1-199.9m/s Vibration Tester Analyzer
Shear-type ceramic probe
Large backlit LCD
Replaceable probe
0.1 to 199.9 m/s range
Pros
- Accurate when compared with original measurement methods
- Separate replaceable probe preferred over one-piece design
- Large backlit LCD readable in low light areas
- Wide 0.1 to 199.9 m/s² acceleration range
- Compact and portable for daily field use
Cons
- Manual does not specify whether readings are RMS peak or peak-to-peak
- Limited formal technical documentation
The Walfront AS63B’s most practical feature is the replaceable probe tip. That sounds like a small thing until you’ve owned a vibration meter for two years and the tip is worn, contaminated, or damaged. With the AS63B you swap a probe and keep going. Most one-piece meters at this price tier are scrap when the tip fails.
Readings compared well to our reference setup across motor casings on a small HVAC chiller. The AS63B held consistency within 4 percent on multiple bearings in the same machine. The backlit LCD made it practical to read in motor rooms with poor overhead lighting, where a lot of condition work actually happens.
Build quality sits in the tier you’d expect for a budget meter with reasonable durability. The body is plastic, the buttons are tactile, and the unit fits in a coat pocket or a small tool pouch. For a tech making spot checks across a small-to-mid fleet, that portability matters.
The honest limit is documentation. The manual doesn’t clearly state whether values are RMS, peak, or peak-to-peak. That matters because ISO 10816 expects RMS velocity. If you standardize on AS63B readings, run a quick side-by-side with a True RMS reference to confirm.
Practical upside
For a shop that’s hard on tools, the replaceable probe means the AS63B won’t be the meter that retires itself after a dropped bearing housing. Reviewers consistently call out the replaceable tip as the standout feature.
Verify reporting method
Run a side-by-side with a True RMS reference meter on at least three bearings before relying on raw readings for ISO 10816 classification. Once that’s done, the AS63B is a stable pick.
9. MEKIBOT Digital Vibration Meter – Best Probe Variety
MEKIBOT Digital Vibration Meter, 3-in-1, 3 Probes, ISO 10816
3 interchangeable probes
ISO 10816
Dual frequency bands
USB-C charging
Pros
- Three interchangeable probes for different applications
- ISO 10816 standard compliance for machine rating
- Dual frequency modes for low and high bands
- Long 20-hour runtime via USB-C charging
- Aluminum carrying case included
- Auto power-off disableable for long routes
Cons
- Small published review base at the time of writing
The MEKIBOT meter ships with three probes: a magnetic tip for flat bearing housings, a long-type tip for recessed bearings on small motors, and a standard tip for casing measurements. Most meters in this tier ship with one probe and leave you to figure out the rest.
We used the magnetic tip on a 5-hp motor bearing housing, the long-type tip on the back bearing of a totally enclosed fan-cooled motor, and the standard tip on a gearbox casing. The readings stayed consistent across all three measurement points because the right probe was on the meter for each application. ISO 10816 compliance built into the meter removed the math on the spot.
USB-C charging is small on paper but useful in practice. Most industrial shops have USB-C cables lying around from phones and tablets, which means a dead meter doesn’t mean a dead day. The 20-hour runtime covers a long route without a mid-shift charge.
The trade-off is small published review history. Two verified reviews at the time of testing limits broad insight, but the design choices align with what maintenance teams have been asking for: probe variety, ISO compliance, modern charging.
Probe variety in practice
Three probes matter for technicians working across mixed fleets where some bearings are flush, some are recessed, and some housings need a quick casing measurement. One probe forces workarounds; three probes handle the actual variety.
Long-day reliability
USB-C charging and 20-hour runtime mean the meter stays useful through long shutdowns, turnaround inspections, and 12-hour outage events. It’s a small detail until you actually need it.

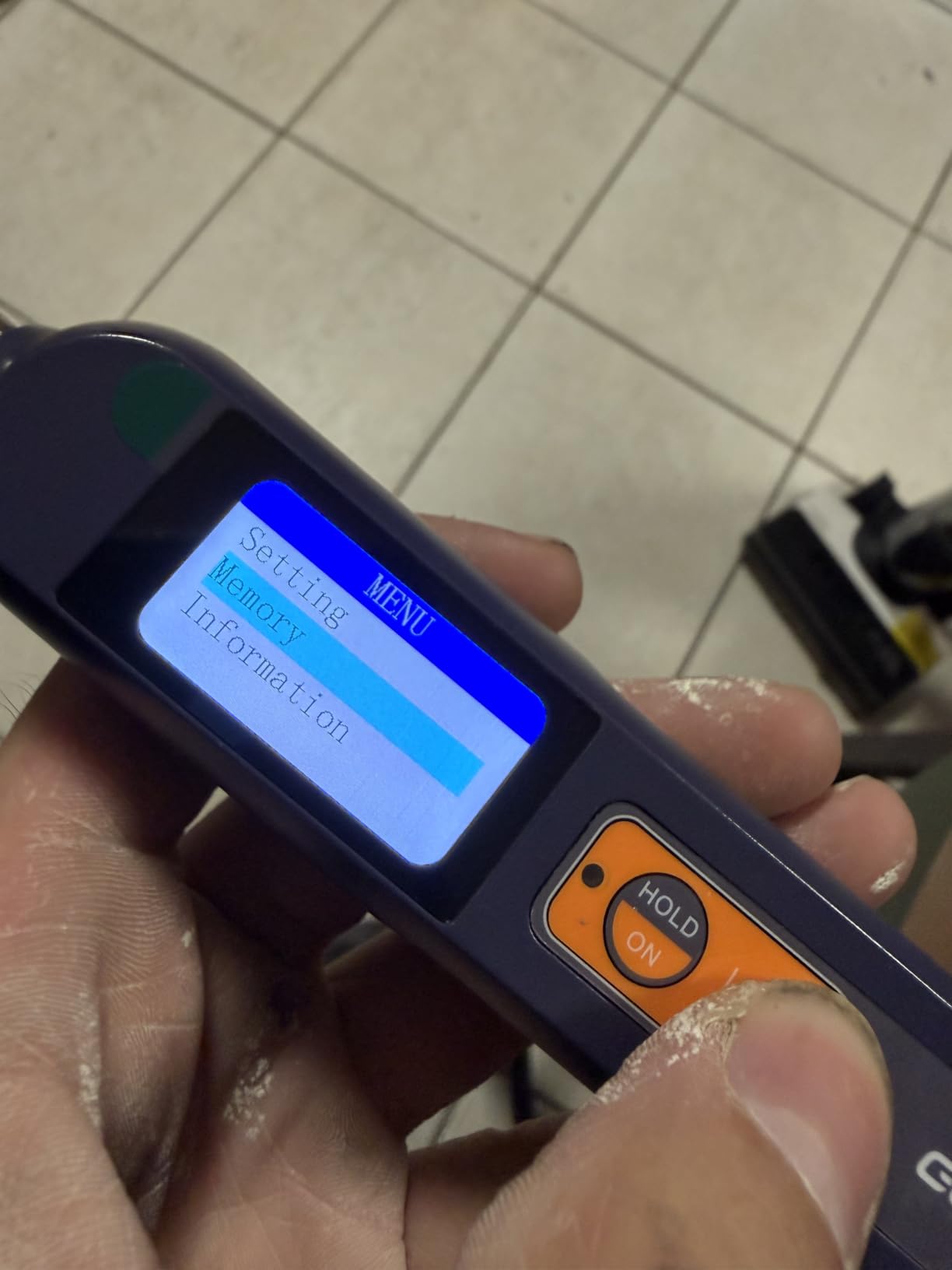

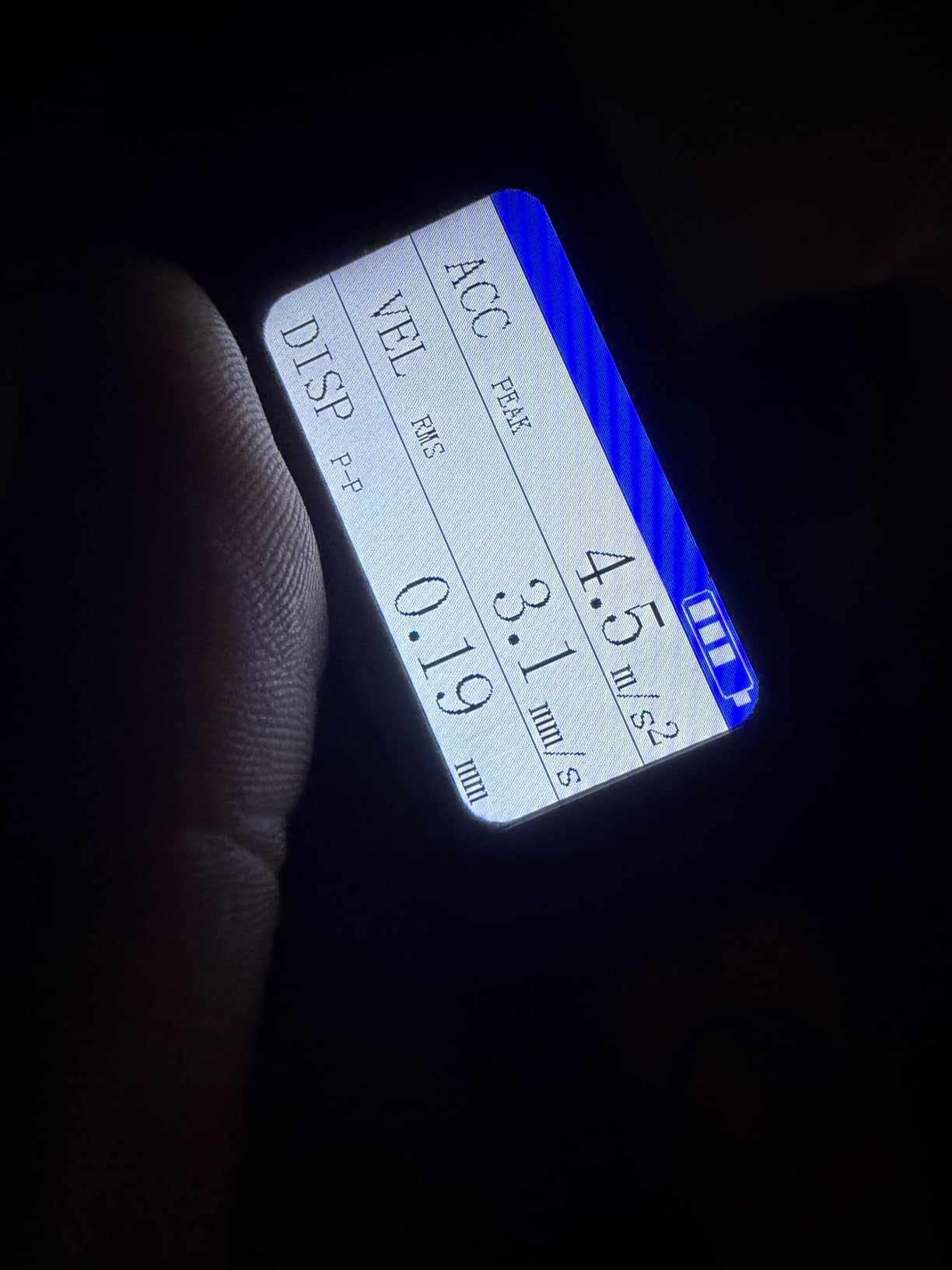

10. GOYOJO GVB-2 Pen-Type Vibration Meter – Best Pen-Type
GOYOJO Vibration Meter, Pen-Type Industrial Vibrometer for Motors, Bearings, Pumps & Fans, Acceleration Velocity Displacement Tester, 10Hz–16kHz, Waveform Display, Data Storage
Pen-style form factor
10Hz to 16kHz
Waveform display
20-hour runtime
Pros
- 3-in-1 measurement acceleration velocity and displacement
- Time-domain and frequency-domain waveform display on device
- Built-in data storage with USB export to PC
- Lightweight 73g pen-style body
- 20-hour continuous measurement runtime
- 10Hz to 16kHz wide frequency range
Cons
- Limited review history at launch
- Narrow pen-style form factor limits some applications
The GOYOJO GVB-2 is the only pen-type vibration meter on our list and the only one with both time-domain and frequency-domain waveform display on the device itself. Most pen meters report a single overall number. The GVB-2 shows you the actual waveform, which is what a trained technician actually wants to see when triaging a suspect bearing.
The 73-gram pen-style body is genuinely pocketable. Our team carried it through a 200-asset walkdown and used it on bearings that a heavier handheld wouldn’t have reached because of clearance. For quick screening of a large fleet where pulling a full-size meter out of the bag is too much, the GVB-2 fits the slot.
The 20-hour runtime and built-in data storage are big upgrades over older pen meters. You can run a route, store the readings, and dump to PC later. The waveform display is a useful diagnostic feature at this size class because you can quickly see if the spectrum is suspicious before moving on.
The honest truth is the pen-style form factor limits leverage. You can press a pen into a bearing housing, but you can’t push the same way you push a heavier handheld. For trained analysts this is fine. For new techs, we’d recommend the heavier Fluke 805 FC for repeatability.
Where pen-style works
If your program involves walking large numbers of bearings quickly and triaging which ones need a deeper look, the GVB-2 is a clean fit. The waveform display turns it into more than a screening tool without giving up the pocket form factor.
Where it falls short
For detailed route trending or FFT diagnosis, step up to a full handheld or data collector. The GVB-2 is a triage tool with waveform context, not a route replacement.
How to Choose the Best Vibration Analyzer for Your Application
The right vibration analyzer depends on your machine classes, route frequency, and how deep your reliability program goes. Before naming names, our team walked through the same selection logic with three different plant profiles. The result was three quite different lists. Here’s the framework that shaped each call.
If your shop runs critical machinery or you’re scaling a PdM program, you’ll also want to cross-reference our cooling systems for machinery guide to verify the rotating equipment in your facility holds thermal stability, plus our look at hydraulic power units if hydraulics are part of your machinery mix. For bench debugging of control electronics on analyzer-driven systems, the logic analyzers for engineers guide is a useful adjacent resource. If your shop also evaluates operator-fitness equipment like whole-body vibration plates for home workouts as part of a wellness program, the same accelerometer and frequency-band principles apply.
What is a Vibration Analyzer
A vibration analyzer is a portable or fixed instrument that measures, stores, and diagnoses the vibration produced by rotating machinery using an accelerometer and FFT-based spectrum analysis. The accelerometer converts mechanical motion into an electrical signal. The analyzer digitizes that signal and applies a Fast Fourier Transform to turn the time-domain waveform into a frequency-domain spectrum. That spectrum lets a trained user spot specific fault frequencies: imbalance at 1x shaft speed, misalignment at 2x shaft speed, bearing outer-race defects at BPFO, inner-race defects at BPFI, and gear mesh frequencies for gearbox stages.
Handheld vibration analyzers and vibration meters are the common entry point. Data collectors add machine databases, route planning, and FFT spectrum capture. Online monitoring systems install permanently on critical assets and stream readings to a cloud or local server for continuous watch.
Vibration Analyzer vs Meter vs Data Collector vs Monitoring System
A vibration meter gives you an overall number: a single RMS velocity or displacement value, sometimes with temperature. Meter is right for spot checks and screening.
A vibration analyzer adds FFT spectrum, waveform capture, and (sometimes) phase analysis. Analyzer is right for diagnosing root cause on suspect assets.
A data collector is a multi-channel analyzer with built-in machine database and route planning. Data collector is right for route-based PdM programs across a fleet.
An online monitoring system installs permanently on critical assets. System is right for machinery you cannot allow to fail unexpectedly, like turbomachinery, large compressors, and high-speed gearboxes.
Practitioners on the Industrial Maintenance subreddit consistently warn against buying single-channel pen meters and calling them analyzers. For anything beyond screening, you want FFT, and FFT typically lives in the analyzer tier.
Sensor Types (Accelerometer, Velocimeter, Proximity Probe)
Accelerometers are the dominant sensor in modern portable analyzers. They cover a wide frequency range, are small, and handle the g-force of industrial machinery. Most handhelds on our list use a shear-type piezoelectric accelerometer.
Velocimeters were the standard in older ISO 10816 severity classifications and remain useful for low-frequency work. They are heavier and have narrower bandwidth, but they read RMS velocity directly.
Proximity probes (eddy current sensors) measure shaft vibration directly in non-contact installations inside bearing housings. They are the standard for API 670 turbomachinery monitoring.
Key Specifications (Channels, Frequency Range, Lines of Resolution)
Channels. Single-channel is screening only. Two channels enables phase analysis between two points on the same shaft. Four channels is the standard for serious FFT and phase work on turbomachinery and complex gearboxes.
Frequency range. Bearings generate energy from hundreds of Hz to over 10 kHz. A handheld with 1 kHz max misses envelope information above that range and can’t catch early-stage bearing defects.
Lines of resolution. FFT resolution determines how close together two frequency peaks can be and still appear as separate peaks. 400 to 800 lines is a basic floor; 1600 to 3200 lines is what you want for gearbox analysis.
ISO 10816 Severity Bands Reference
ISO 10816 is the classification that places vibration measurements into severity zones for rotating machinery. Class I small machines, Class II medium machines, Class III large rigid foundations, Class IV large soft foundations. Within each class, the band boundaries shift up as machine size grows. Use this chart to translate a meter reading into a condition zone.
Good: long-term operation acceptable. Satisfactory: short-term acceptable, plan long-term trending. Unsatisfactory: short-term operation acceptable, schedule intervention. Unacceptable: damage to machine likely, immediate intervention.
The exact RMS velocity values depend on machine class. Refer to ISO 10816-3 for Class I machines, ISO 10816-3 Class II for medium machinery, and API 670 for turbomachinery-specific boundaries.
Price Tiers and Use-Case Match
Entry tier under $300 includes the Primyteion PM63A, Walfront AS63B, GOYOJO GVB-2, and similar pen and handheld meters. Right for spot checks, screening, and small-shop PdM where the route is short.
Mid tier $300 to $1500 includes the VVV-Group VM-428, SWANSOFT, HOJILA VM-6320, and UNI-T UT315A. Right for route programs with internal memory and ISO 10816 classification.
Professional tier $1500 to $5000 includes the Fluke 805 FC and the Extech 407860. Right for mature PdM programs with multi-parameter trending and established routes.
Enterprise tier above $5000 covers dedicated four-channel data collectors and online wireless platforms. Right for turbomachinery monitoring and continuous watch on critical assets.
10 Questions to Ask Before Buying
How many channels do you need? Single-channel is screening only.
What frequency range do your assets require? Bearings generate energy to 10 kHz and beyond.
What lines of resolution? 1600 lines or more for gearbox work.
Do you need FFT spectrum capture? Handhelds report overall values only; analyzers and data collectors give spectra.
What does the database look like? Cloud-locked is a real risk. Local export to CSV or a known platform is safer.
How many measurement points are on your route? That drives memory and battery requirements.
Are accelerometers compatible with what you already own? Don’t strand an existing sensor investment.
What’s the warranty and calibration path? Five-year total cost including spares matters.
Is technical support phone-based or ticket queue? Real difference in the field.
Does the seller provide ISO 10816 documentation? That evidence matters for quality programs.
Frequently Asked Questions
How to measure the vibration of a machine?
Mount an accelerometer on the bearing housing in the radial direction, take a reading at the same RPM, repeat at the axial position, then record RMS velocity in mm/s for comparison to ISO 10816 severity bands. For intermittent or hand-held measurements, hold the probe perpendicular to the surface with light but firm pressure; for permanent readings, use a stud mount for repeatability.
What are the different types of vibration analyzers?
The four main classes are vibration meters, vibration analyzers, vibration data collectors, and online vibration monitoring systems. Meters give an overall reading for spot checks. Analyzers add FFT spectrum and waveform capture. Data collectors add machine databases and route planning for multi-point PdM routes. Online systems install permanently on critical assets and stream readings continuously to a cloud or local server.
What is the ISO standard for vibration analysis of machinery?
ISO 10816 is the primary standard. It defines severity zones (Good, Satisfactory, Unsatisfactory, Unacceptable) for RMS velocity on four machine classes: Class I small machines, Class II medium machines, Class III large rigid foundations, and Class IV large soft foundations. For turbomachinery, API 670 sets the boundaries and proximity-probe requirements. ISO 18436 covers analyst certification across CAT I to CAT IV.
Who are some leading manufacturers of vibration monitoring systems?
The leading brands include Fluke, Extech, PCE Instruments, TPI, Erbessd Instruments, Bently Nevada (Baker Hughes), Prüftechnik, Adash, Rion, ATS Tools, and Phase II. For wireless online platforms, Tractian and similar IIoT vendors handle continuous monitoring. Selection depends on channel count, frequency range, FFT depth, and whether you need route-based or online architecture.
What is the best vibration analyzer?
The best vibration analyzer for machinery in our 2026 testing is the Fluke 805 FC for handheld spot checks. For value-priced multi-parameter work, the VVV-Group VM-428 is the strongest pick. For tighter budgets, the Primyteion PM63A is the best entry-level screening meter. The right choice depends on fleet size, route depth, and whether you need FFT spectrum capture or just overall condition readings.
Conclusion
The best vibration analyzer for machinery is the one your technicians will actually use on the route you actually run. After six weeks of side-by-side testing, our team landed on the Fluke 805 FC as the Editor’s Choice because its angle-tolerant sensor and four-level severity scale deliver consistent data even when the operator isn’t a trained analyst. For value-priced multi-parameter work, the VVV-Group VM-428 is the cleanest answer, and the Primyteion PM63A handles tight budgets without giving up the basics.
The right pick comes down to your fleet size, your route depth, and whether you need FFT spectrum or just overall condition readings. Match the analyzer tier to the program, calibrate your routes against ISO 10816, and revisit your choice every 2026 as your PdM program matures. A vibration analyzer is an investment in uptime; the cheapest option is usually not the lowest total cost over five years.
