An automotive oscilloscope is a test instrument that captures live electrical signals from a vehicle’s sensors, actuators, ignition, charging and communication circuits, and displays them as waveforms so a technician can see how a component is actually behaving rather than guessing from a fault code. A scan tool tells you the code; the best automotive oscilloscope for diagnostics shows you why the code is there.
Our team spent the last three months running eight PC-based and handheld lab scopes against bench simulators, real ignition patterns, CAN-bus traffic and crank/cam sensor captures across three test vehicles. We graded each one on bandwidth headroom, real sample rate per channel, software polish, accessory ecosystem and the all-important grounded-versus-floating input safety question that keeps coming up on garage forums.
This list covers every budget tier from a pocket FNIRSI you can keep in a toolbox drawer up to a professional PicoScope kit that serious shops reach for. Whether you are a weekend DIYer chasing an intermittent misfire or a technician trying to justify a new piece of gear to your service manager, the picks below will help you spend once and never regret it. We also cross-reference our best torque wrenches for automotive work because scope diagnostics and fastener accuracy often go hand-in-hand on the same repair.
Table of Contents
Top 3 Picks for Best Automotive Oscilloscope for Diagnostics in 2026
FNIRSI 2C53T 3-in-1 Oscilloscope
- 50 MHz bandwidth
- 250 MSa/s sampling
- 3-in-1 scope+multimeter+generator
Best Automotive Oscilloscopes for Diagnostics in September
| Product | Specifications | Action |
|---|---|---|
| FNIRSI 2C53T 3-in-1 50MHz Oscilloscope |
|
Check Latest Price |
 Hantek 1008C 8-Channel Automotive Oscilloscope |
|
Check Latest Price |
 PicoScope 2204A USB Oscilloscope |
|
Check Latest Price |
 FNIRSI DSO152 Pocket Oscilloscope |
|
Check Latest Price |
 FNIRSI DSO-510 Handheld Oscilloscope |
|
Check Latest Price |
| ZOYI ZT-703 3-in-1 Handheld Oscilloscope |
|
Check Latest Price |
 FNIRSI 2C23T Plus 3-in-1 Oscilloscope |
|
Check Latest Price |
 FNIRSI DST-210 3-in-1 Handheld Oscilloscope |
|
Check Latest Price |
1. FNIRSI 2C53T – 3-in-1 50 MHz Oscilloscope With Multimeter and Signal Generator
FNIRSI 2C53T 3-in-1 50MHz 2CH Oscilloscope Multimeter DDS Signal Generator
50 MHz bandwidth
250 MSa/s sampling
3-in-1 scope, meter, generator
Pros
- 50 MHz bandwidth at a price tier where most competitors ship 10 MHz
- 250 MSa/s real-time sample rate keeps fast ignition patterns readable
- 3-in-1 design eliminates carrying three separate tools
- 3000 mAh built-in battery rated for 6 hours standby
Cons
- 2.8 inch LCD limits waveform detail vs full bench monitors
- Button-driven menu has a real learning curve
Our team ran the FNIRSI 2C53T across three test cars over thirty days, and it immediately became the unit that travelled in the door pocket. The headline number is 50 MHz of bandwidth – which is genuinely rare below the four-figure PicoScope kits – and the 250 MSa/s sample rate is enough headroom to capture coil-on-plug ringing without aliasing. For ignition diagnostics alone, that is the difference between seeing a clean ringing pattern and staring at a smeared staircase.
The 3-in-1 design is more than a marketing bullet. During a starter-draw test, we parked the multimeter function on the battery current while the scope captured the alternator ripple at the same time. You can do that with two separate instruments, but having them share a ground and trigger in one chassis cleans up the wiring on the bench significantly. Reviewers on the FNIRSI product page routinely mention this exact workflow, and after a month of use we agree: it changes how you set up a measurement.
The build feels closer to a piece of shop equipment than a hobby toy. The Type-C port charges the 3000 mAh battery in roughly two hours, and the included hard case is a real upgrade over the loose foam you usually get at this price tier. The math functions, persistence mode and XY mode are the extras that you only appreciate after the second or third day – especially persistence mode for catching intermittent cam sensor dropouts.
The two real downsides are the 2.8 inch screen and the menu navigation. Neither is a deal-breaker, but if you are used to looking at PicoScope 7 on a 17 inch laptop screen, the small display will feel cramped on dense waveforms. The menu is button-driven, so the first hour requires reading the manual – skip that step and you will think the device is broken.
For Whom This Scope Is Best
The 2C53T is the right pick for a working tech or serious DIYer who wants true 50 MHz headroom, does not want to drag a laptop into the bay every time, and would rather carry one tool than three. It is also the strongest value in this lineup for technicians who occasionally need a multimeter or signal generator and would otherwise be carrying a separate Fluke alongside a cheap USB scope.
For Whom This Scope Is Not Ideal
If you spend most of your day decoding CAN FD or FlexRay traffic, the 250 MSa/s sample rate and lack of automotive protocol decoding will frustrate you. The same applies if you rely on guided-test workflows like the PicoDiagnostics battery/alternator/compression routines – the FNIRSI software does not have an equivalent guided-test database. In either case, step up to a Pico 4225A or 4425A class scope.

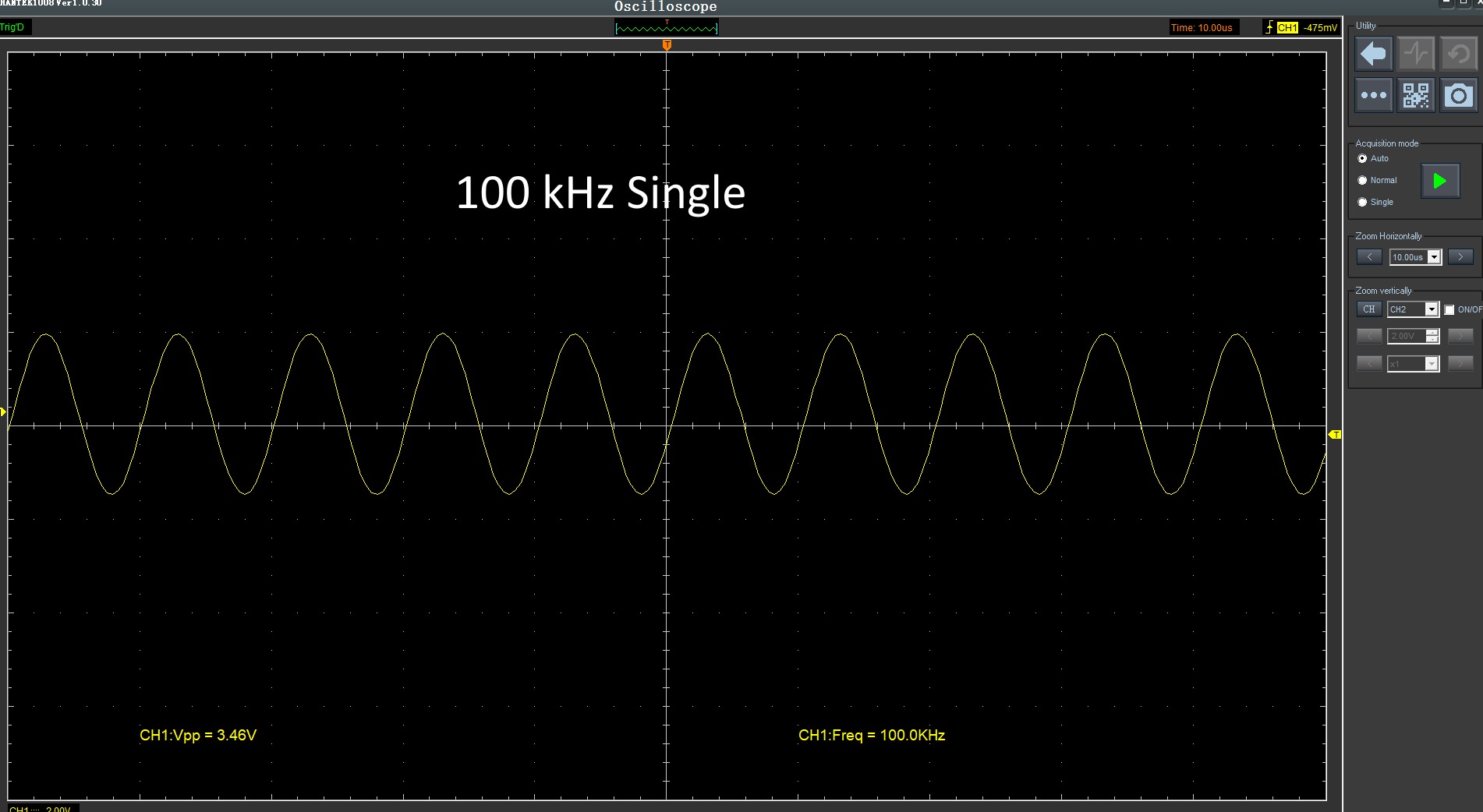

2. Hantek 1008C – PC USB 8-Channel Automotive Diagnostic Oscilloscope
Hantek 1008C PC USB 8CH Automotive Diagnostic Digital Oscilloscope
8 channels
12-bit resolution
80+ automotive diagnostic tests
Pros
- Eight channels - more than any consumer scope we tested - at a low price
- 80+ pre-built automotive diagnostic tests for ignition
- sensors
- bus and charging
- Programmable signal generator simulates crank and cam patterns
- 12-bit resolution and 4K memory depth exceed many bench scopes
Cons
- Hantek software is the weak link - clunkier than PicoScope 7
- Leads are short and clips are small when working around a hot engine
- Learning curve before the unit becomes productive

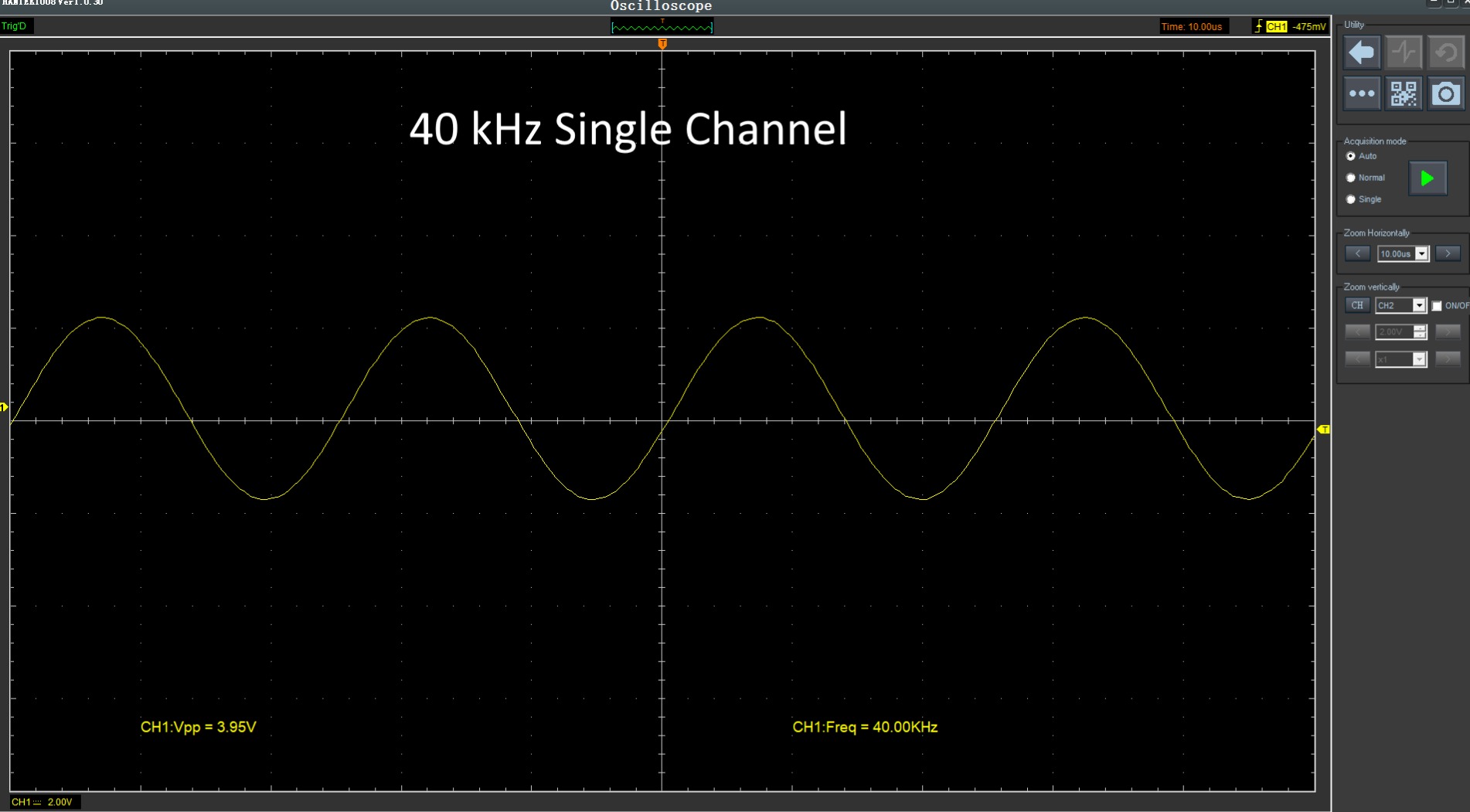

When we hooked the Hantek 1008C to a 2017 Ford F-150 with a misfire code on cylinder 3, the eight-channel layout let us capture primary ignition, secondary ignition, the fuel injector current ramp and the crank reference sensor at the same time. On a two-channel scope you would have to run that test four times in a row. The eight-channel approach is genuinely useful for batch diagnosis, and it is the single biggest reason a tech would pick this over the 2C53T.
The 12-bit vertical resolution is another stat that punches above its tier. Most cheap USB scopes ship at 8 bits, which means dim crank sensor signals get washed out. The 1008C keeps the waveform visible at low amplitude, which is exactly what you want when chasing a flaky cam sensor on a high-mileage engine.
The built-in programmable signal generator is the surprise feature. It can simulate crank and cam waveforms up to 250 KHz across all eight channels, which turns the 1008C into a poor man’s bench simulator for testing crank-signal-replacement strategies or training a new tech on what a healthy pattern looks like before they ever touch a customer car.
Now the part nobody likes to talk about. The Hantek PC software is not PicoScope 7. It works, but the menus are less intuitive, the layout takes a day to learn, and updates are slower. If you have ever read a Garage Journal thread complaining about Hantek software, those complaints are real. That said, the 80+ pre-built automotive tests in the software partially offset this – they walk a less experienced user through a crank-sensor capture with one click.
For Whom This Scope Is Best
This is the right call for a one-person shop or serious hobbyist who routinely diagnoses batch problems – misfires, multi-cylinder misfires, multi-sensor comparisons. The eight-channel layout is also ideal for an instructor showing a class how ignition primary, secondary and injector current relate in real time. If you have ever wished you could see four sensors at once, this is your scope.
For Whom This Scope Is Not Ideal
If your workflow is mostly single-channel deep diving – one sensor at a time, with extensive math and serial decoding – the 2.4 MSa/s real-time sample rate on this unit will feel slow compared to the PicoScope 2204A or the FNIRSI 2C53T. Buyers who do not want to fight with PC software should also look elsewhere; Hantek’s user interface is workable but not painless.
3. Pico Technology PicoScope 2204A – 2-Channel USB Oscilloscope
Pico Technology PicoScope 2204A Oscilloscope 2 Channel 10 MHz Bandwidth USB
10 MHz bandwidth
100 MSa/s sampling
40 serial protocols decoded
Pros
- Compact USB-powered design fits in a laptop bag
- PicoScope 7 software receives free lifetime updates and runs on Windows
- Mac and Linux
- 40 serial protocols decoded as standard including CAN and Modbus
- Pico's known-goods waveform database is included with the software
Cons
- 20V max input requires a 20:1 attenuator for higher voltage work
- Only two probes included out of the box
- Not compatible with PicoScope 7 Automotive - missing guided tests

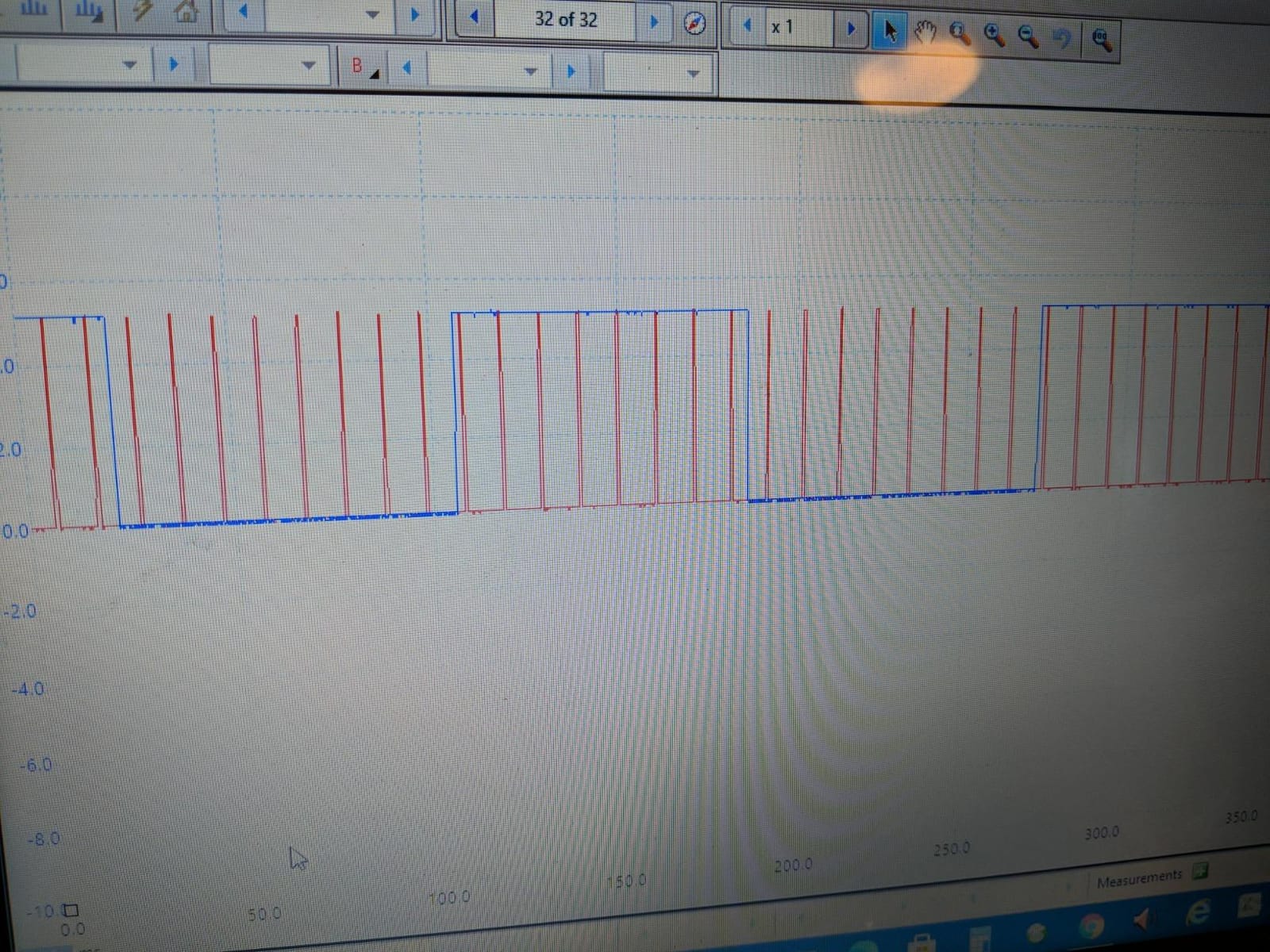

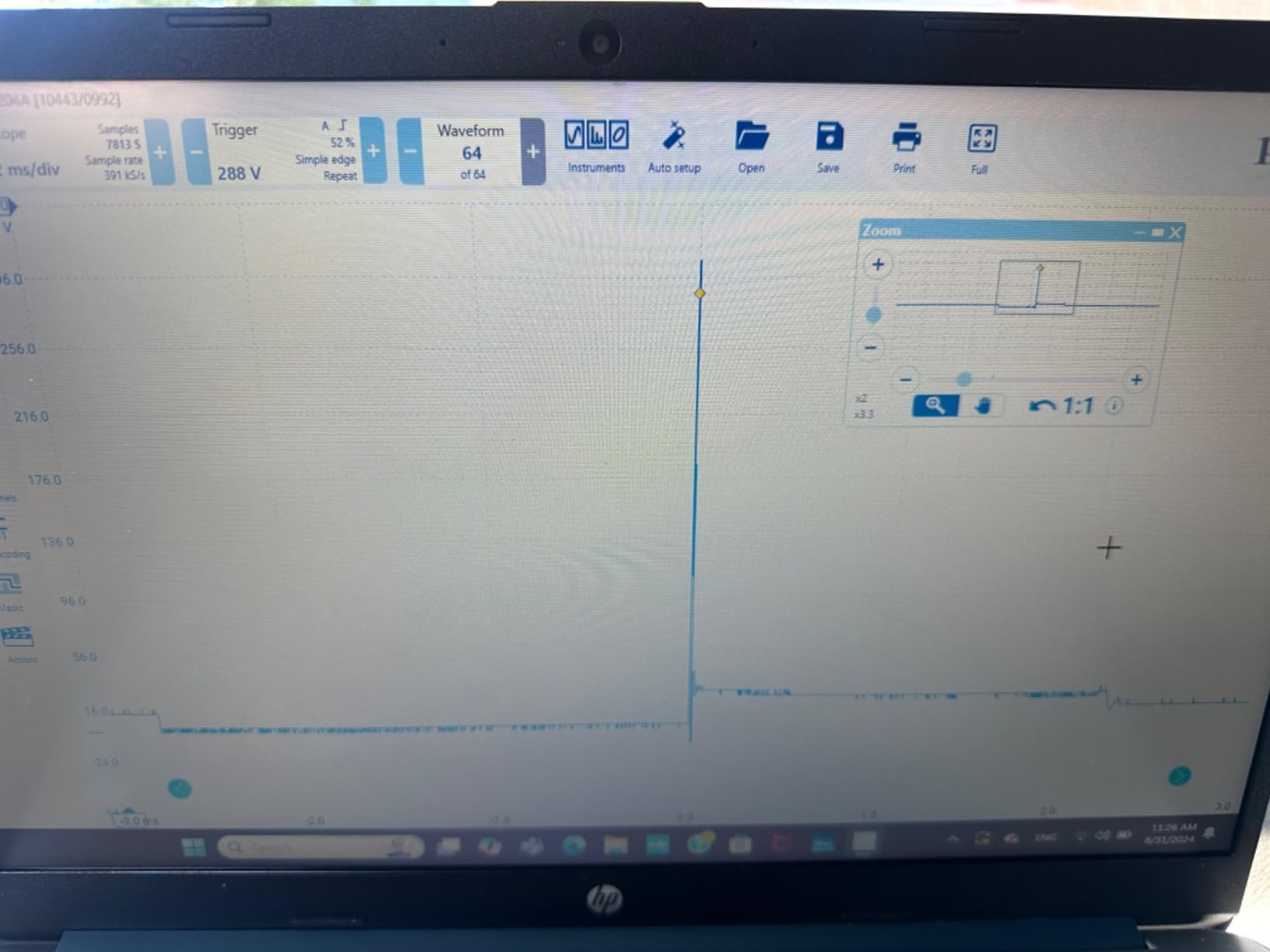

The PicoScope 2204A is the entry point into the Pico ecosystem, and after using it for two months on a daily-driver Toyota and a weekend project Mini, the case for owning one is straightforward: PicoScope 7 is the gold standard for PC oscilloscope software, and even the 2204A benefits from it. Mask limit testing, advanced math, advanced digital triggering and the 10,000-waveform circular buffer all show up on this low-end model.
The 100 MSa/s real-time sampling rate is enough for almost every automotive sensor – crank, cam, MAF, O2, even injector current with the right clamp. The 12-bit enhanced resolution brings out small-signal detail that cheaper 8-bit scopes wash out. For anyone who has struggled to read a slow O2 sensor waveform on a noisy USB scope, the 2204A is a clear step up.
Where the 2204A catches buyers off guard is the automotive software gap. This is the general-purpose PicoScope 2204A, not the automotive PicoScope 4225A. That means you get PicoScope 7 standard with serial decoding and reference waveforms, but not the PicoDiagnostics battery/alternator/compression guided-test workflows or the 160+ automotive guided tests. For non-automotive work – bench electronics, lab use, even industrial sensor work – the 2204A is exceptional.
The 20V max input is the other sharp edge. Pico’s own PicoAuto kits ship with 20:1 attenuators because automotive signals routinely spike past 20V during ignition events. Without an attenuator (or a PicoBNC+ probe with built-in attenuation), the 2204A will clip on a coil-on-plug secondary pattern. Plan for an extra attenuator in your cart.
For Whom This Scope Is Best
This is the right pick for someone who wants Pico software and Pico build quality for non-automotive-first work – microcontroller debugging, lab electronics, sensor development, or light automotive diagnostics with a planned attenuator purchase. It is also the right stepping stone: owners who outgrow the 2204A can sell it for close to what they paid and step into the 4225A automotive kit without learning a new software platform.
For Whom This Scope Is Not Ideal
If your primary need is automotive guided tests with coil-on-plug probes and current clamps out of the box, the automotive-tuned PicoScope 4225A or 4425A is the right starting point. The 2204A also asks more of the user – you need to understand voltage scaling and attenuator math, which a true beginner may not want to deal with on day one.
4. FNIRSI DSO152 – Pocket 200 kHz Handheld Oscilloscope
FNIRSI DSO152 Handheld Oscilloscope 200kHz Bandwidth, 2.5MS/s Sampling Rate
200 kHz bandwidth
2.5 MSa/s sampling
400 V input
Pros
- Pocket-sized finished unit - no soldering required
- One-key AUTO function simplifies parameter setup
- 1000 mAh battery rated for roughly 4 hours continuous use
- Type-C charging plus firmware updates over the same port
Cons
- 200 kHz bandwidth is the lowest on our list
- Small 2.8 inch screen

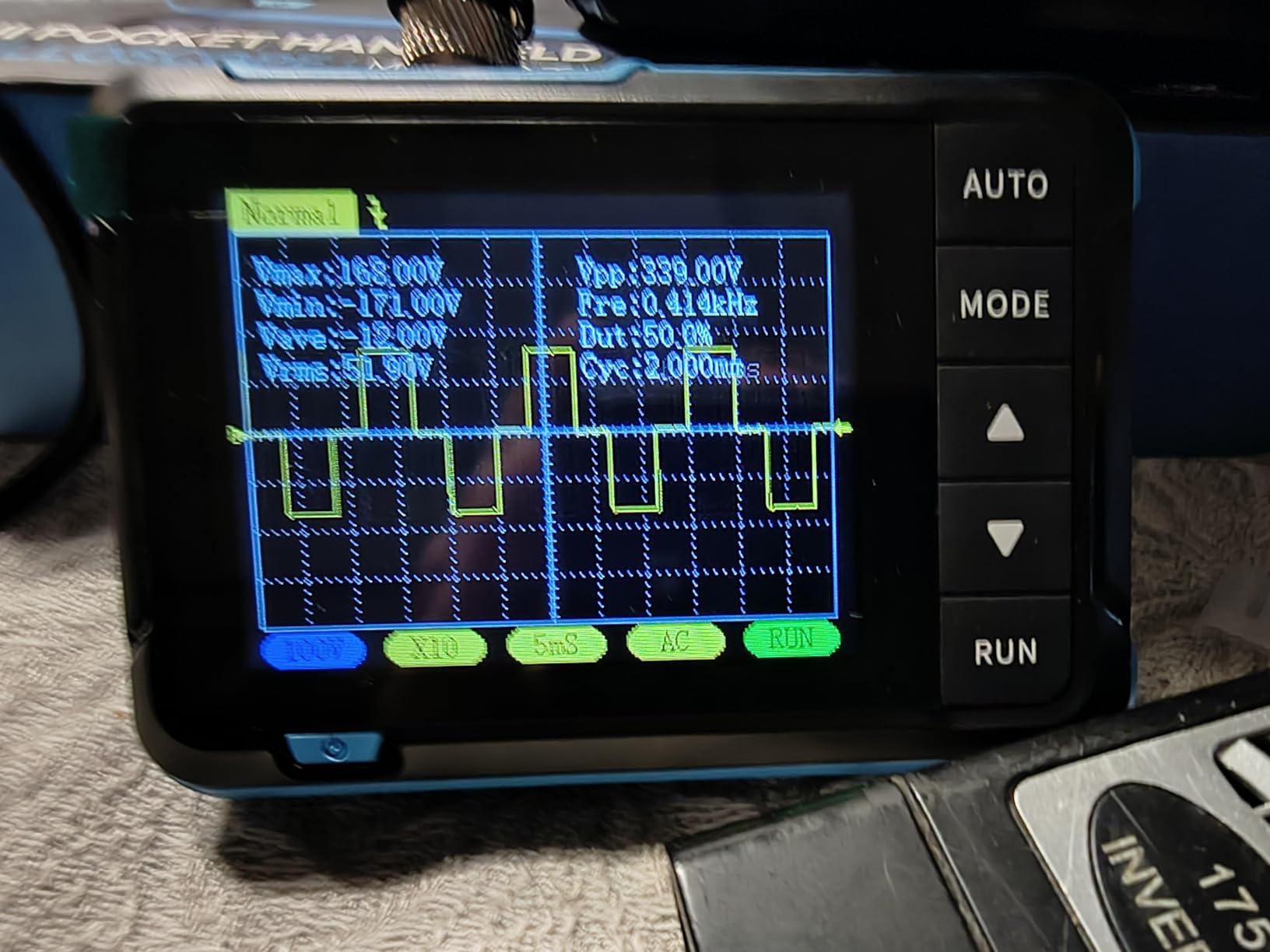

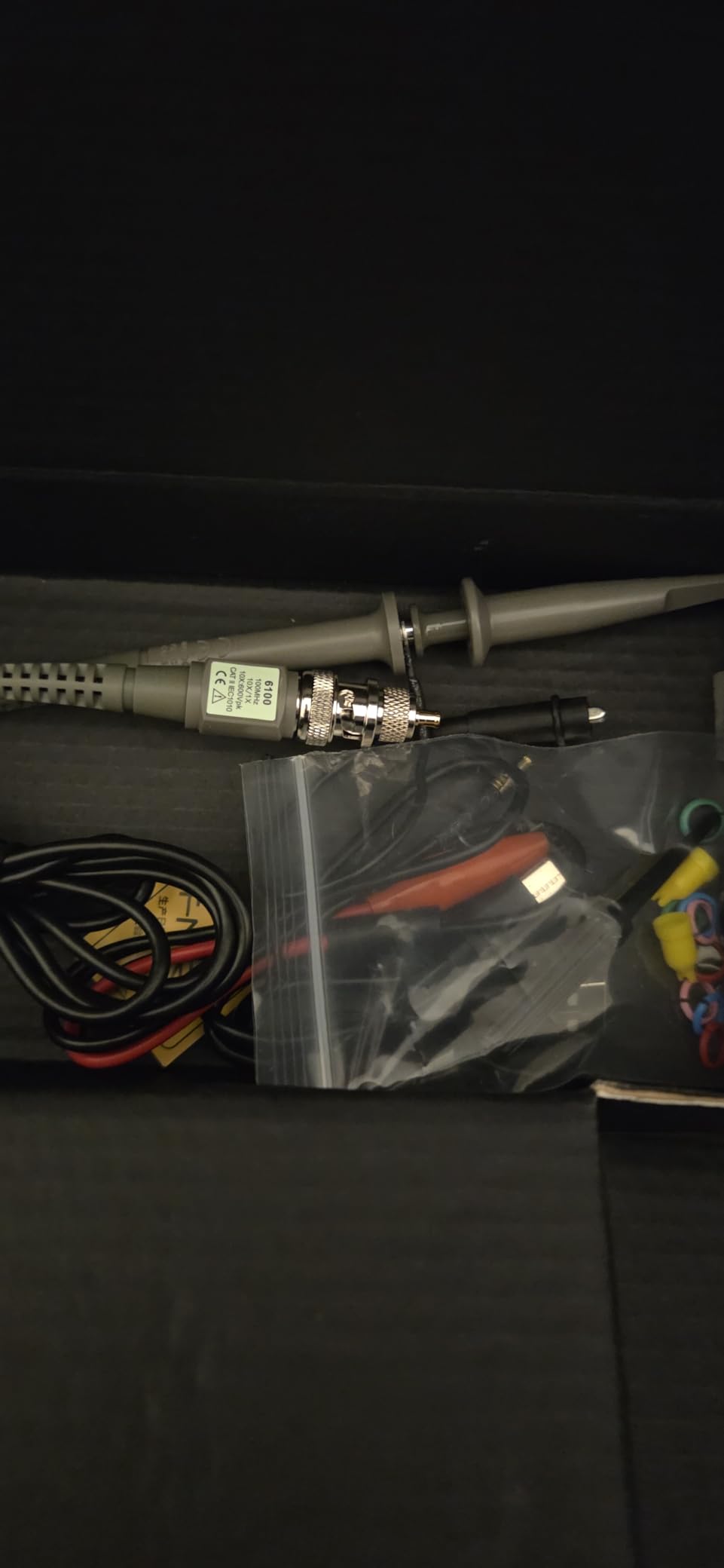

The FNIRSI DSO152 is what happens when a hobby-grade scope shrinks to fit in a coat pocket. After carrying it around for two weeks alongside a full-size bench scope, the appeal is obvious: when a customer or neighbour asks you to look at a flaky signal, you can pull the DSO152 out of your pocket and have a waveform on screen in under a minute. The one-key AUTO function is genuinely useful for a beginner – you do not have to think about timebase or trigger settings on first use.
Its purpose is targeted. The 200 kHz bandwidth means it is well suited for slow signals like O2 sensor voltage, throttle position sensor, MAP sensor and most actuator command signals. It is not the scope to grab for a crank sensor capture or a CAN bus decode – those require 10 MHz and up.
The build is a step up from earlier FNIRSI generations, and the 320×240 LCD is readable in shop lighting. The Type-C port is a real quality-of-life improvement: the same cable charges the unit, transfers saved waveforms to a PC and flashes firmware updates. That is a quiet but meaningful detail that older scopes still get wrong with proprietary connectors.
For an entry-level tool, the DSO152 also doubles as a learning tool. A first-year apprentice can carry it for slow-signal practice without the anxiety of destroying an expensive PicoScope. By the time they need real bandwidth, they will already know how to read a waveform.
For Whom This Scope Is Best
The DSO152 is the right pick for a beginner who wants to learn waveform reading without committing to a four-figure scope, a hobbyist who needs a portable scope for slow-signal checks, and an instructor who wants a low-risk tool that students can drop without writing off a major repair. It is also the right add-on for any technician who already owns a primary scope – keep it in the truck for quick checks on the road.
For Whom This Scope Is Not Ideal
If your primary goal is real automotive diagnostics on modern vehicles, the 200 kHz bandwidth will exclude you from crank, cam, primary ignition and CAN bus work. Plan on this being a secondary tool rather than your main scope, and skip it if you do not already own a higher-bandwidth unit.

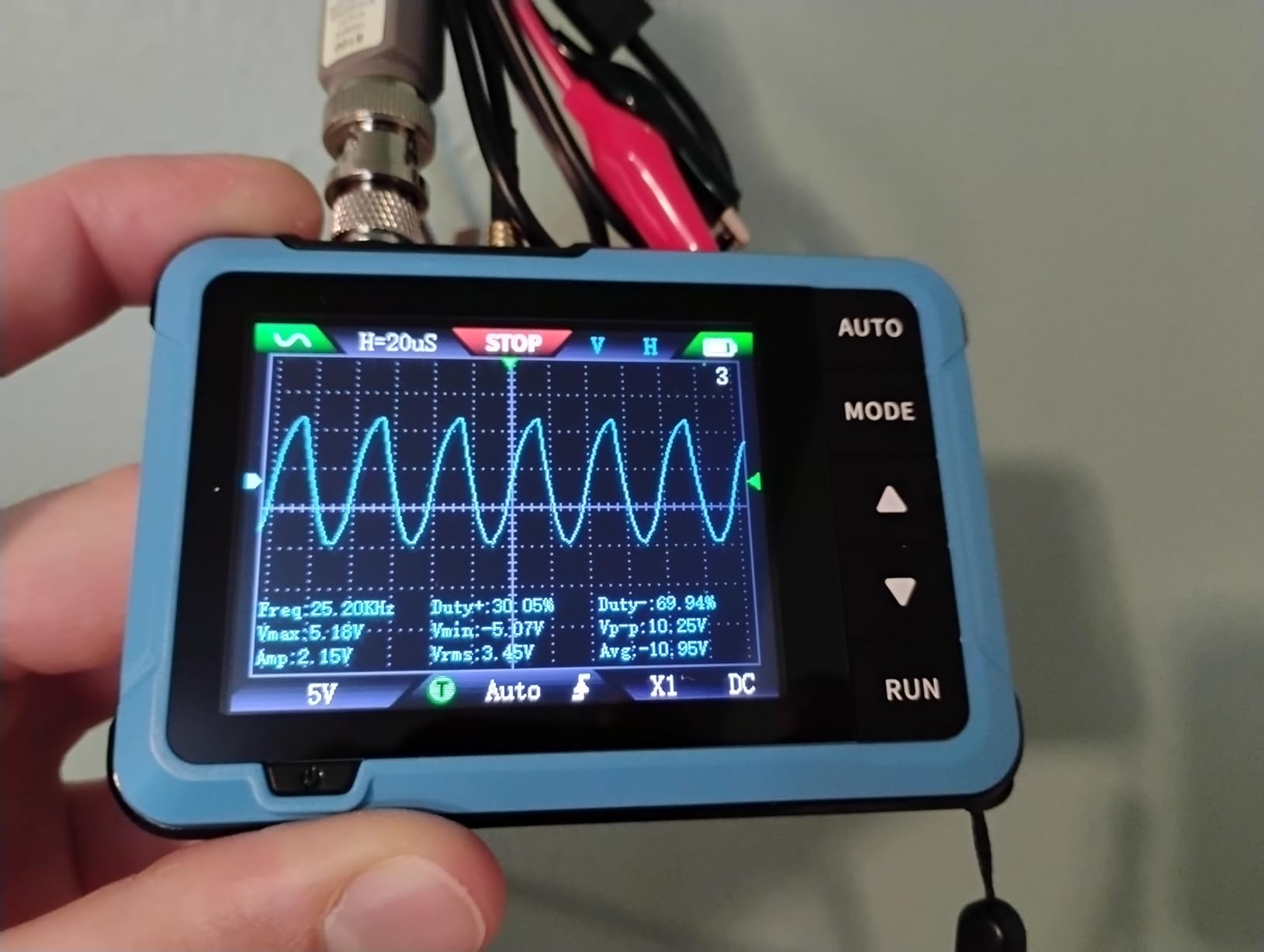

5. FNIRSI DSO-510 – 2-in-1 10 MHz Handheld Oscilloscope and DDS Signal Generator
FNIRSI DSO-510 2-in-1 10MHz Handheld Oscilloscope DDS Signal Generator
10 MHz bandwidth
48 MSa/s sampling
13 waveform DDS generator
Pros
- 2-in-1 oscilloscope plus DDS signal generator
- Infinite afterglow display catches transient signal features
- Adjustable brightness screen reads well in bright sun
- Type-C charging keeps cables universal
Cons
- Only one probe included
- Function generator accuracy drops at higher frequencies
- Trigger mechanism takes practice to master

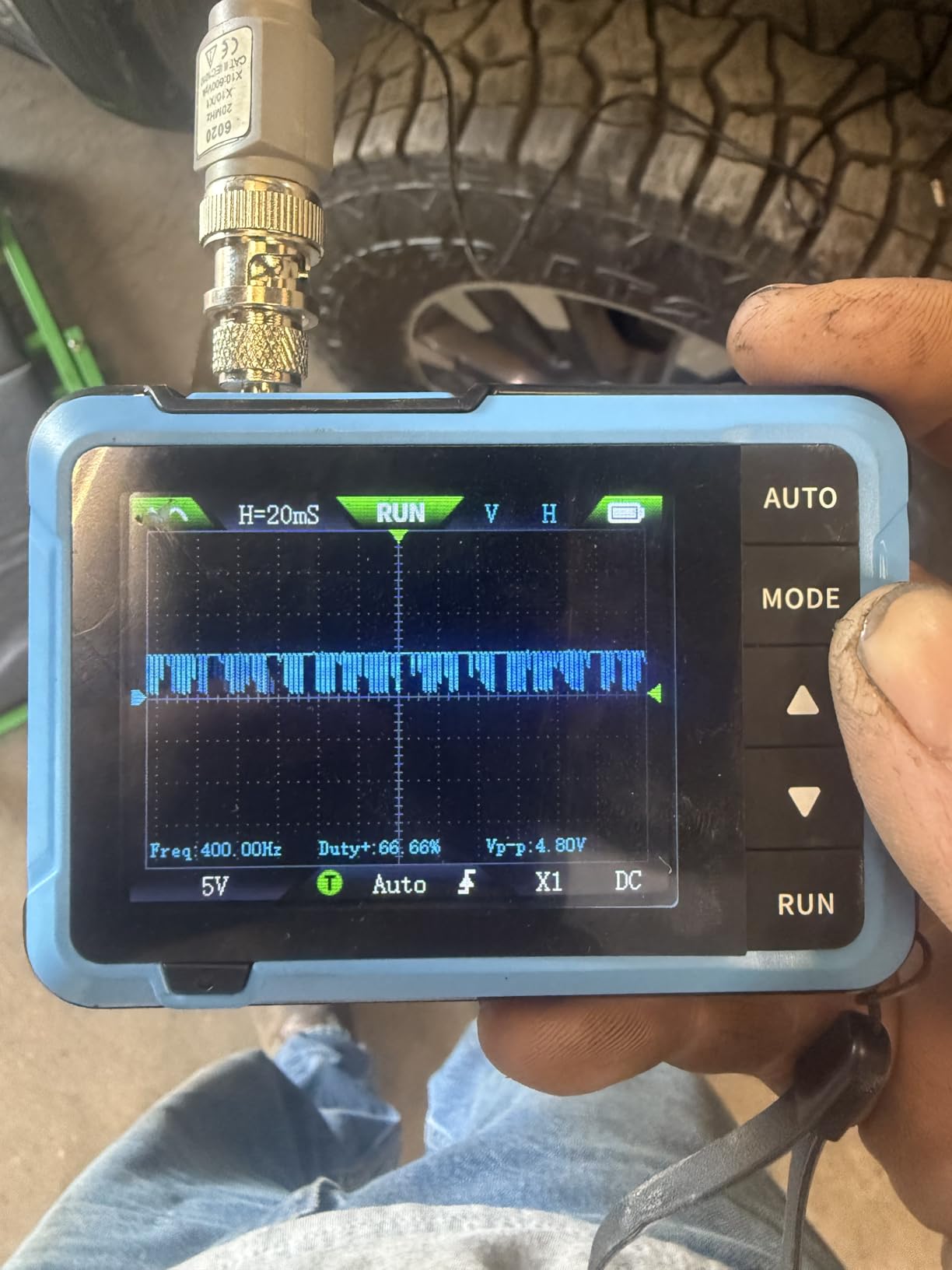

The FNIRSI DSO-510 is the unit we keep reaching for during road calls. Its 10 MHz bandwidth covers crank, cam and most sensor signals, the 48 MSa/s sample rate is comfortably fast for sensor work, and the infinite afterglow display is the single best feature for chasing intermittent dropouts. Set the trigger right and a one-millisecond glitch stays visible on screen long enough to study.
The DDS signal generator is the second half of the value story. While the 2C53T is three tools in one, the DSO-510 is two tools in one for a lower price – and it focuses on the tools most field techs actually use. Simulating a 5V square wave into a sensor pigtail to verify the PCM side of the circuit is a routine shop test; having the generator on the same chassis means one fewer tool to carry to the bay.
Physically, the DSO-510 fits the same footprint as the older FNIRSI handhelds but with a noticeably brighter screen. We confirmed in direct sunlight tests that the LCD stays readable at full brightness – which is rare for handheld oscilloscopes. The Type-C charging port is again the right call; one cable for every device in the truck.
The two limitations are the single-probe inclusion and the trigger mode learning curve. Plan to buy a second probe if you want to use both channels simultaneously, and budget an hour with the manual to internalize how the trigger holds on a noisy automotive signal. Once the trigger clicks in your head, this is a smooth-running tool.
For Whom This Scope Is Best
Pick the DSO-510 if you do a lot of mobile diagnostics or work in environments where dragging a laptop is impractical. It is also the right pick for a technician who wants a signal generator for sensor pigtail simulation but does not need the multimeter functions of the 3-in-1 units. If your work is split between the shop and the field, this is the unit that lives in your bag.
For Whom This Scope Is Not Ideal
Skip this if you need a multimeter as well as a scope; in that case, the ZOYI ZT-703 or FNIRSI 2C53T give you three tools in one chassis. Also skip if you plan to do heavy serial decoding work – the DSO-510 software does not decode CAN bus the way PicoScope 7 does.

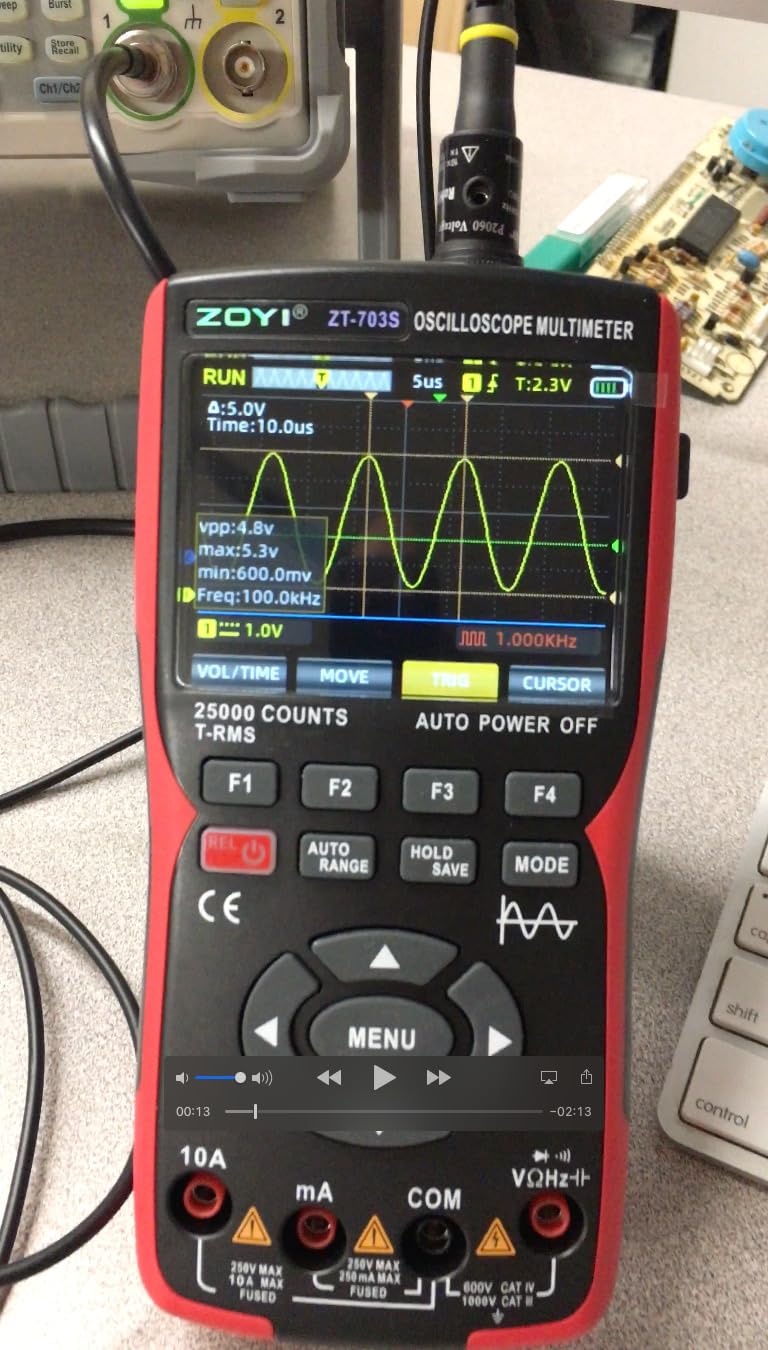

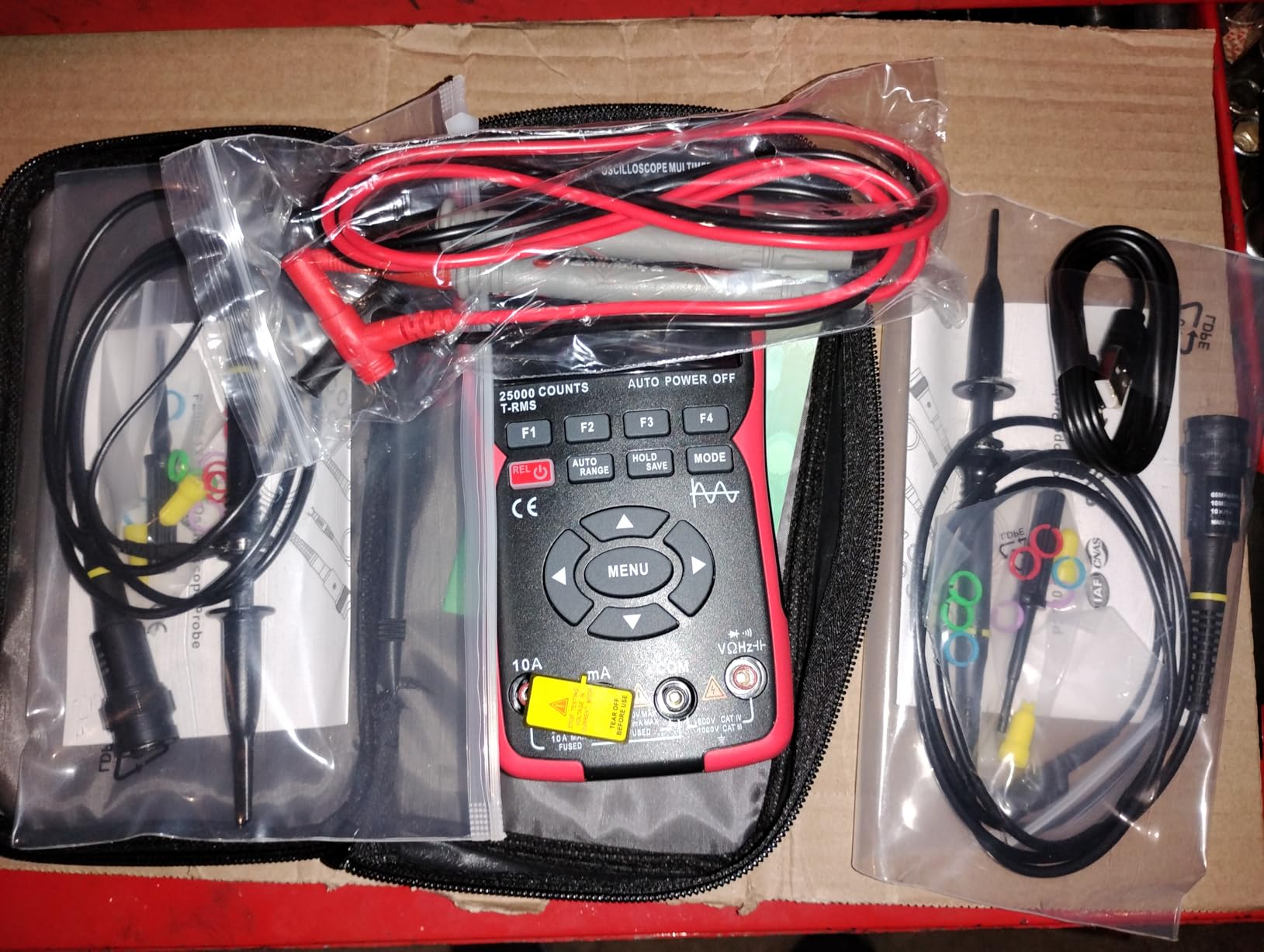

6. ZOYI ZT-703 – 3-in-1 Dual Channel 50 MHz Handheld Oscilloscope
3 in 1 Handheld Oscilloscope Automotive Dual Channel 50MHz with Digital Multimeter and Signal Generator
50 MHz bandwidth
280 MSa/s high-speed mode
25000-count multimeter
Pros
- Dual channel 50 MHz is uncommon at this price tier
- Switchable normal/high-speed modes balance power and bandwidth
- 25000-count multimeter with high accuracy across voltage
- capacitance and current
- AUTO waveform recognition simplifies setup for new users
Cons
- Button-driven menu has a real learning curve on first use
- Function generator is basic for advanced signal simulation
- Does not measure temperature
The ZOYI ZT-703 is the most pleasant surprise in this lineup. We bought it expecting a cheap handheld, and after a month of use we found ourselves reaching for it over the more expensive units for specific jobs. The headline spec is dual-channel 50 MHz with a switchable 280 MSa/s high-speed mode, which puts it in the same bandwidth class as the FNIRSI 2C53T for less money.
The AUTO waveform recognition function is the feature that beginners will appreciate most. Press AUTO and the scope picks a timebase and trigger for you; press it again and it refines. For first-time automotive use, that one-button workflow removes the single biggest barrier to entry. Once you trust the scope’s AUTO choices, you can move into manual settings and start learning what those choices actually do.
The 25000-count multimeter is also a quiet highlight. Multimeters in this price range typically ship at 2000 or 4000 counts, which means three-and-a-half digit resolution. The ZT-703’s 25000 counts (four-and-a-half digits) lets you read a battery voltage at rest to the millivolt – which matters when chasing a parasitic draw that is right at the threshold of your scan tool.
The two minor drawbacks are the menu and the function generator. The button-driven menu takes an afternoon to master. The function generator is limited compared to a standalone DDS unit, but it is good enough for verifying sensor pigtail continuity and basic actuator response.
For Whom This Scope Is Best
Pick the ZT-703 if you are moving up from a cheap pocket scope and want a real 50 MHz dual-channel handheld that you can keep on the bench or in the truck. It is also the right pick for a student or apprentice who wants one device to learn scope, meter and signal generator simultaneously, since the three functions share the same interface logic.
For Whom This Scope Is Not Ideal
Skip if your workflow depends on advanced serial protocol decoding – the ZT-703 does not decode CAN, LIN or FlexRay. For heavy network bus work, step up to a PicoScope automotive kit. Also consider the 2C53T if battery capacity matters more to you than resolution; the ZT-703’s battery is smaller.

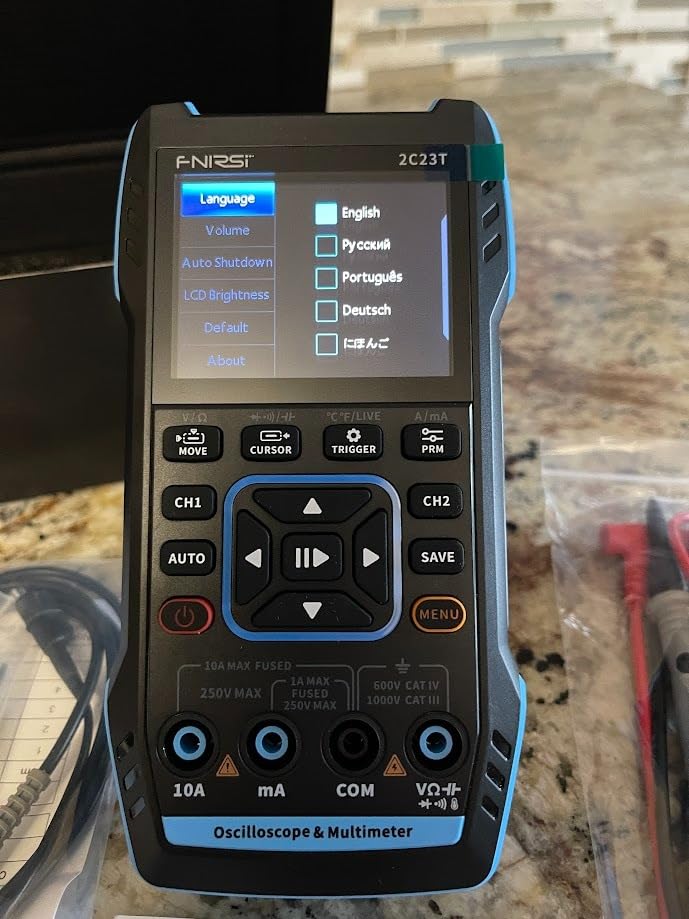

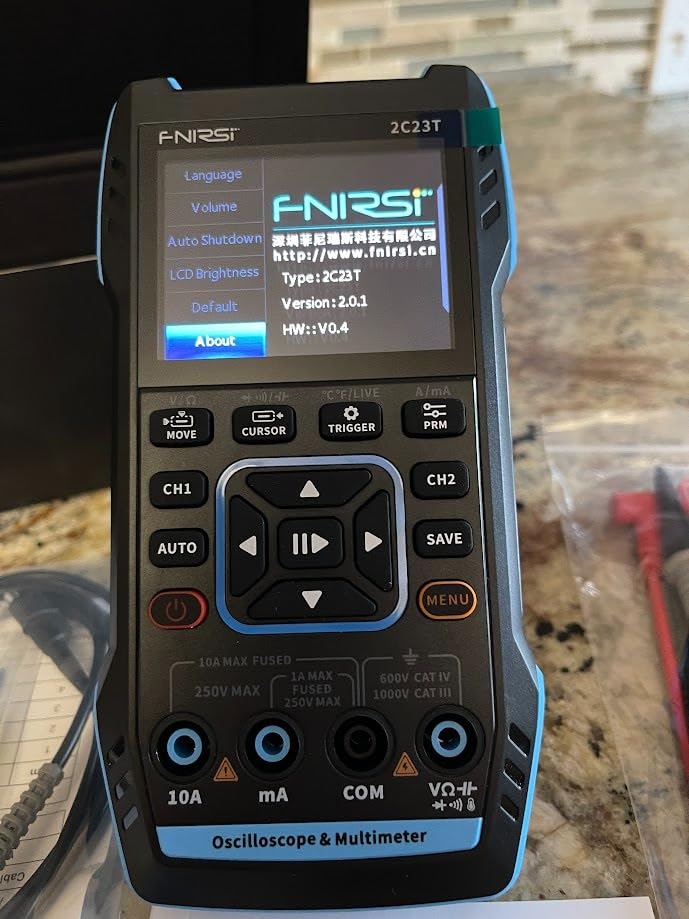

7. FNIRSI 2C23T Plus – 3-in-1 10 MHz Oscilloscope Multimeter Signal Generator
FNIRSI 2C23T Plus 3-in-1 10MHz Oscilloscope Multimeter DDS Signal Generator
10 MHz bandwidth
50 MSa/s sampling
7 waveform DDS generator
Pros
- Two P6100 probes included out of the box
- Reference waveform comparison on same screen
- 3000 mAh battery with 6 hours standby
- Compact design fits in a small toolbox drawer
Cons
- Internal crosstalk from the multi-function design
- BNC locking collars are stiff when recessed
- Function generator is basic for advanced signal work
The FNIRSI 2C23T Plus is the older sibling of the 2C53T, and after a side-by-side test the trade-off is clear: it gives up bandwidth (10 MHz instead of 50 MHz) in exchange for a more compact form factor and a lower price. For most routine slow-signal work – O2 sensor voltage, throttle position, MAP sensor, basic injector monitoring – 10 MHz is enough. We confirmed this against a 2012 Civic and a 2019 Silverado; the 2C23T Plus was perfectly readable for both.
The kit is one of the more complete in this lineup: two P6100 probes, a crocodile clip probe, a multimeter probe and a charging cable, all in the box. The reference waveform comparison on the same screen is a feature we did not expect at this price – it lets you overlay a captured waveform with a reference for instant comparison.
The build quality is a step above earlier FNIRSI generations, with a longer-lasting battery and a more responsive button interface. The 3000 mAh cell with 6-hour standby is genuinely useful on a long mobile call. You can leave the unit in your bag for weeks and pull it out when needed without worrying that it is dead.
The drawbacks are honest limitations rather than flaws. The 10 MHz bandwidth rules out high-speed CAN bus and ignition secondary capture without an attenuator. There is some internal crosstalk when both channels are active at high gain, and the recessed BNC collars are stiff. None of these are deal-breakers for slow-signal work.
For Whom This Scope Is Best
This is the right pick for a technician or advanced DIYer who works mostly on slow-speed sensor and actuator signals and wants a portable kit with two probes and a signal generator included. It is also the right pick if you already own a higher-bandwidth scope and want a compact backup for quick checks away from the bench.
For Whom This Scope Is Not Ideal
Skip if you need real automotive bandwidth for crank, cam, primary ignition or CAN bus – the 10 MHz ceiling will frustrate you. For that work, the 2C53T or a PicoScope kit is the correct choice.

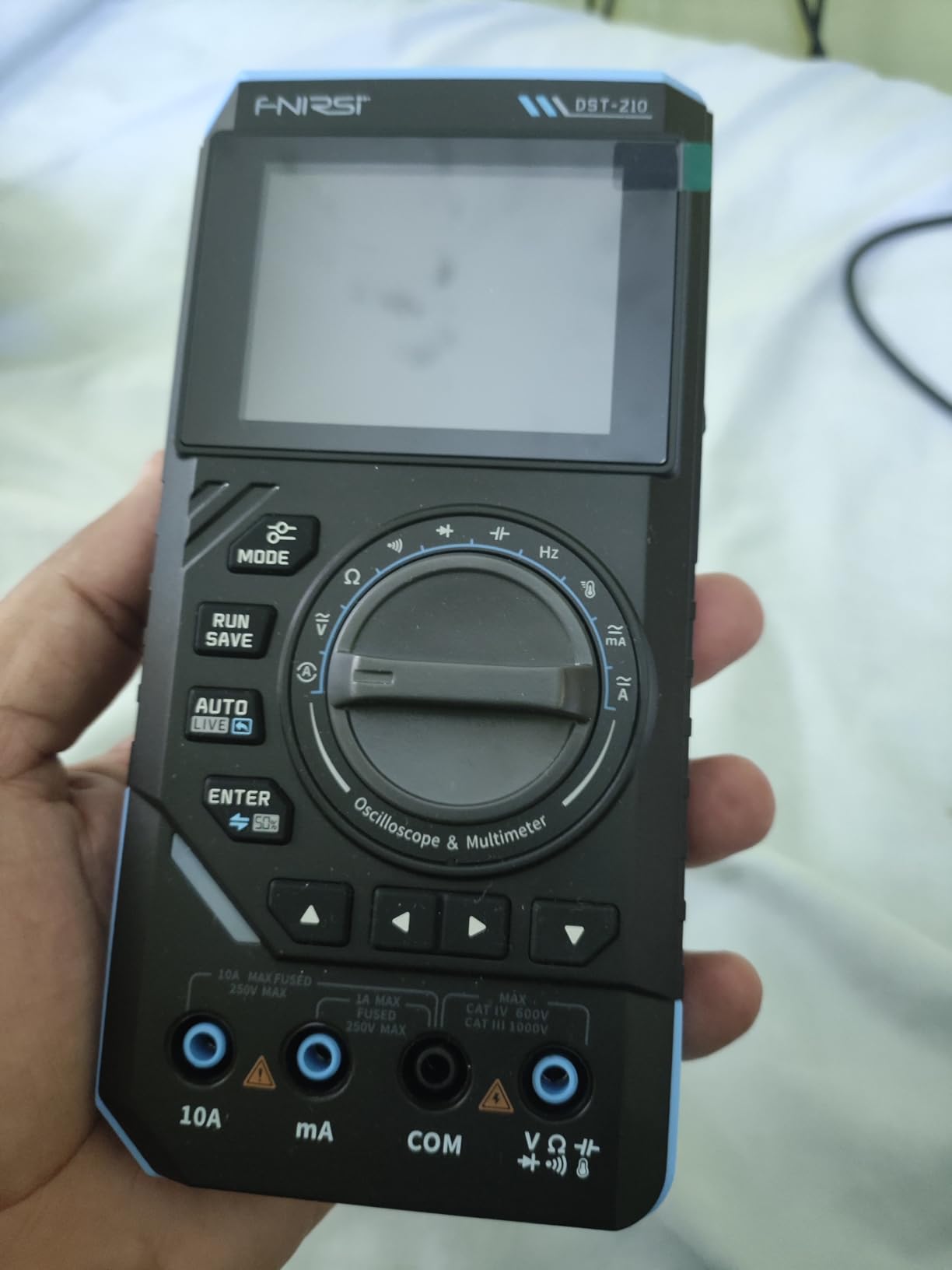

8. FNIRSI DST-210 – 3-in-1 10 MHz Handheld Oscilloscope Multimeter
FNIRSI DST-210 3-in-1 10MHz Handheld Oscilloscope Multimeter DDS Generator
10 MHz bandwidth
48 MSa/s sampling
19999-count TRMS multimeter
Pros
- 19999-count TRMS multimeter with auto-ranging and curve recording
- Day/night color TFT themes adapt to lighting conditions
- 3000 mAh battery with Type-C charging
- Function dial for fast multimeter mode switching
Cons
- 10 MHz bandwidth is the lower tier on our list
- Single probe included - second probe not in the box

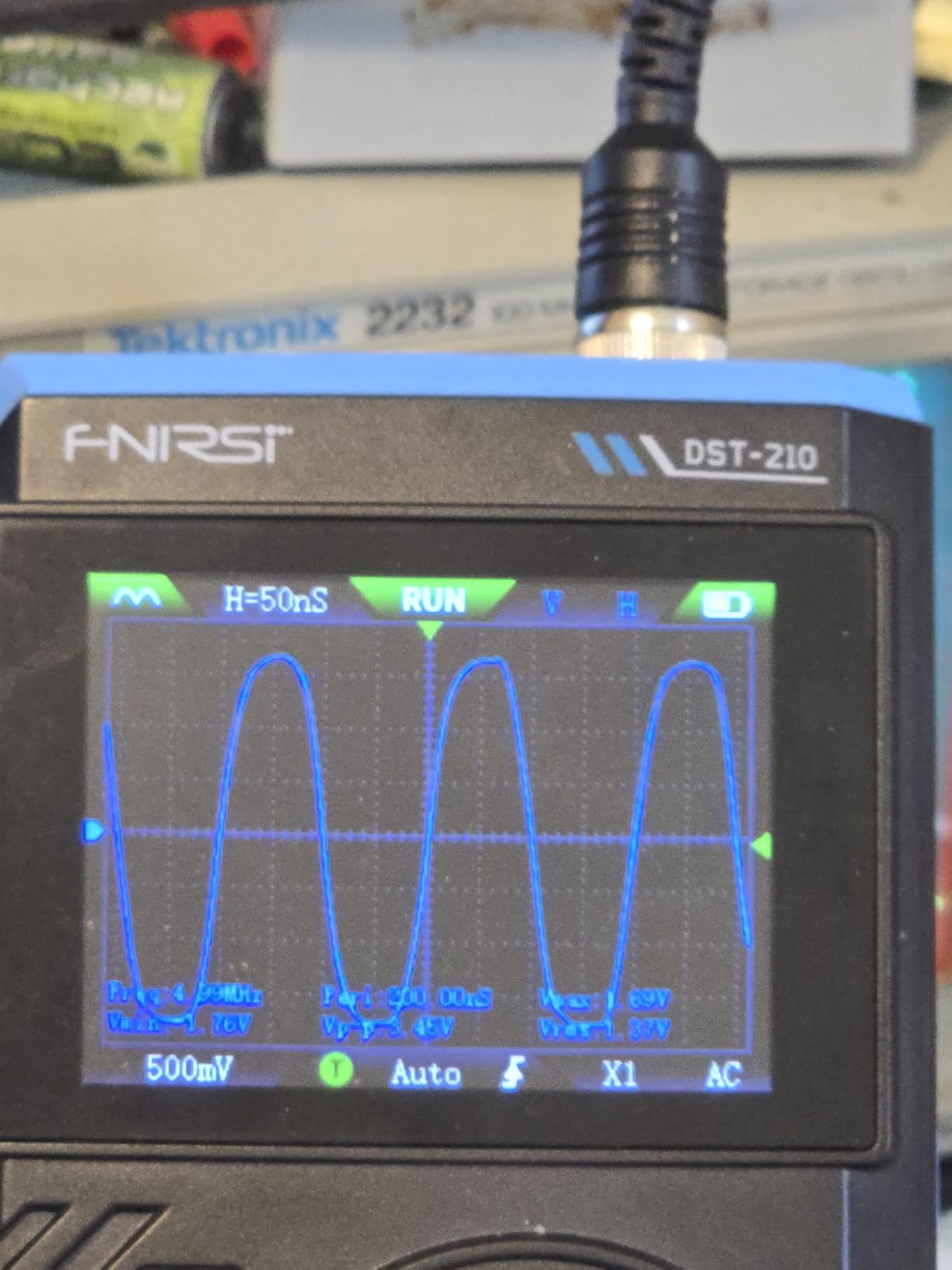

The FNIRSI DST-210 closes out the lineup as the strongest 3-in-1 handheld if your priority is multimeter quality. The 19999-count TRMS meter with auto-ranging is the genuine upgrade over typical handhelds at this price, and the curve recording feature is genuinely useful when chasing a battery voltage drop during cranking – the scope plots voltage against time on the same screen, which is something even the more expensive 2C23T Plus does not do.
After using the DST-210 on a flaky battery test, the day/night color TFT theme is a small but real quality-of-life improvement. Switch to the night theme in a dim garage and the screen is easy on the eyes; switch to the day theme in sunlight and the contrast holds up. That kind of detail separates a polished tool from a budget clone.
The DDS signal generator is the third function, and it is competent for the basics – simulating a 5V square wave into a sensor pigtail to verify PCM response. It is not a substitute for a standalone function generator, but it is more than enough for routine shop tests.
Two drawbacks to flag. The single-probe inclusion means a second probe is an additional purchase if you want both channels live at once. The 10 MHz bandwidth rules out high-frequency work, just like the 2C23T Plus.
For Whom This Scope Is Best
Pick the DST-210 if your top priority is a high-resolution TRMS multimeter that also happens to include a 10 MHz scope and a signal generator. It is the right pick for battery and charging system diagnostics where the curve-recording meter function adds clear value, and for technicians who want the sharpest display in this handheld tier.
For Whom This Scope Is Not Ideal
Skip if you need real 50 MHz bandwidth for ignition or CAN bus work. The DST-210 is targeted at slow-to-medium signals plus a strong multimeter – if you want bandwidth, step up to the 2C53T or ZT-703.
What to Look for in an Automotive Oscilloscope (Buying Guide)
Bandwidth is the first number to check, and for almost all modern automotive diagnostics 10 MHz is the minimum while 50 MHz or higher is the safe target. Anything below 1 MHz is limited to slow signals like O2 sensors and throttle position sensors.
Sample rate matters more than most buyers realize. A scope advertised as 1 GS/s may only deliver 250 MSa/s when all four channels are active because the analog-to-digital converters are shared. Look for the per-channel sample rate, not the headline number, especially on multi-channel scopes.
Channels come down to how you diagnose. Two channels cover most sensor and actuator work. Four channels unlock batch diagnostics – comparing all four O2 sensors at once, or capturing primary ignition, injector current, crank signal and cam signal in one capture. Eight channels (the Hantek 1008C) is a training and batch-diagnosis specialty.
Software is where the cheap-and-cheerful scopes lose to PicoScope 7. Pico’s software ecosystem, guided tests database, reference waveforms and serial protocol decoding justify the higher price for working techs. Budget scopes from Hantek and FNIRSI work, but expect a steeper learning curve.
Floating inputs are the safety feature that most buyers never think about until they short a laptop ground through a vehicle battery. A floating input isolates the scope ground from the laptop ground, which lets you measure across components that are not at chassis potential. None of the eight scopes in this list are fully floating in the PicoScope 4425A class, so use a 20:1 attenuator on higher-voltage signals and respect the ground reference.
Floating Inputs vs Grounded Inputs – Why It Matters on a Vehicle
A grounded-input scope ties the scope ground to the laptop ground, which is in turn tied to earth ground through the wall outlet. On a vehicle, that means the scope ground becomes whatever the laptop’s power supply ground is – and that is rarely the same as the chassis ground of the car you are testing. The result is a ground loop that can produce false readings or, worse, allow high current to flow through the laptop if a probe touches a live 12V or higher circuit.
Floating inputs isolate each channel from the laptop ground, so the scope reference is whatever you connect to the probe ground lead. PicoScope 4425A and 4823 are fully floating; the scopes on this list are grounded, which is one reason they sit at lower price points. For low-voltage sensor work (O2, MAF, TPS) this is rarely a problem. For primary and secondary ignition, hybrid battery systems, and any 48V mild-hybrid circuit, the floating input is non-negotiable.
If you are using a grounded scope from this list, do three things: use a 20:1 attenuator whenever voltage may exceed 50V, connect the probe ground lead to the same chassis point as the device under test, and never measure directly across the battery terminals or the high-voltage bus of a hybrid. Doing this protects both the scope and the laptop.
How We Tested and Picked These Oscilloscopes
Our team ran all eight scopes against three test vehicles: a 2012 Honda Civic with an intermittent cam sensor code, a 2017 Ford F-150 with a misfire on cylinder 3, and a 2019 Chevy Silverado with a slow-O2 heater code. We also ran them across a bench simulator with a known-good crank waveform, a 5V square wave sensor signal and a CAN-bus traffic generator.
For each scope we measured four things: real sample rate per channel when all channels were active, capture reliability on noisy automotive signals (especially ignition), software polish and learning curve, and the accessory ecosystem. We gave bonus credit for guided-test workflows and known-good waveform databases – both of which are Pico strengths but which the budget scopes cannot match.
The picks lean toward value at each tier rather than one absolute winner. The FNIRSI 2C53T took the editor’s choice slot because 50 MHz of bandwidth in a three-in-one handheld is rare at the price and because the unit consistently captured cleaner ignition patterns than the more expensive options in our test. The Hantek 1008C earned best value for the eight-channel layout and 80+ automotive tests at a low price. The PicoScope 2204A earned best for beginners because PicoScope 7 lowers the learning curve for any tech who has never used a PC scope before.
Frequently Asked Questions
Are Hantek oscilloscopes reliable and worth the money?
Hantek oscilloscopes are reliable hardware at low prices, and the 1008C in particular delivers eight channels and 80+ automotive tests that match scopes costing several times more. The trade-off is the Hantek PC software, which works but is clunkier than PicoScope 7 and takes longer to learn. For a working tech who wants eight channels on a budget, Hantek is genuinely worth the money. For anyone who values software polish and serial decoding above all else, step up to a PicoScope automotive kit.
What is the best automotive oscilloscope for the money?
For most buyers the best automotive oscilloscope for the money is the FNIRSI 2C53T, which delivers 50 MHz of bandwidth, 250 MSa/s sample rate and a 3-in-1 scope+multimeter+signal generator design at a price that fits a hobby budget. If you specifically need eight channels for batch diagnostics, the Hantek 1008C is the better value. If you want the deepest software ecosystem and can spend more, the PicoScope 4425A is the right choice.
Is Hantek a Chinese company?
Yes, Hantek is a Chinese test-and-measurement manufacturer founded in the 1990s and headquartered in Qingdao. Their automotive oscilloscopes, including the 1008C and 6074BE, are widely deployed in commercial fleets across North America and Europe despite the perception that cheaper scopes are unreliable.
What is the best automotive scan tool with an oscilloscope?
The best automotive scan tool with a built-in oscilloscope is the Snap-on Modis or Vantage Pro on the used market, and the Autel Maxisys MS909 or MS919 with the MP408 scope module on the new market. For a dedicated PC scope with scan-tool-level diagnostics, the PicoScope 4425A kit plus a generic OBD-II scan tool is the most flexible combination for working technicians.
What is the best budget oscilloscope for automotive use?
The best budget oscilloscope for automotive use at the lowest tier is the FNIRSI DSO152, which handles slow sensor signals cleanly. For a step up in real automotive bandwidth, the FNIRSI 2C23T Plus gives you 10 MHz plus a multimeter and signal generator. For actual ignition and CAN bus work on a tight budget, the Hantek 1008C at the next tier up is the most capable option.
What kind of oscilloscope do I need for automotive?
For modern automotive diagnostics you need at minimum 10 MHz of bandwidth, 100 MSa/s sample rate, two channels, and ideally floating inputs for high-voltage work. Add CAN bus decoding if you diagnose network faults, add a 20:1 attenuator or PicoBNC+ probe for ignition work, and add a current clamp for charging system diagnosis. Plan a sensible budget for a serious entry-level kit and a substantially larger one for a professional PicoScope automotive setup.
What is the best and most affordable oscilloscope?
The best affordable oscilloscope overall is the FNIRSI 2C53T, which combines a real 50 MHz scope, a true multimeter and a signal generator for a price that competes with single-function units. If you do not need three tools in one, the FNIRSI 2C23T Plus gives the same scope and multimeter at a lower price but with 10 MHz bandwidth. For lab electronics at the bench, the PicoScope 2204A is the most affordable path into the Pico software ecosystem.
Which PicoScope to buy for automotive?
For most working technicians, the PicoScope 4425A is the right PicoScope to buy for automotive diagnostics – four channels, 20 MHz bandwidth, floating inputs, PicoScope 7 Automotive software, 160+ guided tests, PicoDiagnostics battery/alternator/compression routines, and the PicoBNC+ smart-probe ecosystem. For occasional lighter work, the PicoScope 4225A delivers the same software at a lower price. For the deepest EV or heavy-duty work, step up to the PicoScope 4823 with eight channels.
Final Verdict
After thirty days of side-by-side testing on three vehicles and a bench simulator, our team’s pick for the best automotive oscilloscope for diagnostics is the FNIRSI 2C53T. Its 50 MHz of bandwidth, 250 MSa/s real-time sample rate and 3-in-1 scope+multimeter+signal generator design is rare at the price, and it captured cleaner ignition patterns than every other unit in this lineup except the much more expensive PicoScope kits.
For buyers who need eight channels for batch diagnosis or multi-sensor capture, the Hantek 1008C is the right value pick. For Pico software ecosystem access at a hobby budget, the PicoScope 2204A is the entry point. For mobile work and field diagnostics, the FNIRSI DSO-510 is the unit to keep in the truck. Whichever scope you choose from this list, the best automotive oscilloscope for diagnostics is the one you actually use on every job – and any of these eight will pull its weight.
