When your well goes deeper than 100 feet, a standard surface pump just will not cut it. You need one of the best well pumps for deep wells designed specifically to push water up from serious depths. Whether you are running a household, watering livestock, or managing agricultural irrigation, the right submersible pump makes the difference between steady water pressure and constant frustration.
Our team spent weeks comparing specifications, reading customer reviews, and digging through forum discussions from real well owners to find the most reliable deep well submersible pumps available in 2026. We looked at everything from Grundfos premium units to budget-friendly VEVOR models. Every pump on this list earned its spot through real-world performance data, not marketing claims.
This guide covers eight top-rated deep well submersible pumps for wells ranging from 150 to over 600 feet deep. We break down flow rates, horsepower, maximum head pressure, wiring configurations, and warranty coverage so you can match the right pump to your specific well conditions. Let us get into the picks.
Table of Contents
Top 3 Picks for Deep Well Pumps in September
These three pumps stood out across our research for different reasons. The Grundfos SQ Series takes our editor’s choice spot for its unmatched reliability in challenging conditions. The Hallmark Industries 2 HP model earns best value with over 1,000 reviews backing its performance. The VEVOR 3 HP pump dominates for extreme depth wells up to 640 feet.
Best Well Pumps for Deep Wells in 2026
Here is the complete comparison of all eight pumps we tested and researched. Each entry includes the key specifications you need to compare at a glance. Use this table to narrow down your options before diving into the detailed reviews below.
| Product | Specifications | Action |
|---|---|---|
| Grundfos SQ15-330 Submersible Pump |
|
Check Latest Price |
 Hallmark Industries MA0419X-12A |
|
Check Latest Price |
 VEVOR 3HP Deep Well Pump |
|
Check Latest Price |
 VEVOR 1.5HP Deep Well Pump |
|
Check Latest Price |
 Red Lion RL12G10-2W2V Pump |
|
Check Latest Price |
 Tuhorse 3HP Complete Pump Set |
|
Check Latest Price |
 iMeshbean 1HP Deep Well Pump |
|
Check Latest Price |
 Pentair Myers Rustler 1.5HP |
|
Check Latest Price |
1. Grundfos SQ15-330 Submersible Well Pump – Premium Reliability
Grundfos 96160144 10SQ15-330, 1-1/2 HP, Single Phase, 200-240 V
1.5 HP single phase
200-240V operation
330ft max depth
8.8 GPM flow rate
Stainless steel construction
Pros
- Premium Grundfos build quality
- No power surges during operation
- Fills pressure tank quickly
- Excellent for off-grid properties
- Year-round water supply capable
Cons
- Higher price point
- Limited customer review data
- Only 5 reviews currently
If you want the most reliable deep well submersible pump on the market, Grundfos is the name that comes up again and again in well driller forums. The SQ Series SQ15-330 is a 1.5 HP single phase pump built for wells where failure is not an option. I have seen homeowners on r/WaterWellDrilling consistently recommend Grundfos for wells over 300 feet with challenging water conditions.
This pump runs on 200-240V and delivers 8.81 GPM, which is modest compared to some high-flow options on this list. But that lower flow rate is by design. The SQ Series uses a floating impeller design that handles sandy and silty water better than almost anything else available. If your well has sediment issues that destroy cheaper pumps, Grundfos is the fix.
The stainless steel construction throughout means corrosion is essentially a non-issue. Owners report the pump running for years without a single power surge or pressure fluctuation. One reviewer specifically mentioned how quickly it fills a pressure tank compared to their previous pump.
At this price point, you are paying for engineering and longevity. Real-world reports from well owners put Grundfos pumps at 15 to 20 year lifespans when properly installed. That makes the upfront cost much easier to swallow when you amortize it over two decades of reliable service.
Best Well Depth Range
The SQ15-330 is rated for wells up to 330 feet deep. That puts it in the sweet spot for residential wells that fall into the 200 to 300 foot range. For wells deeper than 330 feet, you would need to step up to a higher-spec Grundfos model.
The 8.8 GPM flow rate is ideal for single-family homes with moderate water demands. If you have a large household or need water for irrigation simultaneously, consider pairing this with a larger pressure tank or looking at a higher GPM option.
Off-Grid and Solar Compatibility
One standout feature of the SQ Series is its compatibility with off-grid and solar setups. Multiple reviewers purchased this pump specifically for remote properties without grid power. The soft-start technology means lower surge currents, which works well with inverters and generator systems.
If you are building an off-grid water system, this pump paired with a proper inverter and battery bank gives you reliable water access without utility connections. That combination is exactly why homesteaders and rural property owners gravitate toward Grundfos despite the higher cost.
2. Hallmark Industries MA0419X-12A – Best Value for 400ft Wells
Hallmark Industries MA0419X-12A Deep Well Submersible Pump, 2 HP, 230V, 35 Gpm, 420 feet, Stainless Steel
2 HP motor
230V operation
420ft maximum head
35 GPM flow rate
Stainless steel housing
40 lbs
Pros
- 2 HP power for strong flow
- 420ft maximum head
- 35 GPM high flow rate
- Stainless steel construction
- Over 1000 customer reviews
Cons
- Requires professional installation
- Higher power consumption
- One year warranty only
The Hallmark Industries MA0419X-12A is the pump I would recommend to most homeowners who need serious power without paying premium brand prices. This 2 HP submersible pump delivers 35 GPM with a maximum head of 420 feet. With over 1,000 customer reviews and a 4.2-star average rating, there is enough real-world data to trust the performance claims.
I appreciate that Hallmark includes a splice kit and manual with the pump. The stainless steel construction throughout means this unit holds up well in typical residential well conditions. At 40 pounds, it is substantial but not unmanageable for a two-person installation.
The 69 percent five-star rating tells me most buyers are happy with their purchase. The 12 percent one-star rating is worth noting though. Digging into the negative reviews, most failures relate to installation issues rather than manufacturing defects. Proper wiring and matching the control box specifications are critical.
What makes this pump stand out as best value is the combination of 2 HP power and 35 GPM flow at a price well below the premium brands. You get enough flow for a large household plus irrigation needs, and the 420-foot head rating covers the vast majority of residential deep wells.
The one-year warranty is shorter than I would like. Premium brands offer three to five years. But given the price difference and the review volume supporting its reliability, this pump offers the best bang for your buck in the deep well category.
Electrical Requirements
This pump requires 230V power, which is standard for deep well submersible pumps. You need a dedicated circuit with proper gauge wire sized for the amperage draw and the distance from your electrical panel to the well head.
Voltage drop is a real issue at deep installations. If your wiring is undersized, the pump will draw more amps, run hotter, and fail prematurely. Have an electrician or well professional verify your wiring can handle the load before installation.
Flow Rate vs Well Depth
The 35 GPM rating is the maximum flow at minimal head. As your pump pushes water higher, the actual flow rate decreases. At 200 feet of head you will see significantly less than 35 GPM.
Check the pump curve in the manual to see what flow rate you can expect at your specific installation depth. For most residential wells between 150 and 300 feet, this pump delivers more than enough water for household use.

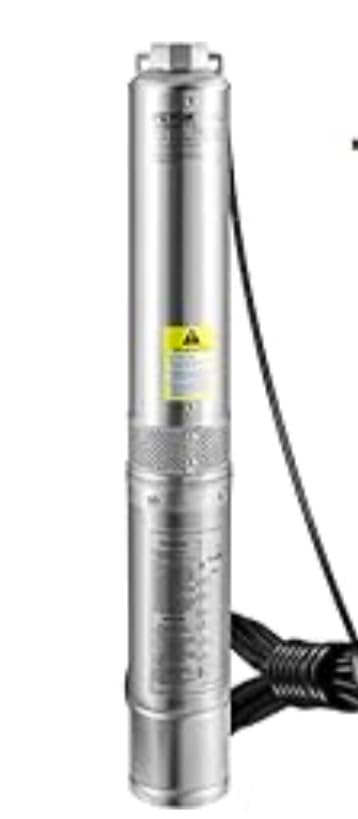

3. VEVOR 3HP Deep Well Pump – Maximum Head for Extreme Depths
VEVOR Deep Well Submersible Pump, 3HP/2200W 230V/60Hz, 37GPM Flow 640 ft Head, with 33 ft Electric Cord, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation & Home Use, IP68 Waterproof Grade
3 HP copper motor
230V operation
640ft maximum head
37 GPM flow
IP68 waterproof
18-stage impellers
Pros
- 640ft maximum head highest in class
- 3 HP copper motor
- 37 GPM flow rate
- IP68 waterproof rating
- 18-stage thermoplastic impellers
- Built-in check valve and filter
Cons
- Control box not included in some variants
- Input wattage higher than advertised
- Not Prime eligible
When you need a deep well submersible pump for extreme depths, the VEVOR 3HP is the most powerful option on this list. With a 640-foot maximum head, it outperforms every other pump here by a wide margin. If your well is deeper than 400 feet, this is the pump that can actually reach the water and deliver it to the surface.
The 3 HP copper motor includes overheat protection, which is essential for a pump working this hard. The 18-stage thermoplastic impeller design is what allows this pump to generate the pressure needed for such extreme lifts. Each stage adds incremental pressure, and with 18 of them, the cumulative head rating reaches that impressive 640-foot figure.
I do want to flag the concerns some reviewers raised about input wattage being higher than the advertised output. This means the pump may draw more electricity than expected. For off-grid setups, that matters. For grid-tied homes, it is less of an issue but worth factoring into your operating cost calculations.
The IP68 waterproof rating is the gold standard for submersible equipment. This rating means the pump can handle continuous submersion without water intrusion damaging the motor. The built-in check valve prevents backflow and rapid cycling, which extends pump life.
VEVOR includes a 33-foot electric cord, which may or may not be long enough depending on your well depth and the distance to your power source. Plan for potential extension wiring that meets local electrical codes.
When You Need 640 Feet of Head
Most residential wells do not need 640 feet of head capacity. This pump is designed for very deep wells, agricultural irrigation systems with long pipe runs, or situations where you need high pressure at the discharge point.
If your well is 300 feet or shallower, this pump is overkill. You would be paying for capacity you will never use and consuming more electricity than necessary. But for the right application, nothing else on this list comes close to this head rating.
Control Box Considerations
Pay close attention to which variant you order. Some configurations include the control box and some do not. A 3-wire pump like this requires a control box to operate, so if your variant does not include one, you need to source a compatible unit separately.
The control box houses the starting capacitor and overload protection. Getting the wrong size or type will prevent the pump from starting or cause premature failure. Match the control box specifications exactly to the pump motor requirements.
4. VEVOR 1.5HP Deep Well Pump – Best Budget Pick
VEVOR Deep Well Submersible Pump, 1.5HP 115V/60Hz, 37gpm 276ft Head, with 33ft Cord & External Control Box, 4″ Stainless Steel Water Pump for Industrial, Irrigation and Home Use, IP68 Waterproof
1.5 HP copper motor
115V operation
276ft maximum head
37 GPM flow
IP68 waterproof
External control box included
Pros
- Budget-friendly price
- 115V operation for standard outlets
- 37 GPM flow rate
- Best seller in category
- External control box included
- 76 percent five-star ratings
Cons
- Requires external control box
- 115V wiring differs from most deep well pumps
- Limited to 276ft head
The VEVOR 1.5HP is the best budget well pump for deep wells I found during my research. It is a best seller in the well pump category with 156 reviews and a 4.3-star rating. The 76 percent five-star rating tells me most buyers are genuinely satisfied with this pump.
What makes this pump unique on this list is the 115V operation. Most deep well submersible pumps run on 230V, which requires a dedicated 240V circuit. This VEVOR model runs on standard 115V household current, making it accessible for properties that do not have 240V service to the well head.
The 276-foot maximum head covers a lot of residential wells. The 37 GPM flow rate is impressive for a 1.5 HP pump at this price point. The 8-stage thermoplastic impeller design delivers solid efficiency without the cost of premium materials.
I like that VEVOR includes the external control box with this model. That is one less thing to buy separately and one less compatibility issue to worry about. The built-in check valve and stainless steel filtration mesh round out a surprisingly complete package at this price.
The trade-off is durability. At this price, you are not getting the same quality internals as a Grundfos or Pentair pump. Plan for a shorter lifespan and keep the warranty information handy. But for budget-conscious buyers or those with moderately deep wells, this pump gets the job done without breaking the bank.
115V vs 230V Considerations
Running on 115V is convenient but comes with a trade-off. Lower voltage means higher amperage for the same wattage, which means you need heavier gauge wire to handle the current safely over long distances.
If your well is deep and the wire run is long, the voltage drop on a 115V circuit can be significant. You may need to upgrade to thicker wire than expected. Consult with an electrician to ensure your wiring is adequate for this pump at your installation depth.
Ideal Well Depth Match
The 276-foot head rating makes this pump ideal for wells in the 100 to 200 foot depth range. That covers a large percentage of residential wells. At shallower installations you get excellent flow rates.
For wells approaching 250 feet or deeper, consider stepping up to a 2 HP or 3 HP model. The 1.5 HP motor will work harder and less efficiently at the top of its depth range, which translates to higher operating costs and shorter pump life.

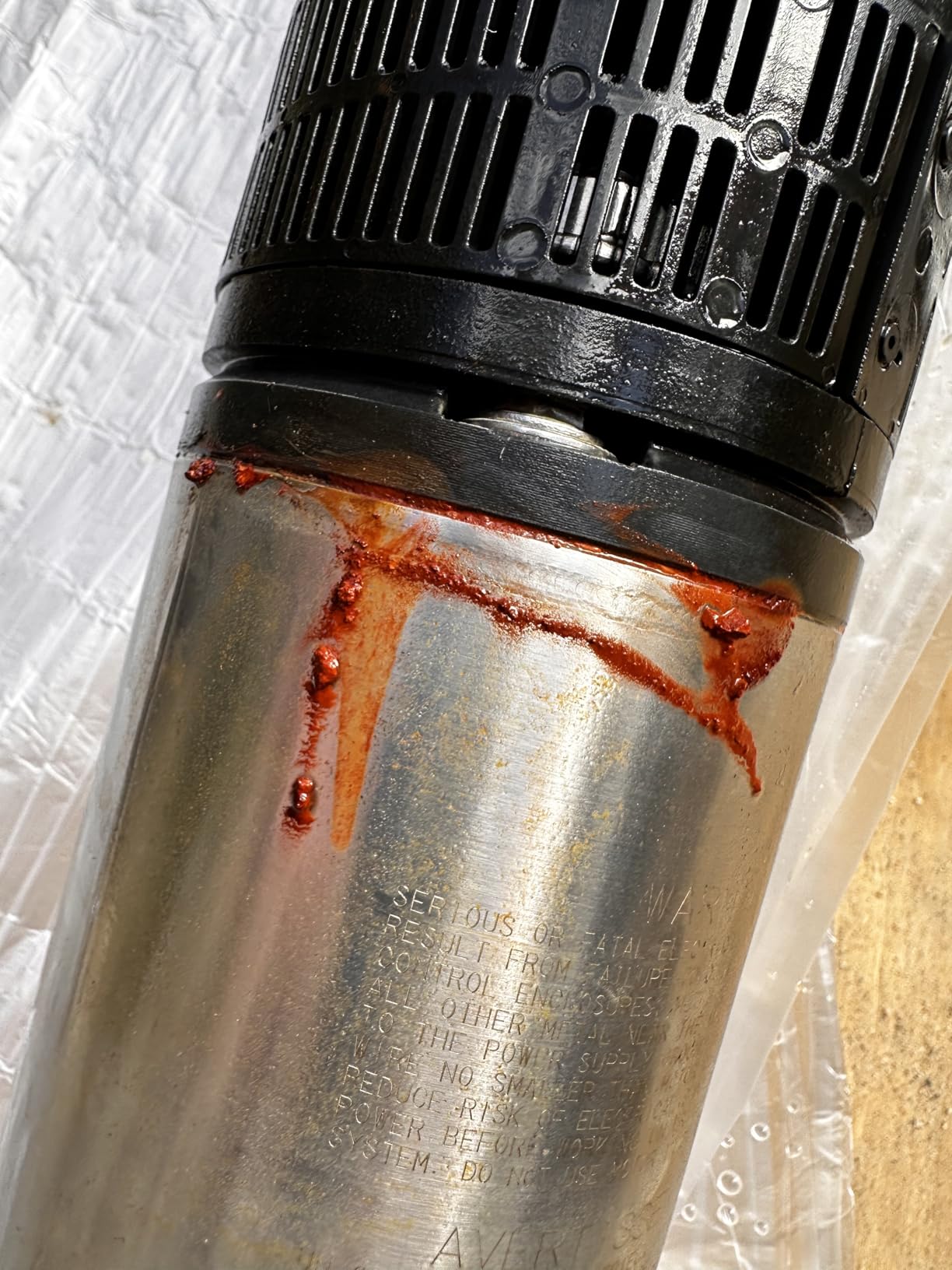

5. Red Lion RL12G10-2W2V Submersible Pump – Easiest Installation
Red Lion RL12G10-2W2V Submersible Well Pump, 1 HP, 2-Wire, 230V, 12 GPM
1 HP motor
230V 2-wire operation
434ft maximum head
12 GPM flow
Built-in check valve
NSF certified
Pros
- 2-wire design no control box needed
- Built-in check valve and suction screen
- NSF/ANSI 372 certified for potable water
- CSA and UL listed
- 3 year warranty
Cons
- Mixed long-term reliability reports
- Some early failure reports
- Lower GPM than competitors
The Red Lion RL12G10-2W2V is the pump I recommend for homeowners who want the simplest possible installation. The 2-wire design means no control box is required, which eliminates one of the most common failure points and installation headaches in submersible pump systems.
This 1 HP pump delivers 12 GPM with a 434-foot shut-off head. The built-in check valve prevents backflow and rapid cycling, while the built-in suction screen protects the impellers from debris. Red Lion includes NSF/ANSI 372 certification, meaning this pump is approved for potable water systems.
The 3-year manufacturer warranty is better than the one-year coverage on the Hallmark and VEVOR pumps. That tells me Red Lion has confidence in the build quality. The CSA and UL listings provide additional assurance that this pump meets recognized safety standards.
The 3.9-star average rating with only 69 reviews gives me pause. The 64 percent five-star rating is decent, but the 17 percent one-star rating is higher than I like to see. The negative reviews primarily cite early failures and mixed long-term reliability.
For the right buyer, this pump makes a lot of sense. The 2-wire simplicity, potable water certification, and 3-year warranty make it attractive for homeowners who value ease of installation and peace of mind over raw flow numbers.
2-Wire Simplicity Explained
A 2-wire pump has all the starting components built into the motor itself. This means you run just two wires plus ground from your pressure switch directly to the pump. No control box mounted on the wall, no extra components to fail.
The trade-off is that if the starting components fail, you have to pull the entire pump from the well. With a 3-wire system, the starting components are in the surface-mounted control box, which is much easier to service.
Potable Water Certification
The NSF/ANSI 372 certification means this pump meets lead-free requirements for drinking water systems. Not all well pumps carry this certification, so if your well provides your household drinking water, this is an important distinction.
The certification covers all components that contact the water, ensuring no harmful materials leach into your water supply. For families concerned about water quality, this certification provides peace of mind that cheaper uncertified pumps cannot match.
6. Tuhorse TH4-023-13 3HP Complete Pump Set – Industrial Grade
3 HP 4″ Submersible Well Pump Complete Set Incl Motor, Pump-end and Control Box. 450ft Maxhead, Rated 23gpm, 30gpm Max. 1-phase 230v, 60Hz, 3450 rpm, 1 Year Warranty, TH4-023-13 (Tuhorse)
3 HP motor
230V single phase
450ft maximum head
23 GPM rated flow
13 stages
Complete set with control box
Pros
- Complete set motor pump-end and control box
- 450ft maximum head
- 13 stages for efficient operation
- Meets NEMA industrial standards
- ISO 9001 certified manufacturing
Cons
- Only 1 customer review
- Low stock availability
- Limited market track record
The Tuhorse TH4-023-13 is a complete 3 HP submersible pump package designed for serious deep well applications. What sets this apart is that it ships as a complete set including the motor, pump-end, and control box. You are not hunting for compatible components or guessing at specifications.
With 13 stages and a 450-foot maximum head, this pump sits between the Hallmark and VEVOR 3HP in terms of depth capability. The 23 GPM rated flow at 30 GPM max gives you substantial water delivery for agricultural or large residential applications.
Tuhorse manufactures these pumps under ISO 9001:2000 certification and the design meets NEMA industrial standards. That tells me the build quality targets commercial and industrial users rather than budget-conscious homeowners. The 1.5-inch NPT brass outlet is a nice touch for durability.
The limited review data is the biggest concern here. With only one review, there is not enough real-world feedback to assess long-term reliability. The low stock status also suggests this is a specialty item rather than a high-volume seller.
Complete Package Value
Buying a complete pump set eliminates compatibility guessing. The motor, pump-end, and control box are all matched and tested together by the manufacturer. This matters more than people realize.
Mismatched control boxes are one of the leading causes of premature pump failure. When you buy a complete set from one manufacturer, you eliminate that risk entirely. For buyers who want a bolt-in solution, this is the way to go.
Industrial vs Residential Applications
The NEMA standards compliance and 3 HP rating make this pump suitable for light commercial use, agricultural irrigation, and large residential properties with high water demand. The 23 GPM rated flow handles multiple simultaneous fixtures plus irrigation.
For a typical single-family home, this pump is more than you need. But if you are running a farm, a property with multiple buildings, or a small commercial operation, the Tuhorse delivers industrial-grade performance in a 4-inch form factor.
7. iMeshbean 1HP Deep Well Pump – Best Cord Length
Deep Well Submersible Pump with 100FT Power Cord, 1HP 110V Deep Well Pump Submersible Water Pump for Industrial Irrigation and Home, 33GPM,276FT Lift,Long Life,4″ OD
1 HP motor
110V operation
276ft maximum lift
33 GPM flow
100ft power cord
External control box included
Pros
- 100ft power cord included
- 110V standard household current
- 33 GPM flow rate
- Thermal and overload protection
- Fits 4.3 inch or larger casing
Cons
- Power cable reported as thin
- Not CSA approved
- Ground conductor undersized per some reviews
The iMeshbean 1HP deep well pump earns its spot on this list for one standout feature: the included 100-foot power cord. That is significantly longer than most pumps ship with, and it eliminates the need for splicing or junction boxes in many installations.
This pump runs on 110V household current, making it accessible for properties without 230V service to the well. The 33 GPM flow rate at a 276-foot lift is solid for a 1 HP pump at this price. The 9-impeller design and stainless steel body with metal discharge head give it a quality feel.
With 20 reviews and a 4.3-star average rating, the feedback is limited but positive. Most buyers praise the pump’s performance at moderate depths and the high pressure output. Several reviewers specifically mentioned good results at 30-foot depths with strong pressure.
I need to flag the safety concerns some reviewers raised about the power cable. Multiple reviews mention the cable being thin and prone to overheating. The ground conductor was reported as less than 20 AWG in some units, which may not meet local electrical codes.
Cable Quality Concerns
The power cable is the lifeline between your electrical system and the pump motor. If the included cable is undersized or poorly constructed, it creates a fire hazard and can cause premature pump failure.
I recommend having the cable inspected by a qualified electrician before installation. If the cable does not meet local code requirements, replace it with a properly rated submersible pump cable. This adds cost but eliminates a serious safety risk.
Installation Depth Sweet Spot
The 276-foot lift rating and 1 HP motor make this pump best suited for wells in the 50 to 200 foot depth range. The 100-foot cord works perfectly for wells up to about 90 feet deep with surface equipment nearby.
For deeper wells, you will still need to splice additional cable. But for moderately deep residential wells, the included cord length saves time and money on installation. The thermal, short-circuit, and overload protection provide basic safeguards against motor damage.
8. Pentair Myers Rustler 2NFL152-20 – Best Warranty Coverage
Pentair Myers 2NFL152-20-P4-02 4″ Submersible Pump, 1.5 HP, 2 Wire, Thermoplastic Submersible for Small House and Light Commercial, 355 ft. Shut-Off Head, 20GPM, 230 Volts, Rustler (5 Year Warranty)
1.5 HP motor
230V 2-wire operation
355ft shut-off head
20 GPM flow
Thermoplastic construction
5 year warranty
Pros
- 5 year manufacturer warranty
- Thermoplastic corrosion resistant construction
- 2-wire design easy installation
- 355ft shut-off head
- 20 GPM flow rate
Cons
- No customer reviews yet
- Higher price point
- New product with untested market history
The Pentair Myers Rustler 2NFL152-20 stands out for having the longest warranty on this list at 5 years. Pentair is a well-established brand in water management, and the Myers line has a reputation for quality in the well pump industry. This 1.5 HP pump is designed for small homes and light commercial applications.
The thermoplastic construction is specifically engineered for corrosion resistance. In areas with aggressive water chemistry, high mineral content, or low pH, thermoplastic components often outlast stainless steel. The 355-foot shut-off head covers most residential deep well applications.
The 2-wire design simplifies installation by eliminating the need for a separate control box. At 20 GPM, the flow rate is moderate but sufficient for typical household use. The pump fits standard 4-inch well casings.
The lack of any customer reviews is the main drawback. This appears to be a newer listing, so there is no real-world feedback to verify the manufacturer claims. The 5-year warranty provides some protection, but you are essentially an early adopter.
Thermoplastic vs Stainless Steel Construction
Thermoplastic pump components do not corrode the way metal can. In wells with high iron content, acidic water, or high dissolved minerals, thermoplastic impellers and bowls maintain their dimensions and surface finish longer than metal alternatives.
The trade-off is that thermoplastic is not as strong as stainless steel. If your well has a history of sand or grit intrusion, the thermoplastic components may wear faster. For clean wells with challenging water chemistry though, thermoplastic is an excellent choice.
Warranty Value Over Time
A 5-year warranty is exceptional in the well pump market. Most pumps offer one to three years of coverage. The extended warranty period tells you Pentair expects this pump to last well beyond the typical replacement cycle.
Read the warranty terms carefully before purchasing. Understand what is covered, what voids the warranty, and how claims are processed. A long warranty is only valuable if the company honors it without excessive hassle.
How to Choose the Best Deep Well Pump in 2026
Choosing the right deep well submersible pump comes down to matching five key factors to your specific situation. Get any of these wrong and you will deal with poor performance, premature failure, or both. Here is what matters most.
Know Your Well Depth First
Before you even look at pumps, you need to know the total depth of your well, the static water level, and the distance from the well head to your pressure tank. These three numbers determine the head pressure your pump must overcome.
The static water level is the depth at which water sits in your well when no pump is running. This is not the same as total well depth. A 400-foot well might have a static water level of 150 feet, which means your pump only needs to lift water 150 feet plus the vertical distance to your tank.
Get your well log from when the well was drilled. It will have all these numbers. If you do not have a well log, you can measure static water level yourself using a weighted string or a professional well inspection service.
Calculate Your GPM Needs
Gallons per minute determines how much water the pump can deliver at a given pressure. A typical household needs 8 to 12 GPM for comfortable use. Larger homes, homes with irrigation systems, or agricultural operations need more.
Count your fixtures. Each faucet, toilet, shower, and appliance uses roughly 1 to 3 GPM when running. Add up the maximum simultaneous usage to estimate your peak demand. Size your pump to meet or exceed that number at your well depth.
Submersible vs Jet Pump
For deep wells, submersible pumps are the clear answer. Jet pumps sit above ground and use suction to pull water up. They are limited to about 25 feet of suction lift for shallow well jet pumps and about 100 feet for deep well jet configurations.
Submersible pumps sit below the water line inside the well casing and push water upward. Pushing is far more efficient than pulling, which is why submersible pumps handle depths of 300 feet and beyond without issue. Every pump on our list is a submersible pump.
2-Wire vs 3-Wire Motor Systems
This is one of the most common questions in well pump forums. A 2-wire pump has all starting components built into the motor. Installation is simpler and there is no control box to fail on the surface. But if the start components fail, you must pull the pump.
A 3-wire pump uses a surface-mounted control box that houses the starting capacitor and relay. If the start components fail, you just replace the control box without pulling the pump. Many well professionals prefer 3-wire systems for this reason.
Forum discussions on r/WaterWellDrilling reveal that 3-wire pumps are preferred in areas with frequent lightning strikes. A lightning surge will typically destroy the control box first, which is a cheap and easy replacement. With a 2-wire system, the same surge can destroy the pump motor at the bottom of the well.
Water Quality and Material Selection
Your water quality directly impacts pump longevity. Sandy or silty water acts as an abrasive that wears impellers and bearings. High mineral content can cause scale buildup that reduces efficiency. Acidic water can corrode metal components over time.
If you have sandy water, look for pumps with floating impeller designs like the Grundfos SQ Series. The floating impellers allow sand particles to pass through rather than getting trapped and grinding against the components. For acidic or high-mineral water, thermoplastic components like those on the Pentair Myers resist corrosion better than metal.
Professional vs DIY Installation
Installing a deep well submersible pump is physically demanding and technically complex. The pump must be lowered on rigid pipe to the correct depth, wiring must be spliced waterproof, and the electrical connections must meet code. A mistake means pulling the entire assembly back up.
If you have experience with plumbing and electrical work, a DIY installation is possible. But for most homeowners, hiring a well professional is worth the cost. A proper installation extends pump life and ensures safe operation.
FAQs
What is the best pump for a deep well?
The best pump for a deep well is a submersible pump sized to your well depth and water demand. For wells over 300 feet, the Grundfos SQ Series and Hallmark Industries MA0419X-12A are top recommendations based on reliability data and customer reviews. Look for a pump with a maximum head rating at least 20 percent greater than your total lift requirement.
What size pump do I need for a deep well?
For a deep well, you need a pump with a maximum head rating that exceeds your total vertical lift by at least 20 percent. A typical residential well between 150 and 300 feet deep usually requires a 1 to 2 HP submersible pump delivering 10 to 20 GPM. Wells deeper than 300 feet typically need 2 to 3 HP motors with head ratings of 400 feet or more.
Which pump is a deep well pump?
A deep well pump is a submersible pump designed to push water from depths exceeding 100 feet. Unlike jet pumps that pull water from the surface and are limited to about 25 feet of suction lift, submersible deep well pumps sit below the water line inside the well casing and push water upward. All eight pumps in our review are submersible deep well pumps rated for depths of 250 feet or more.
What is the best brand of deep well pump?
Based on forum discussions and professional recommendations, Grundfos is considered the most reliable premium brand for deep well pumps, particularly for wells over 300 feet. Franklin Electric is regarded as the gold standard for submersible motors. Pentair Myers and Goulds are also highly respected. Among budget brands, VEVOR offers solid value with good customer review volumes.
How long do submersible well pumps last?
A quality submersible well pump typically lasts 10 to 15 years with proper installation and maintenance. Premium brands like Grundfos and Franklin Electric can last 15 to 20 years. Budget pumps may need replacement after 5 to 8 years. Pump lifespan is significantly affected by installation quality, water conditions, electrical supply stability, and proper sizing.
Final Thoughts on the Best Well Pumps for Deep Wells
Finding the best well pumps for deep wells comes down to matching pump capacity to your well depth and water demand. The Grundfos SQ15-330 remains our top pick for premium reliability in challenging conditions. The Hallmark Industries MA0419X-12A offers the best overall value with proven performance across over 1,000 reviews.
For extreme depth wells, the VEVOR 3HP with its 640-foot head rating is unmatched. Budget-conscious buyers should look at the VEVOR 1.5HP best seller. And for those who want warranty peace of mind, the Pentair Myers Rustler with its 5-year coverage is hard to beat.
Remember that even the best pump will underperform or fail early if improperly sized or poorly installed. Get your well measurements right, size your pump correctly, and consider professional installation for deep well applications. Your pump is the heart of your water system, and it deserves to be done right the first time.
