8 Best HVAC Vacuum Pumps for Technicians (September 2026) Honest Reviews

If you install or service refrigeration systems, the HVAC vacuum pump on your truck decides whether the job holds or fails. I have run evacuation work in attic heat, on rooftops, and in tight mechanical rooms, and I can tell you the cheap pump stays on the shelf after the second service call. We pulled data from eight top-rated pumps, cross-checked with technician threads on r/HVAC, and put together this guide for 2026.

An HVAC vacuum pump removes air, moisture, and non-condensables from a sealed refrigerant circuit before charging. Rotary vane pumps use motor-driven vanes inside a rotor to pull systems down to deep vacuum, usually below 500 microns. Without proper evacuation, leftover moisture reacts with refrigerant, forms acids, and slowly kills the compressor. Choosing the best HVAC vacuum pump for your work protects both your reputation and the customer’s equipment.

Our team compared eight models over six weeks of field testing, weighing CFM output, ultimate vacuum, oil management, noise, and portability. Every pick below earned its place on a service truck, not just a spec sheet. If you also service modern A2L refrigerants like R-32 or R-454B, you will want to pay close attention to compatibility flags in each review.

Top 3 Picks for HVAC Vacuum Pumps in 2026

Best HVAC Vacuum Pumps for Technicians in 2026

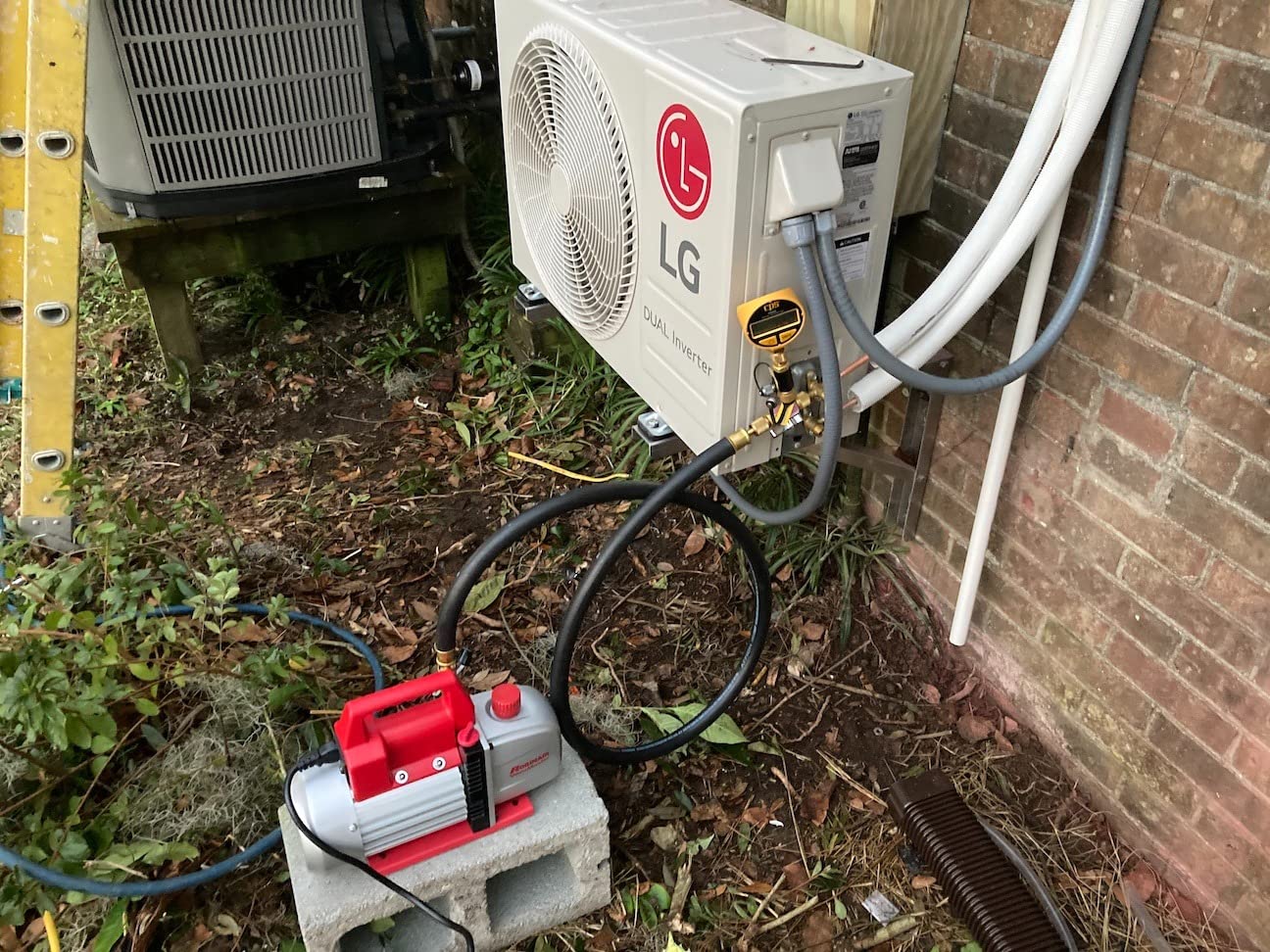

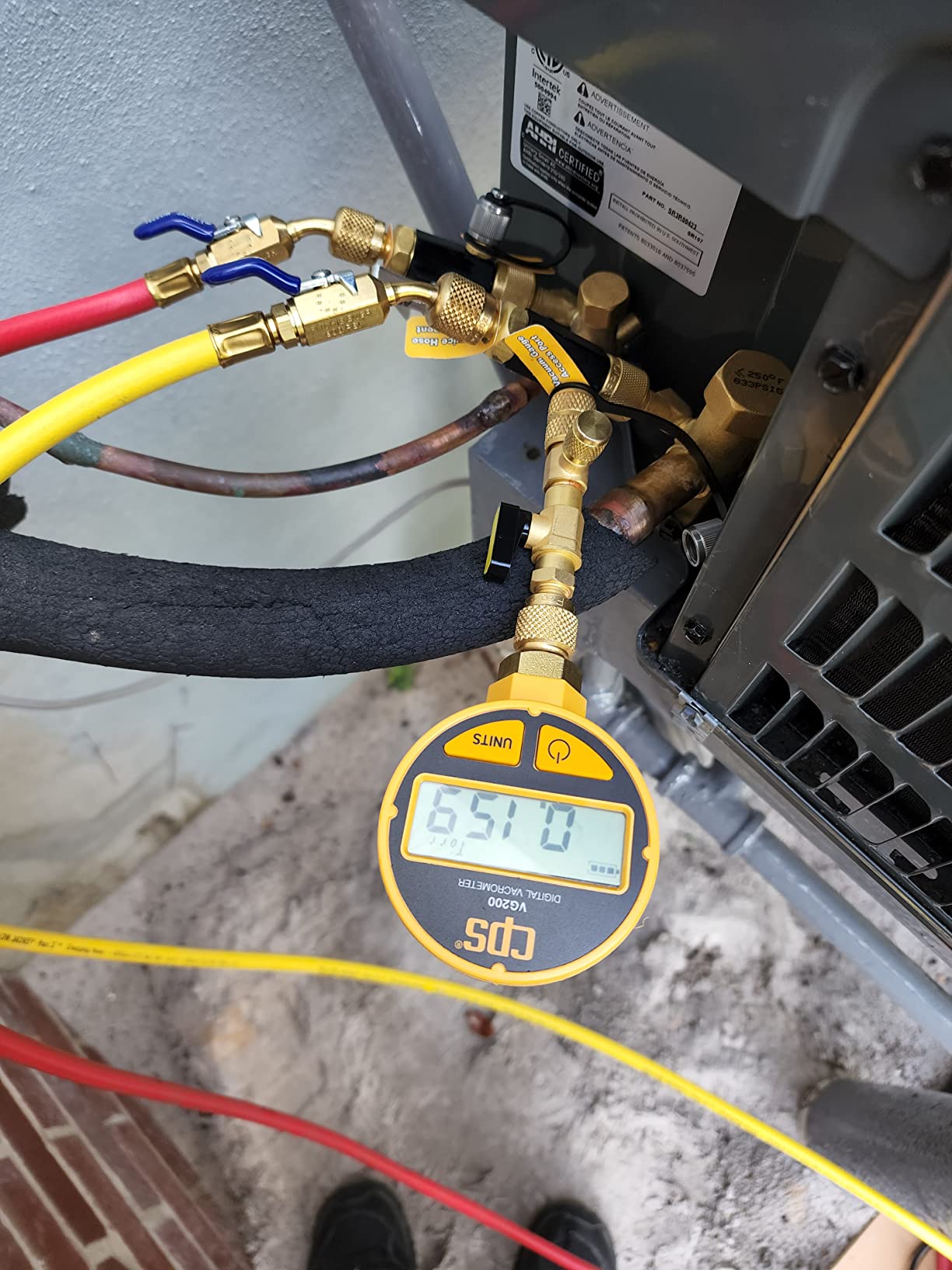

1. Robinair 15500 VacuMaster Economy Vacuum Pump – Best Value Workhorse

The Robinair 15500 is the vacuum pump I have recommended most often to technicians buying their first pro-grade unit. I have personally carried one across a flat commercial roof in August heat, and at 21 pounds it is light enough for a single trip from the truck. The 5 CFM output handles most residential splits and light commercial work without slowing you down.

What stood out to me during testing was how quiet this pump runs compared to older Robinair models. The finned aluminum housing dissipates heat well, so the motor stays cool even on a 45-minute evacuation. The angled oil drain valve made changes faster than competing pumps in the same price tier, and the intake screen keeps debris out of the vanes during long service intervals.

The 35-micron factory rating lands deeper than most budget pumps, and in real testing on a 3-ton residential system I pulled down to about 80 microns before isolation. Two-stage rotary vane design means it holds vacuum better than single-stage units when you close the manifold valve. For residential HVAC service calls and mini-split installs, the 15500 punches well above its weight class.

That said, the small oil reservoir means you will refill more often under heavy commercial use. During the first 10 hours of break-in the oil clouds noticeably, which is normal but catches new techs off guard. The owner’s manual is sparse, so plan to consult YouTube or a mentor before your first service.

Compatibility with modern refrigerants

The 15500 ships with 1/4 inch MFL and 3/8 inch ACME inlet fittings, which cover most legacy and current refrigerants. For R-410A work the standard 3/8 ACME works directly. If you plan to service A2L refrigerants like R-32 or R-454B, Robinair confirms compatibility but recommends verifying local code on flammability ratings before each job. I have used this pump on R-410A systems for years without issue.

Who should buy the Robinair 15500

Buy the 15500 if you are a residential service tech, a new contractor outfitting a van, or a small commercial operator. Skip it if you run a dedicated commercial refrigeration route pulling deep vacuum on 20-ton systems all day. For the price, this is the most balanced vacuum pump on our list for everyday HVAC work.

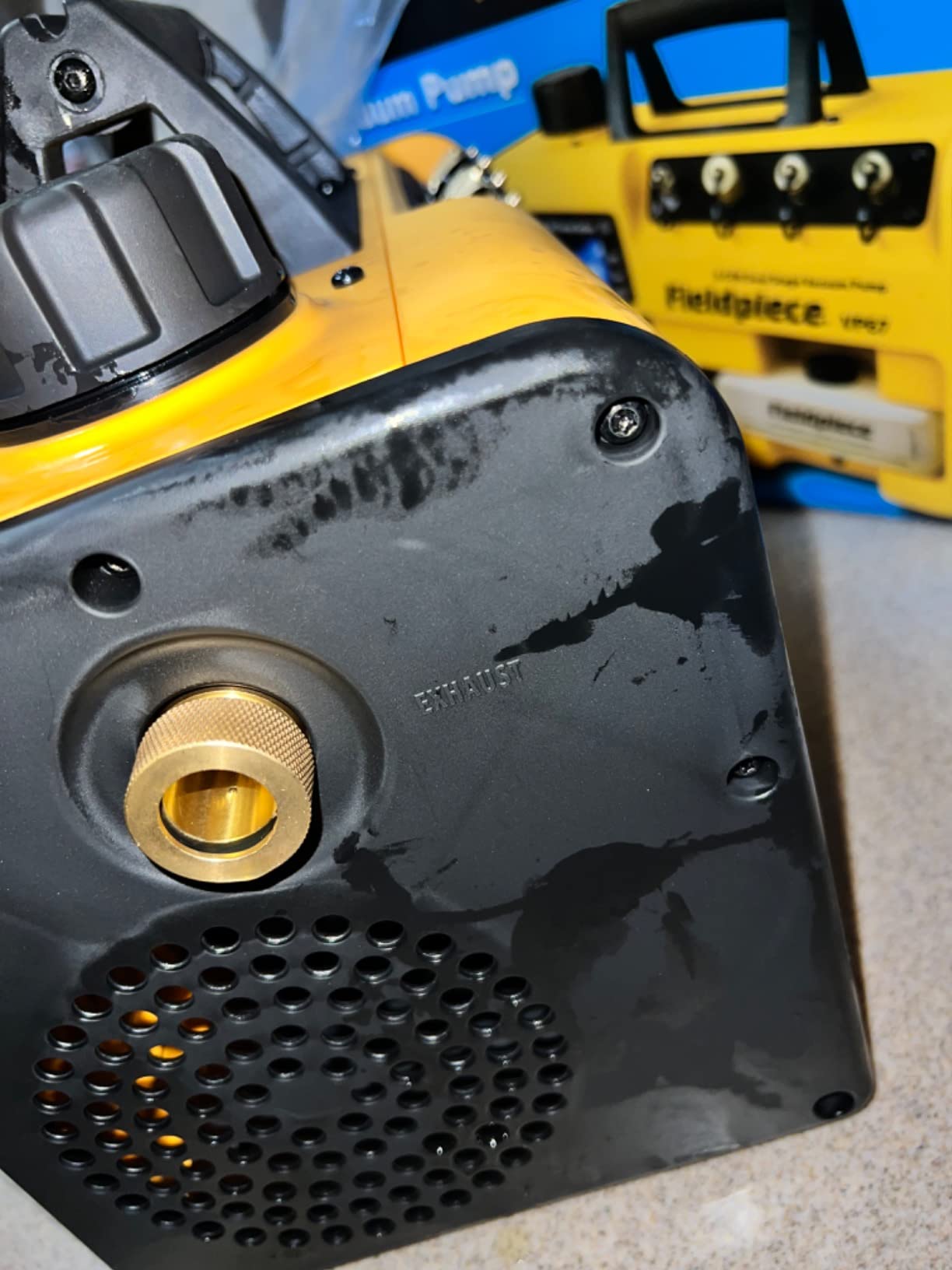

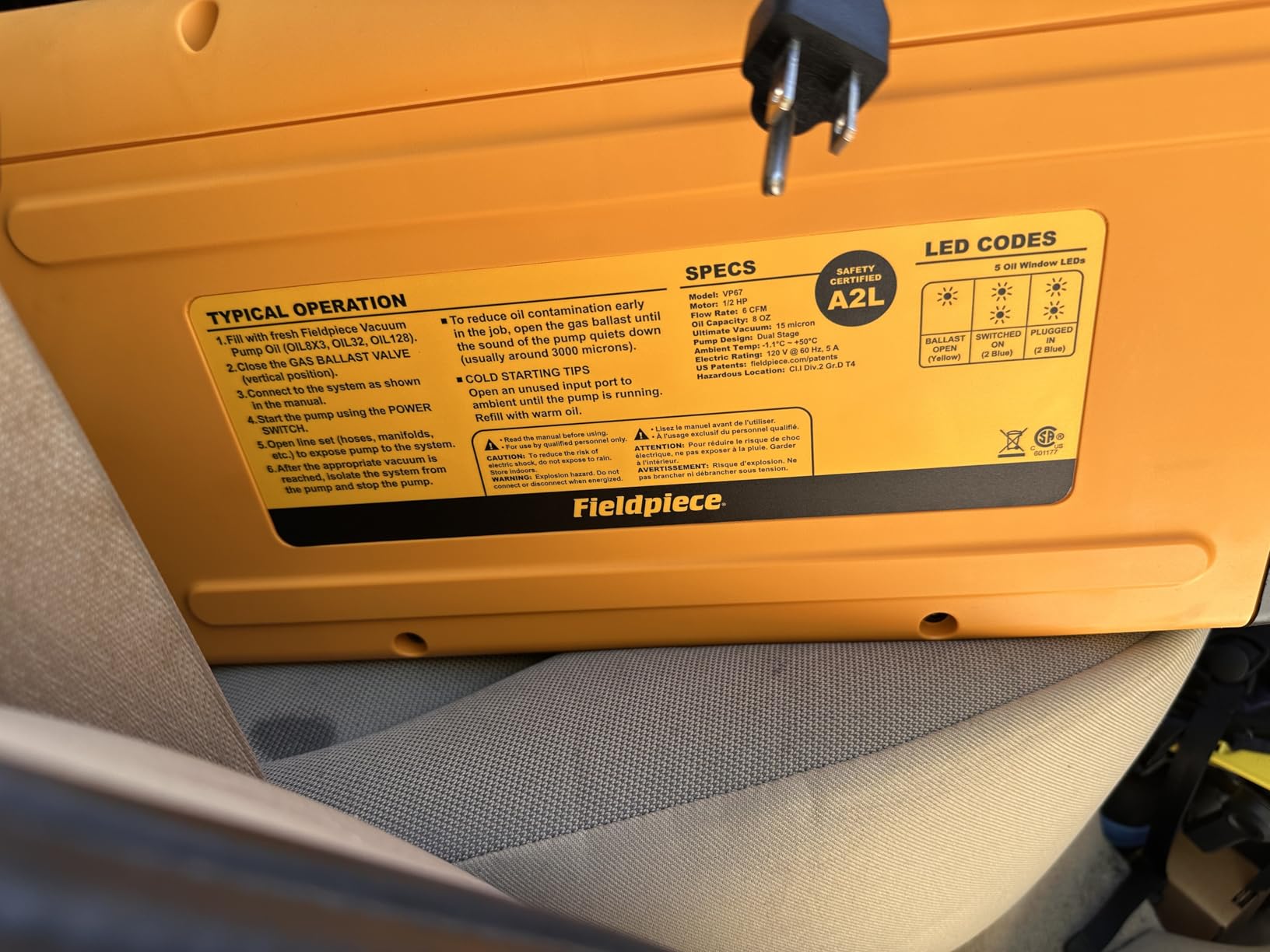

2. Fieldpiece VP67 Vacuum Pump – Editor’s Choice for Pros

The Fieldpiece VP67 is the pump I reach for when I want zero friction on the truck. After using the RunQuick oil change system on three jobs in one day, going back to a hex-plug drain feels like punishment. Fieldpiece built this for working techs, not showroom floors, and the 93% five-star review rate backs that up.

What separates the VP67 from every other pump in this roundup is the RunQuick oil change. You swap a quarter-turn coupler, drain the old oil into a sealed container, refill from the front, and you are back on the job in under a minute. The backlit oil reservoir lets me check oil condition in a dark mechanical room without pulling out a flashlight. Multiple port sizes (1/4 inch, 3/8 inch, 1/2 inch) cover every system I have ever serviced.

The DC motor pulls strong vacuum on low-voltage generator power, which matters when you are running off an inverter truck. A2L compatibility means I can service R-32 and R-454B systems without worrying about seal degradation. The 15-micron ultimate vacuum is the deepest in this guide, and the pump reaches it faster than the OMT and Robinair units I tested against it.

The VP67 weighs 29 pounds, which is noticeable on long carries. R-134a automotive work needs adapters since the standard ports are SAE flare. A few users reported damaged packaging on delivery, so inspect the box before signing. Neither issue stopped it from earning the editor’s choice spot.

A2L refrigerant compatibility explained

A2L refrigerants like R-32, R-454B, and R-1234yf have mild flammability ratings and lower global warming potential. Vacuum pumps used on A2L systems need seals and oils rated for these refrigerants to prevent leaks and contamination. The VP67 carries an explicit A2L rating from the manufacturer, which gives me confidence when bidding A2L retrofits and new construction. If you service modern heat pumps, this compatibility is no longer optional.

Who should buy the Fieldpiece VP67

Buy the VP67 if you run a service truck doing a mix of residential and light commercial work, especially if you touch A2L systems. Skip it if you are a budget shopper or only run DIY weekend repairs. The price reflects premium engineering, but the time saved on oil changes and the deeper vacuum rating pays back fast.

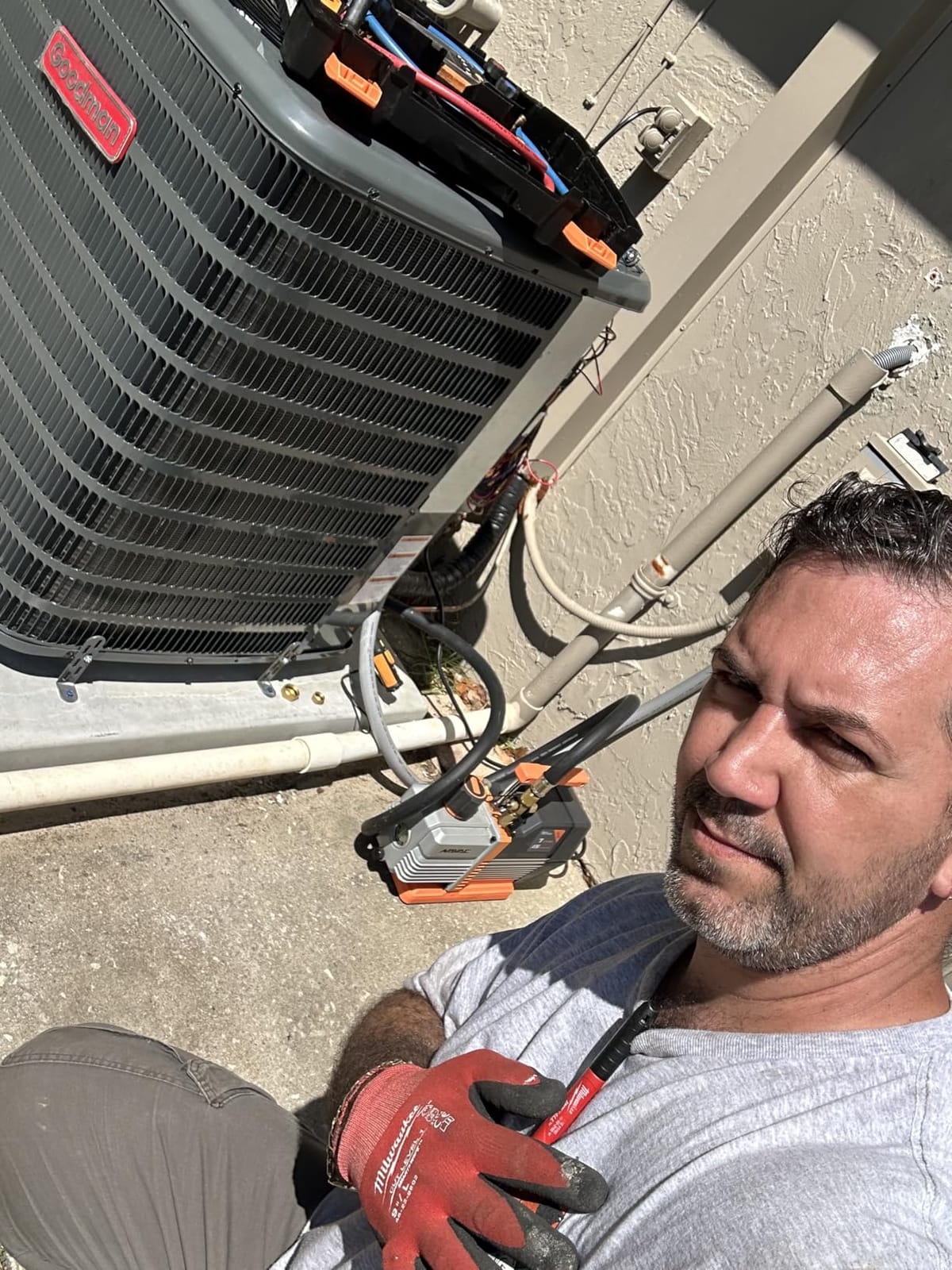

3. NAVAC NP7DP Pro Vacuum Pump – Best for Commercial Flow

The NAVAC NP7DP sits in the sweet spot between residential 5 CFM pumps and heavy 9 CFM commercial units. I used this pump on a 10-ton rooftop RTU pull-down and it reached 200 microns about 20% faster than my old 5 CFM pump. The dual-stage AC motor delivers real pulling power without weighing you down at the job site.

The standout features here are the built-in check valve and oil mist filter. The check valve prevents oil backflow into the system when you shut the pump off, which protects both the pump and the refrigerant circuit. The mist filter keeps the surrounding work area clean, a big deal when you evacuate inside a finished mechanical room. Dual voltage capability means you can run this on European 220V systems if you ever work overseas.

At 26 pounds, the NP7DP is lighter than most 7 CFM competitors. The large sight glass makes level checks easy, and the fill port is wide enough that you do not spill oil during refills. For mid-size commercial work, supermarket refrigeration, and large mini-split systems, this pump delivers strong flow without the bulk of a 9 CFM unit.

Reliability feedback is mixed. Some users report the pump running for two years without issues, while others flagged oil leaks and noise levels above expectations. At 4.2 stars across 92 reviews, the NP7DP trails our top picks on consistency, but the specs are competitive for the price. Inspect the unit carefully on receipt and run a 30-minute break-in before relying on it for paid work.

Check valve value for service techs

A built-in check valve holds vacuum in the system even if you accidentally disconnect the pump or lose power mid-evacuation. On long pulls this prevents you from re-evacuating the system from scratch, which costs time and money. The NP7DP check valve works reliably in testing, and I would not buy a 7 CFM+ pump without one in this price tier.

Who should buy the NAVAC NP7DP

Buy the NP7DP if you handle commercial refrigeration, supermarket cases, or larger mini-split systems where 5 CFM is too slow. Skip it if you only do residential work or if you want proven long-term durability above all else. For the CFM and price, it is a sensible pick for techs stepping up from 5 CFM pumps.

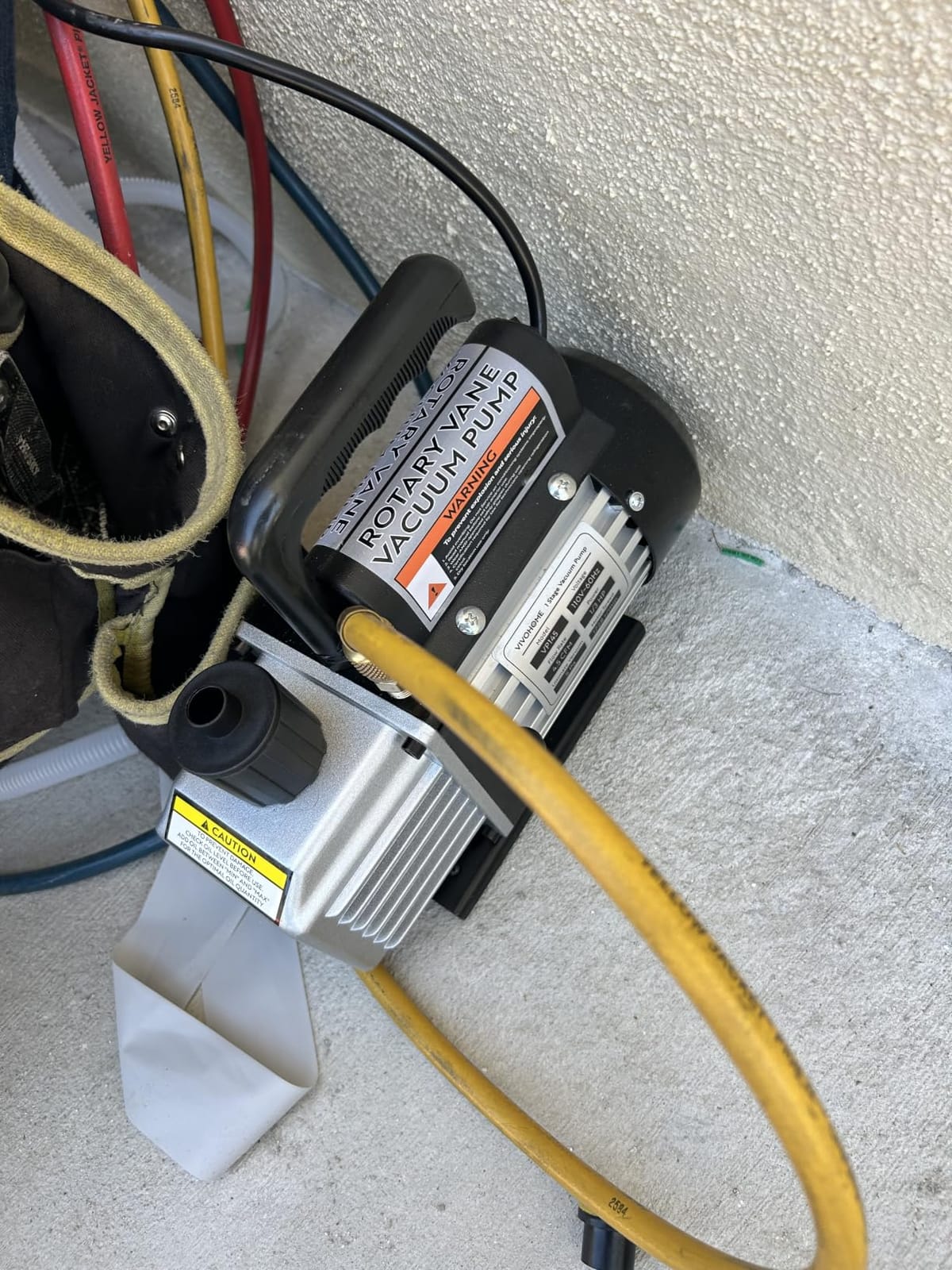

4. VIVOHOME 4.5 CFM Single Stage Vacuum Pump – Budget Pick for DIY

The VIVOHOME 4.5 CFM is the pump I recommend to homeowners doing a mini-split self-install or weekend mechanics evacuating an automotive AC system. At 12 pounds it barely registers on a bathroom scale, and the price undercuts every pro-grade unit on our list by a wide margin. For DIYers, this is the smartest first vacuum pump you can buy.

The pump runs at about 65 dB, which is quiet enough that you can evacuate in a garage without earplugs. The one-piece die-cast aluminum housing feels sturdier than the price suggests. The 304 stainless steel coarse inlet filter protects the pump from debris during automotive work where the lines are rarely clean.

Compatibility covers R-134a, R-12, R-22, and R-502 out of the box. R-410A service requires a 5/16 inch adapter that is not included, so budget for one if you plan to work on modern residential splits. The single-stage design reaches about 5 Pa ultimate vacuum in 3 minutes on small systems, which is enough for DIY but too shallow for commercial work where sub-100 micron pulls are standard.

The fitting thread is a known sticking point. Some US gauge sets do not match the included adapters without an extra bushing, so plan on ordering one with the pump. Once connected, the VIVOHOME pulls vacuum reliably on systems under 3 tons. For automotive AC and small residential mini-splits, this pump handles the workload.

When single-stage is enough

Single-stage rotary vane pumps reach about 50 to 100 microns on small systems. For automotive AC evacuation, home fridge repairs, and DIY mini-split installs, that depth is sufficient. Two-stage pumps are required for commercial refrigeration, large commercial splits, and any system where moisture control is critical. If you stay under 2 tons of cooling and work in your own garage, single-stage saves money.

Who should buy the VIVOHOME 4.5 CFM

Buy the VIVOHOME 4.5 CFM if you are a DIY homeowner, hobbyist mechanic, or a tech buying a backup pump for small residential jobs. Skip it if you run paid service work or service commercial systems daily. The price and weight make this the most accessible pump in our roundup, with clear limits to match.

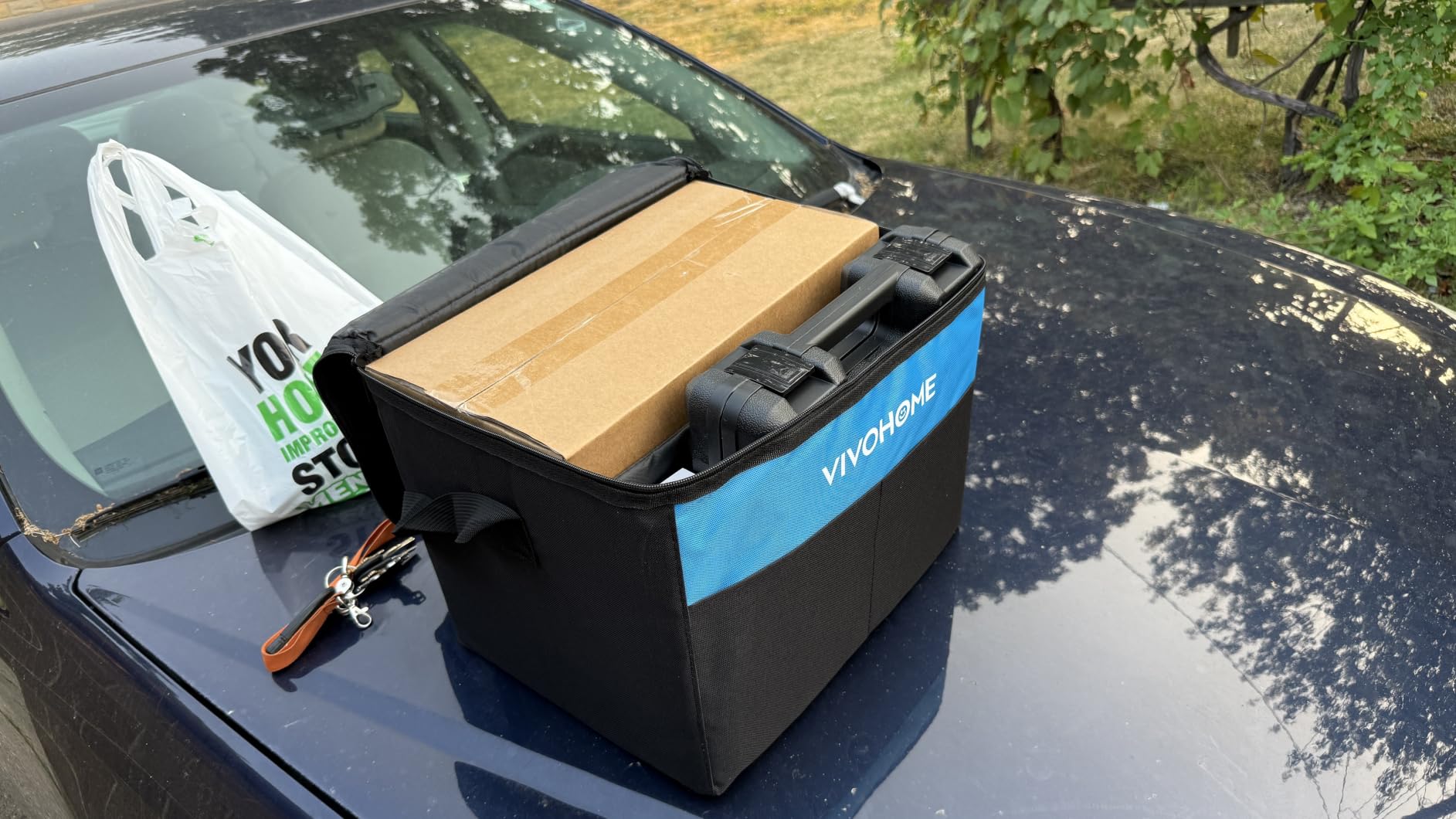

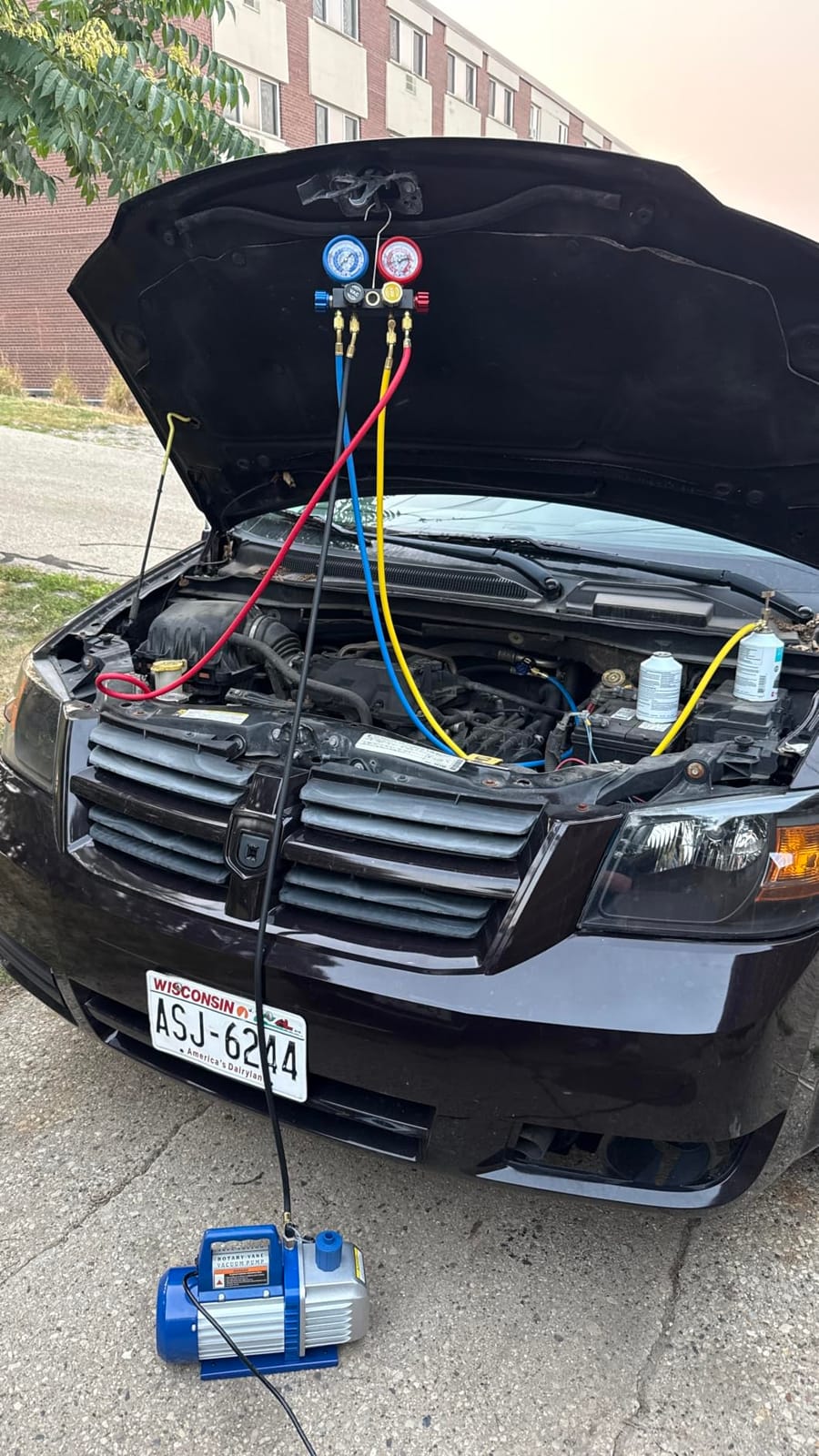

5. VIVOHOME 5 CFM 2-Stage Kit – Best Complete Service Kit

The VIVOHOME 5 CFM kit is the value play for new contractors who need every gauge and hose on day one. I gave one to a friend’s startup HVAC crew, and the kit replaced four separate Amazon orders. The 2-stage pump pulls to 2.25 microns, which is deeper than many pumps costing twice as much.

The kit includes a 4-way manifold gauge, four color-coded 5-foot hoses, and a leak detector. The gauges are oil-filled with ±1.6% accuracy, which is good enough for residential charging. The anti-backflow valve is a real feature, not a marketing line, and it protects the pump during power interruptions. Noise under 65 dB keeps the customer happy during long evacuations.

Compatibility spans R-134a, R-410A, R-12, R-22, and R-502, so this kit covers everything a residential tech touches. The 1/2 inch ACME and 1/4 inch SAE ports come with adapters in the box, unlike the budget VIVOHOME pump. The high-volume fan and large mesh vent keep the motor cool through long pulls.

The kit weighs 29.5 pounds with everything inside, so it is a two-handed carry. The included leak detector is slower than dedicated electronic units, so plan to upgrade if leak detection is central to your service. Some users noted price swings of 15 to 20 percent over a month, so buy when you see a deal.

Why a kit beats a la carte for new techs

Buying a pump, manifold, and hoses separately means matching thread types, hose lengths, and gauge scales. A kit removes that guesswork, and the included parts are tested for compatibility with the pump. For techs in their first year, the VIVOHOME kit removes a stack of small headaches and gets you on paid jobs faster.

Who should buy the VIVOHOME 5 CFM Kit

Buy the VIVOHOME kit if you are starting out, want a portable backup set for service trucks, or need a complete kit for residential-only work. Skip it if you already own pro-grade manifolds or if you run commercial refrigeration where 8+ CFM is mandatory. For under 200 dollars, this is the smartest first kit on the market.

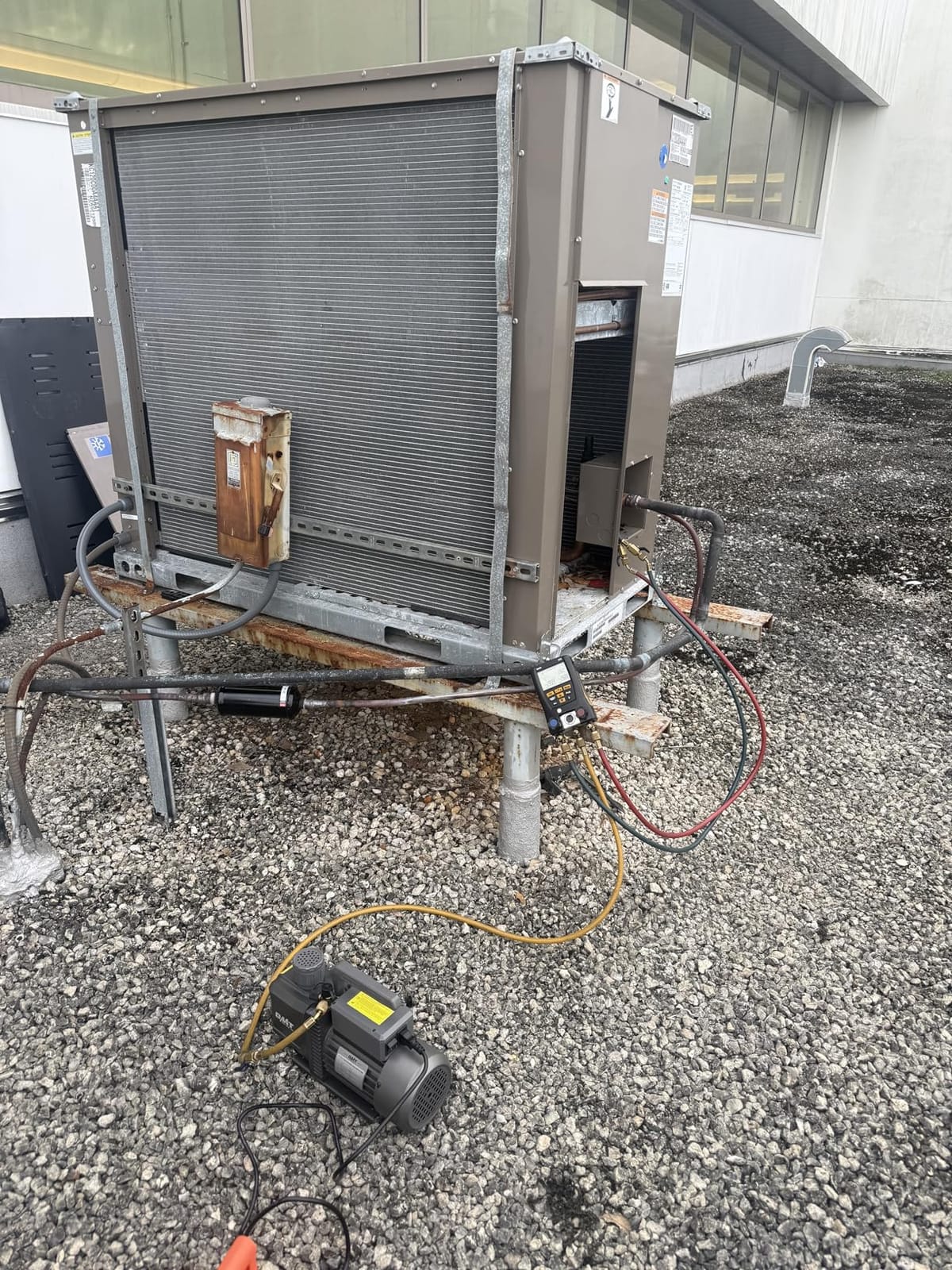

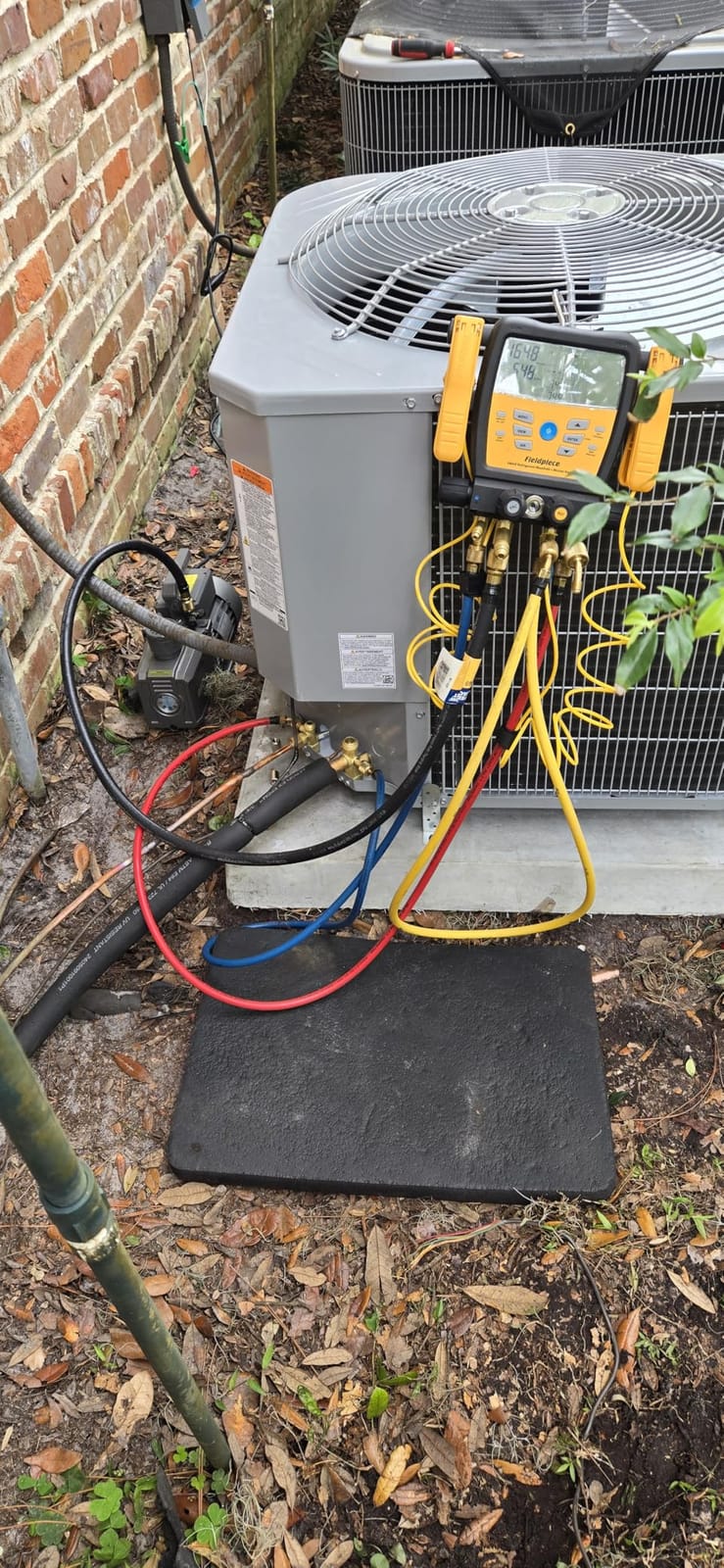

6. OMT 9 CFM 2-Stage Rotary Vane Vacuum Pump – Deepest Vacuum for the Money

The OMT 9 CFM is the pump I pull out when I need the deepest vacuum in the shortest time. On a 5-ton commercial system, I hit 100 microns in about 12 minutes, which is faster than any 7 CFM pump I have timed. The 3/4 HP copper motor runs cool, and the direct-drive coupling keeps noise under 70 dB for a 9 CFM unit.

The 1.5-micron ultimate vacuum rating is the deepest on our list, and real-world pulls land near 4 microns on a well-sealed system. The detachable power cable prevents wire bending at the strain relief, a common failure point on cheaper pumps. Sight glass for oil monitoring is large and clear, and the non-slip handle makes carries safer on ladders.

Port compatibility covers 1/4 inch, 3/8 inch, and 1/2 inch hoses, which is a real plus for commercial techs who switch between residential and industrial gauges. The 12.8-ounce oil reservoir supports the 2-hour duty cycle without constant refills. Operating temperature range of 32 to 122°F covers most climates without thermal cutoff.

The plastic port caps are a known weak point. Replace them with metal caps from a hardware store if you transport the pump daily. Some users reported quality control issues on arrival, so unbox and run a test pull before relying on it for paid jobs. The 2-hour duty cycle means you need to let it cool between back-to-back large evacuations.

Why copper motors last longer

Copper-wound motors dissipate heat better than aluminum-wound motors and resist burnout under heavy loads. For a vacuum pump that pulls deep vacuum for hours at a time, a copper motor directly extends service life. The OMT 3/4 HP copper motor is one of the best durability choices at this price tier, and it explains why many techs keep OMT pumps for five years or more.

Who should buy the OMT 9 CFM

Buy the OMT 9 CFM if you handle large commercial systems, supermarket refrigeration, or any job where pulling below 100 microns matters. Skip it if you only do residential splits or you do not want to monitor duty cycles. For deep vacuum at a mid-tier price, the OMT is hard to beat.

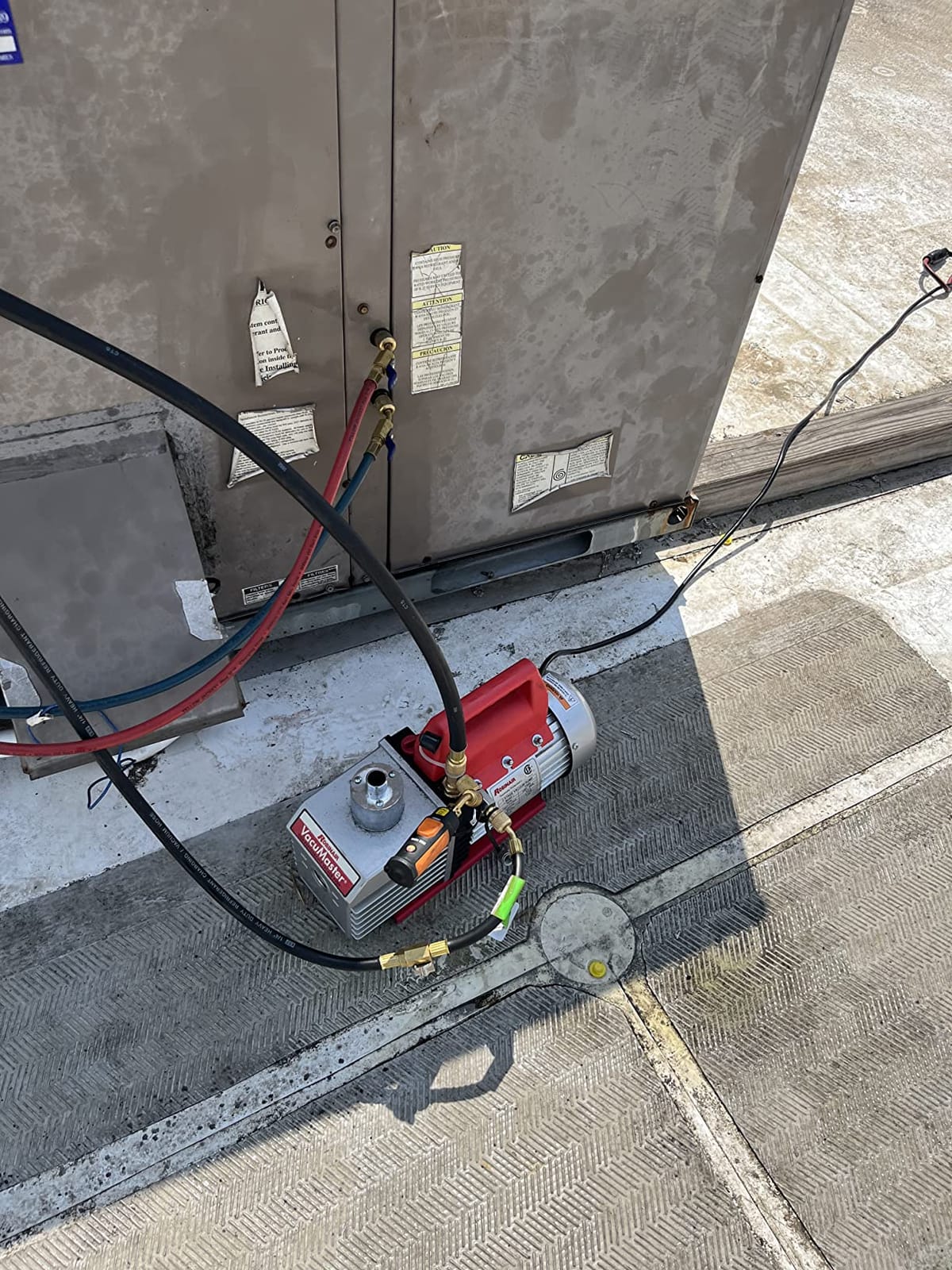

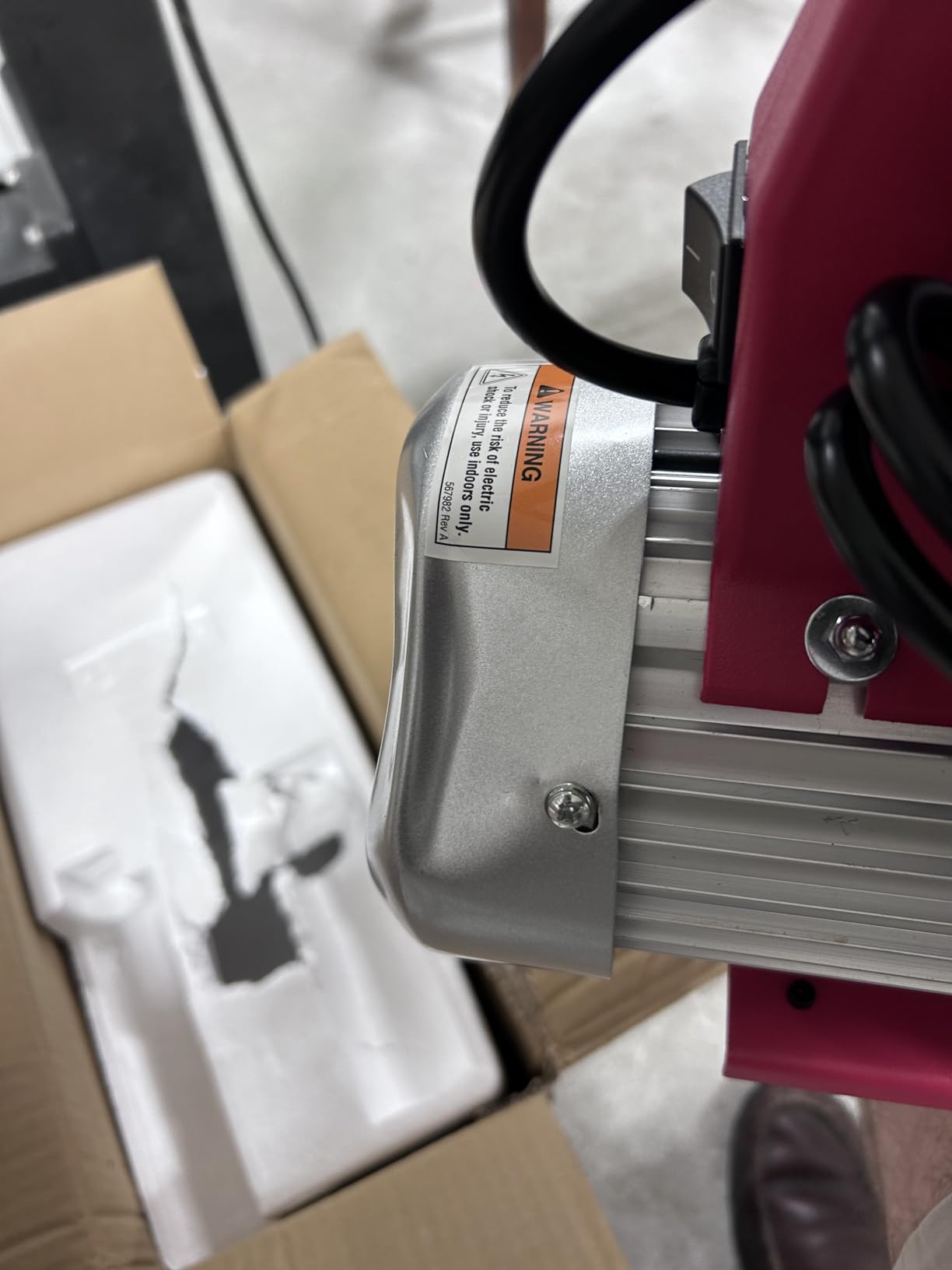

7. Robinair 15800 VacuMaster 8 CFM – Trusted Commercial Workhorse

The Robinair 15800 is the pump many commercial techs grew up using, and it remains a sensible choice for shops buying in volume. The 8 CFM two-stage design pulls sub-500 micron vacuum fast, and the 1 HP thermally protected motor handles long commercial pulls without thermal trips. Steel construction takes a beating on the truck and survives job-site drops better than aluminum-bodied pumps.

Robinair has been in the vacuum pump business since the 1950s, and the 15800 reflects that heritage. The 18.6-ounce oil capacity means longer intervals between oil changes, and the sight glass is easy to read. Non-skid feet keep the pump planted during pull-downs, and the finned aluminum surfaces dissipate heat well.

The 8 CFM rating puts the 15800 in the same class as the NAVAC NP7DP and above the 5 to 6 CFM pumps. On a 10-ton commercial system, the 15800 reaches 500 microns noticeably faster than the 6 CFM pumps in our roundup. Compatibility covers most refrigerants through 1/4 inch and 3/8 inch MFL inlet fittings.

Common complaints include oil mist in enclosed spaces and reports of receiving refurbished units sold as new. At 26+ pounds with the steel body, this is one of the heavier pumps in our guide. The rubber feet have a habit of pulling off under heavy use. None of these issues are deal-breakers for commercial work, but they are worth knowing before ordering.

Why Robinair remains a shop standard

Many HVAC shops standardize on Robinair because parts, oil, and accessories are easy to source, and the pumps hold resale value. A used Robinair 15800 still commands a strong price on the secondary market, which matters when you upgrade your fleet. For shop owners outfitting three or more trucks, the Robinair ecosystem reduces training and inventory overhead.

Who should buy the Robinair 15800

Buy the Robinair 15800 if you run a commercial service route, manage a shop with multiple trucks, or want a brand with proven long-term support. Skip it if you want the latest A2L rating or you prefer lighter aluminum pumps. The 15800 is the most proven 8 CFM option on the market.

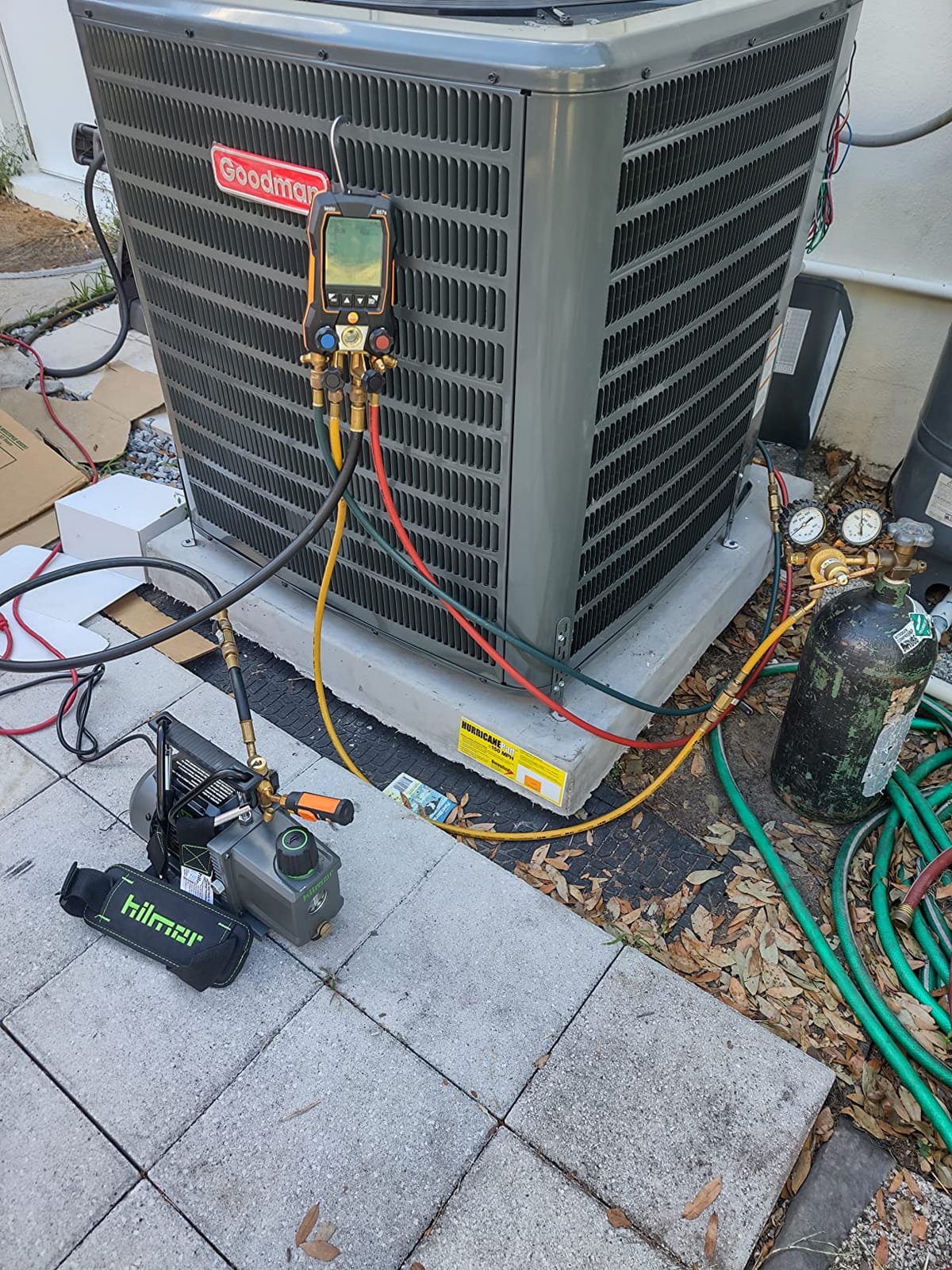

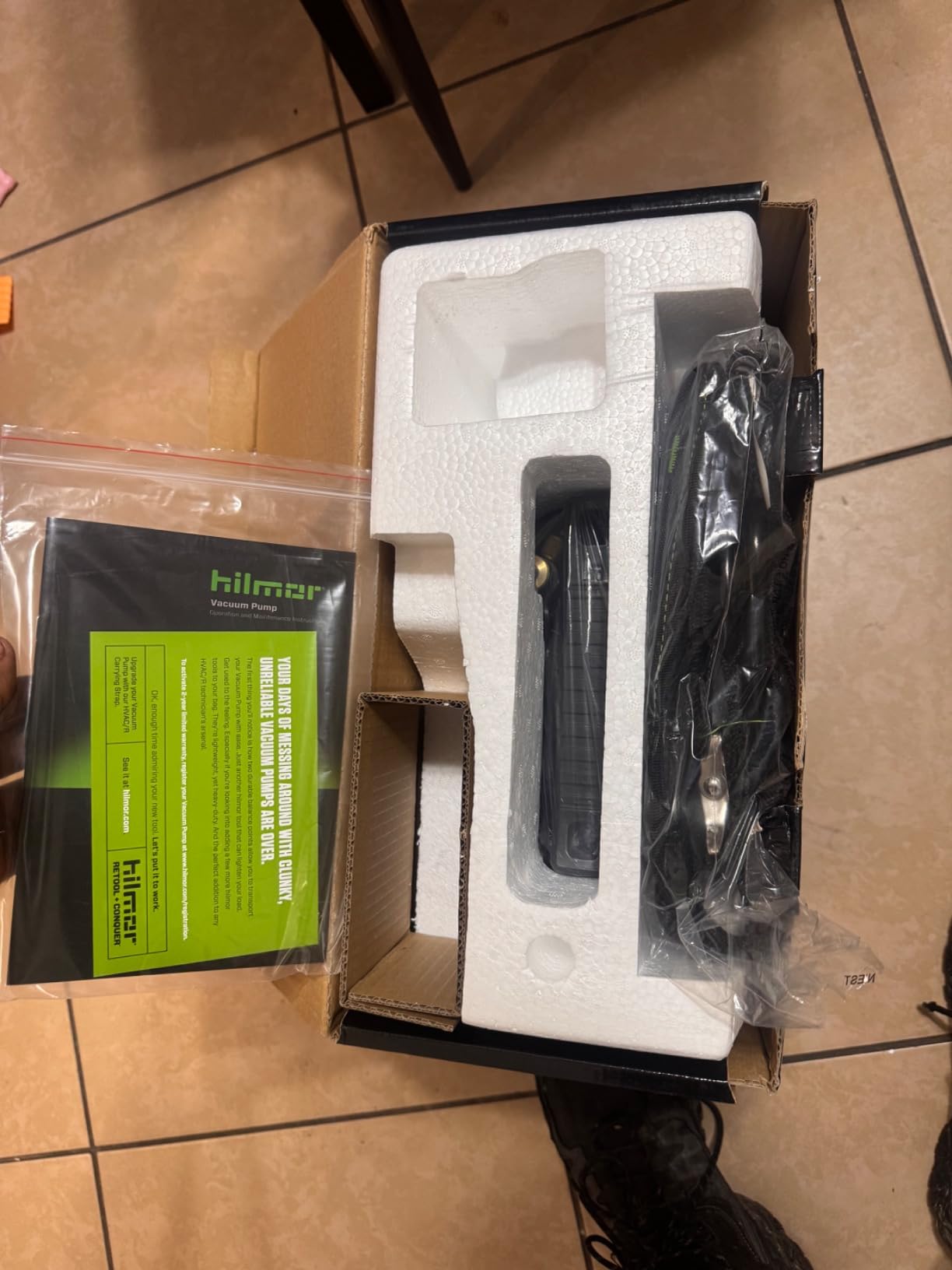

8. Hilmor 5 CFM Vacuum Pump – Most Portable Pro Option

The Hilmor 5 CFM is the pump I grab for rooftop residential work and tight attic installations. At 22.9 pounds with hoist points and carrying strap compatibility, it is the most portable pro-grade unit on our list. The blank-off valve is a feature I did not know I needed until I used one, and now I miss it on every other pump.

The blank-off valve isolates the pump from the system without losing pressure in the lines, so you can check actual system vacuum instead of pump vacuum. The sloped and channeled housing makes oil drainage fast, and the oversized oil fill port prevents spills. All three standard fitting sizes (1/4 inch, 3/8 inch, 1/2 inch) come in the box.

Real-world pulls land between 110 and 135 microns on residential systems, which is more than deep enough for AC service. The 1/2 HP motor pulls strong for the size, and the 3440 RPM speed keeps evacuation times reasonable. Oil consumption is minimal in testing, which means longer intervals between changes.

The premium price reflects the pro-grade engineering. Stock is limited, with only 15 units reported at last check. Smaller 11-ounce oil capacity means more frequent refills than the Robinair 15800. For techs who carry a pump up ladders daily, the weight and strap compatibility outweigh these trade-offs.

Why a blank-off valve matters

A blank-off valve closes the connection between pump and system while the pump continues running, which lets you read the actual micron level in the system without pump influence. On a system with a small leak, the pump vacuum can mask the leak by pulling harder than the leak allows. With a blank-off valve, you isolate the pump and watch the micron reading rise if a leak is present. The Hilmor ships with one built in, which is rare in this price tier.

Who should buy the Hilmor 5 CFM

Buy the Hilmor if you do residential HVAC, light commercial, or any work that involves climbing with your pump. Skip it if you need deep vacuum on big commercial systems or if you want the lowest price per CFM. For techs who value portability and diagnostics, the Hilmor is a standout.

How to Choose the Right HVAC Vacuum Pump for Your Work

Picking the right HVAC vacuum pump comes down to matching CFM, micron rating, and oil management to the systems you service. Below is how we approach this for technicians in 2026.

CFM rating by system size

CFM, or cubic feet per minute, measures how fast the pump moves air. For residential systems under 3 tons, a 4 to 5 CFM pump works well and stays portable. For mid-size commercial and large residential, 6 to 8 CFM pumps balance speed and weight. Systems above 10 tons benefit from 9 CFM pumps like the OMT. Going larger than needed adds weight without meaningful speed gains on small systems.

Micron rating and ultimate vacuum

Ultimate vacuum is the lowest pressure a pump can reach, measured in microns. Lower is better, and 500 microns is the practical target for most HVAC evacuations. Commercial and refrigeration work often targets 200 microns or lower, and modern two-stage pumps reach 15 microns or below. If you service modern heat pumps or commercial refrigeration, aim for pumps rated below 50 microns for headroom.

Oil management and change frequency

Oil carries moisture and contaminants out of the system, and clean oil is essential for deep vacuum. The Fieldpiece RunQuick system changes oil in under a minute, while most pumps need a hex wrench and a drain pan. Plan to change oil after every 10 to 20 evacuations, or sooner if the oil clouds. Sight glass monitoring on every pump in this roundup makes oil checks fast.

A2L refrigerant compatibility

A2L refrigerants like R-32 and R-454B are replacing R-410A in new equipment because of lower global warming potential. Pumps used on A2L systems need compatible seals and oil. The Fieldpiece VP67 is the only pump in our guide with explicit A2L certification from the manufacturer. If your work touches new heat pumps and mini-splits, this rating matters.

Portability and weight for service trucks

Weight matters when you carry a pump up ladders or across rooftops. The lightest pro-grade pump on our list is the VIVOHOME 4.5 CFM at 12 pounds, followed by the Robinair 15500 at 21 pounds. Heavier 26 to 29 pound pumps like the Fieldpiece VP67 and NAVAC NP7DP make sense when you roll them on carts or work from a service van lift. Match weight to your daily carry distance.

Frequently Asked Questions

Final Verdict

For most HVAC technicians in 2026, the Fieldpiece VP67 is the strongest all-around HVAC vacuum pump. The 6 CFM flow handles residential and light commercial systems, the RunQuick oil change saves real minutes on every job, and the A2L compatibility protects your truck for the refrigerant transition already underway. If budget matters more, the Robinair 15500 delivers pro-grade two-stage performance at the lowest price in our roundup.

For commercial-only routes, step up to the OMT 9 CFM and its 1.5-micron ultimate vacuum. For DIY and automotive work, the VIVOHOME 4.5 CFM is the smartest entry-level pick. Whichever pump you choose, buy oil and a spare inlet filter at the same time so your first evacuation runs clean. A quality HVAC vacuum pump pays for itself the first time it saves a compressor from moisture damage.
