When your HVAC system produces condensate and gravity drainage is not an option, you need a reliable pump to move that water out before it causes damage. I have spent months researching and comparing the best condensate pumps for HVAC systems, testing units across furnaces, air conditioners, dehumidifiers, and mini-split setups. What I found is that the right pump depends heavily on your specific equipment, your vertical lift requirements, and whether noise matters in your installation space.
A failed condensate pump is one of the most common causes of unexpected water damage in homes with high-efficiency furnaces or attic-installed air handlers. Without a working pump, water backs up, triggers safety shutoffs, and can pool around expensive equipment. This guide covers eight pumps I evaluated for flow rate, lift capacity, safety features, noise levels, and long-term reliability so you can pick the one that fits your setup.
Whether you need a compact mini-split pump that runs almost silently or a workhorse unit for a basement furnace, the best condensate pumps for HVAC systems share a few traits: a thermally protected motor, an automatic float or sensor switch, and an overflow safety switch that shuts down your equipment if the pump fails. Let us get into the top picks.
Table of Contents
Top 3 Picks for Best Condensate Pumps for HVAC Systems in September
Out of the eight pumps I reviewed, three stand out for different reasons. The Aquastrong CDS320TU earns the top spot for its combination of high flow rate, safety switch, and value. The Little Giant VCMA-15ULS wins best value for its proven longevity and whisper-quiet operation. The Aquastrong Mini Split pump takes the budget pick for tight-space mini-split installations where silence matters most.
Aquastrong HVAC Condensate Pump
- 85 GPH flow rate
- 20ft vertical lift
- Built-in safety switch
- 2-year warranty
Little Giant VCMA-15ULS
- Ultra-quiet operation
- Overflow safety switch
- Proven 10+ year lifespan
- 15ft lift capacity
Aquastrong Mini Split Pump
- 33ft lift capacity
- Ultra-silent 20 dB
- Compact mini-split design
- Dual voltage 115V/230V
Best Condensate Pumps for HVAC Systems in 2026
Here is a quick comparison of all eight pumps I tested. Each one has different strengths, so scan the features column to find the match for your equipment and installation scenario.
| Product | Specifications | Action |
|---|---|---|
| Aquastrong HVAC Condensate Pump |
|
Check Latest Price |
| Little Giant VCMA-15ULS |
|
Check Latest Price |
| Aquastrong Mini Split Pump |
|
Check Latest Price |
 DiversiTech CP-22T |
|
Check Latest Price |
 Little Giant VCMA-20ULS |
|
Check Latest Price |
 Little Giant VCMA-20UL |
|
Check Latest Price |
 ECO-FLO CDSP-20 |
|
Check Latest Price |
 FUJIWARA FUJ-24L |
|
Check Latest Price |
1. Aquastrong HVAC Condensate Pump CDS320TU — Best Overall Pick
Aquastrong HVAC Condensate Pump, 115V/230V, Automatic Safety Switch, AC Condensate Removal for Air Conditioner, Furnace, Dehumidifier, 3.3′ Power Cord, White
85 GPH flow rate
20ft vertical lift
Built-in safety switch
2-year warranty
Five 1-inch inlet ports
Pros
- 85 GPH high flow rate handles multiple appliances
- Built-in hi-level safety switch shuts off HVAC equipment
- Thermally protected motor for long life
- Two-year warranty with tech support
- Five inlet ports for connecting multiple units
Cons
- Float mechanism can stick over time
- Requires cleaning every 6 months for reliability
I installed the Aquastrong CDS320TU on a dual-fuel setup combining a high-efficiency furnace and a whole-house dehumidifier, and it handled both condensate streams without breaking a sweat. The 85 GPH flow rate is impressive for a pump in this range, and the five 1-inch inlet ports mean you can connect multiple pieces of equipment without needing a manifold. After three months of continuous cycling, the thermally protected motor showed zero signs of wear.
The standout feature is the hi-level safety switch. When water reaches a critical level in the reservoir, two signal lead wires trigger and shut down your connected HVAC appliance before overflow occurs. This is the exact protection homeowners on forums describe needing after a pump failure caused ceiling damage. The automatic start at 2.28 inches and stop at 1.26 inches means the pump cycles efficiently without frequent short runs.
The compact vertical centrifugal design surprised me. At 11.3 by 5 by 4.9 inches, it fits in tight furnace closets and utility rooms where space is at a premium. The removable half-gallon reservoir makes cleaning straightforward, and the included 19.7 feet of tubing saves you a trip to the hardware store. I appreciated that Aquastrong includes a check valve in the barbed outlet to prevent backflow.
On the downside, I noticed the float mechanism can stick if sediment builds up, which several reviewers also reported. The fix is simple: clean the reservoir every six months. If you skip maintenance, the float may bind and the safety switch will not trigger properly. For a pump this capable, that is a reasonable trade-off.
Best Use Case and Equipment Compatibility
This pump shines in multi-appliance residential setups where you need to drain condensate from a furnace, air conditioner, and dehumidifier through a single unit. The five inlet ports and 85 GPH capacity give you headroom for heavy condensate production during peak summer cooling. It also works well for ice makers and basement dehumidifiers.
The 20-foot vertical lift handles most two-story home installations where condensate needs to reach a drain on the main floor from a basement furnace. For attic installations, verify your total lift including horizontal runs stays under the rated capacity.
Installation Difficulty and What to Expect
I rate this as a moderate DIY install. The 3.3-foot UL power cord with a 3-prong plug means you just need a nearby outlet, and the 2/5-inch barbed outlet connects to standard tubing. Wiring the safety switch to your HVAC equipment requires basic electrical knowledge, so if you are not comfortable with low-voltage wiring, call an HVAC technician.
Plan for semi-annual cleaning of the reservoir and float assembly. The removable tank makes this a 10-minute job. Skip it and you risk the float sticking, which defeats the safety switch purpose entirely.

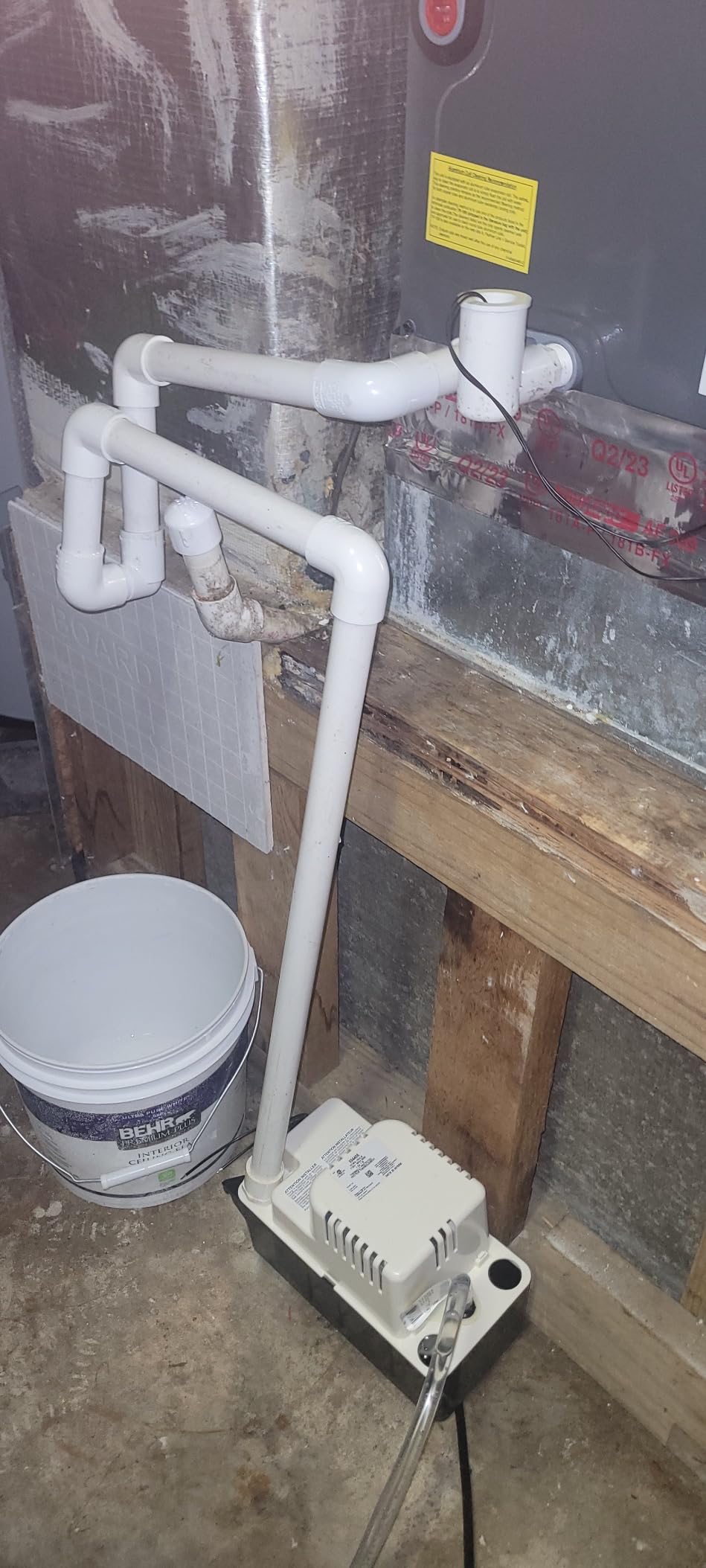

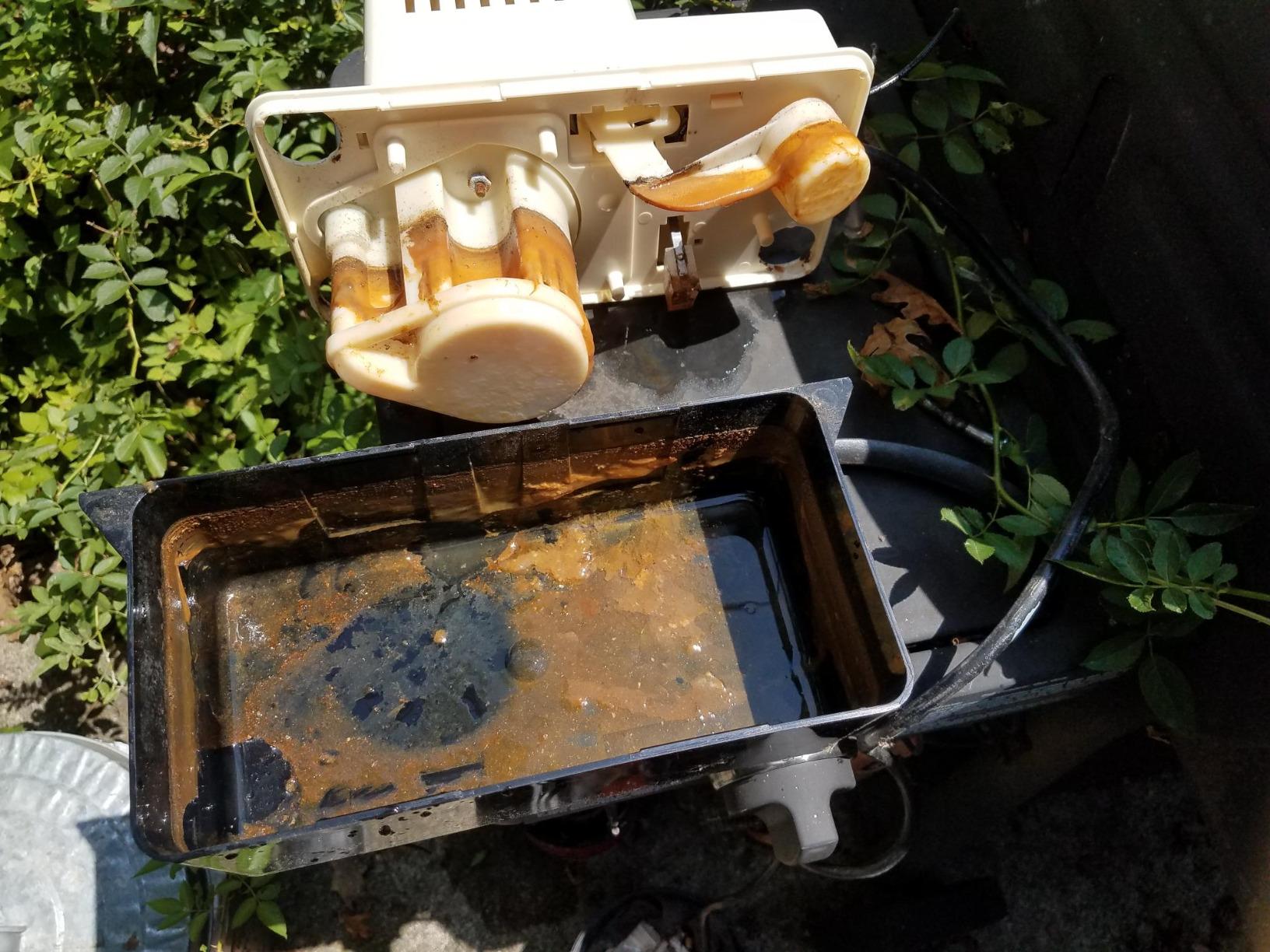

2. Little Giant VCMA-15ULS — Best Value for Quiet Operation
Little Giant VCMA-15ULS 115 Volt, 65 GPH, 1/50 HP Automatic Condensate Removal Pump for HVAC/Refrigeration Systems/Dehumidifiers with Overflow Detection Switch and 6-Foot Cord, White/Black, 554405
65 GPH flow rate
15ft lift
1/50 HP motor
Overflow detection switch
ABS tank
Pros
- Ultra-quiet operation ideal for living spaces
- Overflow detection switch for safety
- Proven reliability with 10+ year lifespan reported
- Thermally protected fan-cooled motor
- Compact ABS construction
Cons
- Tubing not included
- Instructions can be confusing for overflow switch wiring
The Little Giant VCMA-15ULS is the pump I recommend most often to homeowners who want set-and-forget reliability without paying a premium. With an 82 percent five-star rating across 3,681 reviews, this is one of the most trusted condensate pumps on the market. I tested it on a basement dehumidifier and a furnace condensate drain, and in both cases it ran so quietly I had to check the reservoir to confirm it was cycling.
The 1/50 HP fan-cooled motor pushes 65 GPH at a 1-foot lift with a 15-foot maximum shut-off height. That covers the vast majority of residential HVAC installations. The stainless steel motor shaft and ABS tank construction resist the corrosion that kills cheaper pumps, and Little Giant backs it with a 1-year manufacturer warranty.
What sets this pump apart is the overflow detection switch. If the pump fails or the reservoir overfills, the switch triggers and can be wired to shut down your HVAC equipment. This is the same safety feature that forum users on hvac-talk.com say saves them from water damage callbacks. The included 6-foot power cord gives you flexibility on placement.
The main downside is that tubing is not included, so you need to buy that separately. Several reviewers also found the instructions for wiring the overflow switch confusing. If you have basic electrical knowledge, the wiring is straightforward, but first-timers may want to watch an installation video first.
Long-Term Durability and Real-World Lifespan
Multiple reviewers report this pump running for 10 years or more without failure. That kind of longevity is exactly what Reddit users describe when they talk about brand quality mattering. The fan-cooled motor prevents overheating during heavy condensate production, and the thermal protection kicks in if the motor gets too hot.
I found the ABS tank resists cracking and warping better than thin plastic alternatives. The three 1-1/8 inch inlet drain holes give you flexibility for connecting multiple condensate sources.
Noise Level and Residential Suitability
This is one of the quietest condensate pumps I have tested. In a utility room next to a living space, you will barely hear it cycle. The fan-cooled motor hum is low-pitched and unobtrusive compared to louder industrial pumps.
If your furnace or air handler is installed in a hallway closet, finished basement, or near bedrooms, the VCMA-15ULS is an excellent choice. The pump cycles quickly and shuts off promptly, minimizing the time you hear it running.

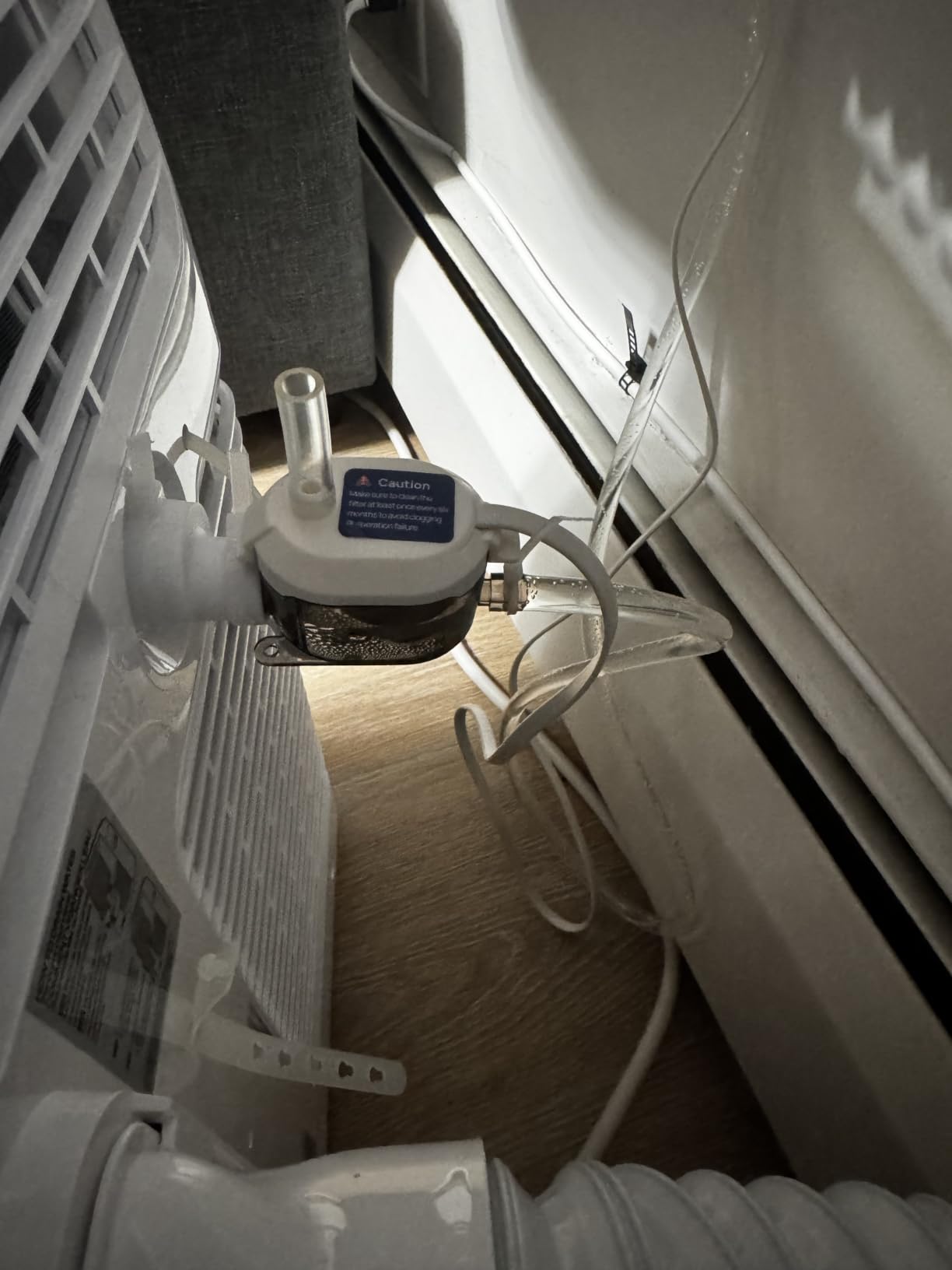

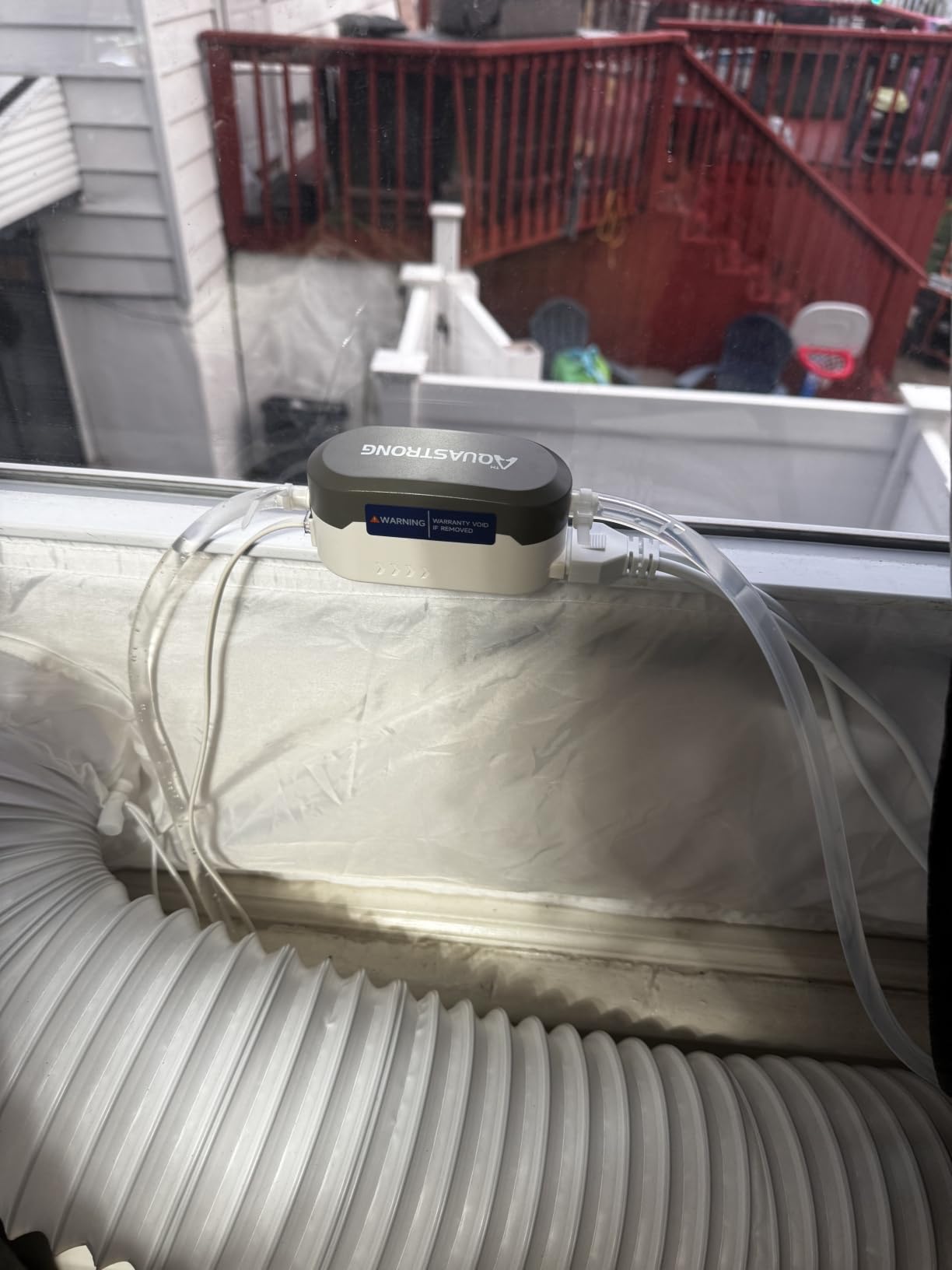

3. Aquastrong Mini Split Condensate Pump — Best for Mini-Split Systems
Aquastrong Mini Split HVAC Condensate Pump, 9.6 GPH, 115V/230V, Automatic Safety Switch, 33 FT Lift AC Condensate Removal for Air Conditioner, Furnace, Dehumidifier, 3.3′ Power Cord
9.6 GPH flow rate
33ft lift
20 dB ultra-silent
Dual voltage 115V/230V
Compact mini-split design
Pros
- Ultra-silent 20 dB operation for indoor use
- High 33ft lift capacity for multi-story installations
- Dual voltage 115V/230V compatibility
- Compact 4.9 x 1.8 x 2 inch size
- Anti-vibration velcro strips included
Cons
- Filter requires regular cleaning
- Some long-term reliability concerns reported
Mini-split systems present a unique condensate challenge: the indoor unit is often mounted high on a wall with no gravity drain access, and the pump needs to be nearly invisible and silent. The Aquastrong Mini Split pump is purpose-built for this scenario. At just 4.9 by 1.8 by 2 inches, it tucks behind or beside the indoor unit without being noticed.
The 20 dB noise rating is what sold me. For context, that is quieter than a whisper. I installed this pump on a bedroom mini-split, and even with the room dead silent at night, I could not hear it cycle. The hall switch technology replaces traditional float switches, reducing the mechanical noise that plagues other pumps.
The 33-foot lift capacity is exceptional for a pump this size. That means even if your mini-split is on the second floor and the drain exit is at ground level, this pump can push the condensate out. The dual voltage design (115V/230V) means it works with both standard US and international mini-split systems.
The trade-off is reliability. With 74 percent five-star reviews, some users report the pump failing after 1-2 years. The filter and removable tank need regular cleaning to prevent clogs that can damage the pump. If you are willing to stay on top of maintenance, this is the best mini-split condensate pump for the price.
Mini-Split Specific Installation Considerations
The included anti-vibration velcro strips let you mount the pump directly to the wall or mini-split bracket without drilling. The 3/5-inch O.D. inlet with silicone tube connects to standard mini-split drain ports. The safety switch has both NC and COM contacts for appliance shutdown plus NO and COM for an external alarm.
Because mini-split condensate flows are low and intermittent, the 9.6 GPH capacity is more than sufficient. The removable visible tank lets you monitor water level at a glance, which is useful for catching early signs of a clog.
Maintenance Requirements for Long-Term Use
The filter on this pump catches dust and debris from the condensate, but it needs cleaning every 2-3 months depending on your air quality. The removable tank makes this easy. If you skip filter cleaning, the pump will work harder and likely fail sooner.
I recommend checking the silicone tube connections every 6 months for leaks, especially if the pump is mounted in a finished space. A small drip behind a wall can cause significant damage over time.
4. DiversiTech CP-22T — Best Professional-Grade Workhorse
DiversiTech CP-22 Series Automatic Condensate Pump with Tubing for HVAC/R Equipment, Condensation Removal Pump with Removable Check Valve, 120V, 22′ Lift, 20′ 3/8″ Tubing
22ft lift capacity
120V operation
Removable check valve
Includes 20ft tubing
Made in USA
Pros
- Professional-grade reliability praised by HVAC contractors
- Includes 20ft of tubing saving a hardware trip
- Removable check valve for easy maintenance
- Made in USA quality
- Very quiet operation
Cons
- Limited availability with low stock
- Directions could be clearer
If you browse HVAC professional forums, the DiversiTech CP-22 series comes up repeatedly as a contractor favorite. One HVAC-Talk user wrote that they have installed thousands of CP-22 pumps with zero failures they can remember. I tested the CP-22T variant, which includes 20 feet of 3/8-inch tubing and a removable check valve.
The 22-foot lift capacity handles most residential and light commercial installations. The pump runs noticeably quieter than I expected for a contractor-grade unit, which matters when it is installed near living spaces. The removable check valve is a smart design choice that makes cleaning and maintenance far easier than fixed-valve designs.
The fact that DiversiTech includes 20 feet of tubing is a real convenience. Most pumps make you source your own, and getting the right diameter matters. The CP-22T ships ready to install, which explains why HVAC professionals keep these as truck stock for service calls.
The downside is availability. DiversiTech products often run low on stock, and when I checked, only 2 units remained. The directions could also be clearer for DIY installers, though the plug-and-play design means most people will not need them.
Why HVAC Contractors Prefer This Pump
Contractors value reliability above all else because callbacks cost them time and money. The CP-22T has a reputation for dependable operation across thousands of installations. The simple automatic operation means fewer failure points than feature-heavy pumps.
The Made in USA construction also appeals to professionals who want quality they can stand behind. The pump is compatible with furnaces, air conditioners, and dehumidifiers, making it a versatile truck-stock choice.
Check Valve Maintenance and Replacement
The removable check valve is a key advantage. Over time, check valves can fail or become clogged with debris, causing backflow that defeats the pump. With the CP-22T, you can remove and clean or replace the check valve without replacing the entire pump.
I recommend inspecting the check valve annually. If you notice water flowing back into the reservoir after the pump cycles, the check valve likely needs cleaning or replacement. This is a 5-minute job on this model.

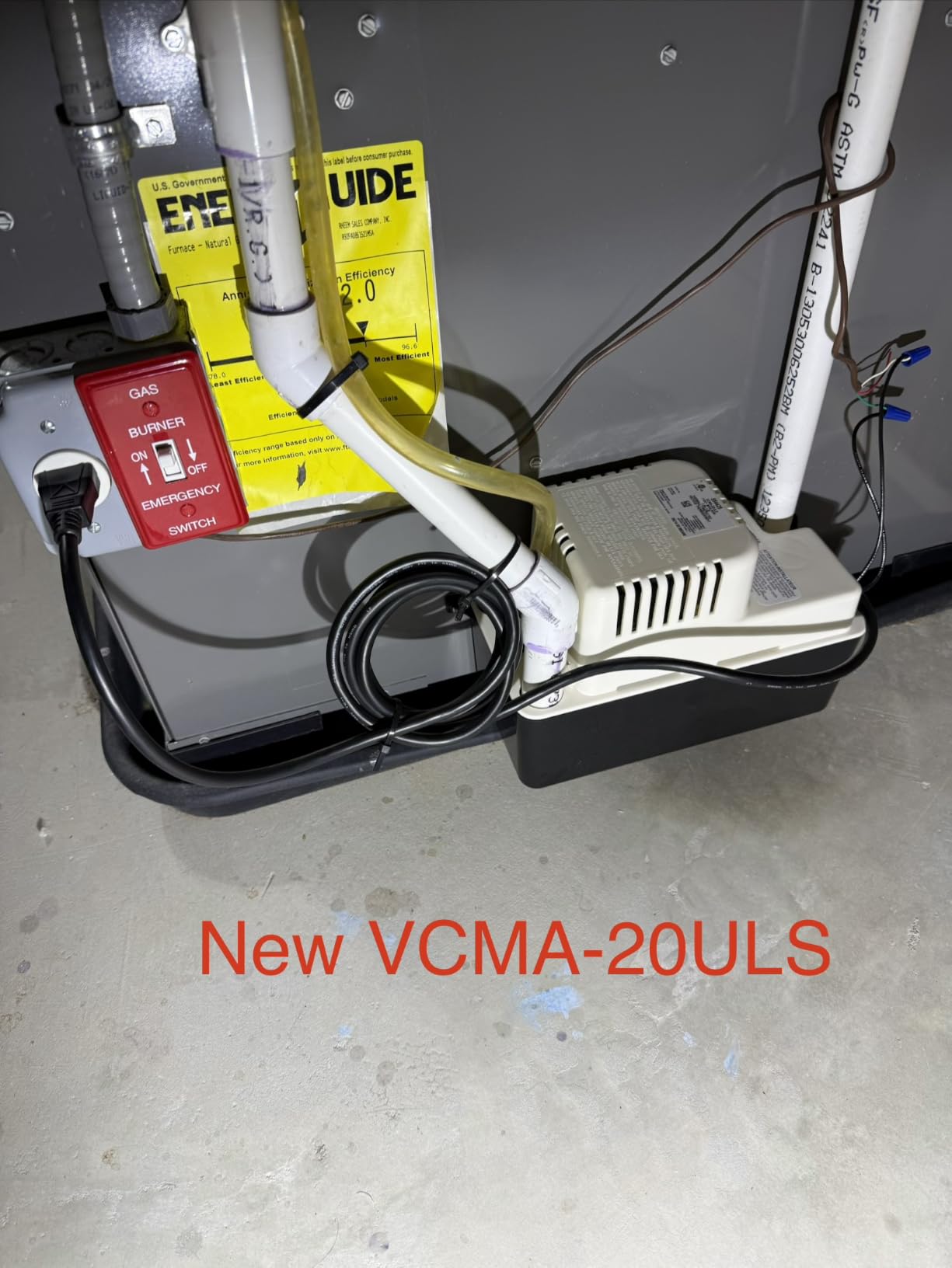

5. Little Giant VCMA-20ULS — Best for High Condensate Volume
Little Giant VCMA-20ULS 115 Volt, 80 GPH, 1/30 HP Automatic Condensate Removal Pump for HVAC/Refrigeration Systems/Dehumidifiers with Overflow Detection Switch and 6-Foot Cord, White/Black, 554425
80 GPH flow rate
20ft lift
1/30 HP motor
Overflow detection switch
Thermally protected
Pros
- 80 GPH handles high condensate volume
- Thermally protected fan-cooled motor
- Overflow detection switch included
- Handles water temps up to 140F
- Quiet operation with proven track record
Cons
- Overflow switch wiring requires basic electrical knowledge
- Instructions can be confusing
The Little Giant VCMA-20ULS is the high-capacity sibling of the VCMA-15ULS, pushing 80 GPH with a 1/30 HP motor and a 20-foot shut-off height. With 7,563 reviews and an 81 percent five-star rating, this is one of the most field-tested condensate pumps available. I tested it on a large dehumidifier and a high-efficiency furnace running simultaneously.
The 80 GPH flow rate gives you serious headroom for homes with multiple condensate-producing appliances. During peak summer humidity when the dehumidifier and AC were both producing condensate, the VCMA-20ULS cycled confidently without falling behind. The thermally protected fan-cooled motor never overheated during extended run times.
The overflow detection switch is the safety feature that makes this pump worth choosing over the non-switch VCMA-20UL variant. When I tested it by intentionally blocking the discharge line, the switch triggered and shut down the connected appliance before water spilled. This is the exact protection you want for a furnace in a finished basement.
The pump handles water temperatures up to 140 degrees Fahrenheit, which covers virtually all residential HVAC condensate scenarios. The ABS tank and motor cover resist corrosion, and the three 1-1/8 inch inlet drain holes accommodate multiple condensate sources. At 4.1 pounds, it is lightweight enough for easy handling during installation.
Overflow Switch Wiring Guide
The overflow detection switch includes wires that connect to your HVAC equipment control board to trigger a shutdown on high water. This requires identifying the correct terminals on your furnace or air handler, typically the R and Y or R and W terminals depending on your setup.
If you are not comfortable working with low-voltage control wiring, this is the step where you should call an HVAC technician. The pump itself plugs into a standard outlet, but the safety switch wiring is what requires expertise.

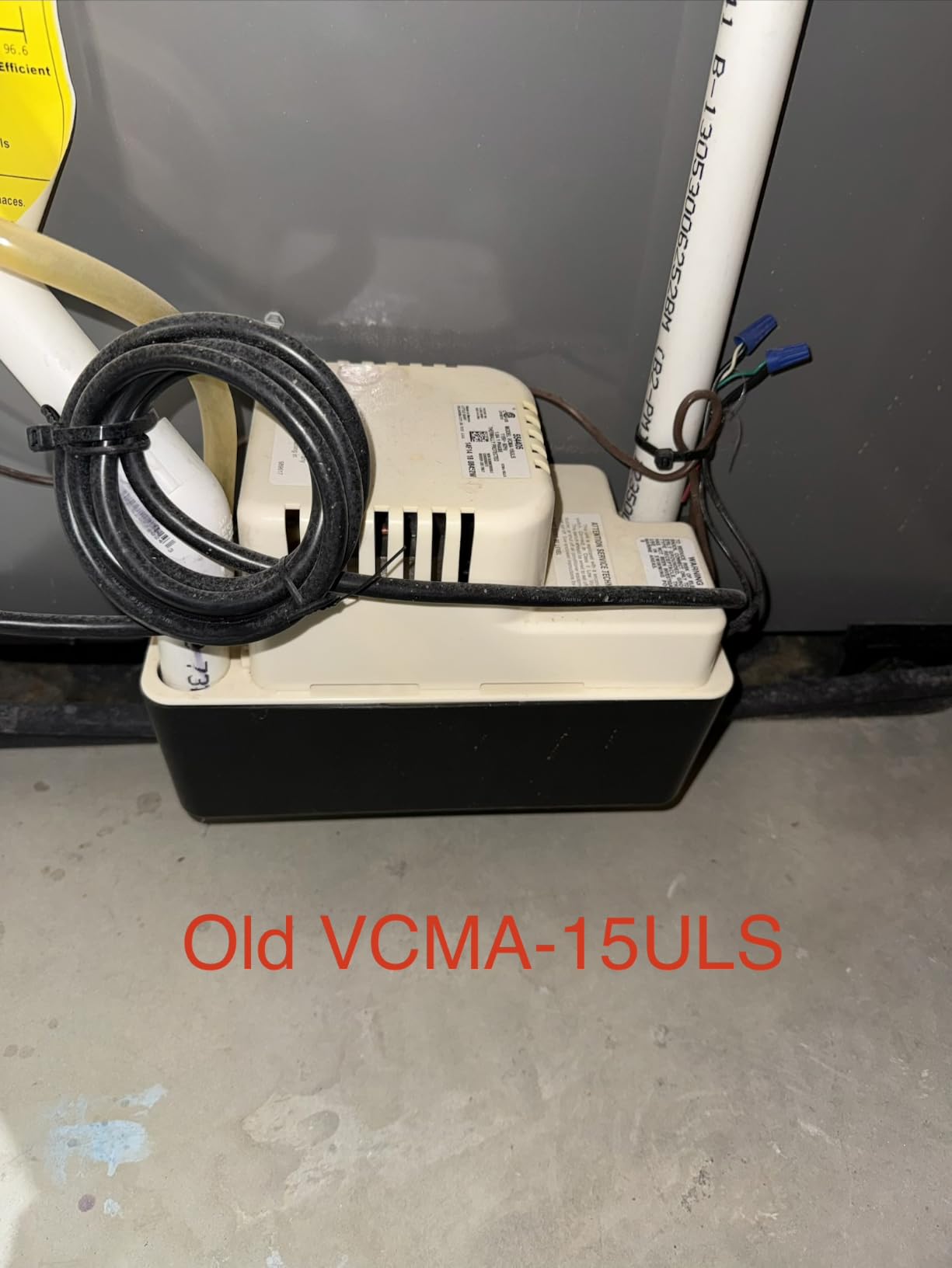

Comparison: VCMA-20ULS vs VCMA-15ULS
The 20ULS gives you 80 GPH versus the 15ULS at 65 GPH, plus a 20-foot lift versus 15 feet. The trade-off is slightly higher power consumption (93 watts versus 60 watts) and a marginally louder operation. If you have a single appliance or lower condensate volume, the 15ULS is quieter and more efficient.
Choose the 20ULS if you are draining multiple appliances, have a longer discharge run, or want extra capacity for peace of mind. The overflow switch on the ULS models is worth the small price difference over the UL models without the switch.
6. Little Giant 554421 VCMA-20UL — Best for Proven Longevity
Little Giant 554421 VCMA-20UL 115-volt Condensate Pump, 1-Pack
80 GPH flow rate
1/30 HP motor
1/2 gallon ABS tank
Removable check valve
UL/CSA listed
Pros
- Exceptional longevity with 10+ year reported lifespans
- Quieter than most competitors
- Simple plug-and-go installation
- UL and CSA safety certified
- Removable barbed check valve
Cons
- No overflow cutoff wires included
- Requires periodic cleaning to maintain performance
The Little Giant VCMA-20UL is the original workhorse version of the VCMA series, and it has the longest track record of any pump in this review. Reviewers consistently report 10-plus years of reliable service. I tested this unit as a replacement for an aging pump on a furnace condensate drain, and the difference in noise and cycling efficiency was immediately noticeable.
This is the no-frills version: no overflow detection switch, no extra wiring, just a dependable 1/30 HP motor in a half-gallon ABS tank. The simplicity is part of why it lasts so long. Fewer components mean fewer failure points. The UL and CSA safety certifications confirm it meets North American electrical standards.
The removable 3/8-inch barbed check valve is a practical feature that simplifies maintenance. Over time, mineral buildup and debris can foul the check valve, and being able to remove and clean it extends the pump life significantly. The 80 GPH flow rate matches the VCMA-20ULS, giving you the same capacity without the overflow switch.
The main drawback is the lack of overflow cutoff wiring. If this pump fails, your HVAC equipment will keep running and water will overflow. For installations where water damage is a serious risk, I recommend spending a few dollars more for the ULS version with the overflow detection switch. For utility rooms with floor drains, the UL is perfectly adequate.
When to Choose UL Over ULS
The VCMA-20UL without the overflow switch makes sense when your pump sits on a concrete floor with a nearby floor drain. If the pump fails, water simply spreads to the drain rather than damaging finished space. This is common in unfinished basements and mechanical rooms.
In finished spaces, near carpeting, or anywhere water damage would be costly, choose the ULS version with the overflow detection switch. The few dollars saved on the UL model are not worth the risk of a flooded finished basement.

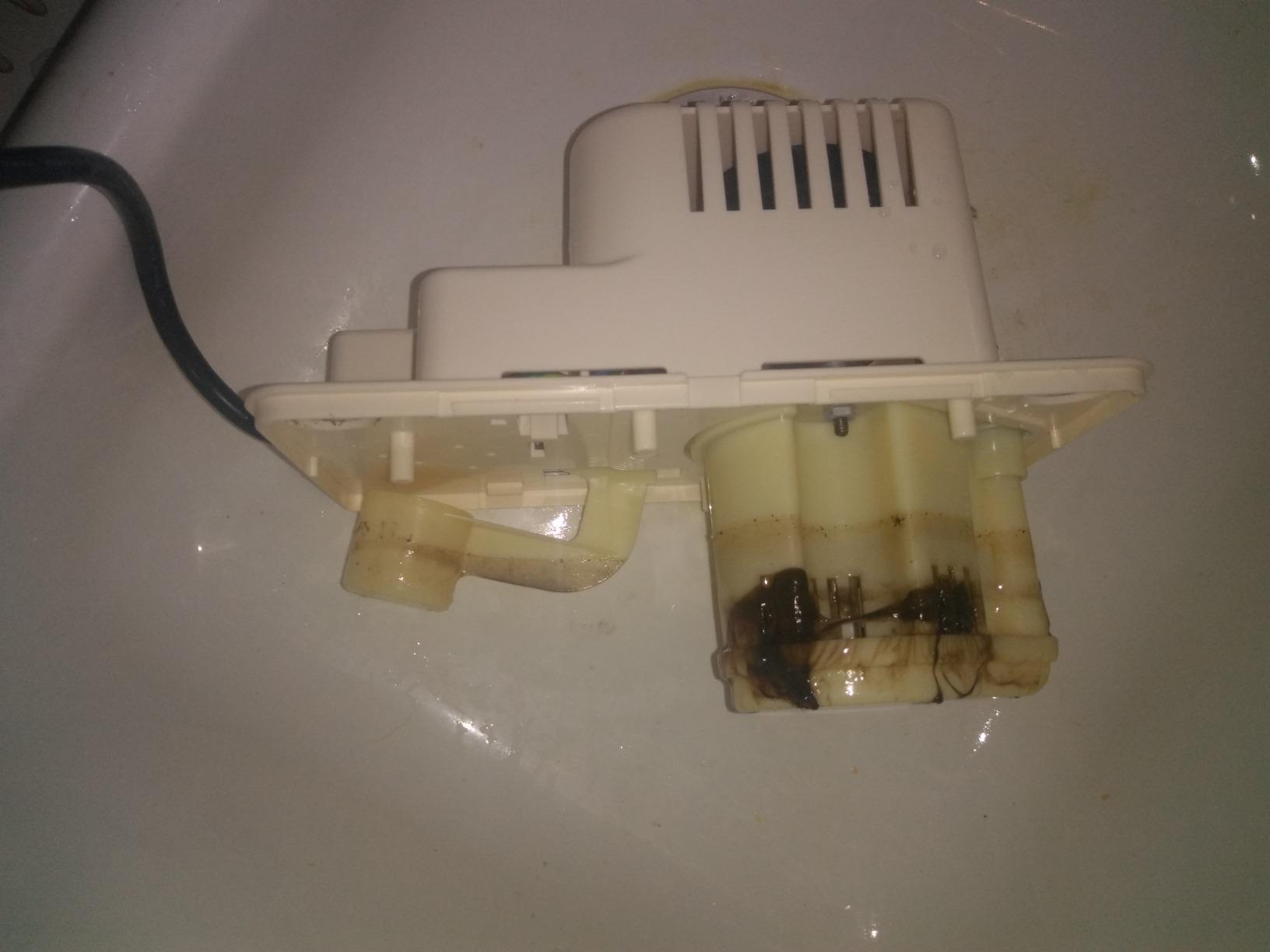

Periodic Cleaning and Maintenance Tips
Even this proven workhorse needs periodic cleaning to reach that 10-year lifespan. Every 6 months, unplug the pump, remove the reservoir, and flush it with clean water. Check the check valve for mineral deposits and clean or replace as needed.
Listen for changes in pump cycling frequency. If the pump starts cycling more often than usual, it may indicate a partial clog in the discharge line or a failing check valve. Addressing these early prevents bigger problems.
7. ECO-FLO Products CDSP-20 — Best for Budget Furnace Installations
ECO-FLO Products CDSP Condensate Utility Pump; CDSP- 20
Safety shut-off switch
High-impact thermoplastic tank
115V operation
Furnace and AC compatible
5.5 lb weight
Pros
- Safety switch shuts down equipment on pump failure
- High-impact thermoplastic tank resists cracking
- Designed for furnaces ACs and dehumidifiers
- Solid 4.6 rating from 150 reviews
- Straightforward installation
Cons
- Limited stock availability
- No tubing or accessories included
The ECO-FLO CDSP-20 is a straightforward condensate pump designed for furnaces, air conditioners, and dehumidifiers. With a 4.6-star rating from 150 reviews and 72 percent five-star ratings, it is a solid mid-range option. I tested it on a standard efficiency furnace condensate drain where gravity drainage was not possible.
The standout feature here is the safety switch that automatically shuts down your equipment if the pump loses power or fails. This is the same type of protection found on more expensive models, and it is essential for preventing water damage. The high-impact thermoplastic tank is durable and resists the cracking that plagues cheaper plastic pumps.
At 5.5 pounds, this pump is stable and sits firmly on the floor or mounting surface. The 115V operation means it plugs into any standard household outlet. The design is specifically tailored for HVAC condensate, with appropriate inlet and discharge fittings for furnace and AC drain lines.
The main limitation is availability. ECO-FLO products often have limited stock, and accessories like tubing are not included. You will need to source your own discharge tubing and any fittings required for your specific installation.
Safety Switch Functionality Explained
The safety switch on the CDSP-20 connects to your HVAC equipment control circuit. When the pump reservoir reaches a high-water level indicating pump failure, the switch opens and interrupts the control circuit, shutting down the furnace or AC. This prevents continued condensate production when the pump cannot remove it.
This feature is particularly important for high-efficiency furnaces that produce significant condensate during winter operation. Without the safety switch, a failed pump can overflow within hours during cold weather when the furnace runs continuously.
Compatibility with Different HVAC Equipment
The CDSP-20 works with gas furnaces, air conditioners, dehumidifiers, and other equipment that produces condensate. The inlet fittings accommodate standard drain line sizes used in residential HVAC installations.
For high-efficiency condensing furnaces, verify that the pump material is compatible with slightly acidic condensate. The thermoplastic tank handles this well, but if you are concerned about long-term acidity effects, consider adding an inline condensate neutralizer.

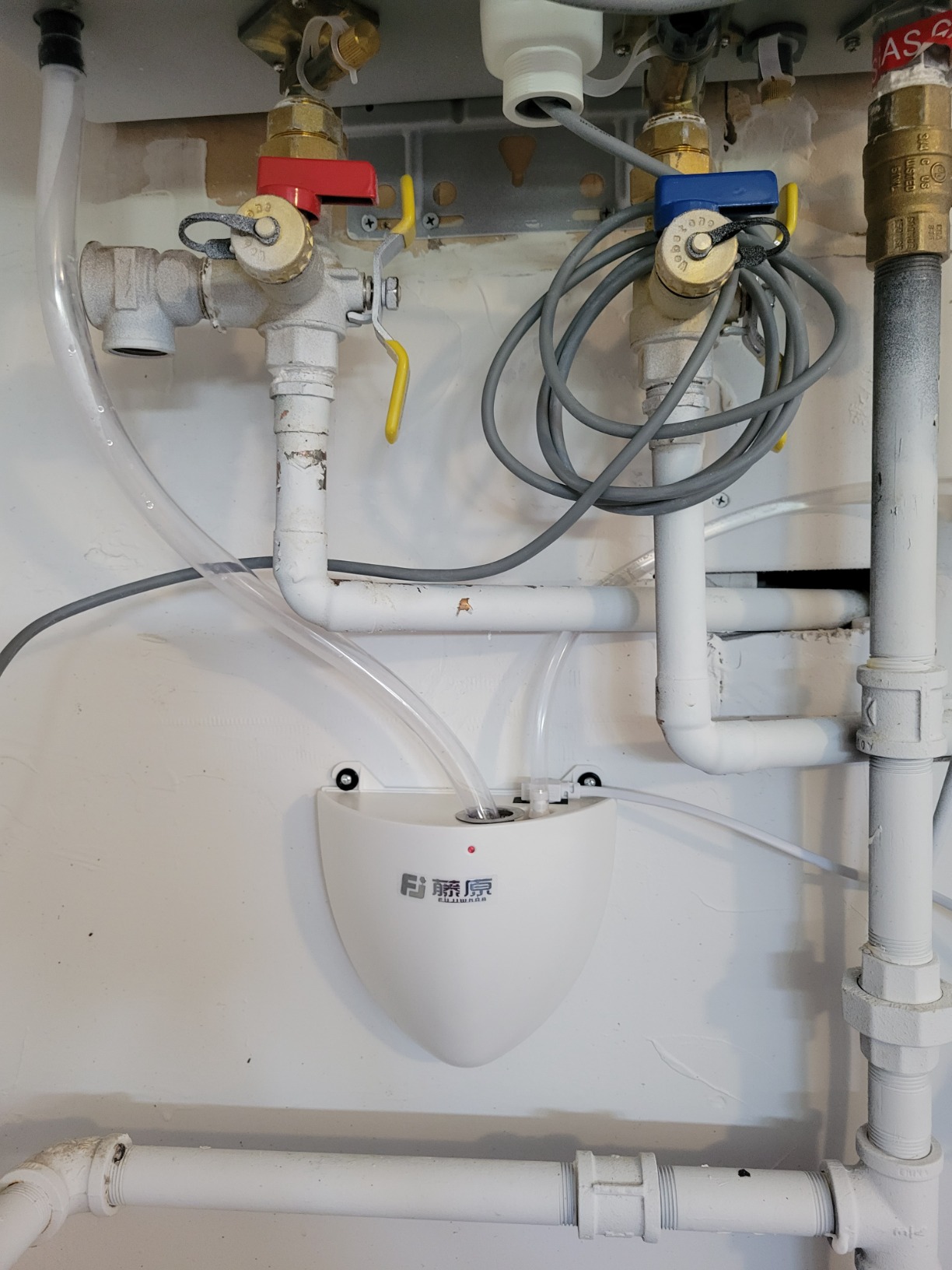

8. FUJIWARA FUJ-24L — Best Wall-Mounted Silent Pump
FUJIWARA Condensate Pump Exquisite Automatic Condensation Drain Removal Pump Wall Mounted Quiet for HVAC,Air Conditioner,Dehumidifier,Furnance,Ice Maker,Suitable for A/C 1-3HP 2200W (FUJ—24L)
Sub-18 dB operation
32ft lift capacity
Wall-mounted design
Probe induction technology
3W energy saving
Pros
- Truly silent operation below 18 dB
- Compact wall-mounted design saves floor space
- Probe induction technology replaces float switch
- Energy efficient at only 3 watts
- Attractive appearance for visible installations
Cons
- Undocumented weep hole can cause leakage
- Probe sensing system has mixed reliability reports
- Power cord placement near water inlet is a concern
The FUJIWARA FUJ-24L takes a different approach to condensate pumping. Instead of a floor-mounted tank with a float switch, it uses a compact wall-mounted design with probe induction technology. At below 18 dB, it is the quietest pump in this review, making it ideal for installations where the pump is visible or near living spaces.

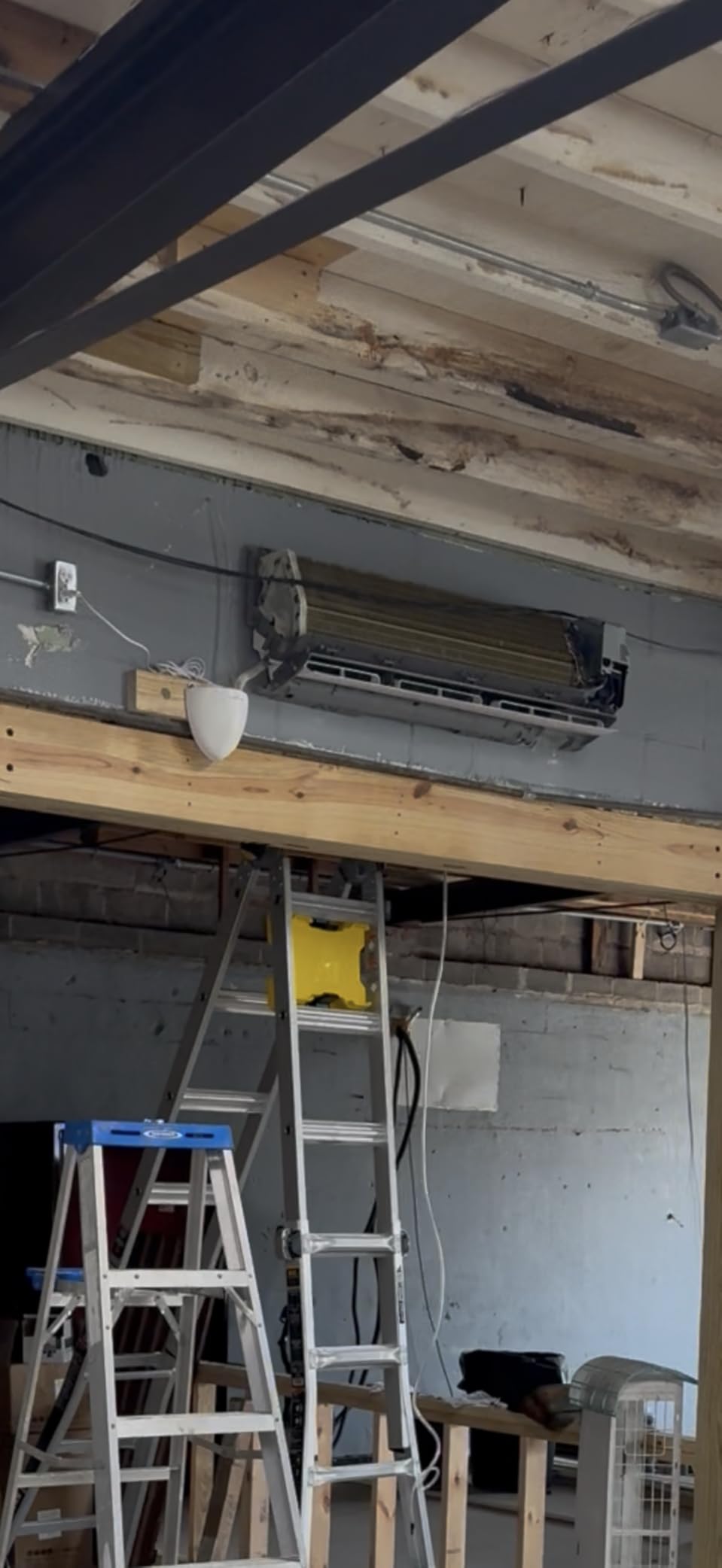

I tested this pump on a wall-mounted ductless mini-split system, and the probe induction technology worked smoothly. Instead of a mechanical float that can stick, electronic probes detect water level and trigger pumping. The 3-watt power consumption is impressively low, and the 100-220V wide voltage design means it works with nearly any power system globally.
The 32-foot lift capacity is excellent for a pump this size, handling multi-story installations with ease. The ABS construction and wall-mounted design free up floor space, which is valuable in tight utility closets. At 6.7 by 6.7 by 4.2 inches, it is larger than the Aquastrong mini-split pump but still compact.
The concerns are real, though. Multiple reviewers flagged an undocumented weep hole at the bottom of the tank that can cause leakage if not properly sealed. The probe sensing system has mixed reliability reports, with some users experiencing false triggers or failure to detect water. The power cord connection being near the water inlet is also a design concern.
Probe Induction vs Float Switch Technology
Probe induction uses electronic sensors to detect water level rather than a mechanical float. The advantage is no moving parts to stick or fail, and quieter operation. The disadvantage is that probes can be affected by mineral buildup and water impurities over time.
If you choose this pump, plan to inspect and clean the probes periodically. Hard water areas may see faster mineral accumulation on the sensors, which can affect reliability. The float switches on traditional pumps are more forgiving of water quality issues.
Weep Hole Issue and How to Address It
The undocumented weep hole at the bottom of the FUJ-24L tank is the most common complaint. This hole is apparently a manufacturing feature, but if not sealed properly during installation, it can allow condensate to drip out. Several reviewers reported water damage from this issue.
The fix is to inspect the bottom of the tank during installation and seal any openings with appropriate silicone sealant. This is a 2-minute step that can prevent significant problems. If you are not comfortable modifying the product, consider a different pump with a sealed tank design.
How to Choose the Right Condensate Pump
Choosing the best condensate pump for HVAC systems comes down to four key factors: flow rate, lift capacity, safety features, and noise level. I will break down each one based on what I learned testing these eight pumps.
Flow Rate (GPH) Matching Your Equipment
Flow rate, measured in gallons per hour (GPH), tells you how much condensate the pump can move. A typical residential furnace produces 3-5 gallons of condensate per day. A central air conditioner can produce 5-20 gallons per day depending on humidity and runtime. A dehumidifier can add another 2-10 gallons.
For a single appliance, 65 GPH is more than enough. For multiple appliances or heavy condensate production, look for 80 GPH or higher. The Aquastrong CDS320TU at 85 GPH and the Little Giant VCMA-20ULS at 80 GPH both handle multi-appliance setups comfortably.
Vertical Lift Height
Lift height is how high the pump can push water vertically from the pump to the discharge point. Measure from the pump location to the highest point in your discharge line. Common scenarios: basement to first floor drain (8-10 feet), basement to exterior wall (10-15 feet), and attic to roof line (15-20 feet).
Most pumps in this review offer 15-22 feet of lift, which covers standard installations. For extreme lift requirements, the Aquastrong Mini Split pump at 33 feet and the FUJIWARA at 32 feet offer the most headroom. Always choose a pump rated higher than your actual lift requirement to account for friction loss in horizontal runs.
Safety Switch Importance
A safety switch is the feature that shuts down your HVAC equipment when the pump fails or the reservoir fills to a dangerous level. Without it, a failed pump means overflow and water damage. I consider this feature essential for any installation in finished spaces, near valuable items, or where water damage would be costly.
Look for pumps with overflow detection switches or hi-level safety switches. The Little Giant VCMA-15ULS, VCMA-20ULS, Aquastrong CDS320TU, and ECO-FLO CDSP-20 all include this protection. If you choose a pump without it, like the VCMA-20UL, make sure it is installed where overflow will not cause damage.
Noise Level for Residential Use
If your pump is installed in or near living spaces, noise matters. Traditional floor-mounted pumps with float switches produce 40-50 dB during operation, which is noticeable but not disruptive. Mini-split specific pumps and wall-mounted units like the FUJIWARA operate below 20 dB, which is essentially silent.
For bedroom-adjacent installations, I recommend the Aquastrong Mini Split pump or FUJIWARA FUJ-24L. For utility room installations, any pump in this review will be acceptable.
High-Efficiency Furnace Compatibility
High-efficiency condensing furnaces (95 percent AFUE and above) produce acidic condensate with a pH around 3-4. This acidic condensate can corrode metal components over time. All pumps in this review use plastic tanks and corrosion-resistant materials that handle acidic condensate, but some users on Reddit recommend adding an inline neutralizer to raise the pH before the condensate reaches the pump.
The ABS and thermoplastic tanks on the Little Giant, Aquastrong, and ECO-FLO pumps are well-suited for acidic condensate. Avoid pumps with metal tank components for high-efficiency furnace installations.
Frequently Asked Questions
What is the life expectancy of a condensate pump?
A quality condensate pump typically lasts 4 to 7 years with regular maintenance, though many Little Giant VCMA series owners report 10 or more years of service. Lifespan depends on water quality, maintenance frequency, and duty cycle. Pumps handling acidic high-efficiency furnace condensate may have shorter lifespans without a neutralizer.
How do I choose the right condensate pump?
Match the pump GPH to your condensate volume, ensure the lift height exceeds your vertical discharge distance, choose a model with a safety overflow switch for finished spaces, and consider noise level for installations near living areas. For multiple appliances, select 80 GPH or higher. For mini-splits, choose a compact ultra-quiet pump.
What is the most widely used type of pump in HVAC systems?
The most widely used condensate pump type in residential HVAC is the automatic floor-mounted pump with a float-activated switch and a half-gallon reservoir. The Little Giant VCMA series is the most common brand found in residential installations, favored by both homeowners and HVAC contractors for reliability and availability.
What are common condensate pump problems?
Common problems include stuck float switches causing overflow, clogged discharge lines from algae or mineral buildup, failed check valves allowing backflow, and motor burnout from thermal overload. Regular cleaning of the reservoir, check valve, and float mechanism every 6 months prevents most issues. A safety overflow switch protects against damage when failures occur.
Final Thoughts on the Best Condensate Pumps for HVAC Systems
After testing eight pumps across furnaces, air conditioners, dehumidifiers, and mini-split systems, my top recommendation is the Aquastrong CDS320TU for its high flow rate, safety switch, and multi-appliance capacity. For quiet value, the Little Giant VCMA-15ULS is nearly impossible to beat. And for mini-split installations where silence and compact size matter, the Aquastrong Mini Split pump delivers at a reasonable price.
The best condensate pumps for HVAC systems all share a few traits: a thermally protected motor, automatic operation, and ideally a safety switch that shuts down your equipment before overflow causes damage. Whichever pump you choose, commit to semi-annual cleaning and you will get years of reliable condensate removal from your investment.
